1113 Sq Ft Southern Heat Exchanger (SHE) Stainless Steel Shell & Tube Heat Exchanger

1113 Sq Ft Southern Heat Exchanger (SHE) Stainless Steel Shell & Tube Heat Exchanger
Other Views - click image for larger view
1113 Sq Ft Southern Heat Exchanger (SHE) Stainless Steel Shell & Tube Heat Exchanger 1113 Sq Ft Southern Heat Exchanger (SHE) Stainless Steel Shell & Tube Heat Exchanger 1113 Sq Ft Southern Heat Exchanger (SHE) Stainless Steel Shell & Tube Heat Exchanger 1113 Sq Ft Southern Heat Exchanger (SHE) Stainless Steel Shell & Tube Heat Exchanger
STOCK# 15863
Capacity 1113 Sq Ft
Description

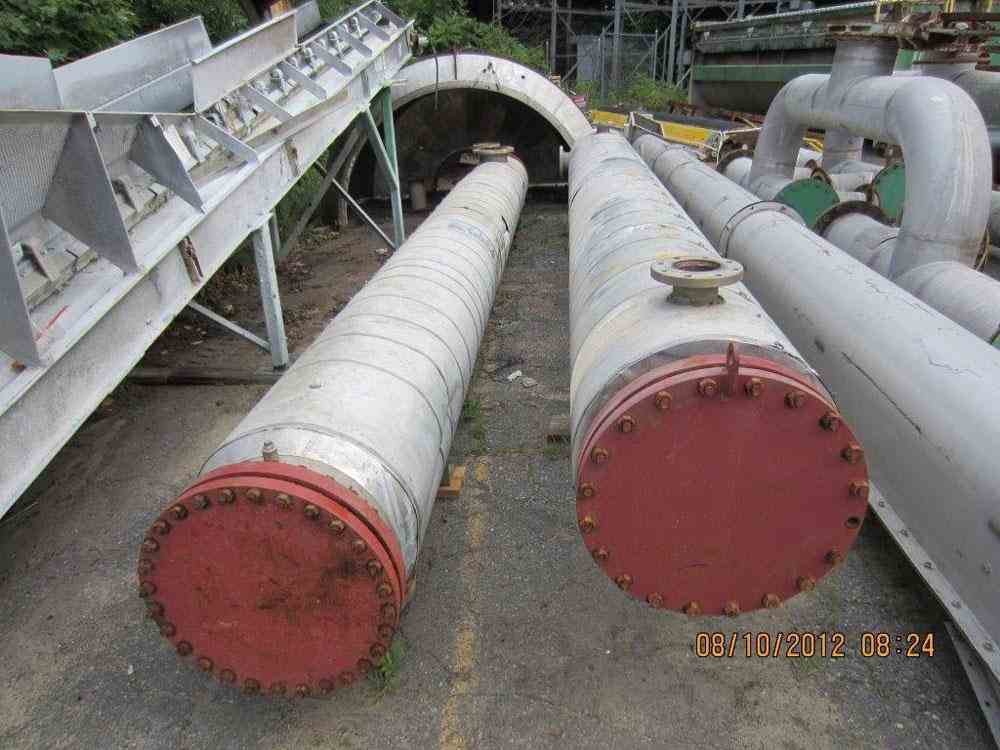

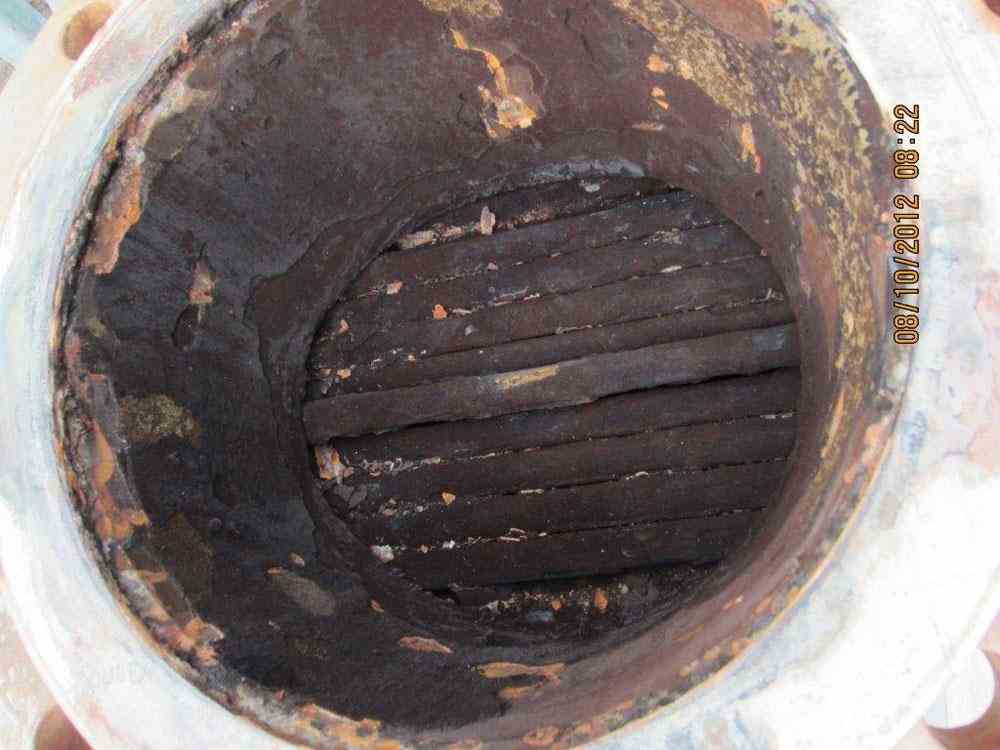

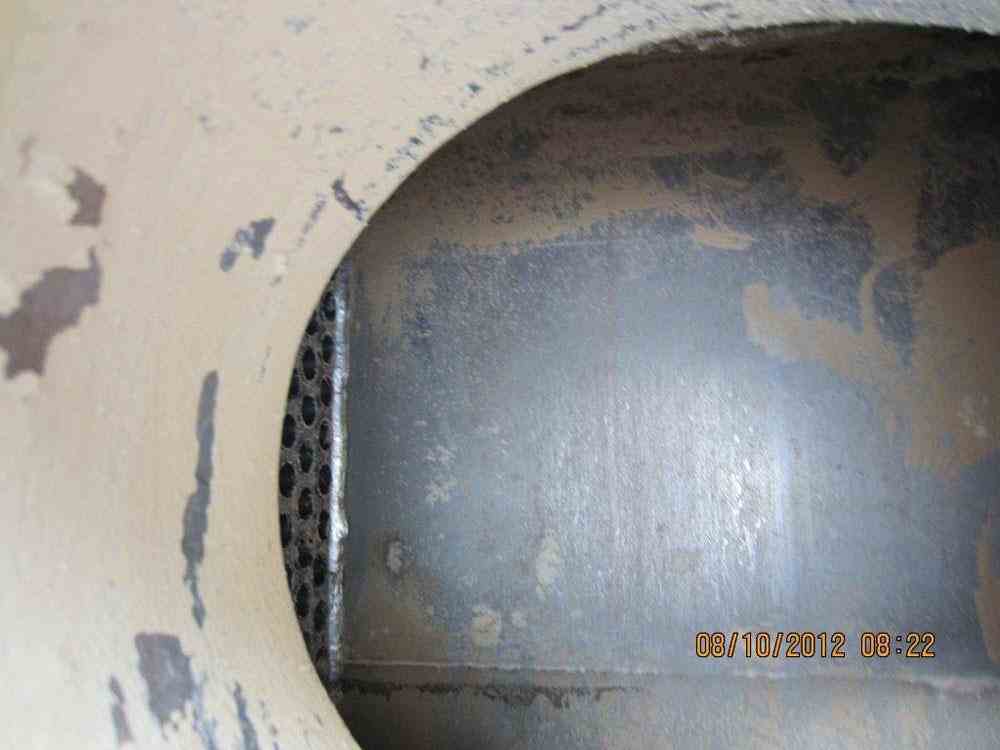

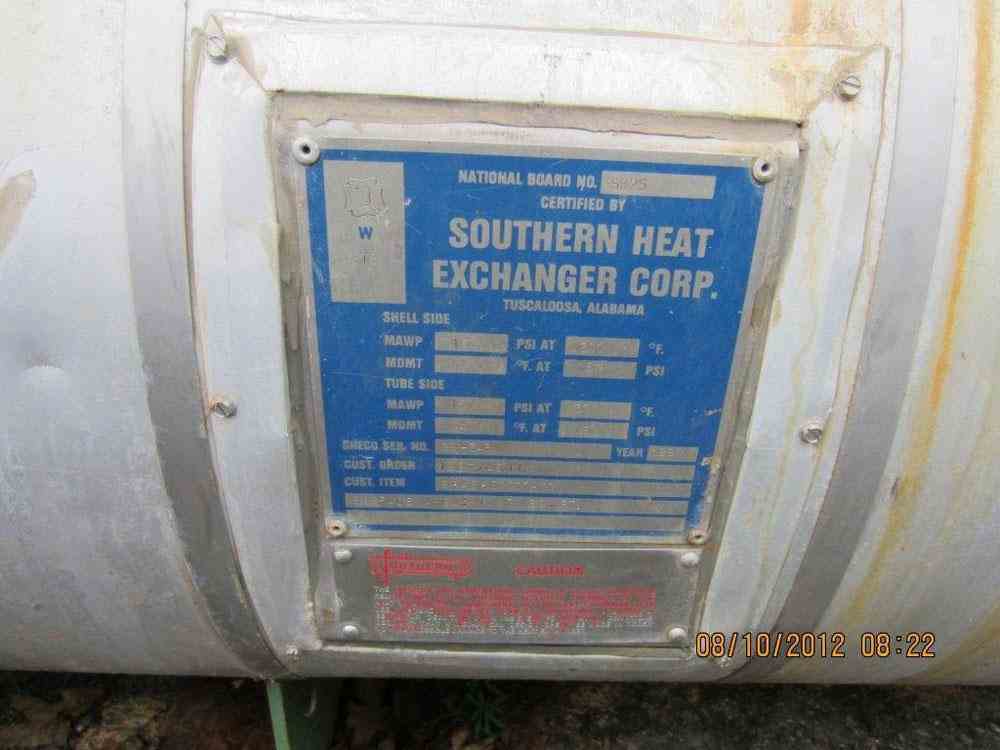

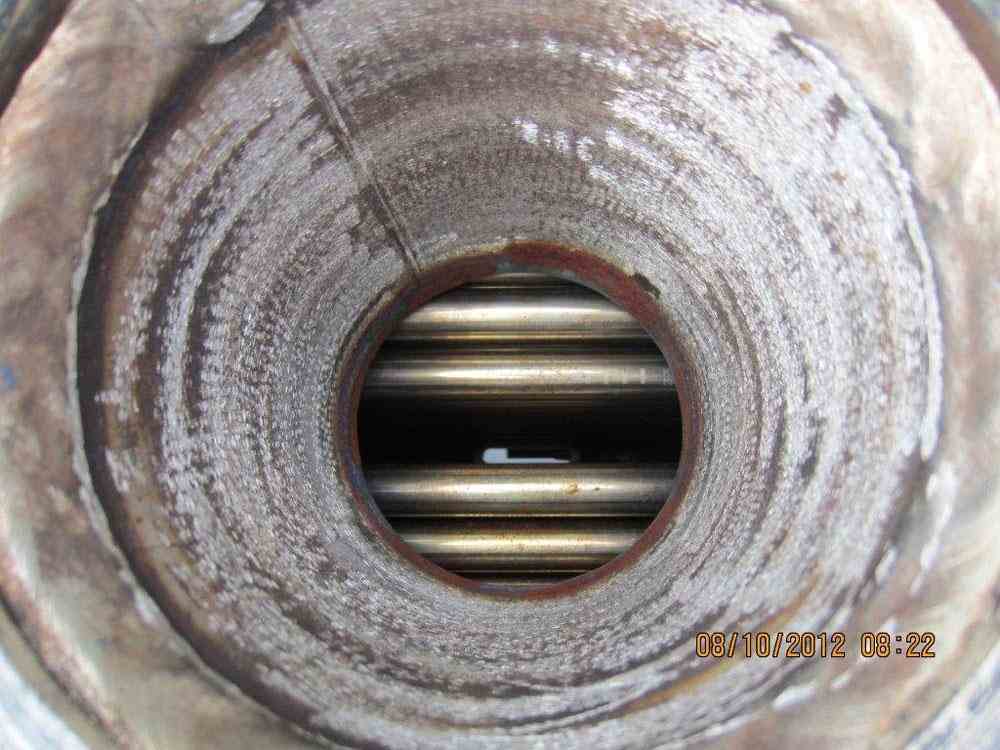

Used 1113 Sq Ft Southern Heat Exchanger Horizontal Shell & Tube Heat Exchanger. 316L Stainless steel shell rated 150 psi at 300 degrees F. (284) 3/4” diameter x 20’ long 316L stainless steel tubes rated 150 psi at 300 degrees F. Carbon steel ends lined with 316L stainless steel, 316L tube sheets. Openings for tubes (2) 6”, shell (2) 10”. Mounted on saddles. Serial #89-345. National Board #5825. Year 1990.

Specifications
Manufacturer Southern Heat Exchanger (SHE)
Model# NA
Material 316L SS
Capacity 1113 Sq Ft
