Industrial Fermenters and Bioreactors for Sale

Unused 4900L (3200L working volume) 316L Stainless Steel Bioreactor Production plant for cell-based products. Manufactured by BioEngineering. Includes (1) 300L (200L Working volume) Seed bioreactor. Operating temp 5°C to 135°C (design 150°C). Operating overpressure 2.5 barg. Jacket/coils rated 6 barg / -1 barg. EPDM seals. CIP Sprayball equipped. flat lid and dished bottom, insulated jacket, agitator, inlet and outlet air systems with sterile filters, feeds and transfer piping with sterile valve arrangements and couplings, sterilizable in situ, full and empty. (2) 800L (500L Working volume) Seed bioreactors. Operating temp 5°C to 135°C (design 150°C). Operating overpressure 2.5 barg. Jacket/coils rated 6 barg / -1 barg. EPDM seals. CIP Sprayball equipped. Removable dished lid and dished bottom, insulated jacket, agitator, inlet and outlet air systems with sterile filters, feeds and transfer piping with sterile valve arrangements and couplings, sterilizable in situ, full and empty. (1) 3000L (2000L working volume) Production bioreactor. Operating temp 5°C to 135°C (design 150°C). Operating overpressure 2.5 barg. Jacket/coils rated 6 barg / -1 barg. EPDM seals. CIP Sprayball equipped. dished lid and dished bottom, insulated jacket, agitator, inlet and outlet air systems with sterile filters, feeds and transfer piping with sterile valve arrangements and couplings, sterilizable in situ, full and empty. Pressure vessel geometry D:H: 1:2. All vessels skid-mounted modular units (stand-alone systems) with hose connections for flexibility. BioSCADA advanced process control system with (4) HMI operator systems, Siemens PLCs, and monitoring computers and software.

Used 600 gallon (2300 liter) Sanitary Stainless Steel fermenter. Manufactured by Solinox. Tank rated ATM@220F. (4) Leg mounted. Agitated. Serial #J3216-1. Built 2016. (5 available)

Used 250L Stainless Steel Single Use Bioreactor. Manufactured by Thermo Scientific. Model HyClone. Open top, flat bottom shell. 24" diameter x 36" straight side. Dimple Jacket. Operating Temperature Range: Ambient to 104F. 0.5psi Bag Pressure. Includes AB Series A Drive, Brother 3 phase induction motor, 1/4hp 3/60/208-230/460v 1720rpm, 12.5:1 Ratio. Mounted on Stainless Steel Frame. Serial# H10289-02.

Unused 200 liter (Approx. 50 gallons) Working Volume Precision Stainless Stainless Steel Bioreactor Vessel. Internal rated 50PSI/FV @ 350 deg F. Jacket rated 100PSI/FV @ 350 deg F.Interior 12-15Ra, mirror; Exterior ground & polished; 4-baffles; Centered mixer port. (Vessel only - No Agitator)

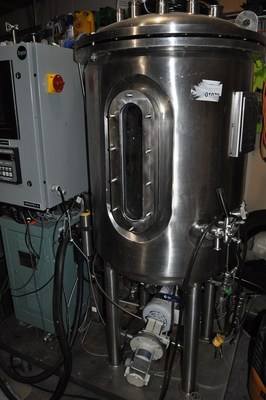

Used 180L (47 gal) jacketed 316 stainless steel bioreactor. Manufactured by Inox. Internal MAWP 30 PSI@265F. Jacket MAWP 90PSI @300F. Bottom magnetic agitator (Impeller assembly not available). Gear reduction 1/6HP motor, steam generator and digital control. Pakar PLC control system.(2) centrifugal pumps. Rupture disk. (4) Leg mounted. Serial #4217-02. CRN OH1046-6. Built 1996.

Used Approx 45 Gal Mueller Fermentation system with Marubishi co. Ltd. controls. System includes twin Mueller 90 liter fermenters, 316 polished stainless steel tanks, each rated 50 PSI/FV internal @ 137 deg. C. Internal, jacket for 50 PSI @ 137 deg. C., equipped with 5 HP V-belt top agitator drives. System includes all inter-connecting piping, pumps, prefilters and main control panel. New in 1988. Excellent condition.

Used LSL Biolafitte SA 25 gallon 316 stainless steel bioreactor/ fermenter for cell culture. Model 110L. jacketed rated for 43.5 PSI, manufactured in 1988. Unit measures 20" diameter x 36" straight side, includes 10 hp, 230/460 volt, 1740 rpm mixer with (3) 6" propellers. Unit has internal baffles 2" x 32", 6" diameter top glass manhole, unitized on stainless steel frame. Serial number C1399 01. Built 1988.

Unused Alfa Laval Fermenter / Reactor, Approximate 30 Liter, Stainless Steel, Vertical. Internal rated 45 PSI/FV at -20 to 400 degree F. Jacket rated 150 psi/FV at -20 to 400 degree F. Bottom entering agitation 1/2hp drive, missing agitator. (1) Spray ball. Side lug mounted with load cells. National Board #264. Serial #786-100/17. Built 2004. Includes control panel with Wedgewood technology model 653 absorbance monitor, Mettler toledo Jag xtreme digital read out, (4) metering valves. All mounted on stainless steel frame.

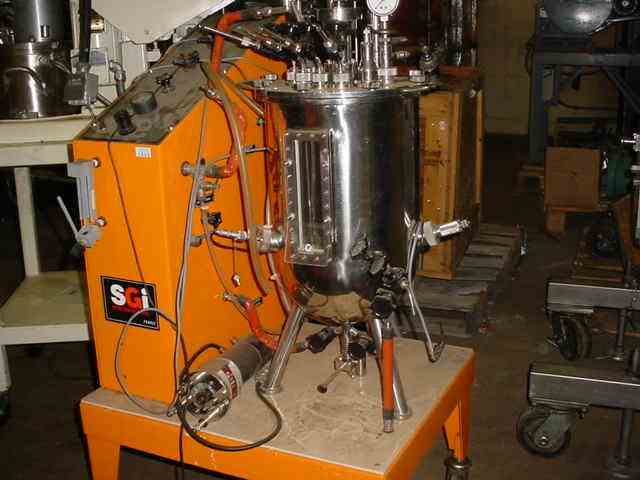

Used SGI Bio Reactor Type SET20CI. Approximately 12" diameter X 12" straight side. Approximately 20 liters / 6 gallons. T316 Stainless steel contacts. Polished. Internal rated 300 Kpa (45 Psi) @ 130 degrees C. Jacket rated 400 Kpa (60 psi) @ 130 degrees C. Serial number 5942. NB 4737. It has (11) 1" openings on top; (3) 1" & (1) 1/2" opening on side & it looks to be about a 1" opening on bottom. The overall dimensions 24" w x 30" deep x 54" high.

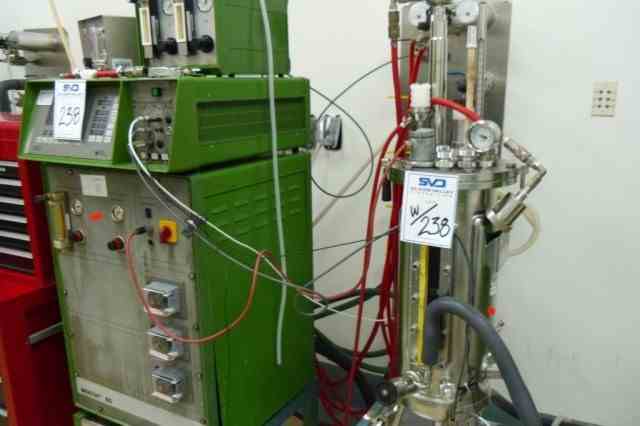

Used B Braun Model ES10 Biostat fermenter. Capacity 15 liters. Internal pressure rating -1 / +3 bar @ 150 degrees C. Jacket pressure rating -1 / +4 bar @ 150 degrees C. Jacket capacity 2.5 liters. .75 kw motor, under-drive agitator. Built new 1990. Serial number 469. Includes some piping, controls, corrective agent pump, membrane filter, temp. sensor and gauges. Biostat ED Controller. (Qty - 2 available)

Used 10 liter New Brunswick Fermenter, model BioFlo 3000, 316 stainless steel construction, 8.5" diameter x 14" straight side, flat bolt on top, dish bottom, 14 liter total capacity, 10 liter max working capacity, 3 liter min working capacity, temperature range from 5 C above coolant temp to 80 C, +/- .1 C or +4 C to 80 C, two tier six blade paddle agitator, sparger ring, harvest tube, RTD sensor tube, provision for pH and DO monitoring, top mounted jacketed dust filter, 4 baffles, bottom stainless steel water jacket, (5) peristaltic pumps with PLC controls, 120 volt, mfg# m1227-1013, serial# 000787978, new 2000

Used 10 liter New Brunswick fermentor, model BioFlo 3000, 316 stainless steel construction, 8.5" diameter x 14" straight side, flat bolt on top, dish bottom, 14 liter total capacity, 10 liter max working capacity, 3 liter min working capacity, temperature range from 5 C above coolant temp to 80 C, +/- .1 C or +4 C to 80 C, Magmotor agitator drive with two tier six blade paddle agitator, sparger ring, harvest tube, RTD sensor tube, provision for pH and DO monitoring, top mounted jacekted dust filter, 4 baffles, bottom stainless steel water jacket, (5) peristalic pumps with PLC controls, 120 volt, mfg# m1227-1013, serial# 101129337, new 2001

Used New Brunswick AFS Biocommand Interface. Model #M1218-0101. 120AC/DC. 10 VA. Includes cables and wires. Serial #000134702
