Evaporators for Sale

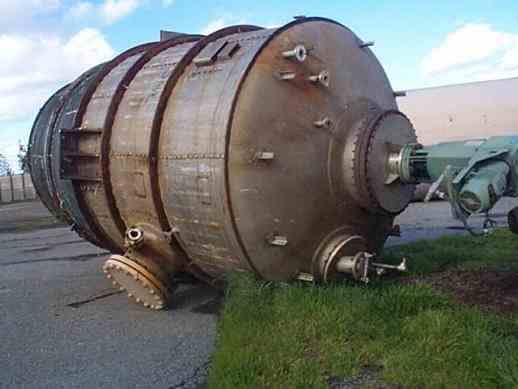

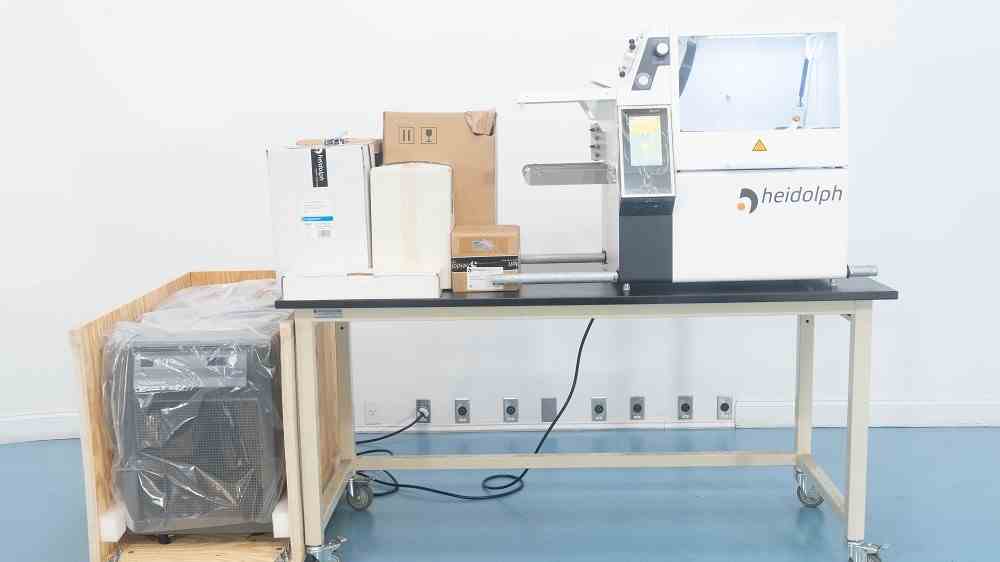

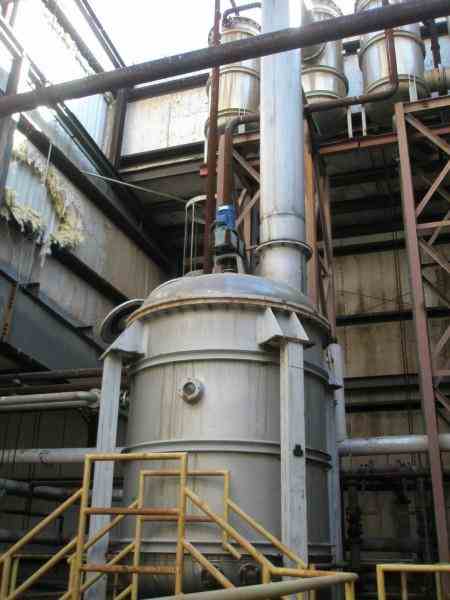

Phoenix Equipment is a global buyer and seller of unused, used, and reconditioned Evaporators, including Crystallizer Evaporators, Rotavap Evaporators, Tube Type-Rising Film Evaporators, and Wiped-Thin Film Evaporators.

Evaporators are used for concentrating a material or solution by separating the unwanted vapor from the solution. A heat exchanger is used to heat the process solution or material so the vapor can then be separated and removed by what is called the vapor separator. The applied heat converts the water in the solution into vapor. The vapor is removed from the rest of the solution and is condensed while the now-concentrated solution is either fed into a second evaporator or is removed. Generally the evaporator has four sections: the heating section which contains the heating medium; the concentrating and separating section removes the vapor being produced from the solution; and the condenser condenses the vapor, then the vacuum or pump provides pressure to increase the circulation. Evaporator performance is rated by Lbs per hour or Kg per hour of evaporation. The greatest increase in steam economy is achieved by reusing the vaporized solvent with what is called a Multiple Effect Evaporator. The multiple effect evaporator uses the vapor from one effect as the heating medium for another effect in which boiling takes place at a lower temperature and pressure. Another method of increasing the utilization of energy is to use a Thermo Compression evaporator, in which the vapor is compressed so that it will condense at a temperature high enough to permit its use as the heating medium in the same evaporator. This type is also called a MVR or mechanical vapor recompression.

Featured Equipment for Sale
218-sq-ft-technoforce-solutions-304-stainless-steel-wiped-thin-film-evaporator
218 Sq Ft Technoforce Solutions 304 Stainless Steel Wiped / Thin Film Evaporator
Stock# 21036 Capacity 218 Sq Ft

Used 218 sq. ft. 304 Stainless Steel Short-Path Distillation Unit (SPDU). Manufactured by Technoforce Solutions. 20 Sq M capacity. Rated 22PSIG/FV@572F. Design capacity 40GPM Wax. (2) 82 Sq Ft 304 SS Wiped Film jacketed evaporator rated 22PSIG/FV@572F. Includes overhead vent system (condensers, Roots blowers and dry vacuum pumps). Major equipment list: Plant #US-01-861-V-0002: 7.5 Sq M Thin Film Evaporator, Manufactured by Technoforce Solutions in 2015. 304L Stainless Steel Shell and Rotor Material, Carbon Steel Jacket Material, 22FV @ 572 F. Shell Rating, 51 psi @ 300 F. Coil Rating, 58 psi @ 500 F. jacket rating, jacketed bottom cone, Serial Number 14-83-05. Use: ATFE service. Plant # US-01-861-V-0014: Short Path Distillation Evaporator #1 Service, Short Path Evaporator, Manufactured by Technoforce Solutions in 2015, 20 sq. meters capacity, 51" diameter x 17'2" T/T, 304 Stainless Steel Shell material, Carbon Steel Jacket material. 22FV @ 572 F. Shell rating, 72 psi @ 318 F. Coil rating, 87 psi @ 572 deg. F. Jacket rating, Serial Number 14-83-06. NB #125. Estimated Weight 10,000 lbs. Plant #US-01-861-V-0015: Short Path Distillation Evaporator #2 Service, Short Path Evaporator. Manufactured by Technoforce Solutions in 2014. 20 sq. meters capacity, 51" diameter x 17'2" T/T, 304 Stainless Steel Shell material, Carbon Steel Jacket material, 22FV @ 572 F. Shell rating, 72 psi @ 318 deg. F Coil rating, 87 psi @ 572F. Jacket rating, Estimated weight 10,000 lbs. (2) Two wiped Film Evaporator Feed Pumps, 5 hp, 1715 rpm, 40 gpm at 62 psig and 392 F. (1) One Flash Separator, 1' diameter x 3.3' tall, constructed of 304 Stainless Steel, rated for 22 psig/full vacuum at 420 F. (1) Wiped Film Evaporator Condenser, 65 sq. ft., constructed of 304 Stainless Steel shell and tubes, rated for 22 psig/full vacuum at 300 F. on the shell side and 87 psig at 250 deg. F on the tube side. (2) Wiped Film Evaporator Concentrate pumps, 2 hp, 1715 rpm, 31 gpm at 66 psig and 392 deg. F. (4) SPDU #1 & #2 Distillate Pumps, 3/4 hp, 1715 rpm, 11 gpm at 60 psig and 250 F. (4) SPDU #1 & #2 Concentrate Pumps, 2 hp, 1715 rpm, 31 gpm at 66 psig and 392 F.

Buying and Selling Unused, Used and Reconditioned Evaporators

Phoenix Equipment buys and sells evaporators and evaporating equipment from manufacturers including APV, Artisan, Astro Metallurgical, Balfour, Blaw Knox, Buchi, Buss, Cherry-Burrell, Fritz Voltz, Gaston, GEA Niro, Groen, Gulf Machinery, Kleiser, LCI, Led Italia, Luwa-Buss, Luwa, Niro, Pfaudler, Pitton Gessner, Pope Scientific, Roben, Rossi Catelli, Swenson, WSF Industries and many more!
