Fin fan heat exchangers don't fail dramatically. They degrade. Outlet temperatures creep up over successive summers. Tube wall thickness readings trend downward on inspection reports. Fan motors run harder to hold the same process conditions they once managed easily. By the time operations teams flag the unit as a problem, it has usually been underperforming for months.
For operations directors managing aging cooling infrastructure, the decision to repair or replace a fin fan is one of the more consequential calls in the maintenance planning cycle. Get it wrong in either direction and the cost follows quickly. This article covers the warning signs that point toward replacement, the key variables for selecting the right replacement unit, and whysourcing from existing inventoryis worth evaluating before committing to a new fabrication order.
Warning Signs That Repair Is No Longer the Right Answer
Some fin fan problems respond well to maintenance. Fan blade replacement, tube cleaning, and louver adjustment can restore performance on a unit that still has serviceable life. But certain conditions point clearly toward replacement.
Tube wall loss beyond code minimums.
Ultrasonic thickness surveys that show widespread wall loss across multiple rows signal the end of the bundle's service life. Re-tubing is an option for some configurations, but for heavily corroded bundles the cost of re-tubing often approaches the cost of a new unit. Get a replacement cost estimate before committing to a re-tube.
Persistent temperature excursions despite maintenance.
A unit that cannot hold outlet temperature during peak summer conditions, even with fans at full speed and tubes recently cleaned, has lost heat transfer surface to corrosion or was undersized for current heat loads. Neither problem is solved by further maintenance.
Header box corrosion in aggressive services.
Minor cracks in header boxes can be repaired. Widespread corrosion, particularly in amine or other corrosive services, typically warrants full replacement. Repair welding on a heavily corroded header creates a patchwork that carries its own risk of future failure at the worst possible time.
Drive system components beyond economic repair.
On older units, spare parts availability becomes a constraint as manufacturers discontinue components for legacy designs. When sourcing and installing replacement drive components costs 40 to 50 percent of a new unit, the replacement case becomes straightforward.
Key Variables for Selecting the Right Replacement Unit
Replacement is also an opportunity to right-size for current heat loads rather than the load the original unit was designed for. If your process has expanded since the original unit was installed, a properly specified replacement eliminates a performance bottleneck at the same time it solves the maintenance problem.
Five variables drive the selection:
- Heat duty (MMBTU/hr): the starting point for every selection. Undersizing creates process control problems. Oversizing adds unnecessary capital cost and footprint.
- Design pressure and temperature: stamped at fabrication and not changeable in the field. Always verify that ratings exceed worst-case operating conditions including upsets.
- Metallurgy: carbon steel handles most hydrocarbon, steam, and water services. Stainless steel is required for amine service and other corrosive applications where carbon steel headers and tubes degrade prematurely.
- Tube length and bundle configuration: tube length determines footprint and structural span. Bundle configuration (rows and passes) affects heat transfer and pressure drop. Match to your plot plan dimensions and process hydraulics.
- Fan horsepower: determines the electrical load the unit places on the facility. Confirm site power availability before finalizing selection, particularly for larger units running two fans at 25 to 30 HP each.
New Fabrication vs. Existing Inventory
New fin fan fabrication lead times from major manufacturers typically run four to nine months for standard units and longer for custom configurations. For a planned turnaround replacement with early procurement, that timeline is manageable. For an unplanned failure mid-campaign, it is not.
Fin fans sourced from a cancelled project for example, and preserved under nitrogen purge, carry none of the operating history risk of conventional used equipment. Unused or like new units, built to current code, available on a compressed timeline and typically offer a meaningful discount to new fabrication cost
The requirement is specification matching. Duty, pressure rating, temperature rating, metallurgy, tube length, and nozzle configuration all need to align with the replacement application. For applications where an exact match is not available, engineering modifications at installation can sometimes close the gap. That analysis needs to happen before purchase.
Fin Fan Inventory at Phoenix Equipment

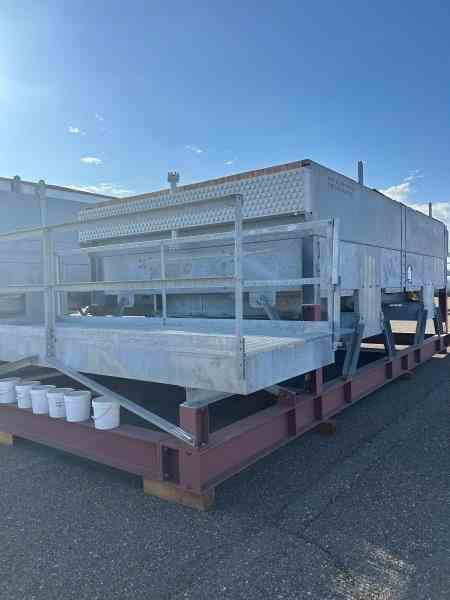

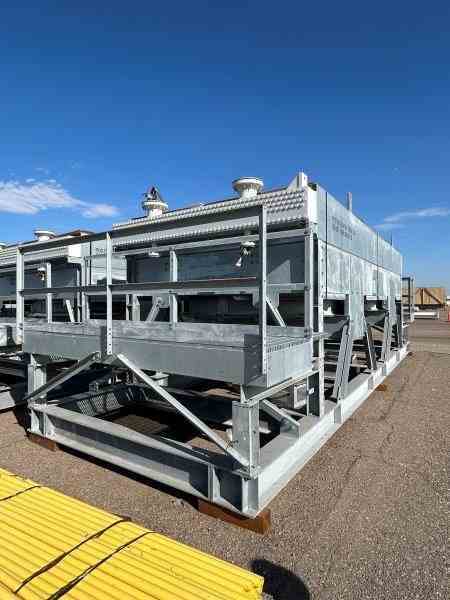

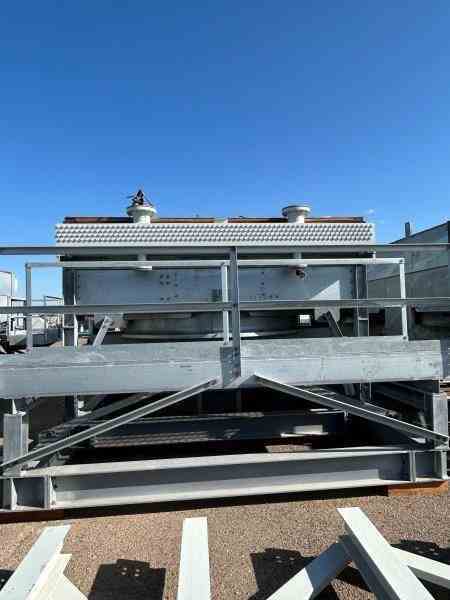

Phoenix Equipment currently holds20 unused fin fan heat exchangers, all built in 2023 or 2024 and preserved under nitrogen purge. All units were fabricated for a major project that did not proceed to installation and are available for immediate sale and relocation.
Available specifications cover:
- Extended surface area: 1,632 to 86,425 sq ft
- Design duty: 0.094 to 51.9 MMBTU/hr
- Design pressure: 50 to 1,100 PSI
- Design temperature: 300°F to 675°F
- Material: Carbon steel and 316L stainless steel construction
- Tube lengths: 5.5 to 30 feet
- Manufacturers: Fabsco and Kelvion
- Applications: overhead condensers, product coolers, steam condensers, amine service, isomerization effluent cooling
Contact Phoenix Equipment to review specifications and request a quote:
