Paraxylene Plant - 350,000 TPY
Other Views - click image for larger view

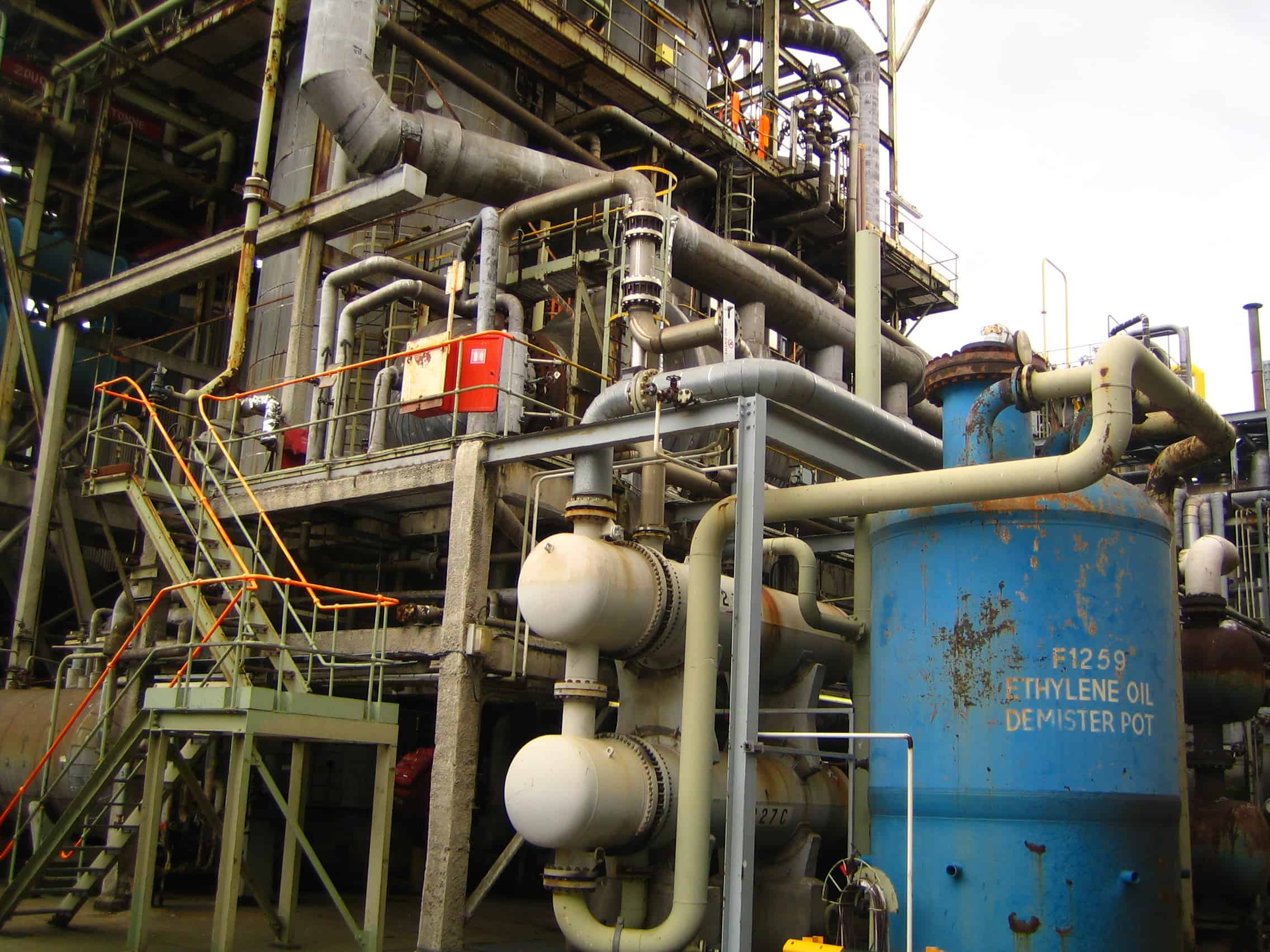

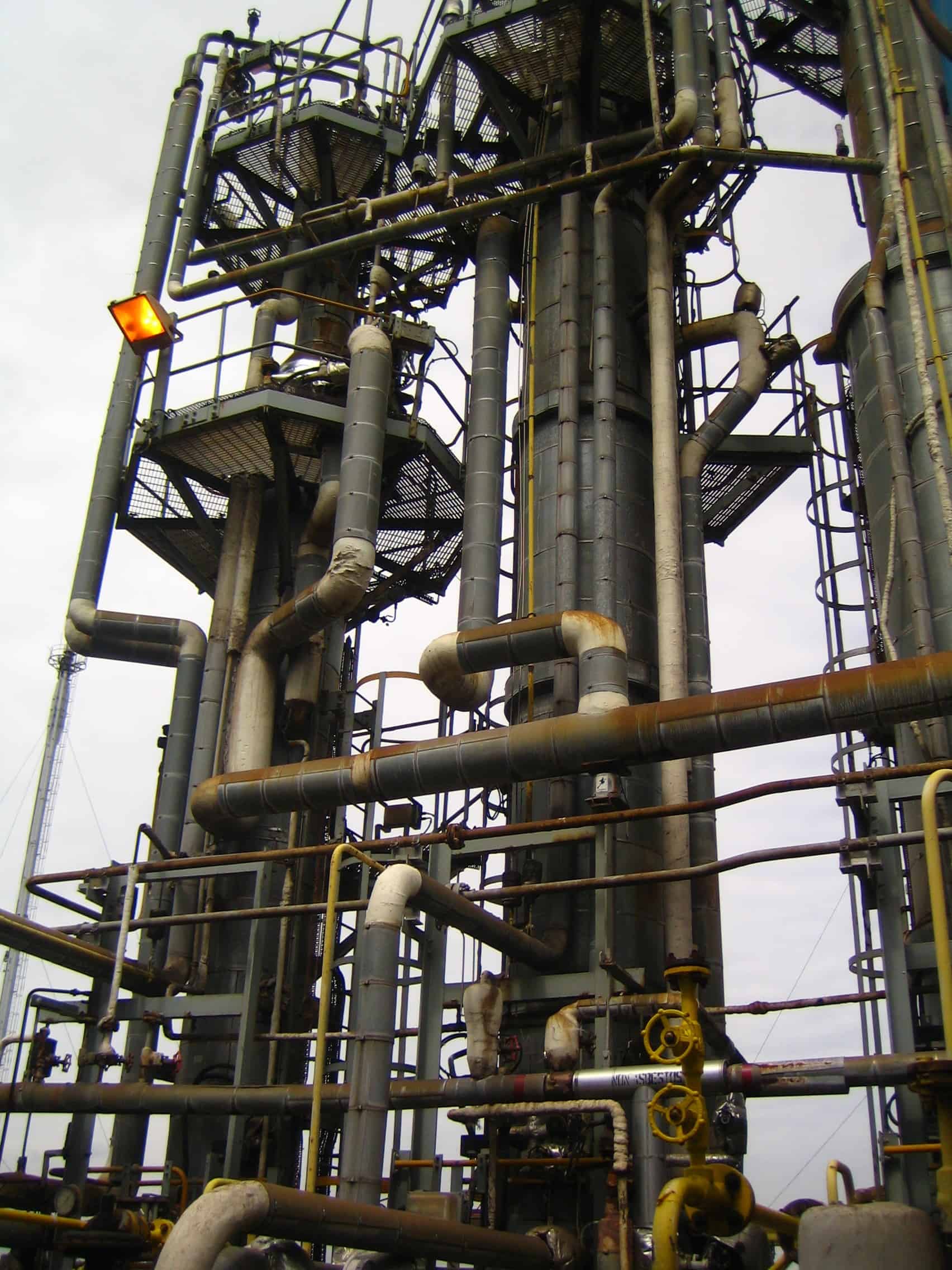

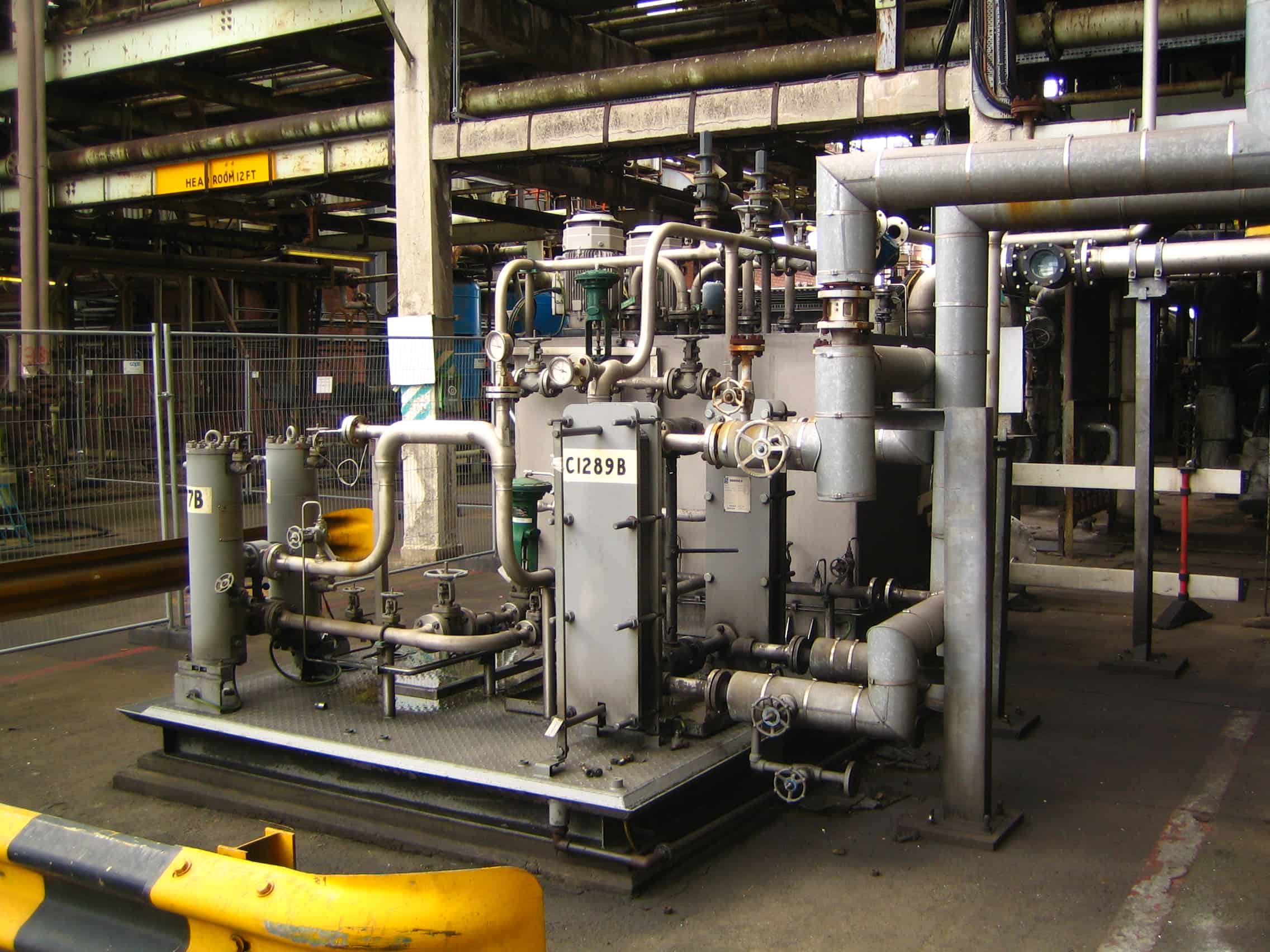

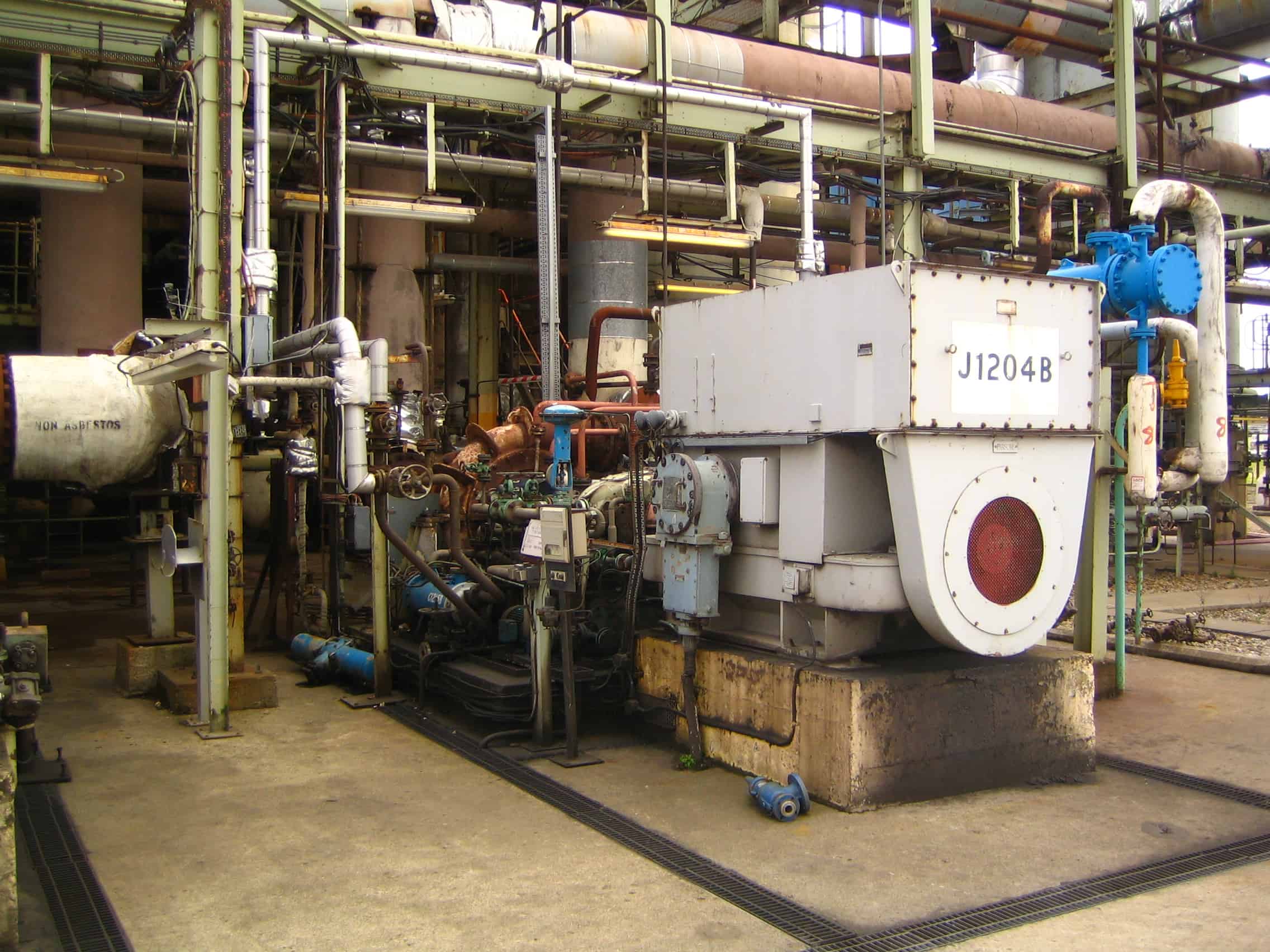

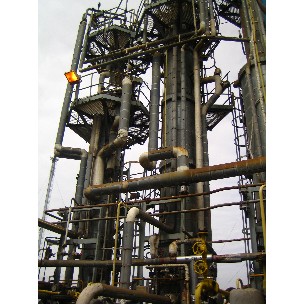

Paraxylene Plant - 350,000 TPY Paraxylene Plant - 350,000 TPY Paraxylene Plant - 350,000 TPY Paraxylene Plant - 350,000 TPY
Stock # 255
Capacity 350,000 TPY
Products Paraxylene
Sold

Overview

Used 350,000 TPY Paraxylene Plant built in 1969. The plant uses xylene isomerisation reaction process and crystallisation separation technology. This complete plant produces high purity Paraxylene at approximately 1000 te/day. The process converts mixed xylenes into paraxylene, and recovers high purity paraxylene using crystallisation technology to separate paraxylene from the other xylene isomers (ortho and meta-xylene) and ethyl benzene. Following its shutdown the plant has undergone a full decommissioning and decontamination process.

Major Equipment

1. Isomerisation Pre-Heat Train and Reactors - Isomerisation feed tank, pumps, heaters, tops heater, steam heaters, preheaters, vaporisers, KO pots. - Isom Superheaters - Isom furnaces - Isomerisation Reactors 2. Isomerisation Tailing and Topping Stills - Tailing Still Columns, Condensers, Reflux Drums, Reboilers, Heaters, Coolers - Off Gas System 3. Crystallization Pre-Cool Train - Crystallisation Feed Tank - Freezer Feed Cooler - Heater, coolers, heat exchangers 4. Crystallisation - Slurry tanks - Scraped surface chillers - Filter system 5. Purification Section - Purification Feed Tank - Scraped Surface Chillers - Centrifugies.
Share
Download Plant Brochure |
SPECIFICATIONS RESOURCES
Year Built
1969
Year Shut
2008
Capacity
350,000 TPY
