Used Oxygen Analyzer, Panmetric Oxygen Analyzer Sample System, Serial #14336

Used Oxygen Analyzer, Panometrics Oxygen Analyzer Sample System, Serial #14337

Used NTRON a Neutronics Company Inerting Control System (ICS) Cart System and Oxygen Analyzer System, Explosion Proof. The ICS is a closed loop system that continuously measures oxygen, adding inert gas only when necessary to maintain a safe, inert atmosphere. The ICS can save up to 60% in inert gas usage and result in less emissions (Volatile Organic Compounds - VOC's) that need to be vented, scrubbed or incinerated. The NTRON ICS cart consists of two subassemblies: The ICS Analyzer and the Sample Conditioning Package mounted together on a wheeled cart. Together they make the only complete Inerting Control System for controlling oxygen levels in process environments.

Used 30 liter Ace Glass Inc. pilot glass reactor. Approximately 300 mm diamenter x 590mm deep. Dome glass top head openings: (1) center 45/50mm, (4) 45/50mm, (2) 29/42mm necks/nozzles. Equipped with a (2) tier (4) pitch blade PTFE propellers on 1" diameter shaft. Driven by a Dayton Permanent Magnet DC reversible motor, model 2M168D, 1/2 HP, 1725 RPM, 90 Volt, with 30' cord/plug. Bottom outlet has a flush seal drain valve. Unit is Mounted on portable frame. NOTE: Top Head center nozzle is broken.

Fairbanks Scales, Quicksilver IS, 2-100 KG

Neutronics, portable, oxygen analyzer

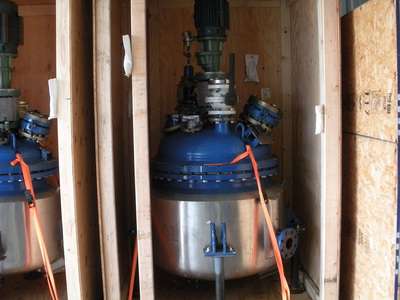

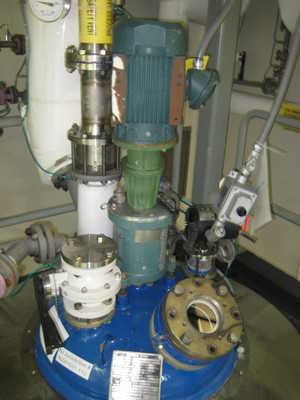

Used 75 gallon DeDietrich Glass Lined Reactor, rated 100 psi and full vacuum at 500 F internal, jacket rated 150 psi and full vacuum at 500 F. Type 3009 Blue Glass. Bolted top. 304 Stainless Steel sheathing. Lug mounted. CTJ 100 drive assembly with single speed lenze, gas purge double acting mechanical seal, center mount. Motor - 3 hp, 3 phase, 60 hertz, 460 volt, 1750 RPM. Baffle – Beavertail we DR-Tip. Agitator – (3) blade retreat curve impeller. 6” handhole; (2) 4” inlet/outlet; 2.5” inlet/outlet; 3” inlet/outlet; (2) 2” inlet/outlet; 3” center bottom outlet. Serial #36302, National Board # 7115, Built 1999.

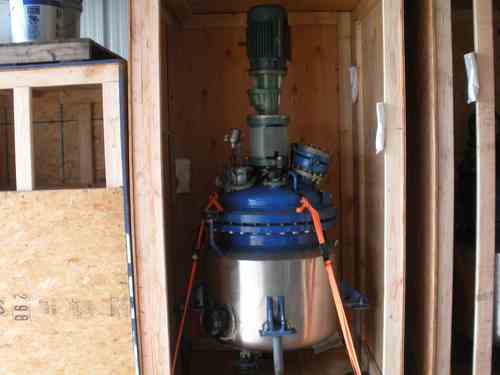

Used 50 gallon DeDietrich Glass Lined Reactor, rated 100 psi and full vacuum at 500 F internal, jacket rated 150 psi and full vacuum at 500 F. Type 3009 Blue Glass. Bolted top. 304 Stainless Steel sheathing. Lug mounted. CTJ drive assembly with single speed lenze, gas purge double acting mechanical seal, center mount. Motor - 2 hp, 3 phase, 60 hertz, 460 volt, 1750 RPM. Agitator – (3) blade retreat curve impeller. 4” handhole; 3” inlet/outlet; (3) 2” inlet/outlet; (2) 1.5” inlet/outlet; 3” center bottom outlet. Serial #36303, National Board # 7116, Built 1999.

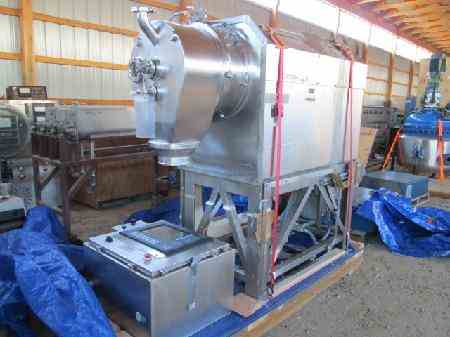

Used Heinkel Inverting Filter Centrifuge, Model HF300.1, Hastelloy C-22 construction, 300 mm (12") bowl diameter, 6.6 liter bowl capacity, .1 sq meter surface area. Built 1993, S/N: 1044-12.

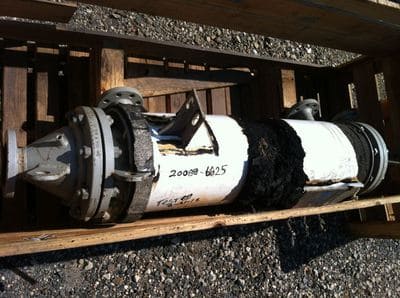

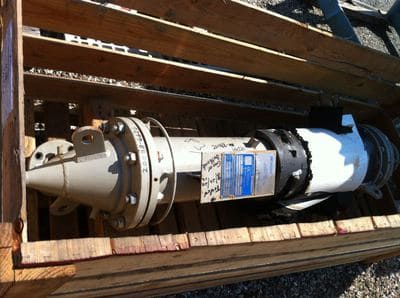

Used 25 Sq. Ft. Tantalum Condenser. Shell rated 150psi and full vacuum, tubes rated 150 psi and full vacuum. Type BEM-8-1-48. 70 3/8" OAL. Expansion joint. (32) 3/4" tubes, 0.015" thick, (tantalum 2.5% w). (1) 3" vapor inlet, (1) 2" vapor outlet; (1) 2" x 4" coolant inlet; (1) 2" coolant outlet; (1) 1" liquid drain. Serial #67738, National Board # 933, Built 1999. Previous Use: API Pilot Plant

Used 25 Sq. Ft. Tantalum Condenser. Shell rated 150psi and full vacuum, tubes rated 150 psi and full vacuum. Type BEM-8-1-48. 70 3/8" OAL. Expansion joint. (32) 3/4" tubes, 0.015" thick, (tantalum 2.5% w). (1) 3" vapor inlet, (1) 3" vapor outlet; (1) 1.5" x 3" coolant inlet; (1) 1.5" coolant outlet; (1) 1" liquid drain. Serial #67739, National Board # TBD, Built 1999. Previous Use: API Pilot Plant

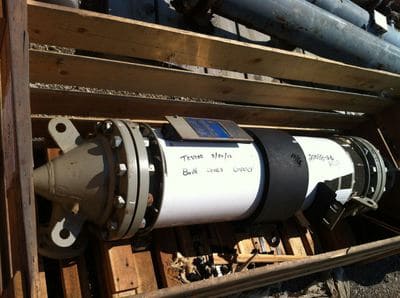

Used 35 Sq. Ft. Tantalum Condenser. Shell rated 150psi and full vacuum, tubes rated 150 psi and full vacuum. Type BEM 10-1-48. 72 1/8" OAL. Expansion joint. (45) 3/4" tubes, 0.015" thick, (tantalum 2.5% w). (1) 4" vapor inlet, (1) 3" vapor outlet; (1) 1.5" x 3" coolant inlet; (1) 1.5" coolant outlet; (1) 3" vapor outlet; (1) 1" liquid drain. Serial #67747, National Board # 932, Built 1999. Previous Use: API Pilot Plant

Used 35 Sq. Ft. Tantalum Condenser. Shell rated 150psi and full vacuum, tubes rated 150 psi and full vacuum. Type BEM 10-1-48. 72 1/8" OAL. Expansion joint. (45) 3/4" tubes, 0.015" thick, (tantalum 2.5% w). (1) 3" vapor inlet, (1)2" vapor outlet; (1) 2" x 4" coolant inlet; (1) 2" coolant outlet; (1) 1" liquid drain. Serial #67746, National Board # 931, Built 1999. Previous Use: API Pilot Plant

Used 25 Square Feet RAS Process Equipment, Inc Hastelloy Horizontal Heat Exchanger / Condenser. Shell (Sa-106-B) rated 150psi and full vacuum @ 347 F, hastelloy B-3 tubes (SB-626 B3) rated 150 psi and full vacuum @ 347 F. 57.125" OAL. Expansion joint. (32) 3/4" tubes, 16 gage, 48” long. (1) 2" coolant outlet, (1) 2" coolant inlet, (1) 2" vapor outlet, (1) 1" liquid drain, (1) 3" vapor inlet. Serial #98156104, National Board # 1033, Built 1999. Weight – 795 lbs. Previous Use: API Pilot Plant

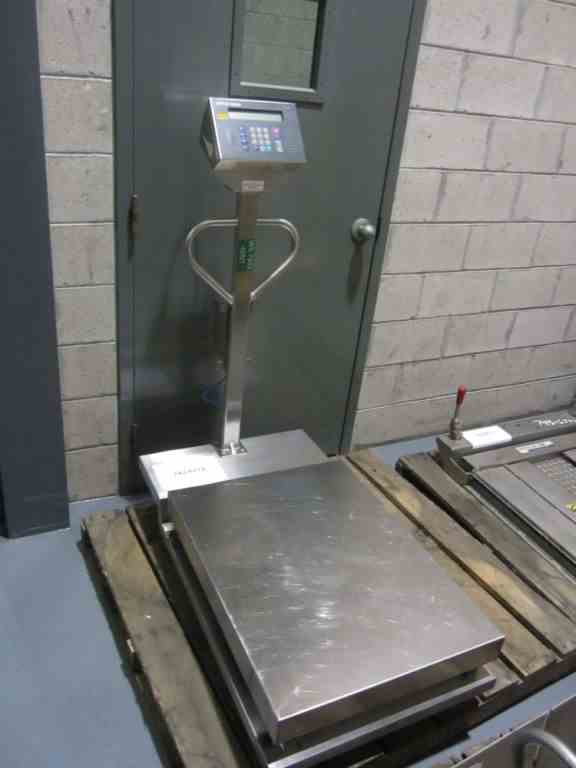

Used 100 Kg Max (0.01 kg division) Portable Toledo Puma Floor Scale. Battery Powered, Class 1 Division 1.

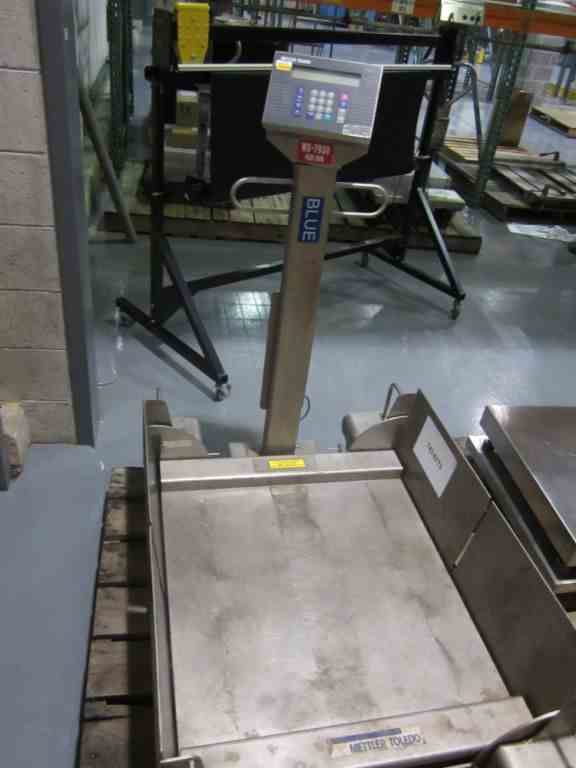

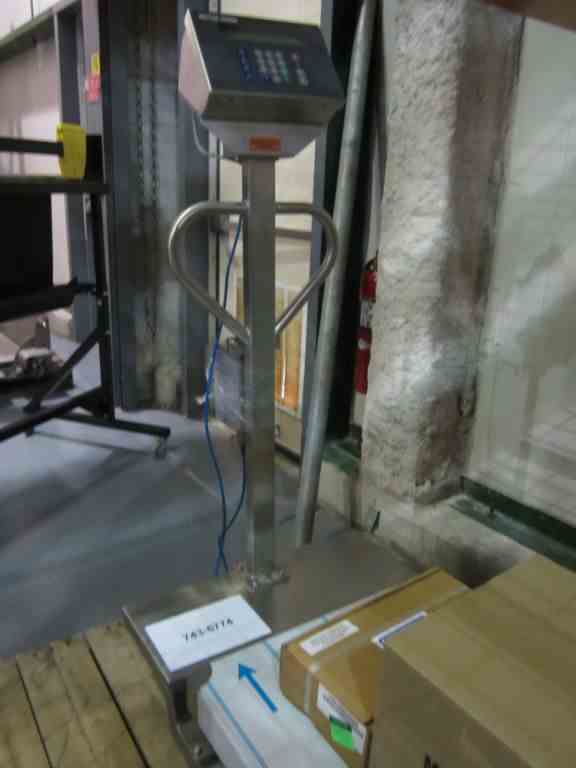

Used 500 kg Max (0.05 kg division) Portable Toledo Puma Floor Scale. Battery Powered, Class 1 Division 1.

Used approx 110 Square Feet Stainless Steel Vacuum Tray Dryer. Chamber rated 4 Bar 60 PSI)/FV. (9) 316L trays approx 43" x 37" x 1", 5" spacing between shelves. Mfg by PINK Thermosysteme Gmbh, 1999. Model VT-1100-950-1550-10. S/N: 20004664. Exterior dims: 58"W 56"D x 77"H. Approx 5070 Lbs. Complete with portable Lauda electric indirect water cooled heating/cooling transfer system, 24KW, 460V/3/60 with PID Control panel. Heating capacity 120 deg C. Type ITH-350-W-Ex, S/N: X17201.

Used approx 110 Square Feet Stainless Steel Vacuum Tray Dryer. Chamber rated 4 Bar(60 PSI)/FV. (9) 316L trays approx 43" x 37" x 1", 5" spacing between shelves. Mfg by PINK Thermosysteme Gmbh, 1999. Model VT-1100-950-1550-10. S/N: 20004665. Exterior dims: 58"W 56"D x 77"H. Approx 5070 Lbs. Complete with portable Lauda electric indirect water cooled heating/cooling transfer system, 24KW, 460V/3/60 with PID Control panel. Heating capacity 120 deg C. Type ITH-350-W-Ex, S/N: X17200.

Used approx 110 Square Feet Stainless Steel Vacuum Tray Dryer. Chamber rated 4 Bar(60 PSI)/FV. (9) 316L trays approx 43" x 37" x 1", 5" spacing between shelves. Mfg by PINK Thermosysteme Gmbh, 1999. Model VT-1100-950-1550-5. S/N: 974612. Exterior dims: 58"W 56"D x 77"H. Approx 5070 Lbs. Complete with portable Lauda electric indirect water cooled heating/cooling transfer system, 24KW, 460V/3/60 with PID Control panel. Heating capacity 120 deg C. Type ITH-350-W-Ex.

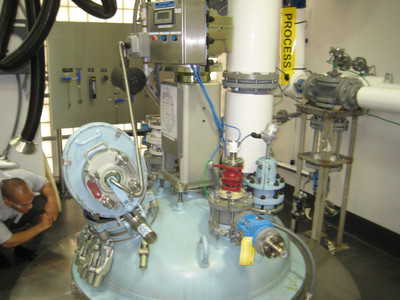

Used 300 Gal Pfaudler Glass Lined Reactor, rated 100 psi and full vacuum at 450 F internal, jacket rated 105 psi and full vacuum at 450 F.  Type 9119 Dark Blue Glass.  Bolted top, Cone bottom. 316L Stainless Steel sheathing.  Lug mounted.  48” ID x 37 3/8” straight side. VMX-250 drive assembly. Motor - 5 hp, 3 phase, 60 hertz, 230/460 volt, 1800 RPM, explosion proof. Baffle – One fin baffle. Agitator – dual flight, 22” span upper pitch blade turbine and 26” span chevron lower, designed for counter-clockwise rotation.  Top Head Openings: (1) 4 3/8” drive nozzle, (1) 8” nozzle,  (1) 6” nozzle, (2) 4” nozzles, (1) 3” nozzle. Bottom Head Openings: (1) 3” nozzle.  Serial #J081943, National Board # 52254, Built 2009. Weight – 4121 lbs. Previous Use: API Pilot Plant

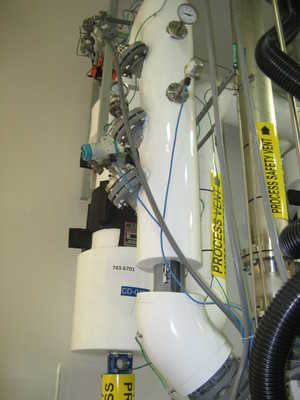

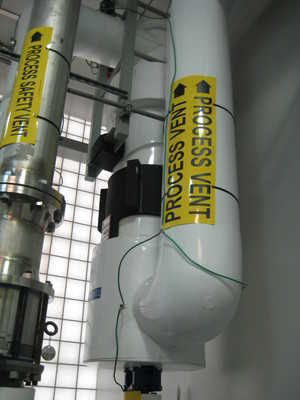

Used 80 Square Feet Titan Metal Fabricators, Inc. Tantalum Vertical Heat Exchanger / Condenser. Shell rated 150psi and full vacuum @ 347 F, tubes rated 150 psi and full vacuum @ 347 F.  TEMA Type BEMV. 76 3/4" OAL. Expansion joint. (102) – 3/4” OD x 0.015” avg. wall tantalum with 2 ½% tungsten tubes. (1) 4" tubeside inlet, (1) 2" tubeside outlet; (1) 2" vapor outlet; (1) 3" shellside inlet, (1) 3" shellside outlet. Serial #14121-1-1, National Board #579, Built 2009. Previous Use: API Pilot Plant. Drawing on file.

Used 80 Square Feet Titan Metal Fabricators, Inc. Tantalum Vertical Heat Exchanger / Condenser. Shell rated 150psi and full vacuum @ 347 F, tubes rated 150 psi and full vacuum @ 347 F.  TEMA Type BEMV. 76 3/4" OAL. Expansion joint. (102) – 3/4” OD x 0.015” avg. wall tantalum with 2 ½% tungsten tubes. (1) 4" tubeside inlet, (1) 2" tubeside outlet; (1) 4" vapor outlet; (1) 2" shellside inlet, (1) 2" shellside outlet. Serial #14122-1-1, National Board #580, Built 2009. Previous Use: API Pilot Plant. Drawing on file.

Used 55 Sq. Ft. Titan Metal Fabricators, Inc. Tantalum Vertical Heat Exchanger / Condenser. Shell rated 150psi and full vacuum @ 347 F, tubes rated 150 psi and full vacuum @ 347 F.  TEMA Type BEMV. 75 1/4" OAL. Expansion joint. (75) – 3/4” OD x 0.015” avg. wall tantalum with 2 ½% tungsten tubes. (1) 3" tubeside inlet, (1) 2" tubeside outlet; (1) 2" vapor outlet; (1) 2" shellside inlet, (1) 2" shellside outlet. Serial #14120-1-1, National Board # 578, Built 2009. Weight -915 lbs. Previous Use: API Pilot Plant. Drawing on file.

Used 55 Sq. Ft. Titan Metal Fabricators, Inc. Tantalum Vertical Heat Exchanger / Condenser. Shell rated 150psi and full vacuum @ 347 F, tubes rated 150 psi and full vacuum @ 347 F.  TEMA Type BEMV. 76 3/4" OAL. Expansion joint. (75) – 3/4” OD x 0.015” avg. wall tantalum with 2 ½% tungsten tubes. (1) 3" tubeside inlet, (1) 2" tubeside outlet; (1) 3" vapor outlet; (1) 2" shellside inlet, (1) 2" shellside outlet. Serial #14118-1-1, National Board # 577, Built 2009. Previous Use: API Pilot Plant

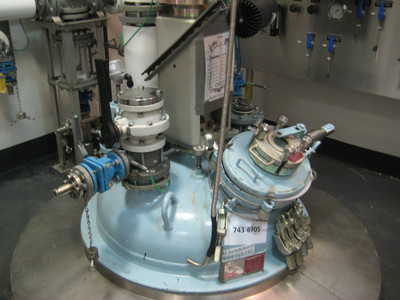

Used 200 gallon Pfaudler Glass Lined Reactor, rated 100 psi and full vacuum at 450 F internal, jacket rated 120 psi and full vacuum at 450 F.  Type 9119 Dark Blue Glass.  Bolted top. 316L Stainless Steel sheathing.  Lug mounted.  40” ID x 45 ½” deep. VMX-250 drive assembly. Motor - 3 hp, 3 phase, 60 hertz, 230/460 volt, 1800 RPM, explosion proof. Baffle – One fin baffle. Agitator – (3) blade retreat curve impeller.  Top Head Openings: (1) 4 3/8” drive nozzle, (1) 6” nozzle, (3) 4” nozzles, (1) 3” nozzle. Bottom Head Openings: (1) 3” nozzle.  Serial #J081942, National Board # 52252, Built 2009. Weight – 2922 lbs. Previous Use: API Pilot Plant

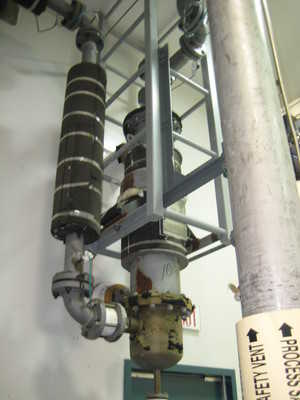

Used 45 Square Feet RAS Process Equipment, Inc Hastelloy Vertical Heat Exchanger / Condenser. Shell (Sa-106-B) rated 150psi and full vacuum @ 347 F, hastelloy B-3 tubes (SB-626 B3) rated 150 psi and full vacuum @ 347 F.  77" OAL. Expansion joint. (58) 3/4" tubes, 16 gage, 48” long. (1) 2" coolant outlet, (1) 2" coolant inlet, (1) 3" vapor outlet, (1) 1" liquid drain, (1) 3" vapor inlet. Serial #98156101, National Board # 1030, Built 1999. Weight – 975 lbs. Previous Use: API Pilot Plant

Unused 500 Kg Max (0.1 kg division) Portable Toledo Puma Floor Scale. Battery Powered, Class 1 Division 1.

Used 45 Square Feet RAS Process Equipment, Inc Hastelloy Vertical Heat Exchanger / Condenser. Shell (Sa-106-B) rated 150psi and full vacuum @ 347 F, hastelloy B-3 tubes (SB-626 B3) rated 150 psi and full vacuum @ 347 F. 77" OAL. Expansion joint. (58) 3/4" tubes, 16 gage, 48” long. (1) 2" coolant outlet, (1) 2" coolant inlet, (1) 2" vapor outlet, (1) 1" liquid drain, (1) 3" vapor inlet. Serial #98156102, National Board # 1031, Built 1999. Weight – 975 lbs. Previous Use: API Pilot Plant

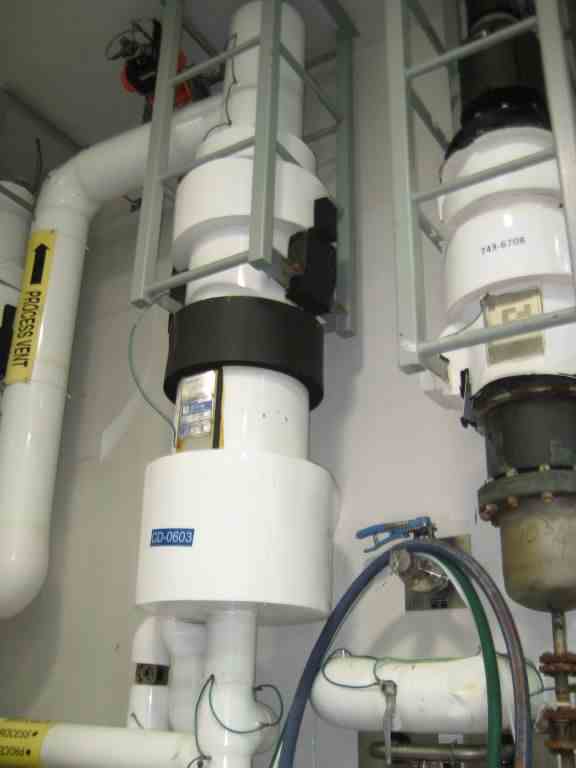

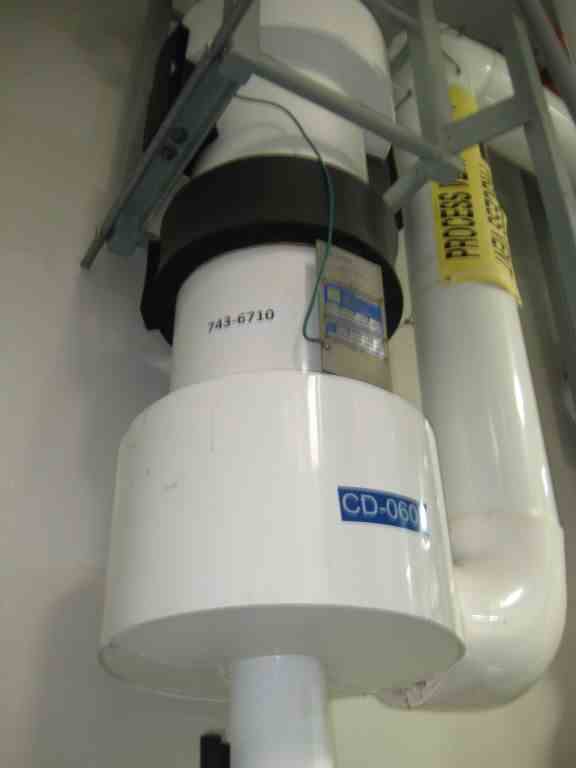

Used 80 Square Feet AstroCosmos Metallurgical, Inc. Tantalum Vertical Heat Exchanger / Condenser. Shell rated 150 psi and full vacuum @ 350 F, tubes rated 150 psi and full vacuum @ 350 F. Type BEM 14-1-48. 78 1/8"OAL. Expansion joint. (102) 3/4" tubes, 0.015" thick, (tantalum 2.5% w). (1) 4" vapor inlet, (1) 2" vapor outlet; (1) 3" x 5" coolant inlet, (1) 3" coolant outlet; (1) 1" liquid drain. Serial #67744, National Board #929, Built 1999. Weight - 1000 lbs. Previous Use: API Pilot Plant. Drawing on file.

Used 80 Square Feet AstroCosmos Metallurgical, Inc.Tantalum Vertical Heat Exchanger / Condenser. Shell rated 150psi and full vacuum @ 350 F, tantalum tubes rated 150 psi and full vacuum @ 350 F.  (102) 3/4" tubes x .015 ga (tantalum 2.5% w). Serial #67745, National Board # 930 Built 1999. Previous Use: API Pilot Plant. Drawing on file.

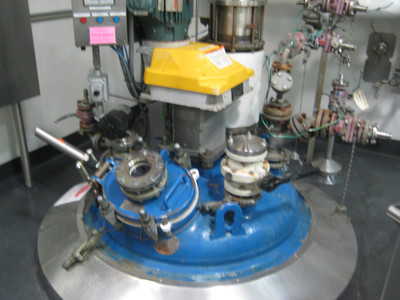

Used 300 gallon DeDietrich Glass Lined Reactor, rated 100 psi and full vacuum at 500 F internal, jacket rated 150 psi and full vacuum at 500 F.  Type 3009 Blue Glass.  Bolted top, welded cone bottom. 47 ¼” OD x 74 ¾”  304 Stainless Steel sheathing.  Lug mounted. 61Q06 DeDietrich Lightnin Series 60 drive assembly. Motor – 7.5 hp, 3 phase, 60 hertz, 460 volt, 1750 RPM. Baffle – Beavertail with DR-Tip. Agitator – (3) blade chevron lower tier, (3) blade turbine upper tier.  12” x 16” manhole; (1) 8” inlet/outlet; (1) 4 3/8” inlet/outlet; (1) 4” inlet/outlet; (2) 3” inlet/outlet; (1) 2” inlet /outlet; (1) 3” center bottom outlet.  Serial #36298, National Board # 7121, Built 1999. Weight – 5000 lbs. Previous Use: API Pilot Plant

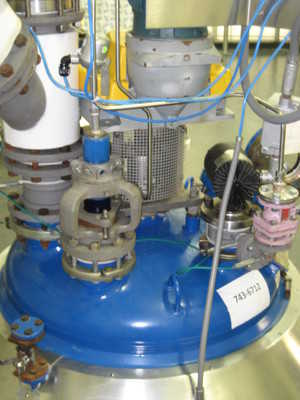

Used 150 gallon DeDietrich Glass Lined Reactor, rated 100 psi and full vacuum at 500 F internal, jacket rated 150 psi and full vacuum at 500 F.  Type 3009 Blue Glass.  Bolted top. 39 3/8” OD x 48 15/16”  304 Stainless Steel sheathing.  Lug mounted. 61Q06 DeDietrich Lightnin Series 60 drive assembly. Motor – 3 hp, 3 phase, 60 hertz, 460 volt, 1750 RPM. Baffle – Beavertail with DR-Tip. Agitator – (3) blade retreat curve impeller.  (1) 6” handhole;  (1) 6” inlet/outlet; (1) 4 3/8” inlet/outlet; (1) 4” inlet/outlet; (2) 3” inlet/outlet; (1) 2” inlet /outlet; (1) 3” center bottom outlet.  Serial #36299, National Board # 7112, Built 1999. Weight – 2995 lbs. Previous Use: API Pilot Plant

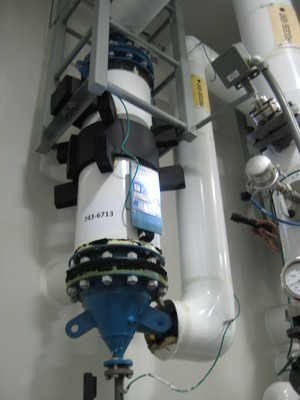

Used 45 Square Feet AstroCosmos Metallurgical, Inc. Tantalum Vertical Heat Exchanger / Condenser. Shell rated 150 psi and full vacuum @ 350 F, tubes rated 150 psi and full vacuum @ 350 F. Type BEM 10-1-48. 73"OAL. Expansion joint. (58) 3/4" tubes, 0.015" thick, (tantalum 2.5% w). (1) 3" vapor inlet, (1) 3" vapor outlet; (1) 2" x 4" coolant inlet, (1) 2" coolant outlet; (1) 1" liquid drain. Serial #71239, National Board #992, Built 2000. Weight - 540 lbs. Previous Use: API Pilot Plant.

Used 45 Square Feet AstroCosmos Metallurgical, Inc. Tantalum Vertical Heat Exchanger / Condenser. Shell rated 150 psi and full vacuum @ 350 F, tubes rated 150 psi and full vacuum @ 350 F. Type BEM 10-1-48. 73"OAL. Expansion joint. (58) 3/4" tubes, 0.015" thick, (tantalum 2.5% w). (1) 3" vapor inlet, (1) 2" vapor outlet; (1) 2" x 4" coolant inlet, (1) 2" coolant outlet; (1) 1" liquid drain. Serial #67743, National Board #928, Built 1999. Weight - 540 lbs. Previous Use: API Pilot Plant. Drawing on file.

Used 40 Square Feet AstroCosmos Metallurgical, Inc. Tantalum Vertical Heat Exchanger / Condenser. Shell rated 150 psi and full vacuum @ 350 F, tubes rated 150 psi and full vacuum @ 350 F. Type BEM 10-1-48. 72 3/4"OAL. Expansion joint. (51) 3/4" tubes, 0.015" thick, (tantalum 2.5% w). (1) 3" vapor inlet, (1) 2" vapor outlet; (1) 2" x 4" coolant inlet, (1) 2" coolant outlet; (1) 1" liquid drain. Serial #67742, National Board #923, Built 1999. Weight - 540 lbs. Previous Use: API Pilot Plant. Drawimg on file.

Used 40 Square Feet AstroCosmos Metallurgical, Inc. Tantalum Vertical Heat Exchanger / Condenser. Shell rated 150 psi and full vacuum @ 350 F, tubes rated 150 psi and full vacuum @ 350 F. Type BEM 10-1-48. 72 3/4"OAL. Expansion joint. (51) 3/4" tubes, 0.015" thick, (tantalum 2.5% w). (1) 3" vapor inlet, (1) 3" vapor outlet; (1) 1.5" x 4" coolant inlet, (1) 1" x 1/2" coolant outlet; (1) 1" liquid drain. Serial #71251, National Board #993, Built 2000. Weight - 540 lbs. Previous Use: API Pilot Plant

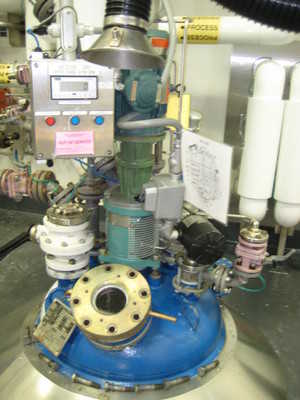

Used 100 gallon DeDietrich Glass Lined Reactor, rated 100 psi and full vacuum at 500 F internal, jacket rated 150 psi and full vacuum at 500 F.  Type 3009 Blue Glass.  Bolted top, welded cone bottom. 32” ID x 55 3/16”.  304 Stainless Steel sheathing.  Lug mounted. Lenze fixed speed gear drive assembly. Motor – 3 hp, 3 phase, 60 hertz, 460 volt, 1750 RPM. Baffle – Beavertail with DR-Tip. Agitator – (3) blade chevron lower tier, (3) blade turbine upper tier.  (1) 6” handhole;  (2) 4” inlet/outlet; (1) 3” inlet/outlet; (1) 2 ½ ” inlet/outlet; (2) 2” inlet/outlet; (1) 3” center bottom outlet.  Serial #36300, National Board # 7120, Built 1999. Weight – 2260 lbs. Previous Use: API Pilot Plant

Used 75 gallon DeDietrich Glass Lined Reactor, rated 100 psi and full vacuum at 500 F internal, jacket rated 150 psi and full vacuum at 500 F.  Type 3009 Blue Glass.  Bolted top. 32” ID x 37 13/32”.  304 Stainless Steel sheathing.  Lug mounted. Lenze fixed speed gear drive assembly. Motor – 3 hp, 3 phase, 60 hertz, 460 volt, 1750 RPM. Baffle – Beavertail with DR-Tip. Agitator – (3) blade retreat curve impeller.  (1) 6” handhole; (2) 4” inlet/outlet; (1) 2 ½” inlet/outlet; (1) 3” inlet/outlet; (2) 2” inlet/outlet; (1) 3” center bottom outlet.  Serial #36302, National Board # 7115, Built 1999. Weight – 1790 lbs. Previous Use: API Pilot Plant

Used 15 Square Feet AstroCosmos Metallurgical, Inc.Tantalum Horizontal Heat Exchanger / Condenser. Shell rated 150psi and full vacuum @ 350 F, tubes rated 150 psi and full vacuum @ 350 F.  (20) 3/4" tubes x .015 ga (tantalum 2.5% w). Serial #67740, National Board # 927 Built 1999. Previous Use: API Pilot Plant

Used 15 Square Feet AstroCosmos Metallurgical, Inc.Tantalum Horizontal Heat Exchanger / Condenser. Shell rated 150psi and full vacuum @ 350 F, hastelloy B-3 tubes (SB-333 B3) rated 150 psi and full vacuum @ 350 F.  (32) 3/4" tubes x .015 ga. Serial #67741, National Board # 934, Built 1999. Previous Use: API Pilot Plant

Used 25 Square Feet RAS Process Equipment, Inc Hastelloy Horizontal Heat Exchanger / Condenser. Shell (C/S) rated 150psi and full vacuum @ 347 F, hastelloy B-3 tubes (SB-333 B3) rated 150 psi and full vacuum @ 347 F.  (32) 3/4" tubes, 16 gage, 48” long. Serial #98156103, National Board # 1032, Built 1999. Previous Use: API Pilot Plant

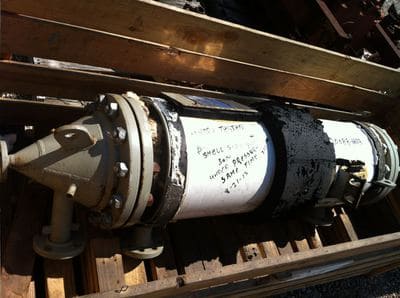

Used 35 Square Feet AstroCosmos Metallurgical, Inc Tantalum Horizontal Heat Exchanger / Condenser. Shell rated 150 psi and full vacuum @ 350 F, tubes rated 150 psi and full vacuum @ 350 F. Type BEL 10-1-48. 73 3/8" OAL. Expansion joint. (45) 3/4" tubes, 0.015" thick, (tantalum 2.5% w). (1) 3" vapor inlet, (1) 2" vapor outlet; (1) 2" x 4" coolant inlet; (1) 2" coolant outlet; (1) 1" liquid drain. Serial #67737, National Board # 922, Built 1999. Weight - 770 lbs. Previous Use: API Pilot Plant. Drawing on file.

Used 35 Square Feet AstroCosmos Metallurgical, Inc Tantalum Horizontal Heat Exchanger / Condenser. Shell rated 150psi and full vacuum @ 350 F, tubes rated 150 psi and full vacuum @ 350 F.  Type BEL 10-1-48. 73 3/8" OAL. Expansion joint. (45) 3/4" tubes, 0.015" thick, (tantalum 2.5% w). (1) 3" vapor inlet, (1) 2" vapor outlet; (1) 2" x 4" coolant inlet; (1) 2" coolant outlet; (1) 1" liquid drain. Serial #67736, National Board # 924, Built 1999. Weight – 770 lbs. Previous Use: API Pilot Plant

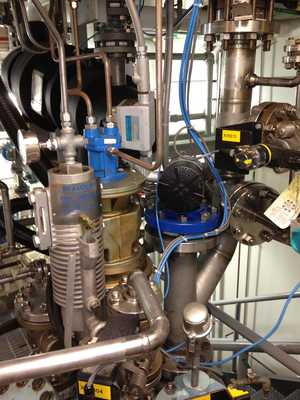

Used 100 gallon Pfaudler Glass Lined Reactor, rated 300 psi and full vacuum at 450 F internal, jacket rated 150 psi and full vacuum at 450 F.  Type 9119 Dark Blue Glass.  Clamped top. 316L Stainless Steel sheathing.  Lug mounted.  32” ID x 36 1/” deep. VMX-150 drive assembly. Motor - 2 hp Vickers hydraulic motor. Baffle – One concave baffle. Agitator – (1) single flight curved blade turbine.  Top Head Openings: (1) 6” handhole, (1) 2 3/8” drive nozzle, (2) 4” nozzles,  (1) 3” nozzle, (2) 2” nozzles. Bottom Head Openings: (1) 3” nozzle.  Serial #J032147, National Board # 50265, Built 2000. Weight – 3100 lbs. Previous Use: API Pilot Plant. (note: shares hydraulic system with #6742)

Used 40 Square Feet RAS Process Equipment, Inc Hastelloy Horizontal Heat Exchanger / Condenser. Shell (Sa-106-B) rated 150psi and full vacuum @ 347 F, hastelloy B-3 tubes (SB-333 B3) rated 300 psi and full vacuum @ 347 F.  Approx. 78" OAL. Expansion joint. (51) 3/4" tubes, 16 gage, 48” long. (1) 2" coolant outlet, (1) 2" coolant inlet, (1) 3" vapor outlet, (1) 1" liquid drain, (1) 3" vapor inlet. Serial #99160902, National Board # 1080, Built 1999. Weight – 725 lbs. Previous Use: API Pilot Plant

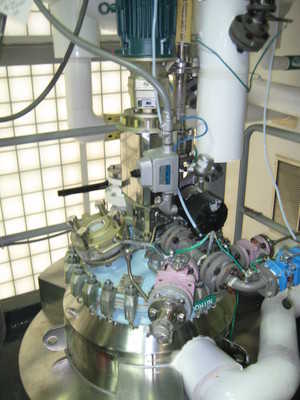

Used 50 gallon Pfaudler Glass Lined Reactor, rated 150 psi and full vacuum at 450 F internal, jacket rated 125 psi and full vacuum at 450 F.  Type 9115 Dark Blue Glass.  Bolted dished top, welded cone bottom. 316L Stainless Steel sheathing.  Lug mounted. VMX-150 drive assembly. Motor - 2 hp, 3/60/230/460V at 1770 rpm, explosion proof. Baffle. Agitator – (1) dual turbine.  Serial #J072120, National Board # 51956, Built 2007. Previous Use: API Pilot Plant

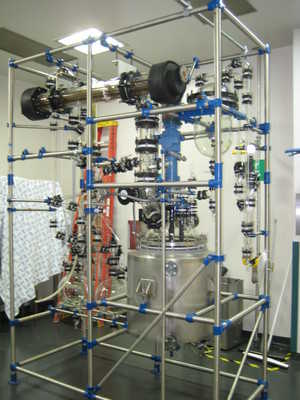

Unused 21 gallon DeDietrich Glass Lined Reactor, rated 15 psi and full vacuum at 482 F internal, jacket rated 145 psi and full vacuum at 482 F.  Type 3009 Glass.  QVF top. 304 Stainless Steel sheathing.  Lug mounted.  18” OD x 23 27/64” deep. Variable speed drive. Motor - 1 hp, 3 phase, 60 hertz, 230/460 volt, 1140 RPM, explosion proof. Agitator – (3) blade turbine.   Serial #67861, National Board # 7677, Built 2006. With (2) 20 liter QVF receivers, (1) QVF vent condenser, (1) 20 liter QVF load tank, (1) horizontal shell & tube primary condenser, and (1) Heat Transfer Skid (Mfg by Budzar Industries, Model LTW-12-5C, S# 200602-10679-1, 3/60/460V, 10hp compressor, 3 hp chill pump, 2 hp proc. Pump, 12KW heater, 500 transfer va, max working pressure 400 psi high side, 150 psi low side, refrigerant R404A).

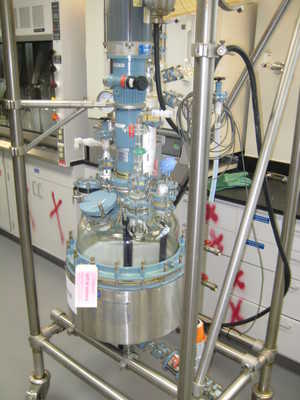

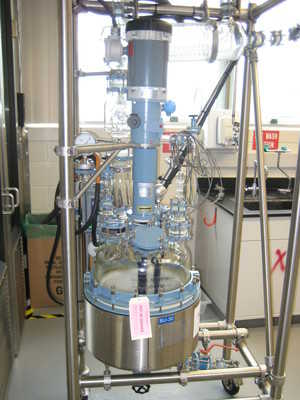

Used 30 liter Buchi glass reactor, rated +0.5/-1.0 bar @ +200/-50 C internal, jacket rated +10/-1.0 bar @ +200/-60 C. Bolted glass dished top, welded glass-lined (white) bottom. 3-blade turbine agitator and baffle. Unit has variable speed drive with mechanical seal and 1 hp 3/60/230/460V @ 1725 RPM xp motor. Unit is skid mounted (roller type) and complete with all glass spiral condenser. Huber cooling unit with condenser (Serial #5223/02 3/60/460V-480V, refrigerant 507) and Huber heating unit for jacket. Serial # 38160, Built 2003.

Used 30 liter Buchi glass reactor, rated +0.5/-1.0 bar @ +200/-50 C internal, jacket rated +10/-1.0 bar @ +200/-60 C. Bolted glass dished top, welded glass-lined (white) bottom. 3-blade turbine agitator and baffle. Unit has variable speed drive with mechanical seal and 1 hp 3/60/230/460V @ 1725 RPM xp motor. Unit is skid mounted (roller type) and complete with all glass spiral condenser. Huber cooling unit with condenser (Serial #5223/02 3/60/460V-480V, refrigerant 507) and Huber heating unit for jacket. Serial # 36448, Built 2003.

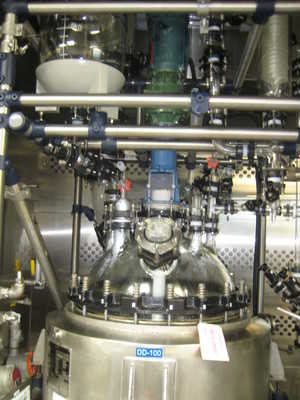

Used 20 gallon DeDietrich Glass Lined Reactor, rated atmospheric and full vacuum at 302 F internal, jacket rated 145 psi and full vacuum at 500 F.  Type 3009 Blue Glass.  Skid mounted. Bolted QVF top.  Variable spped, mechanical seal, 3 blade turbine agitator and baffle. With (2) 20 liter QVF receivers, (1) 20 liter QVf tank, (1) QVF vent condenser, (1) QVF spiral exchanger, (1) Huber chilling unit for condenser and (1) Huber heat transfer unit for reactor. Serial #36662, National Board # 7550, Built 2003. Previous Use: API Pilot Plant
