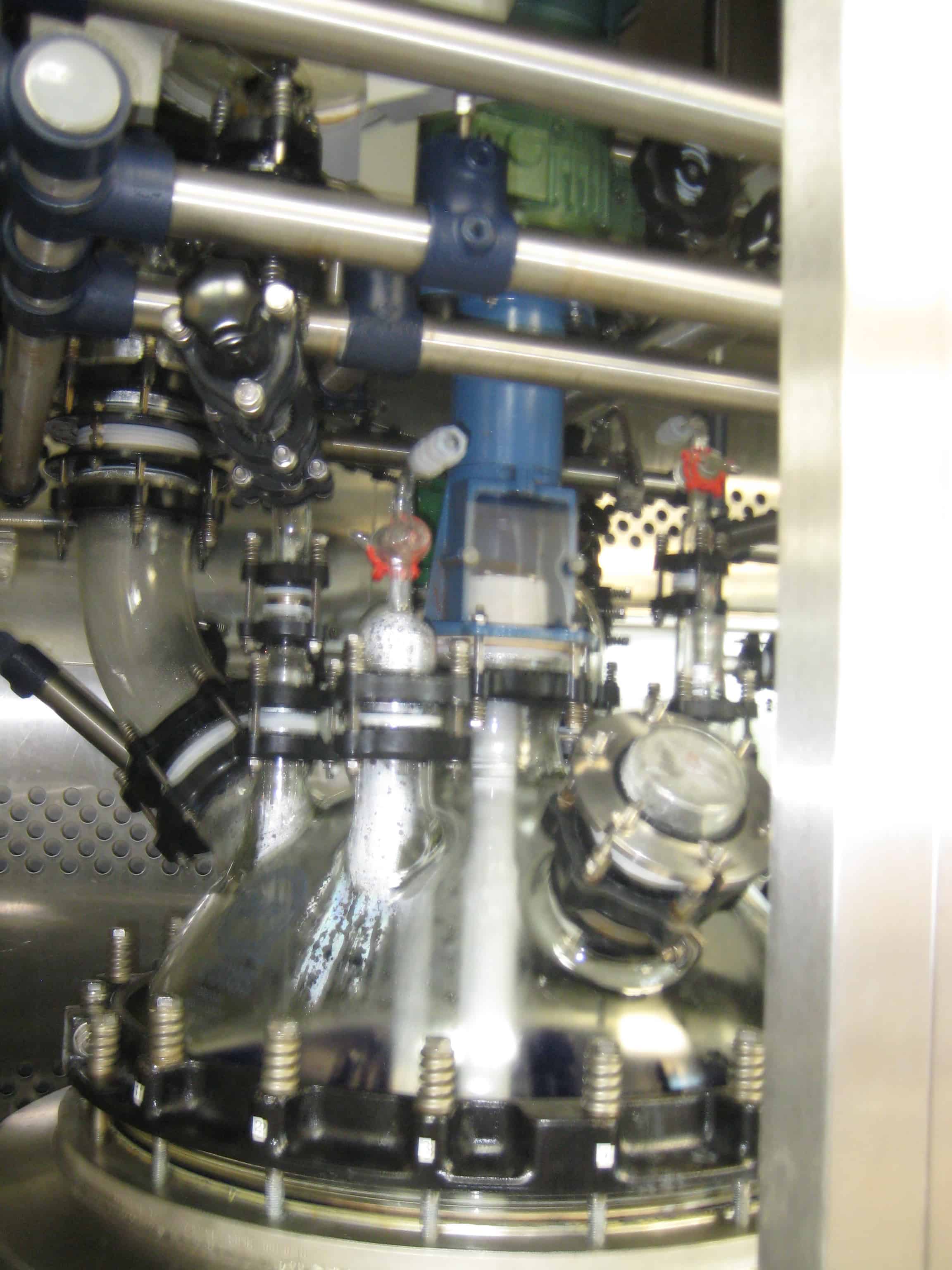

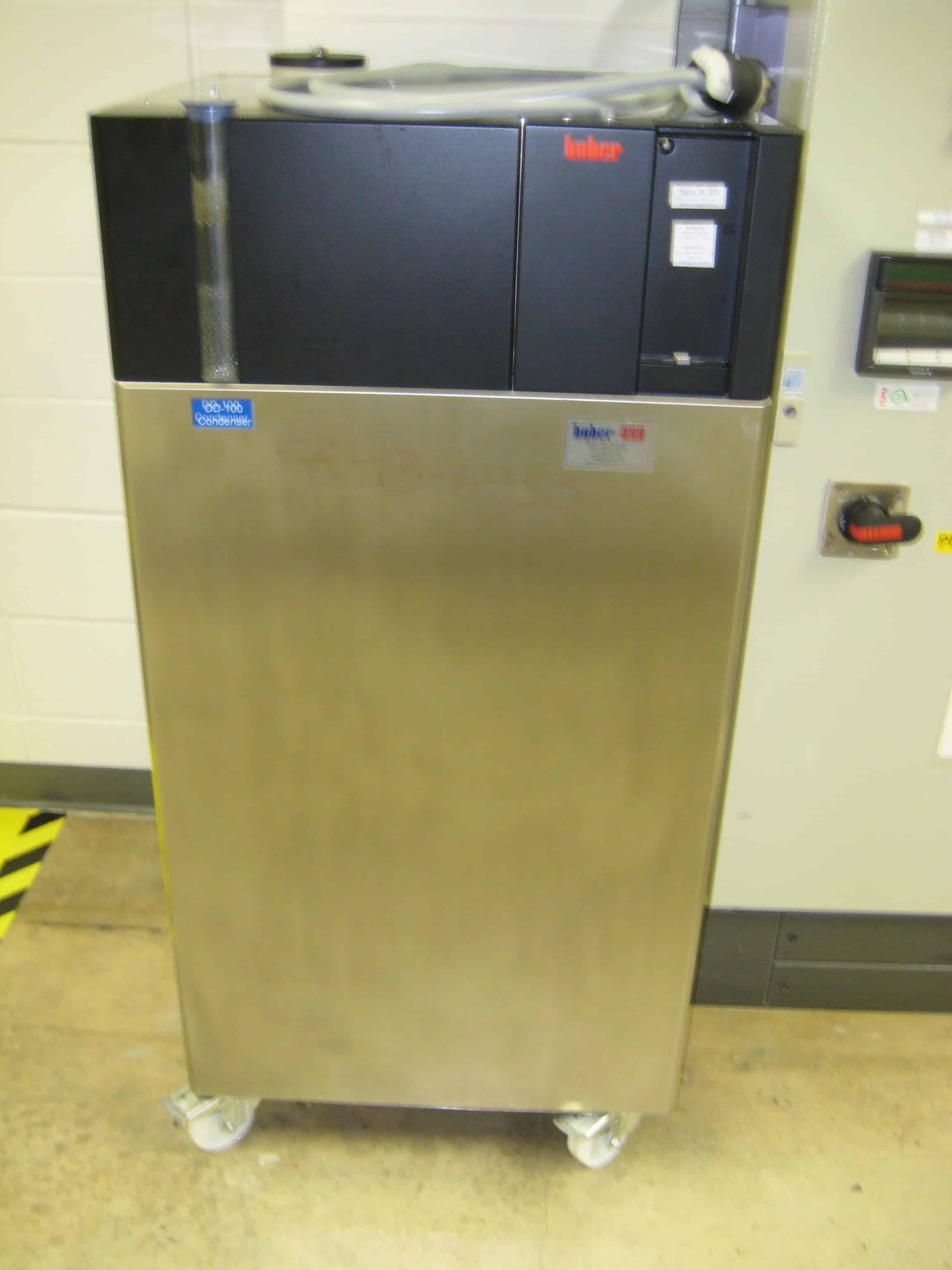

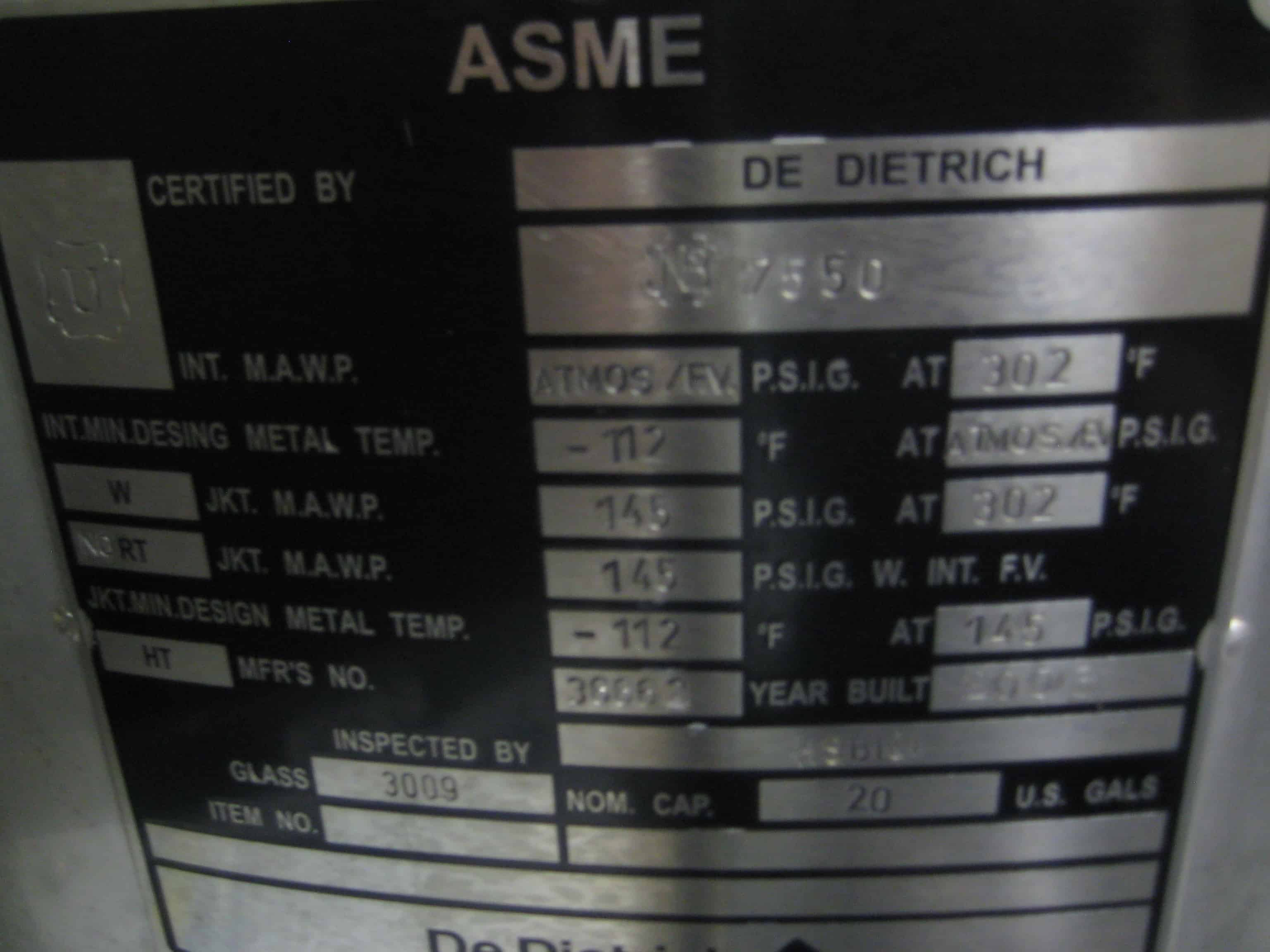

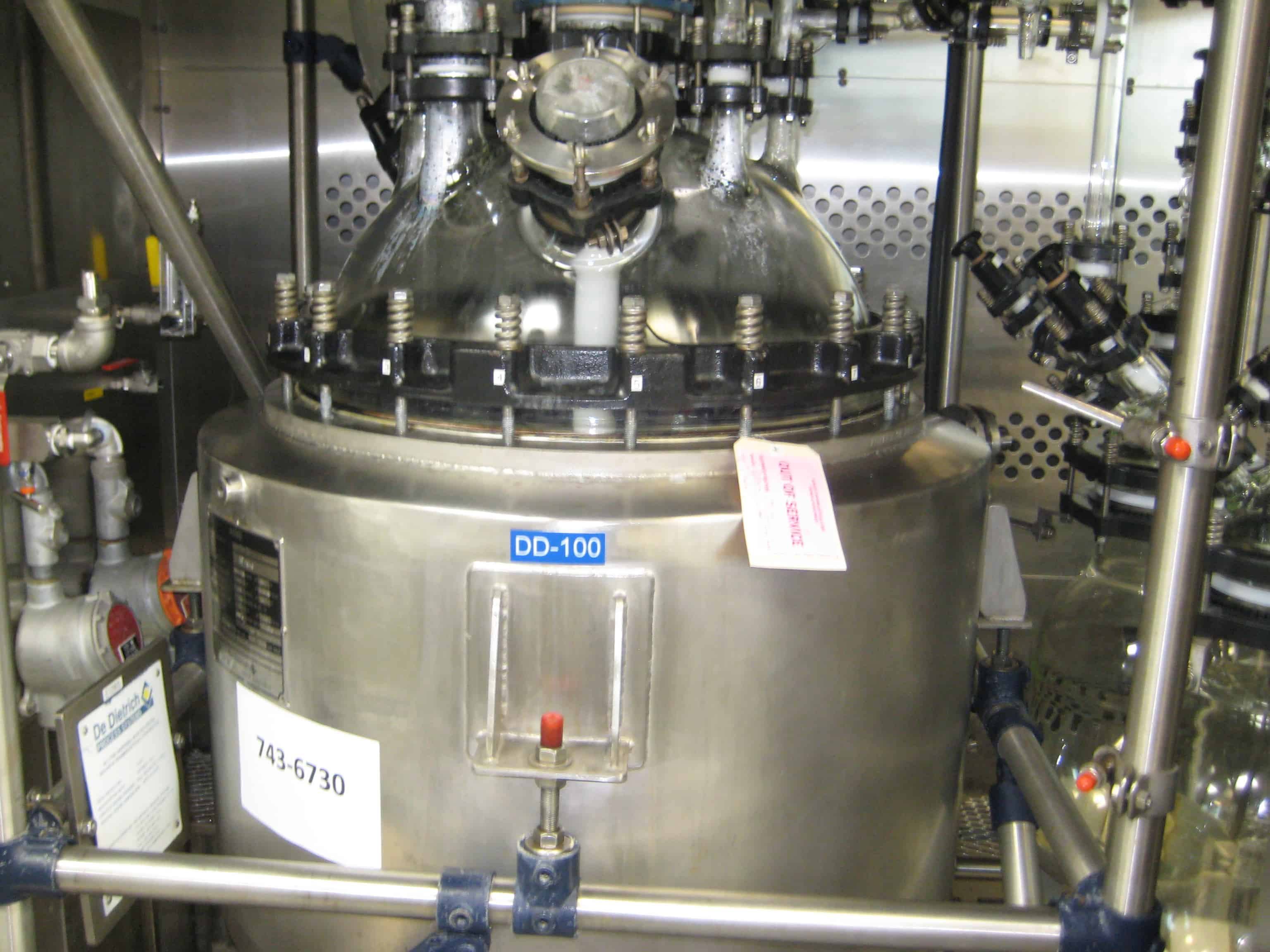

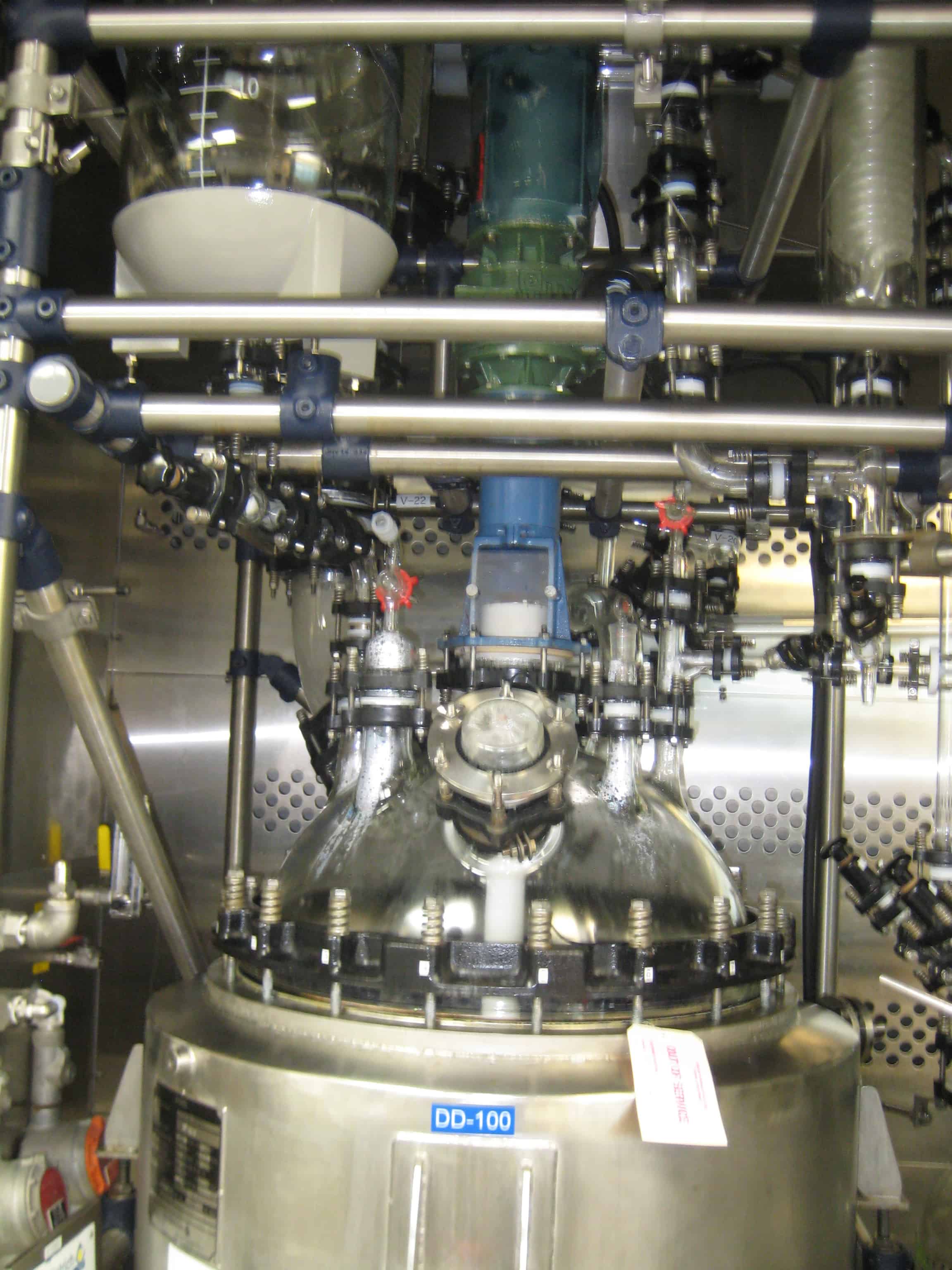

Used 20 gallon DeDietrich Glass Lined Reactor, rated atmospheric and full vacuum at 302 F internal, jacket rated 145 psi and full vacuum at 500 F. Type 3009 Blue Glass. Skid mounted. Bolted QVF top. Variable spped, mechanical seal, 3 blade turbine agitator and baffle. With (2) 20 liter QVF receivers, (1) 20 liter QVf tank, (1) QVF vent condenser, (1) QVF spiral exchanger, (1) Huber chilling unit for condenser and (1) Huber heat transfer unit for reactor. Serial #36662, National Board # 7550, Built 2003. Previous Use: API Pilot Plant
