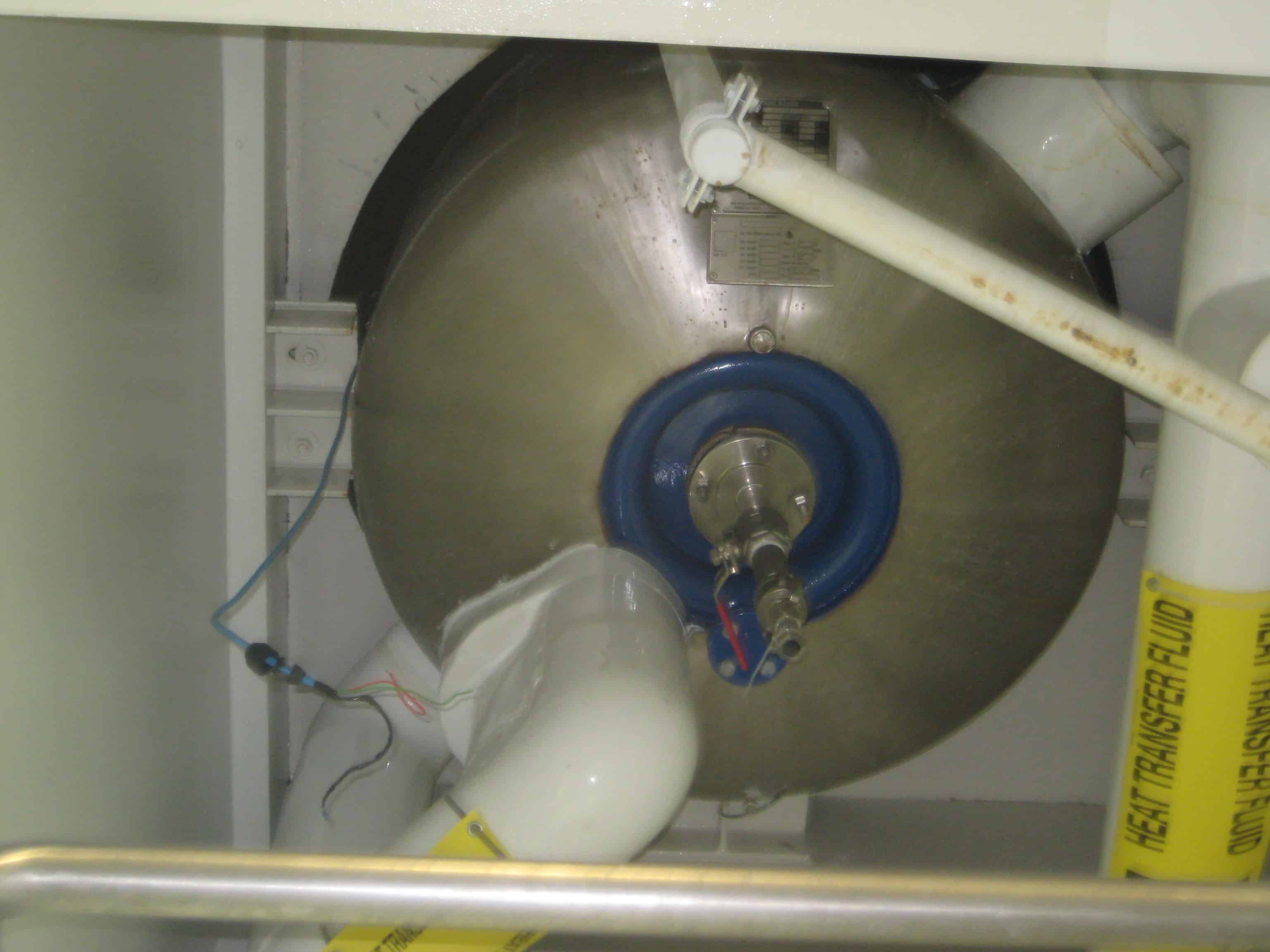

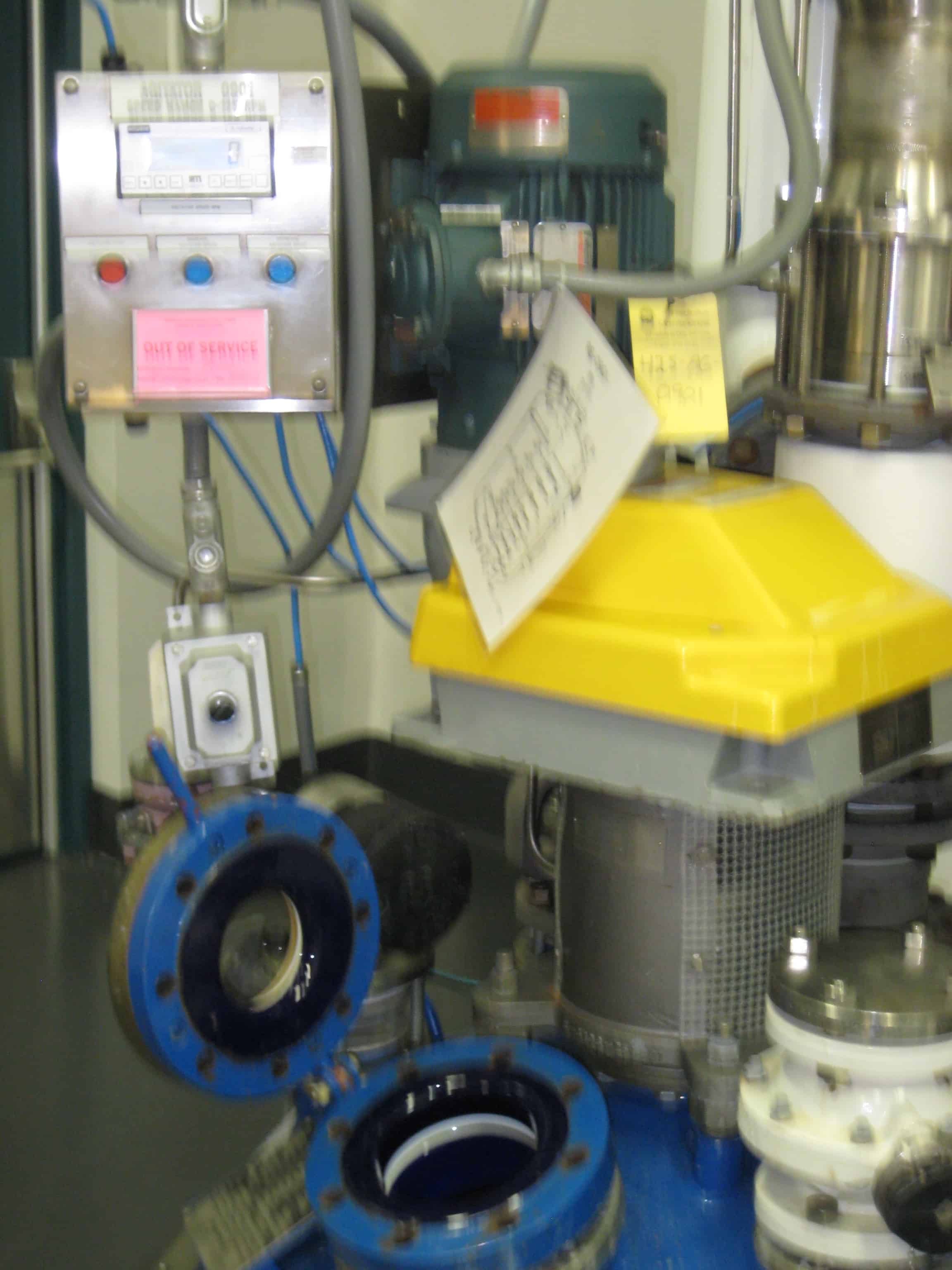

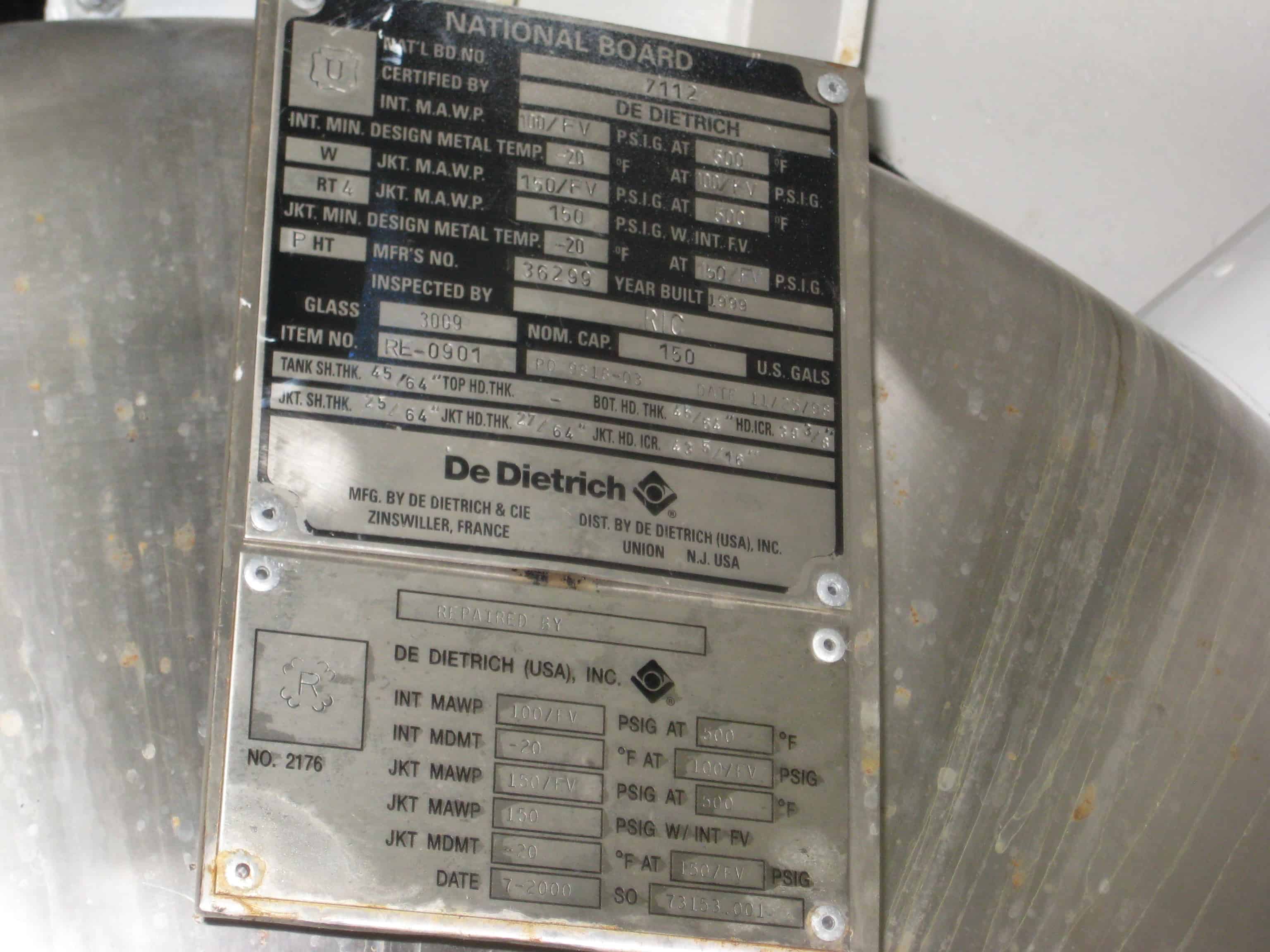

Used 150 gallon DeDietrich Glass Lined Reactor, rated 100 psi and full vacuum at 500 F internal, jacket rated 150 psi and full vacuum at 500 F. Type 3009 Blue Glass. Bolted top. 39 3/8” OD x 48 15/16” 304 Stainless Steel sheathing. Lug mounted. 61Q06 DeDietrich Lightnin Series 60 drive assembly. Motor – 3 hp, 3 phase, 60 hertz, 460 volt, 1750 RPM. Baffle – Beavertail with DR-Tip. Agitator – (3) blade retreat curve impeller. (1) 6” handhole; (1) 6” inlet/outlet; (1) 4 3/8” inlet/outlet; (1) 4” inlet/outlet; (2) 3” inlet/outlet; (1) 2” inlet /outlet; (1) 3” center bottom outlet. Serial #36299, National Board # 7112, Built 1999. Weight – 2995 lbs. Previous Use: API Pilot Plant
