Frewitt 636 Oscillating Granulator
Other Views - click image for larger view
Frewitt 636 Oscillating Granulator Frewitt 636 Oscillating Granulator Frewitt 636 Oscillating Granulator Frewitt 636 Oscillating Granulator Frewitt 636 Oscillating Granulator Frewitt 636 Oscillating Granulator

frewitt 636 oscillating granulator

Stock # 17561
Sold
Capacity 1.5 HP

Overview

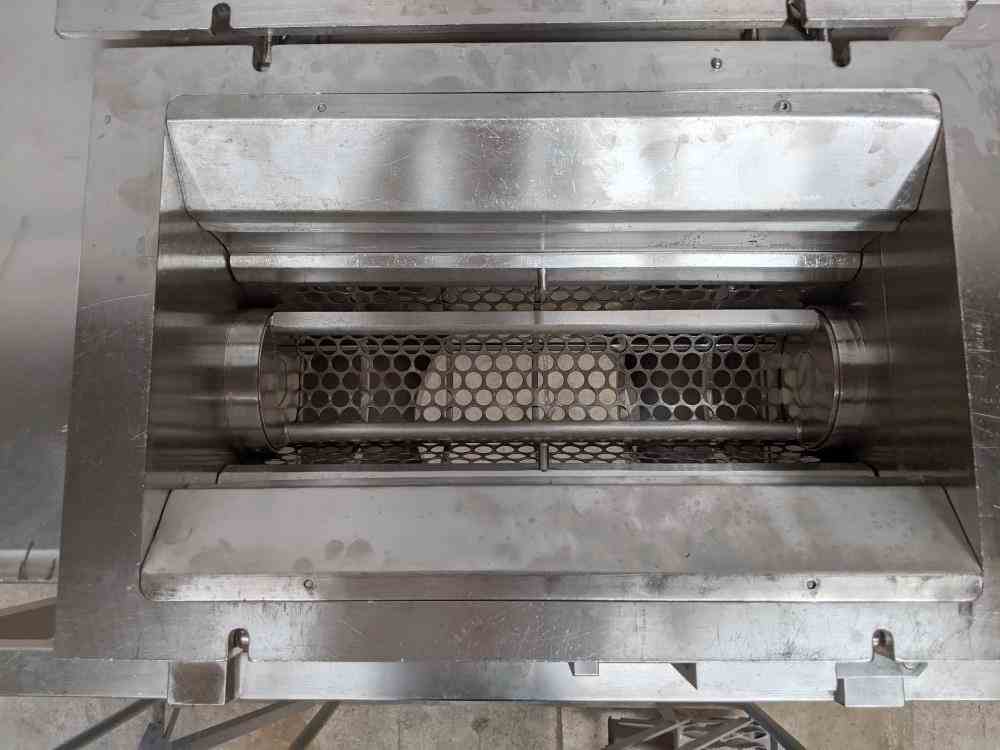

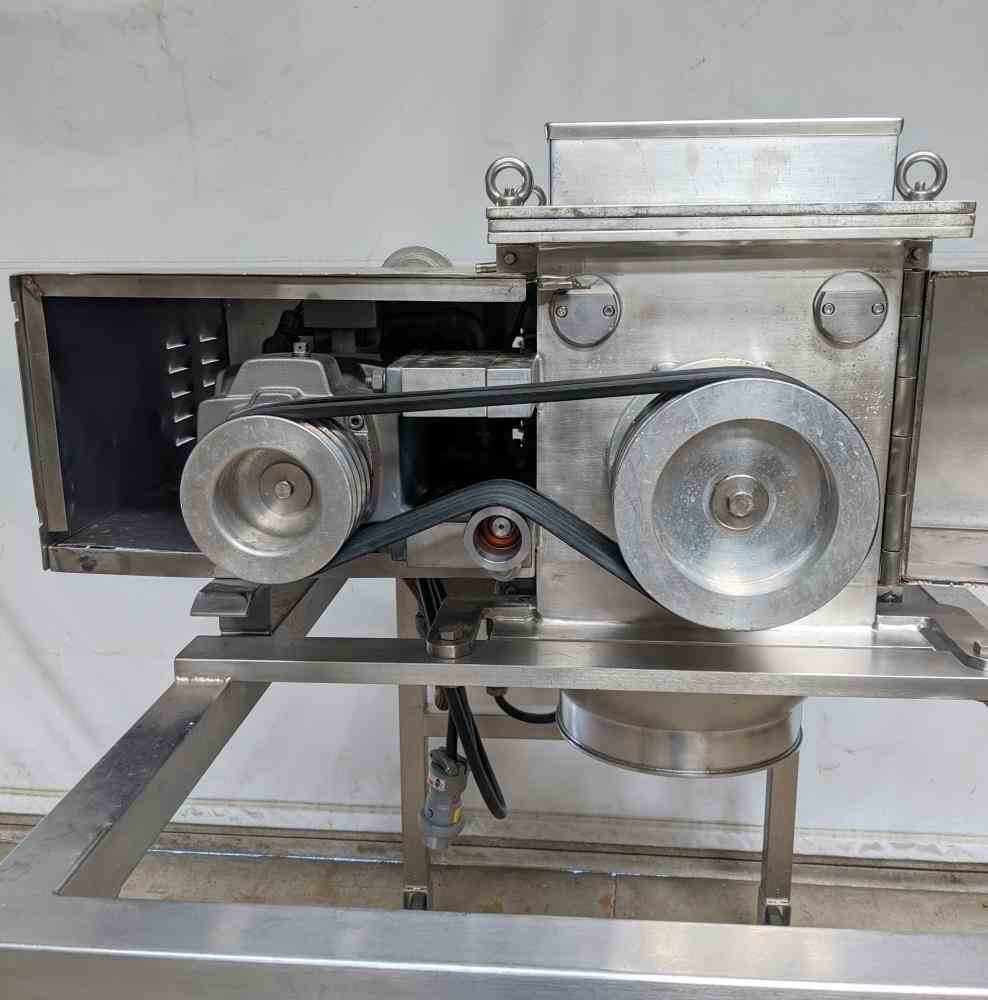

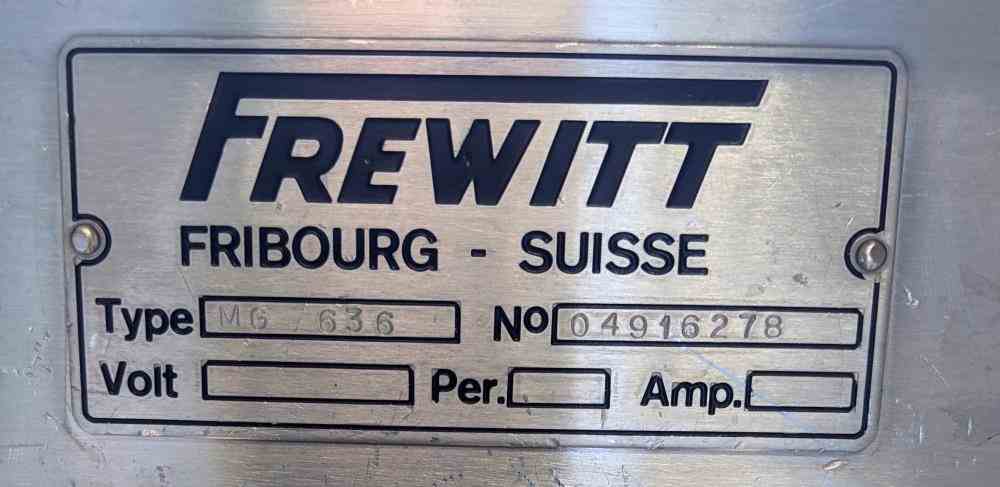

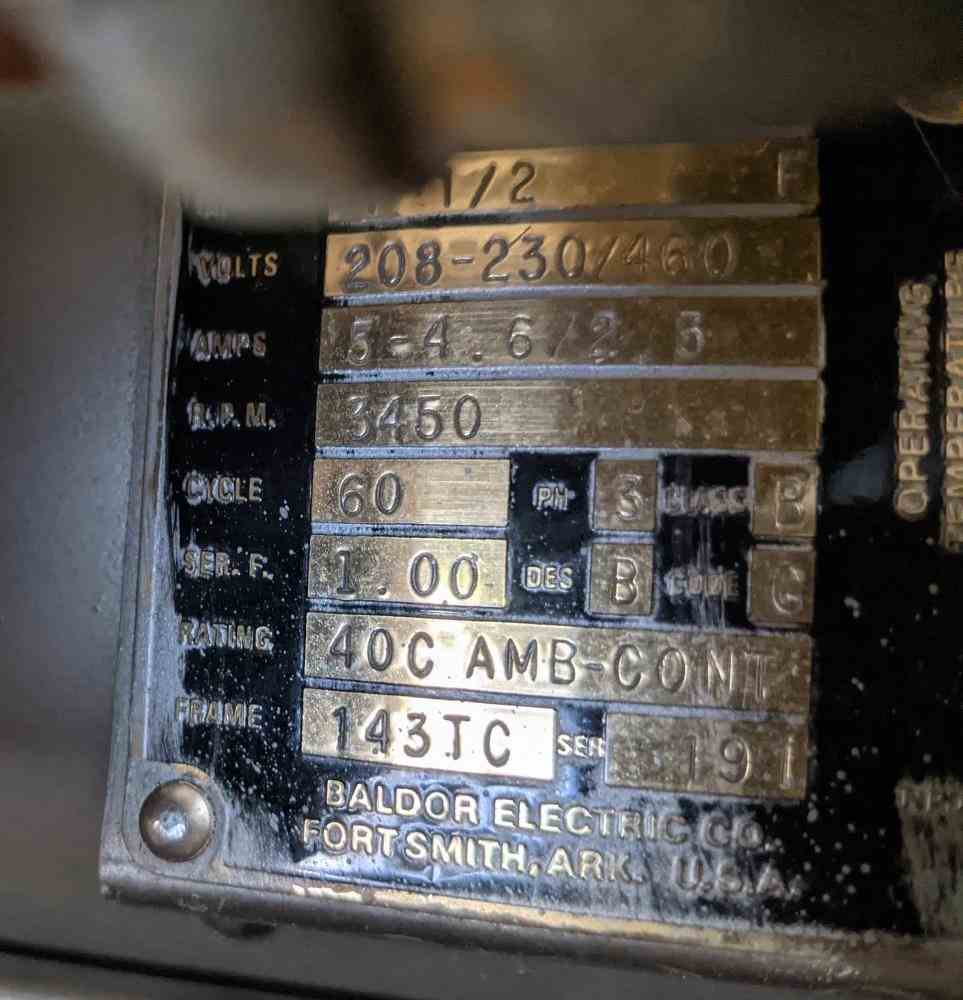

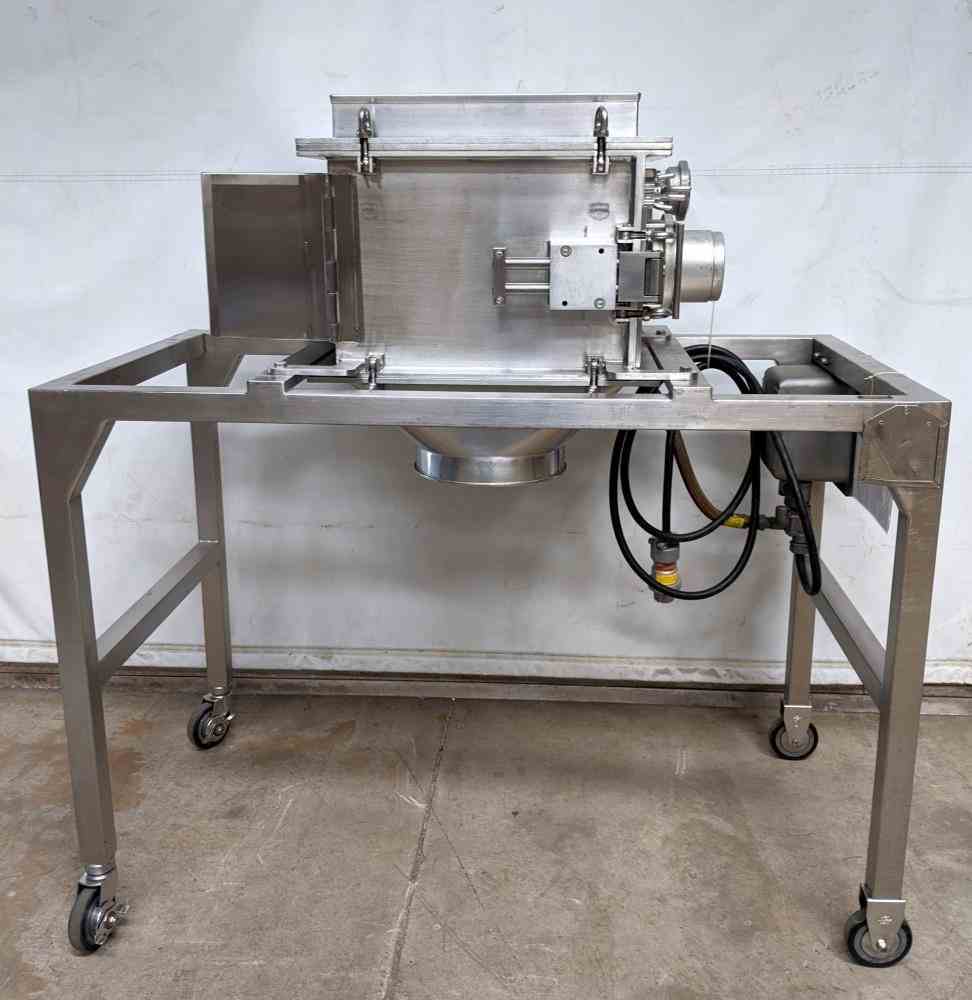

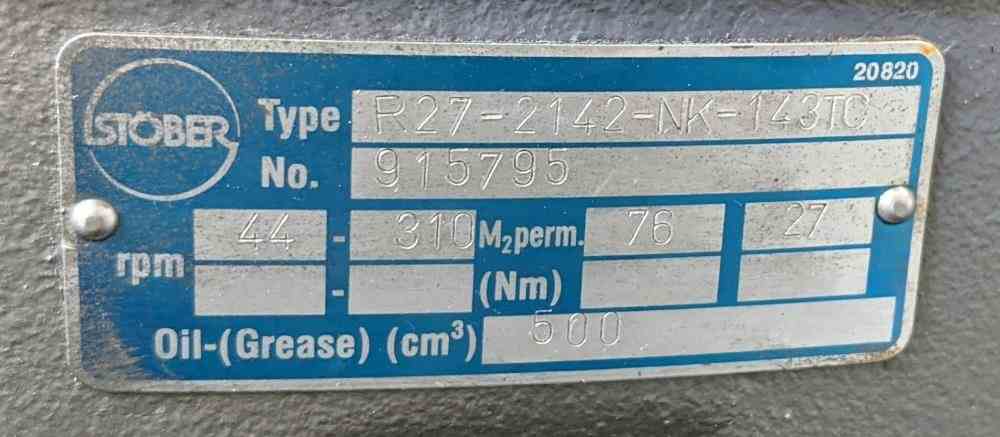

Used Frewitt Pharmaceutical Sanitary Oscillating Granulator, Model 636, Stainless Steel. Maximum output approximately 1000 kg (2200 lbs) per hour. (2) Bar rotor approximate 115mm diameter x 19" long, stainless steel. Approximate 11" wide x 19" long x 10" deep granulating chamber with stainless steel safety grate with 7 bars, 1" spacing. Approximate 11" x 19" stainless steel infeed chute, 59" inlet height. Approximate 11" diameter outlet, 33" discharge height. Driven by a 1-1/2 hp, 3/60/208-230/460 volt, 3450 rpm XP motor thru strober gearbox, type R27-2142-NK-143TC, serial# 915795. Mounted on a stainless steel frame with casters. Serial# 04916278.

Share
SPECIFICATIONS TERMS & CONDITIONS RESOURCES
Manufacturer
Frewitt
Model
636
Material
Stainless Steel
Capacity
1.5 HP
