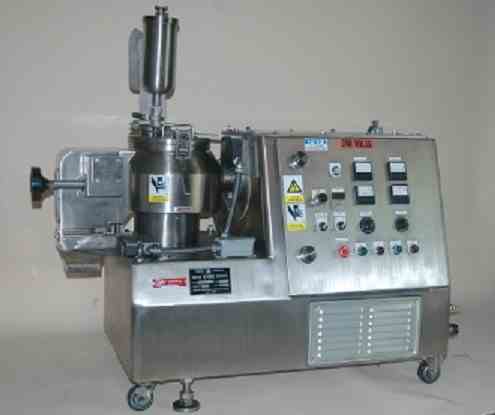

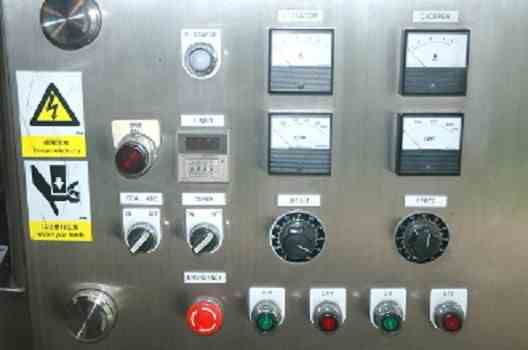

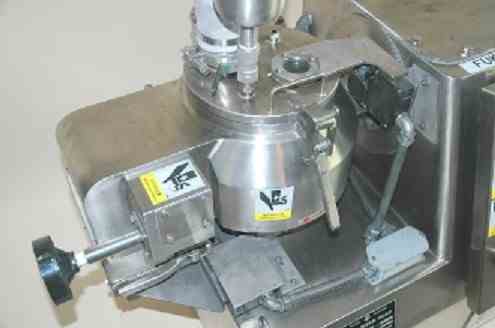

Used FUKAE POWTEC FS-GS-10J FSGS10 Jacketed High Speed Shear Mixer Granulator 10 Liter Condition: Used S/N: S-21 Model: FS-GS-10J Mixing Vessel equipped with Water Jacket Cap: 10 L. Mfg Date: 02/1997. Total Capacity: 11 liters. Charge Volume: 5 liters. Top Cover complete with: - Bag Filter - Liquid Tank (one liter cap) - Sight Glass (for viewing processes) Spare Nozzle Boss Agitator Motor - 1.5 kw, 220 Volts, 60 Hz, 3 Ph, Variable Speed Chopper Motor - 0.75 kw, 220 Volts, 60 Hz, 3 Ph, Variable Speed Agitator Speed: 200-900 RPM Chopper Speed: 600-3500 RPM Bowl and Housing: - 304 Stainless - #320 inner finish Jacket: - 304 Stainless - 1.9 kgf/cm2 working press Control Panel: - Pilot Lamp - Main Switch - Timer Switch - Agitator Speed Indicator - Ammeter for analog tachometer for agitator and chopper - Start/Stop button/agitator - Speed Control Knob - Digital Timer - Chopper Speed Indicator - Ammeter for agitator and chopper - Temperature indicator digital - Emergency Stop button - Seal air on/off switch Pneumatic Connections to supply compressed air for sealing shafts. Operation Manual and Drawings included. Outline of Operation: This High Speed Mixer is equipped with a low speed rotating Agitator blades at the bottom of a shell type vessel mounted on a stand and a high speed rotating Chopper blades on the side wall. The Agitator and Chopper blades have the action of mixing and granulating raw material powder that has been poured in the vessel.
