Fitzpatrick 7LX10D Hastelloy Chilsonator / Roller Compactor
Other Views - click image for larger view
Fitzpatrick 7LX10D Hastelloy Chilsonator / Roller Compactor Fitzpatrick 7LX10D Hastelloy Chilsonator / Roller Compactor Fitzpatrick 7LX10D Hastelloy Chilsonator / Roller Compactor Fitzpatrick 7LX10D Hastelloy Chilsonator / Roller Compactor Fitzpatrick 7LX10D Hastelloy Chilsonator / Roller Compactor Fitzpatrick 7LX10D Hastelloy Chilsonator / Roller Compactor Fitzpatrick 7LX10D Hastelloy Chilsonator / Roller Compactor Fitzpatrick 7LX10D Hastelloy Chilsonator / Roller Compactor Fitzpatrick 7LX10D Hastelloy Chilsonator / Roller Compactor Fitzpatrick 7LX10D Hastelloy Chilsonator / Roller Compactor Fitzpatrick 7LX10D Hastelloy Chilsonator / Roller Compactor Fitzpatrick 7LX10D Hastelloy Chilsonator / Roller Compactor

fitzpatrick 7lx10d hastelloy chilsonator / roller compactor

Stock # 11589
Sold
Capacity 10 "

Overview

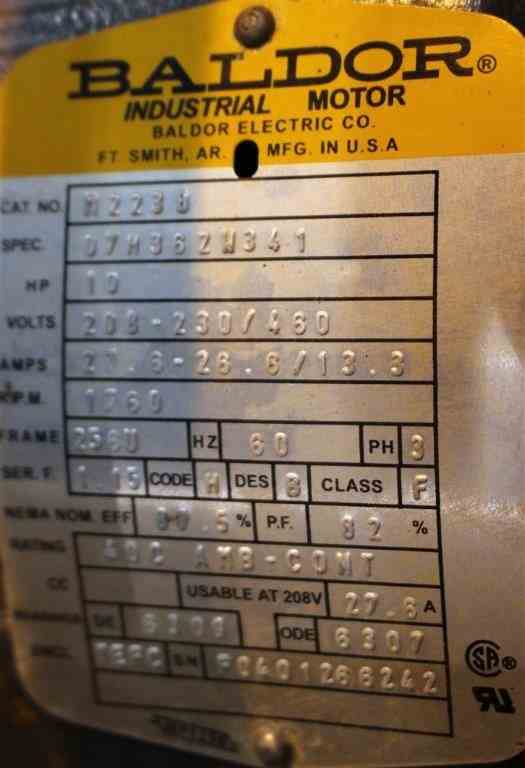

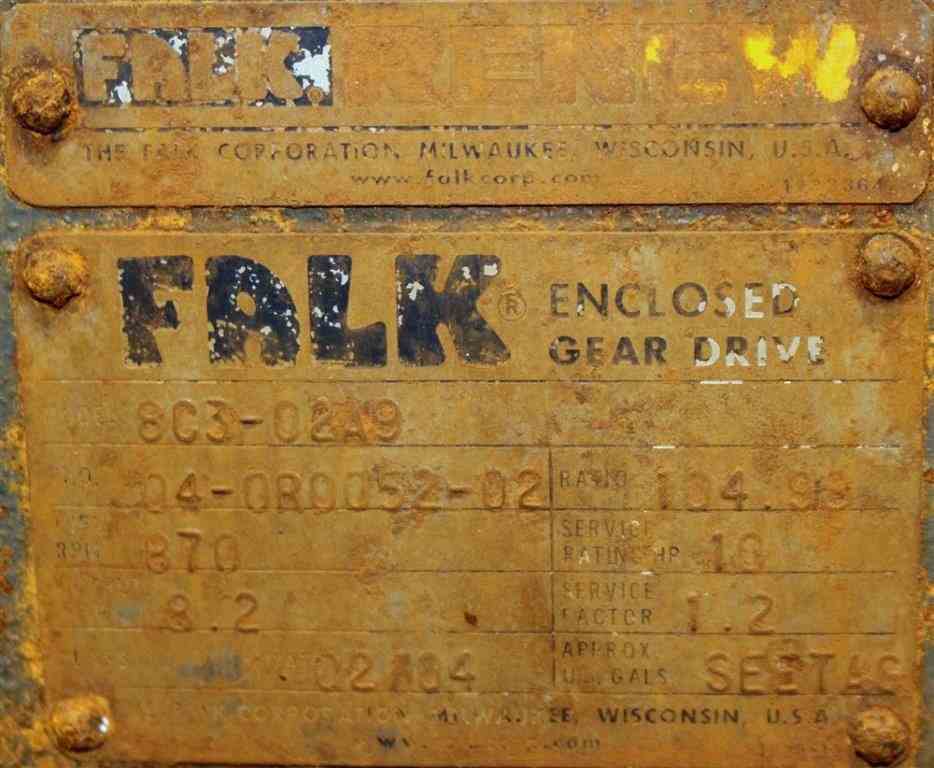

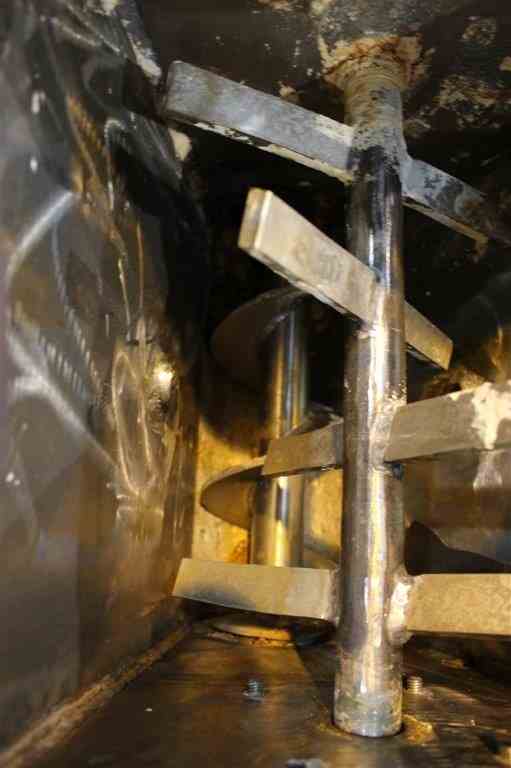

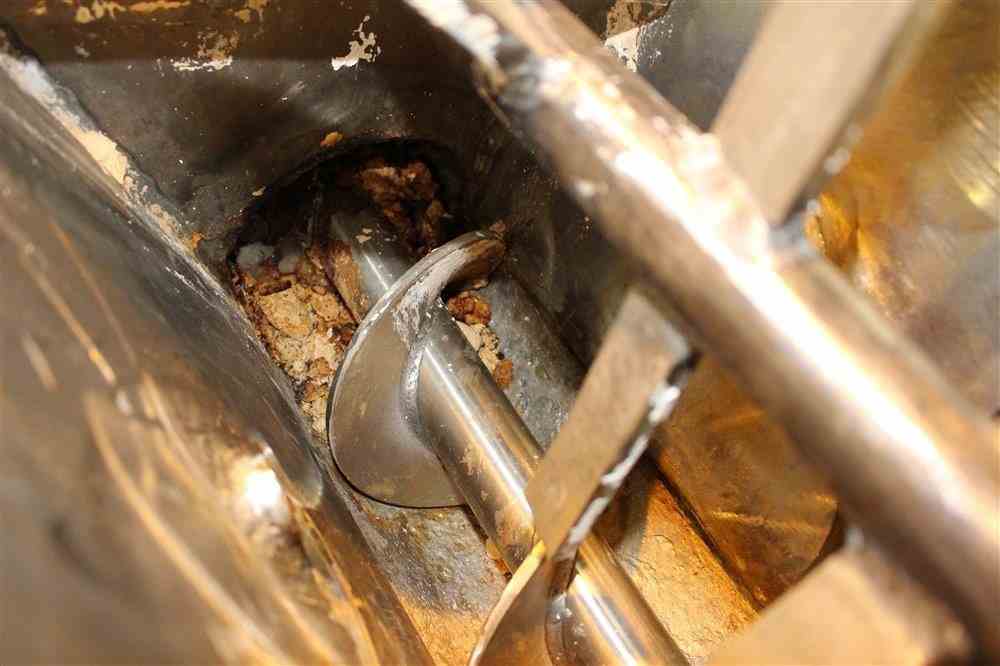

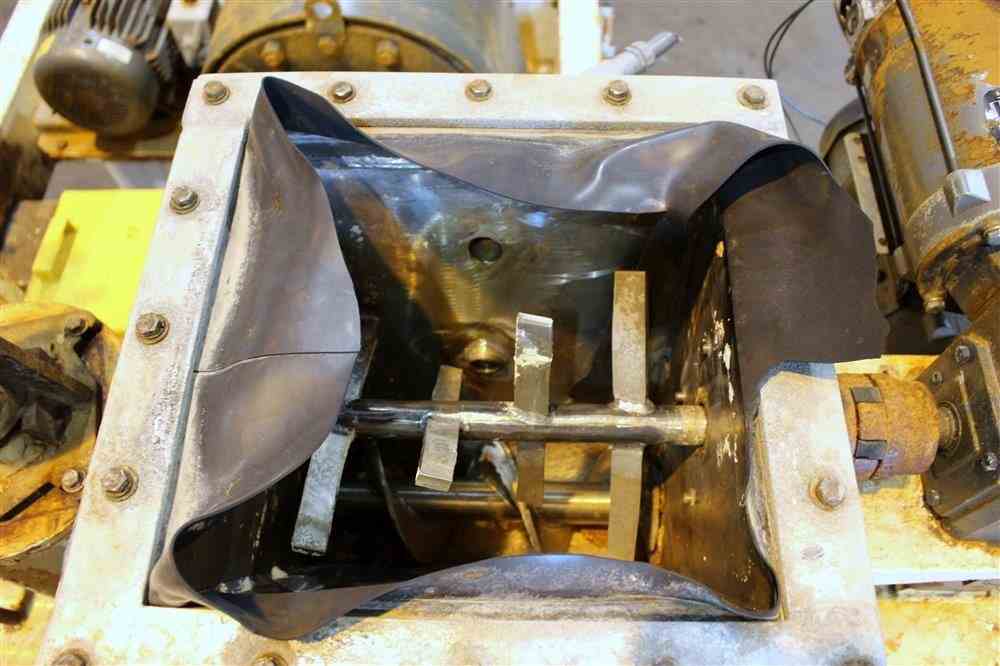

Used Fitzpatrick Chilsonator/Roll Compactor, Model 7LX10D. Approximate 10" diameter x 7" face hastelloy C276 Sine grooved style clad rolls, approximate 450 to 900 kg/hr. Driven by a 10hp, 3/60/208-230/460 volt, 1760 rpm motor with Falk gearbox, ratio 104.98 to 1, output 8.2 rpm. (1) Hastelloy C276 upper feed hopper with conditioner bar, into (1) hastelloy approximate 6" diameter horizontal screw feeder, each driven by a 1.5hp gearmotor, ratio 30 to 1. (1) Approximate 6" diameter hastelloy vertical screw feeder, driven by a 10hp, 3/60/460 volt, 1760 rpm motor. Mounted on a carbon steel frame. Missing guards and vertical feed belt.

Share
SPECIFICATIONS TERMS & CONDITIONS RESOURCES
Manufacturer
Fitzpatrick
Model
7LX10D
Material
Hastelloy
Capacity
10 "
