6600 Gal JV Northwest Inc 304 Stainless Steel Pressure Vessel

6600 gal jv northwest inc 304 stainless steel pressure vessel

Stock # 10991
Sold
Capacity 6600 Gal

Overview

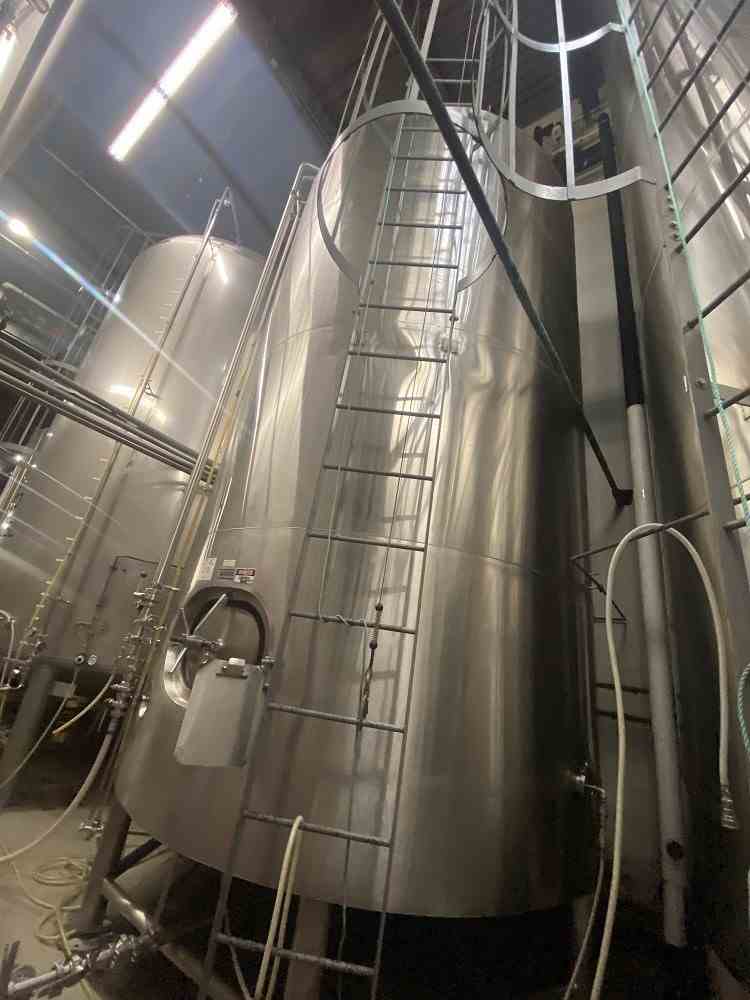

Used 6623 gallon 304 Stainless Steel Jacketed Tank. Manufactured by JV northwest (ICC) in 1996. Serial #12926. 19'- 3 1/8" Height, 8'-10" diameter. CIP, Dished top and bottom head, jacketed, insulated. Jacket rated 50 psi max pressure. 16"x22" side manway. 2" drain tc extended, 2" vent extension, 1 1/2" CIP hanger. Total weight 5866 lbs. Previous use: 200 BBL Bright Beer Tank.

Share
SPECIFICATIONS TERMS & CONDITIONS
Manufacturer
JV Northwest Inc
Model
na
Material
304 Stainless Steel
Capacity
6600 Gal
Subcategory
