Heatec Thermal Fluid Heater - 5.2MM BTU

Heatec Thermal Fluid Heater - 5.2MM BTU
Other Views - click image for larger view
Heatec Thermal Fluid Heater - 5.2MM BTU Heatec Thermal Fluid Heater - 5.2MM BTU Heatec Thermal Fluid Heater - 5.2MM BTU
STOCK# 19968
Capacity 5.2 MM BTU
Description

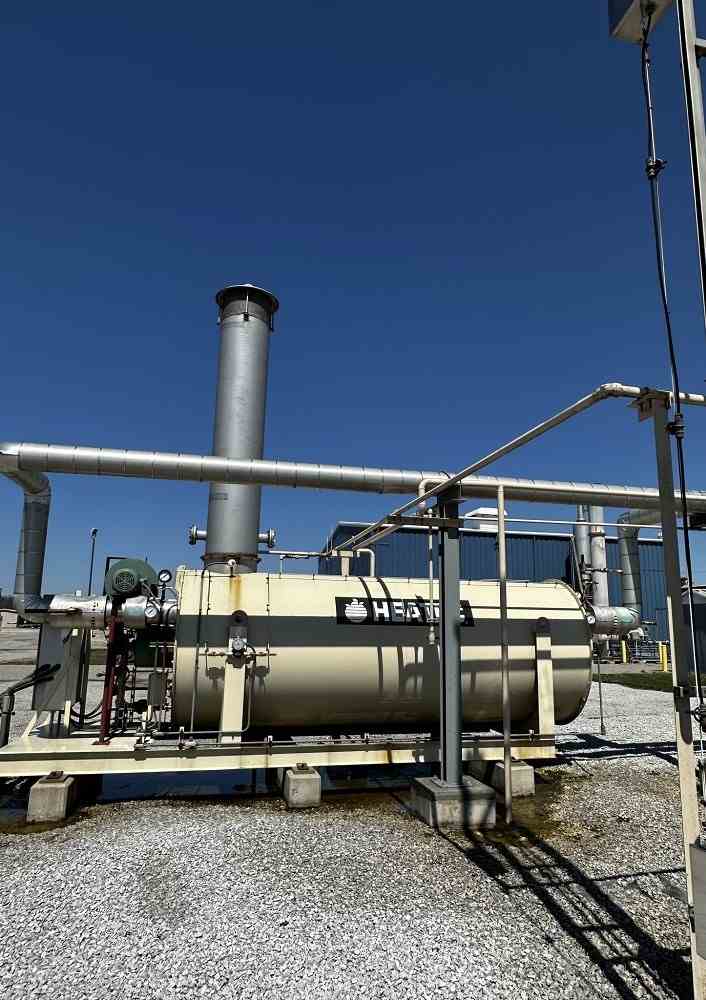

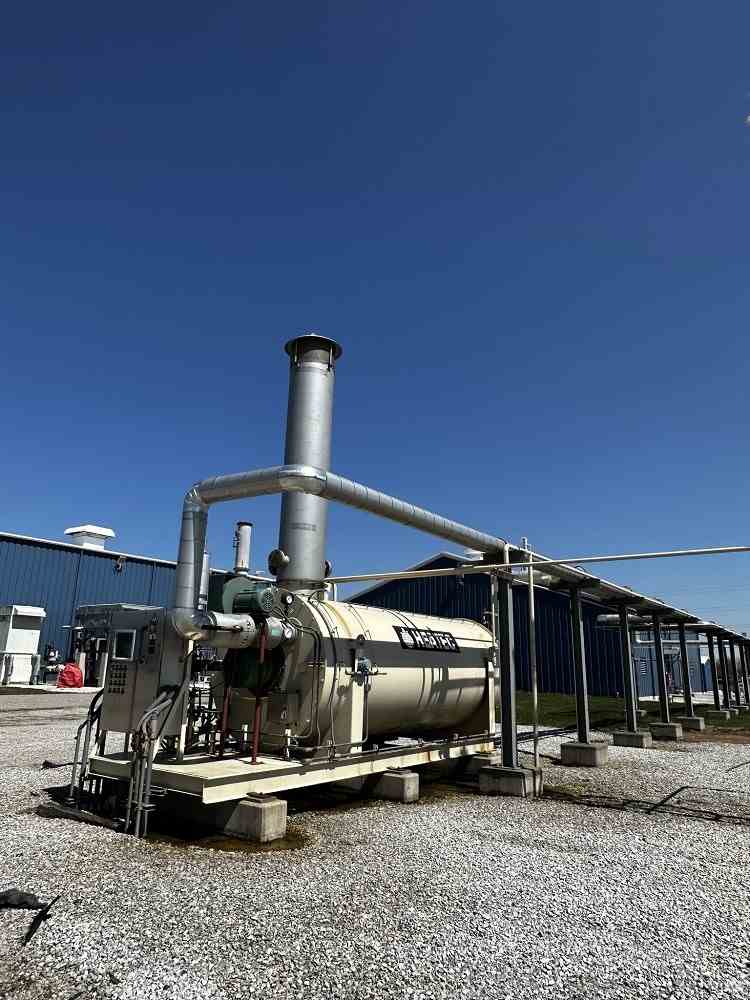

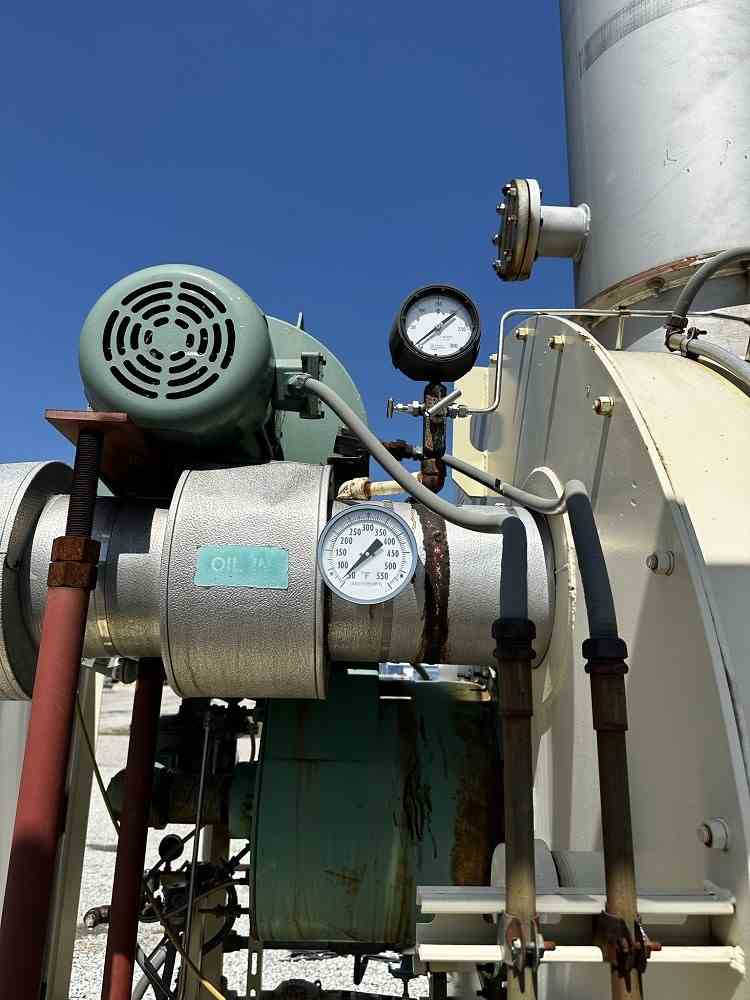

Used 5.2MM BTU/Hr Thermal Fluid heater. Manufactured by Heatec. Model HCI-4010-40-G. Input 6.96MM BTU/hr. Output 5.2MM BTU/Hr. Transfer media: Therminol 59. 300PSIG@650F. 7.5HP heater blower. Eclipse RM-100 burner. 500 gallon Expansion Tank 50SPIG@600F. (2) 20HP Pumps and stack. Natural Gas train. Control panel. (2) Skid Mounted. Job HI07-043. Built 2007. Previous use: Hydrocarbon dew point control plant, HMO system.

Specifications
Manufacturer Heatec
Model# HCI-4010-40-G
Material Unknown
Capacity 5.2 MM BTU
Category Boilers
SubCategory Hot Oil
