27000 KW ABB Steam Turbine Generator

27000 KW ABB Steam Turbine Generator
Other Views - click image for larger view
27000 KW ABB Steam Turbine Generator 27000 KW ABB Steam Turbine Generator 27000 KW ABB Steam Turbine Generator 27000 KW ABB Steam Turbine Generator 27000 KW ABB Steam Turbine Generator 27000 KW ABB Steam Turbine Generator 27000 KW ABB Steam Turbine Generator 27000 KW ABB Steam Turbine Generator 27000 KW ABB Steam Turbine Generator 27000 KW ABB Steam Turbine Generator 27000 KW ABB Steam Turbine Generator 27000 KW ABB Steam Turbine Generator
STOCK# 18322
Capacity 27000 KW
Description

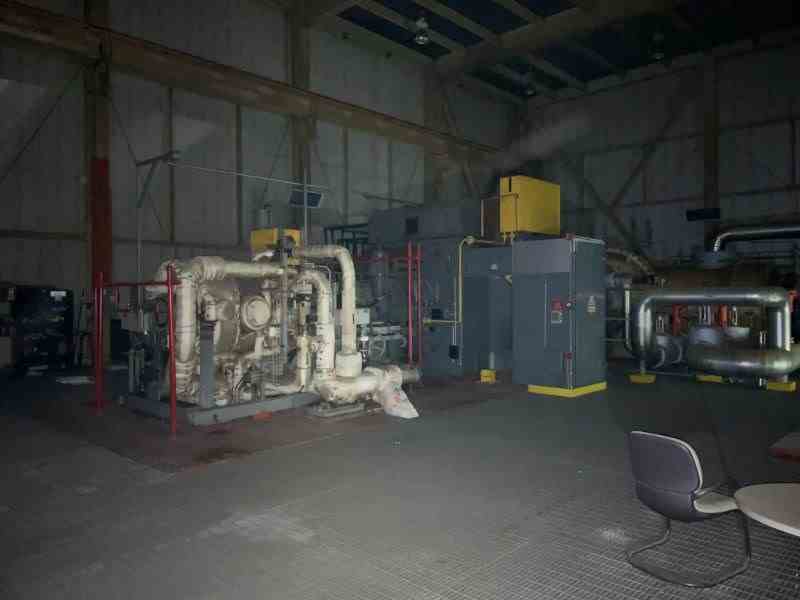

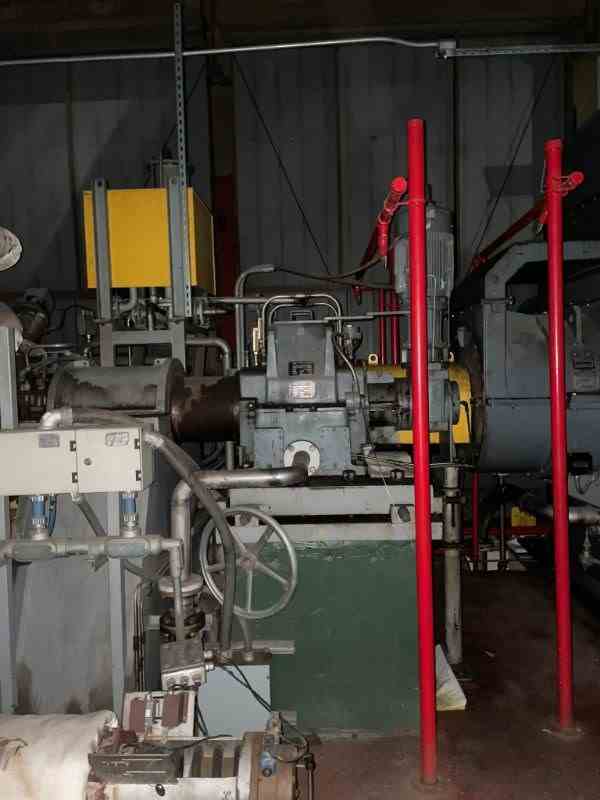

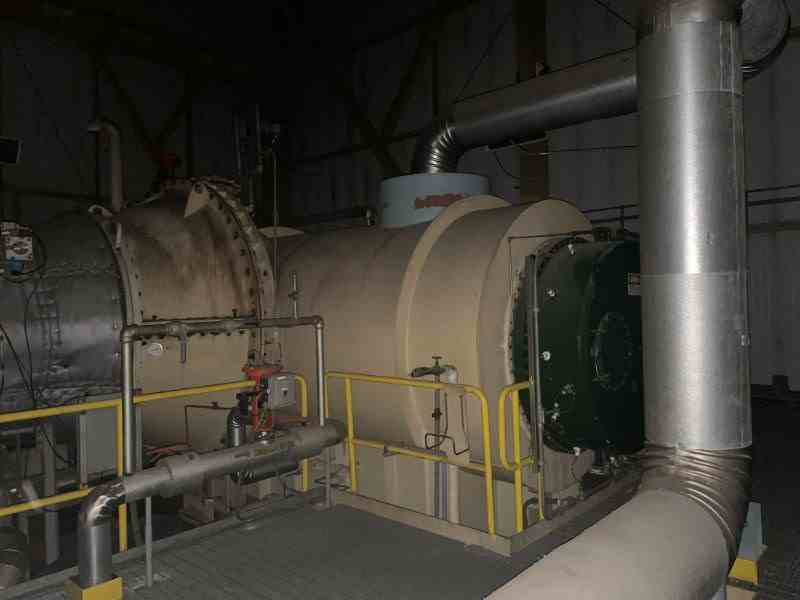

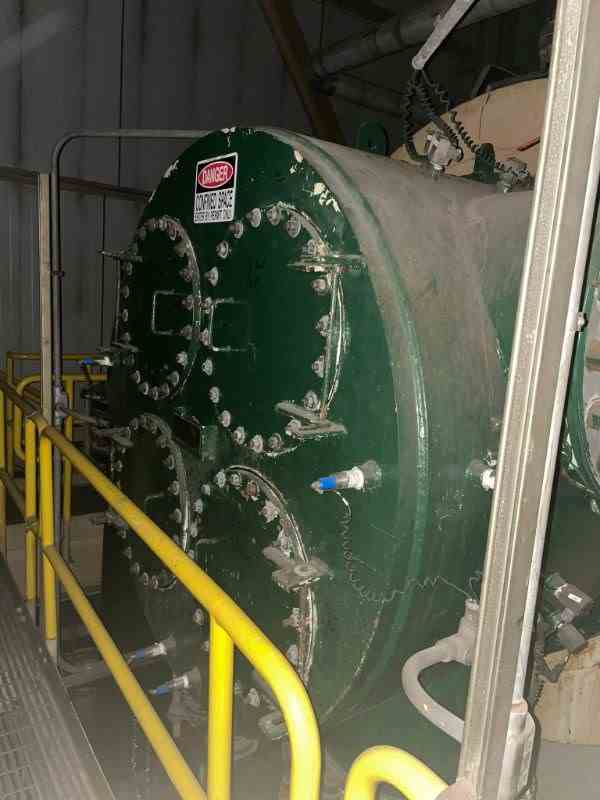

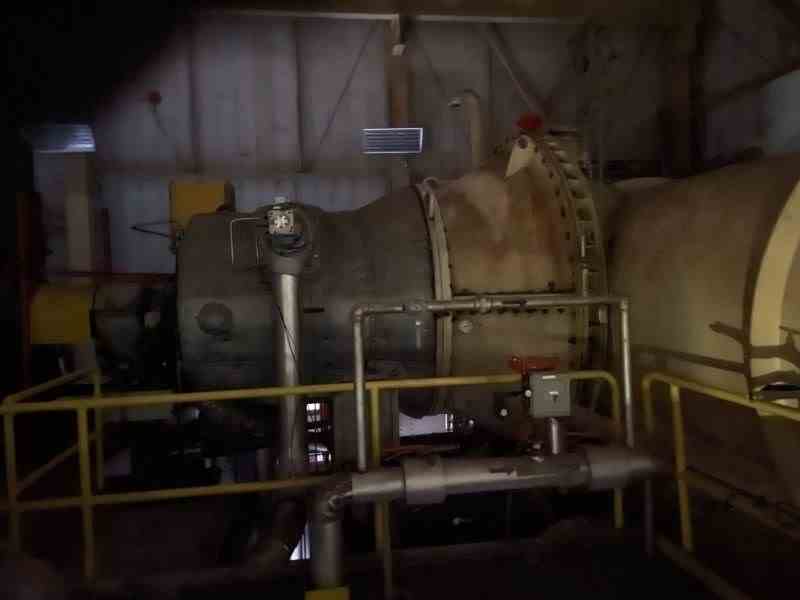

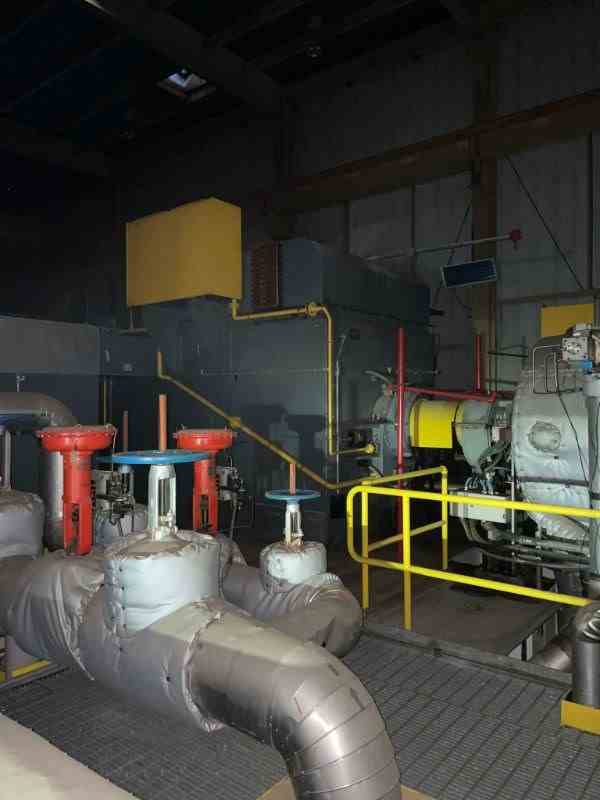

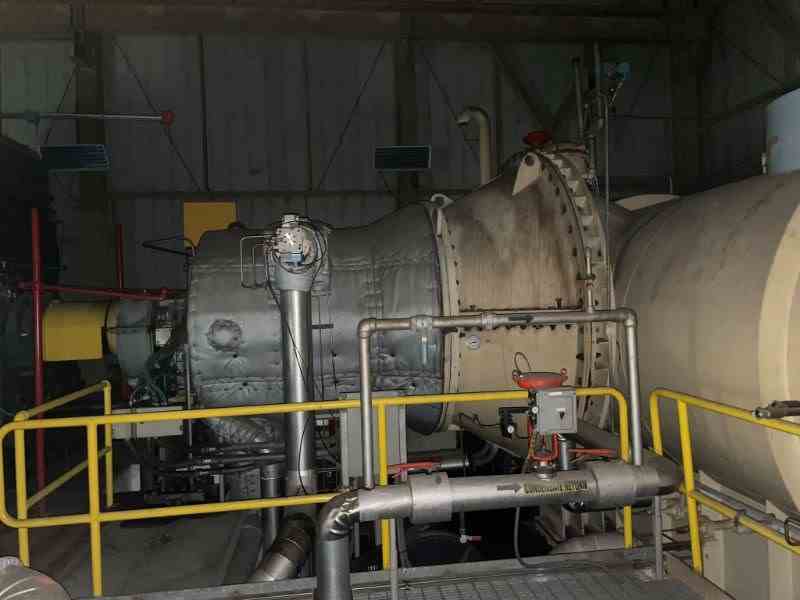

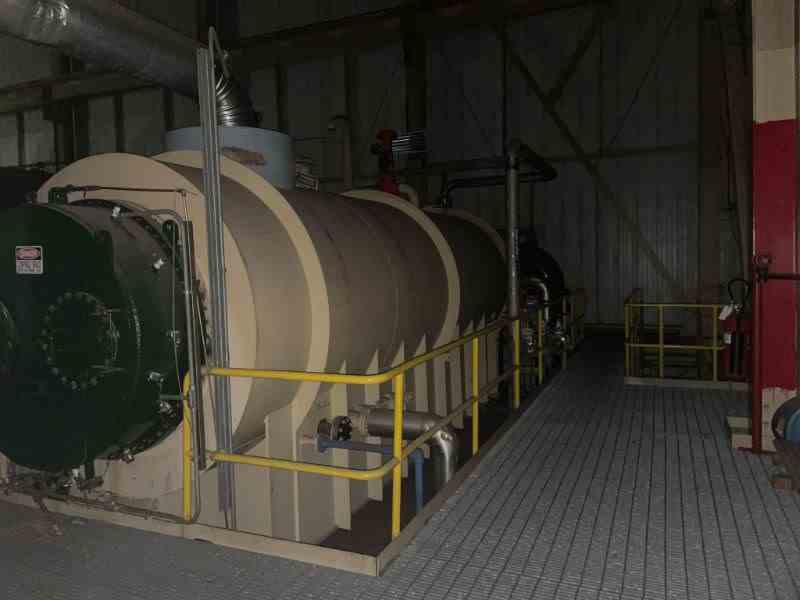

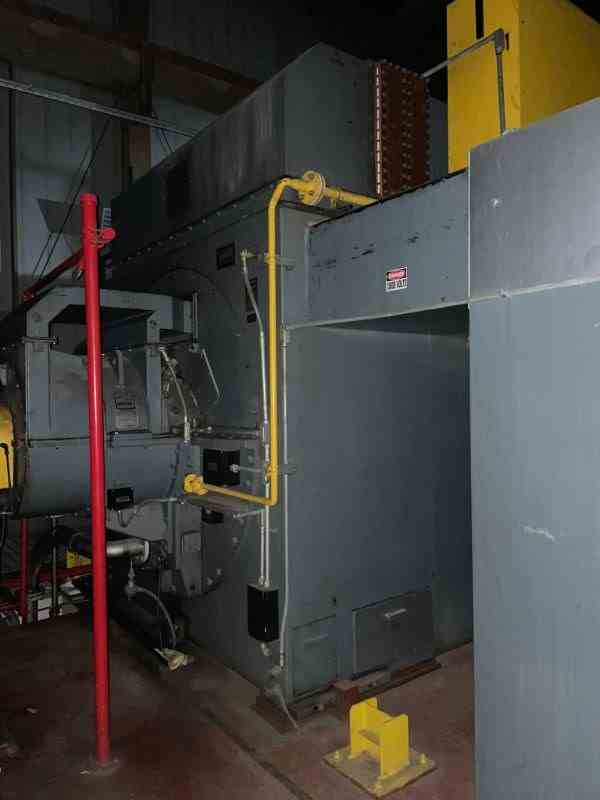

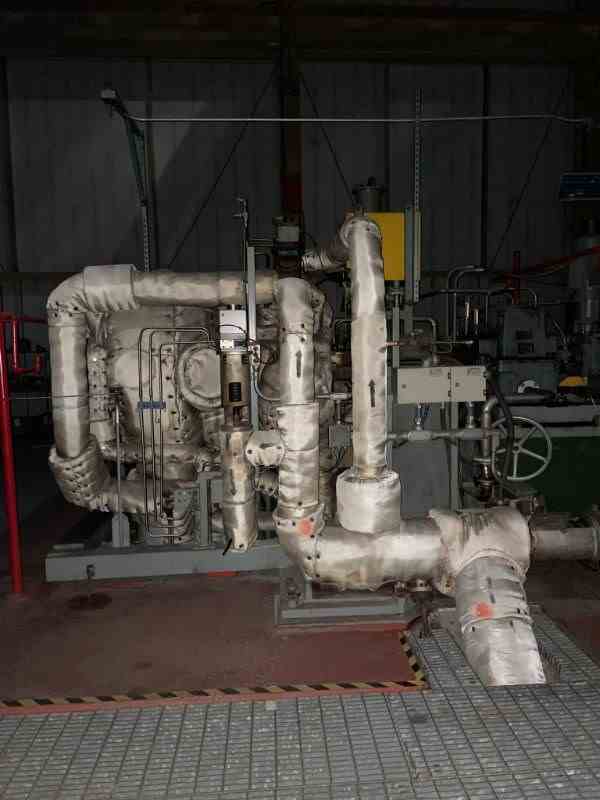

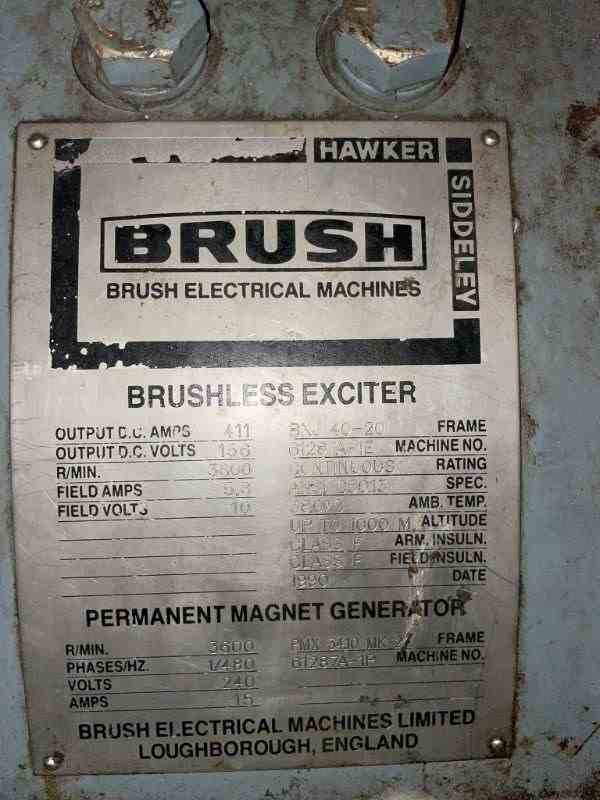

27MW Steam Turbine Generator. Model VAX Condensing Turbine. Inlet pressure 1300PSIG @950F. Serial #B2388. Flender-Graffenstaden gear box. Size TRE40. Power 9580Kw. Service factor 1.1. Serial #3815. Built 1990. 27333 KVA Brush Synchrous Generator Continuous Brushless Exciter Output AMPS 411DC, Output Volts 156. Field Amps 5.6. Field Volts 10. Serial #61287A-1E. Permanent Magnet Generator 2600RPM. 1ph/480Hz/240V. Frame PMX3410MK21. Serial @61287A-1P. Built 1990. Type Turbo Gen. Frame BDAX7-167EH.

Specifications
Manufacturer ABB
Model# VAX
Material N/A
Capacity 27000 KW
