Steam Turbine Generator - 1.7 MW
Other Views - click image for larger view
Steam Turbine Generator - 1.7 MW Steam Turbine Generator - 1.7 MW Steam Turbine Generator - 1.7 MW Steam Turbine Generator - 1.7 MW
Stock # 12125
Capacity 1.7 MW
Products Electricity
Sold

Overview

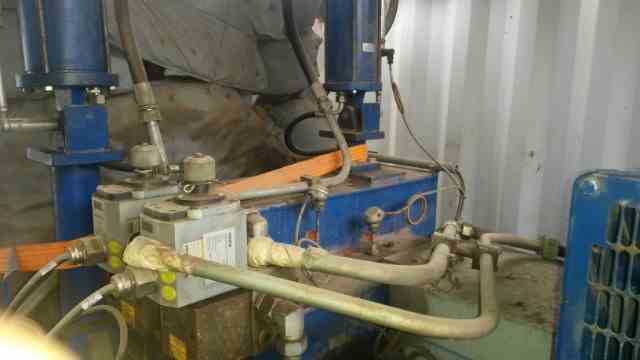

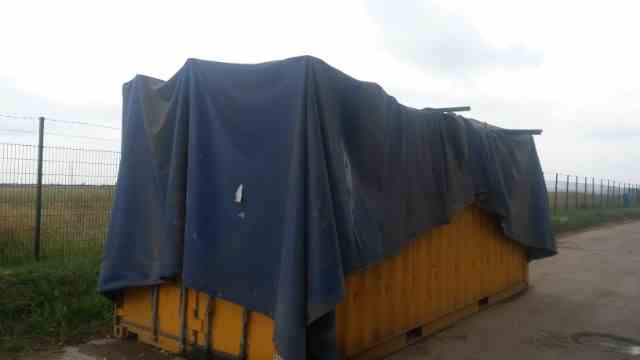

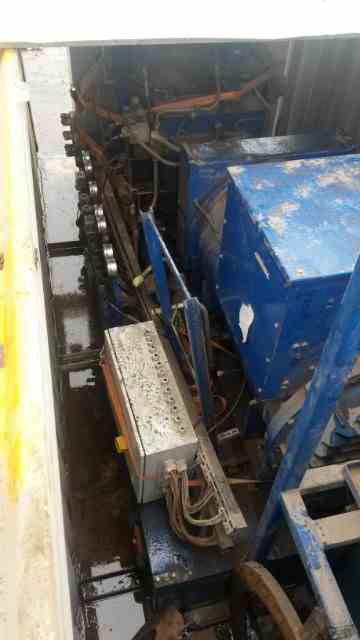

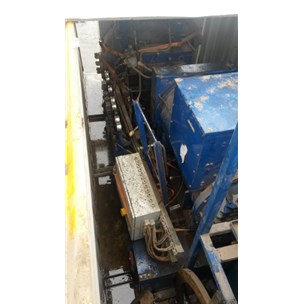

This steam turbine generator set includes a 1.7 MW steam turbine made by Spilling Energie Systeme GMBH of Germany (back pressure STS-C-A turbine) and a 2110 KVA generator made by Leroy Somer. Input steam 30bar 360 degrees – Output 3.5 bar 200 degrees. Synchronization module: Woodward and Deiff. Complete control panel with Siemens PLC. All the documents and software are available. The plant had last maintenance in 2012 at 10,000 running hours by Alstom, and has run for 4,000 hours after that maintenance. All equipment is in container, ready for shipment.

Major Equipment

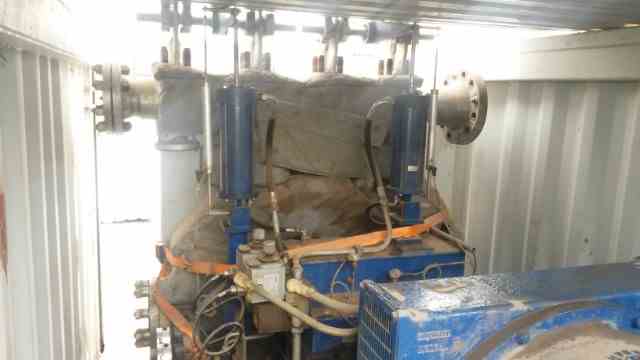

Spilling Energie Systeme back-pressure STS-C-A steam turbine

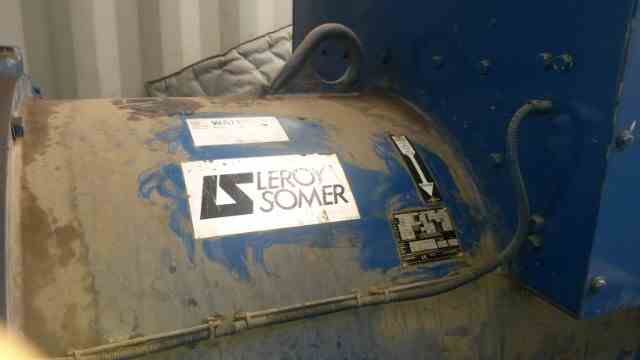

Leroy Somer generator
Siemens PLC
Share
SPECIFICATIONS RESOURCES
Year Built 2009
Year Shut 2015
Capacity 1.7 MW
Products Electricity
Subcategory Steam Turbines
