300 Gal Groen Stainless Steel Kettle
Other Views - click image for larger view
300 Gal Groen Stainless Steel Kettle

300 gal groen stainless steel kettle

Stock # 6620
Sold
Capacity 300 Gal

Overview

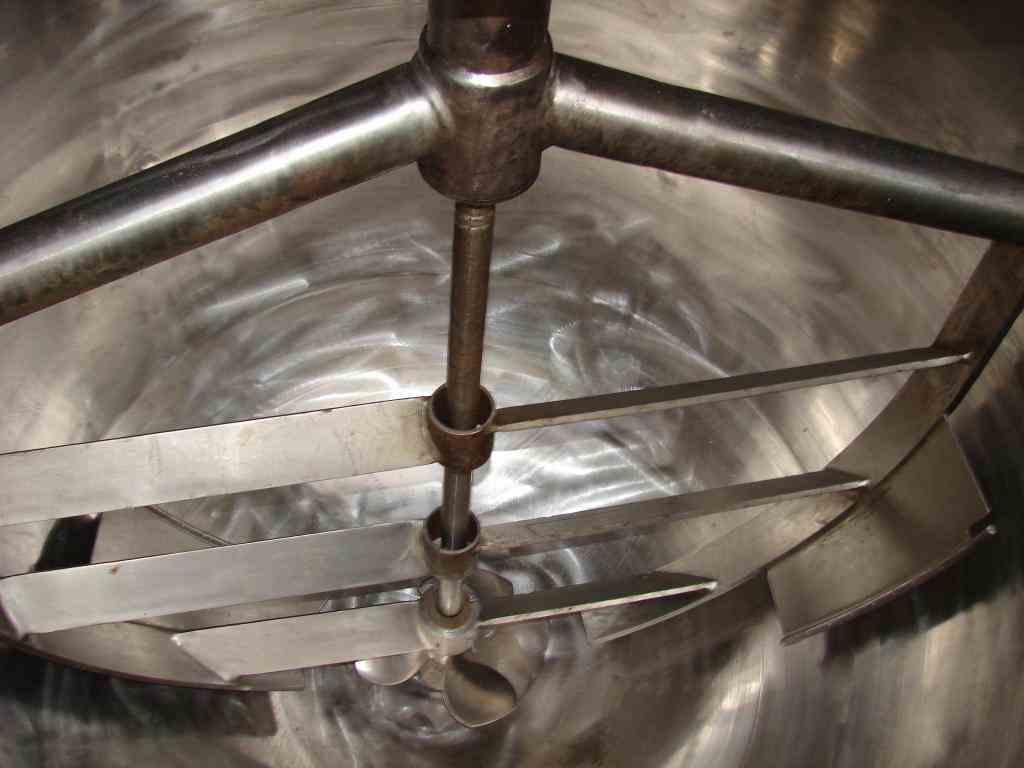

Groen 300 gallon stainless steel kettle with dual motion scrape agitation. Model NEM 300. Serial #110222. National Board # 110222. The interior is constructed of 316 ss and the external skin is constructed of 304 ss. The jacket is designed for 80 PSI @ 325 deg F steam. The mixing system consist of a 5 HP (23 rpm) scrape agitator and a 3 HP (365 rpm) 12" prop agitator. The 3 zone jacket has 1.25" threaded fittings. There is a 2.5" bottom discharge with flush mount pneumatic valve. The inside diameter is 54" with a 32.5" straight side height and 23.5" dish bottom. Overall dimensions with agitator and carbon steel legs are 62.5" diameter and 120" high. Requires 230/460 vac 3 ph electrical supply. Drawing on file. Good Condition.

Share
SPECIFICATIONS TERMS & CONDITIONS RESOURCES
Manufacturer
Groen
Model
Material
Unknown
Capacity
300 Gal
