3500 Gal Stainless Steel Tank

3500 gal stainless steel tank

Stock # 6122
Sold
Capacity 3500 Gal

Overview

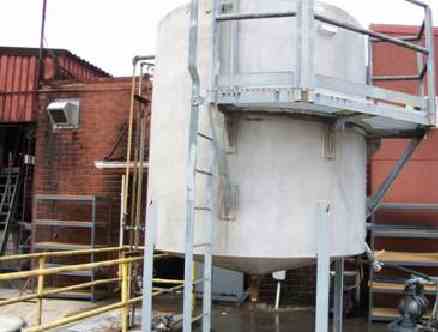

Used Industrial Piping, Inc. approximately 3500 gallon stainless steel vertical mix and settling tank. 8'2" diameter X 8' straight side. Flat welded top, slight cone bottom. 2" center bottom drain. (3) 2" tangential side top inlets, (3) 2" side top inlets, (1) 2" tangential side bottom outlet, and (1) 2" side bottom outlet. Mounted on iron angle legs giving 2'10" clearance to floor. 4' X 2" flip top manway. (2) internal baffles, internal skimming/separation plate. Equipped with Lightnin vektor 3 HP, 3/60/208-230/460 volt stainless steel agitator. Includes wrap around catwalk.

Share
SPECIFICATIONS TERMS & CONDITIONS RESOURCES
Manufacturer
Unknown
Model
Material
Unknown
Capacity
3500 Gal
