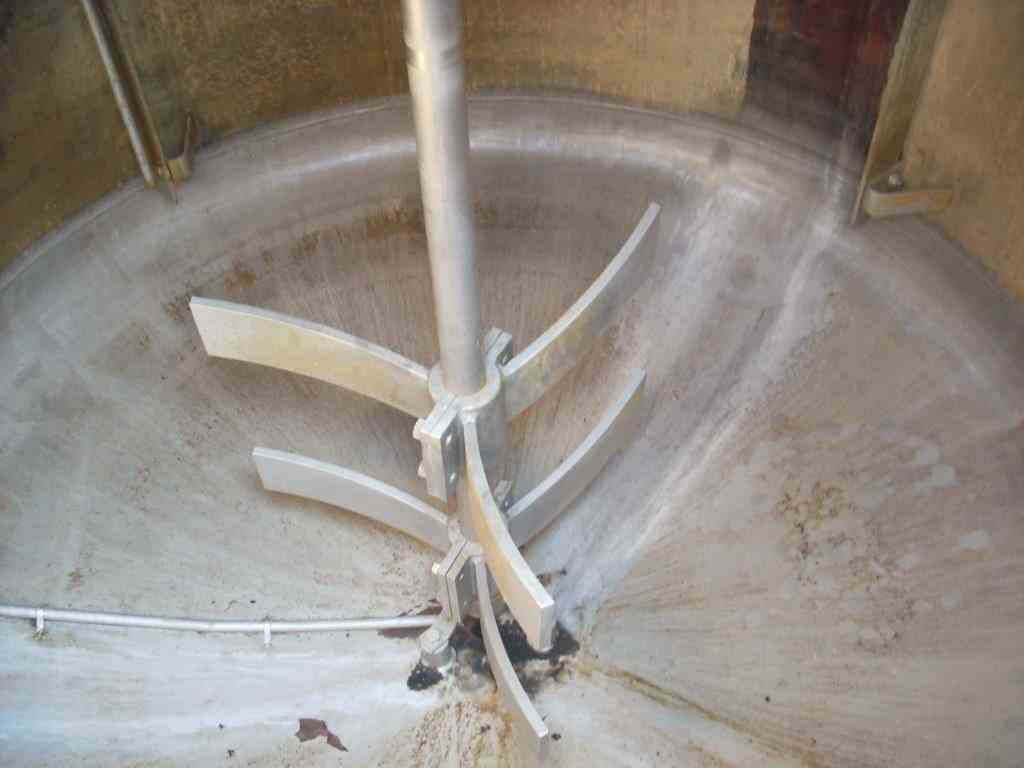

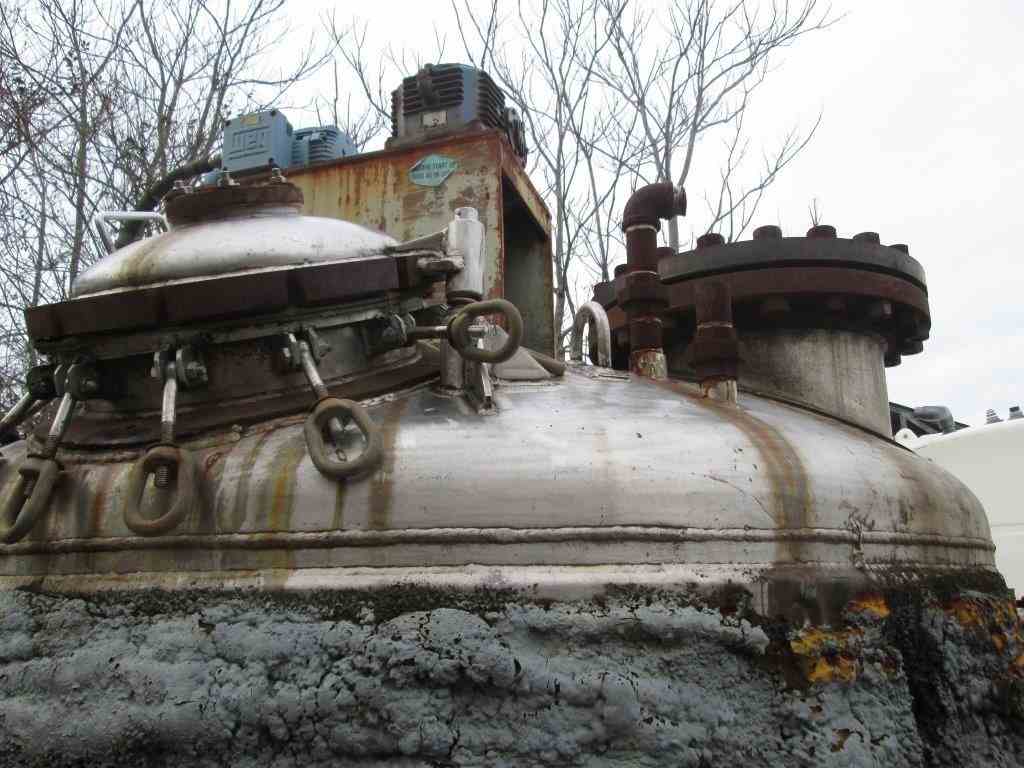

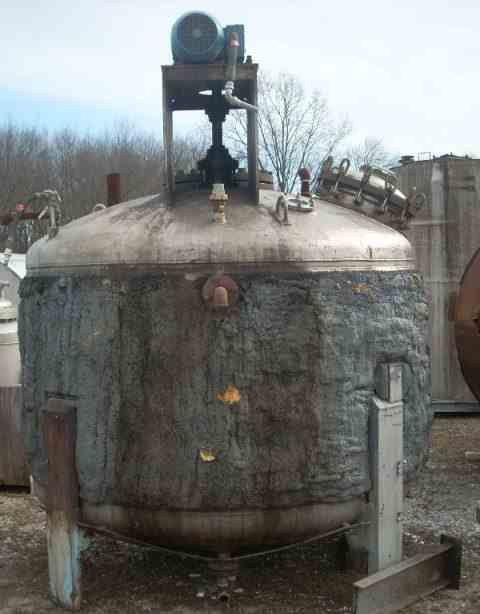

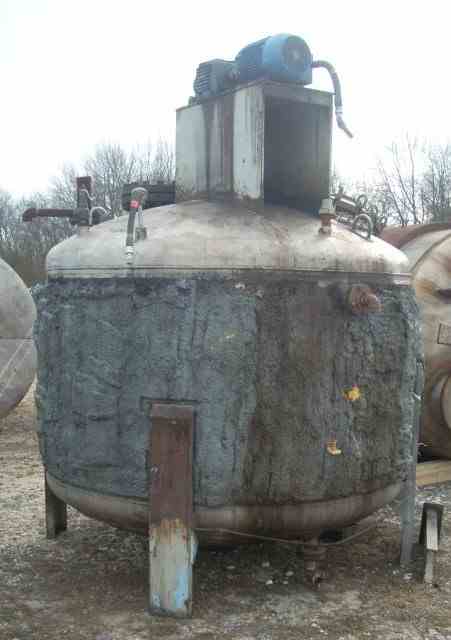

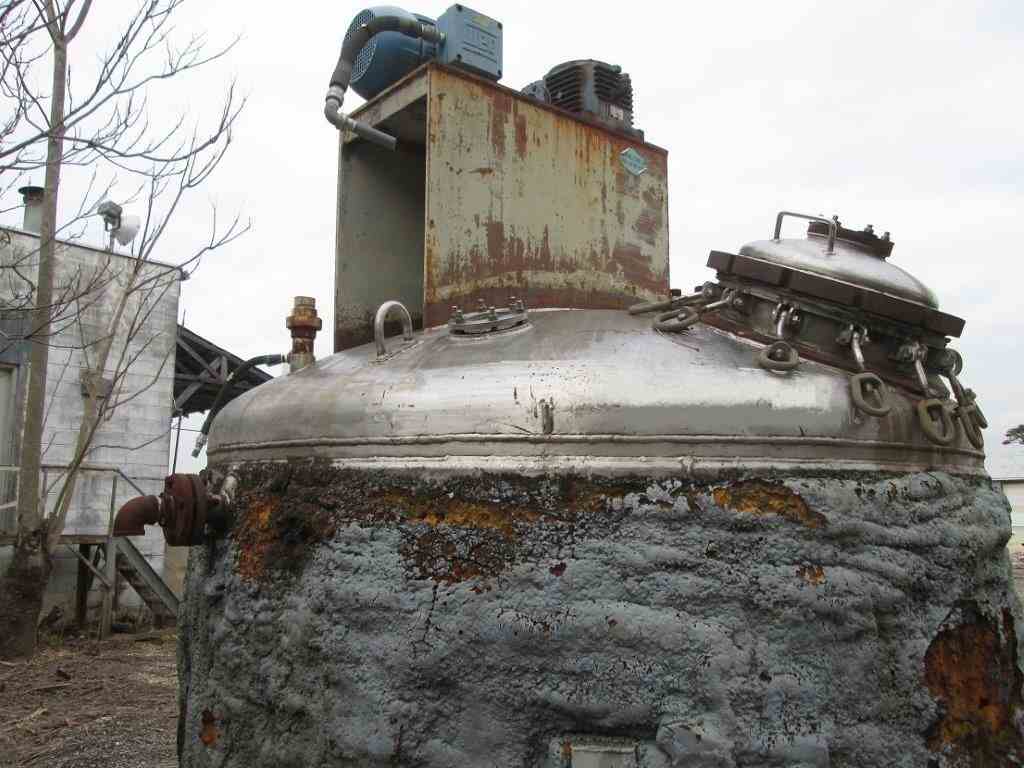

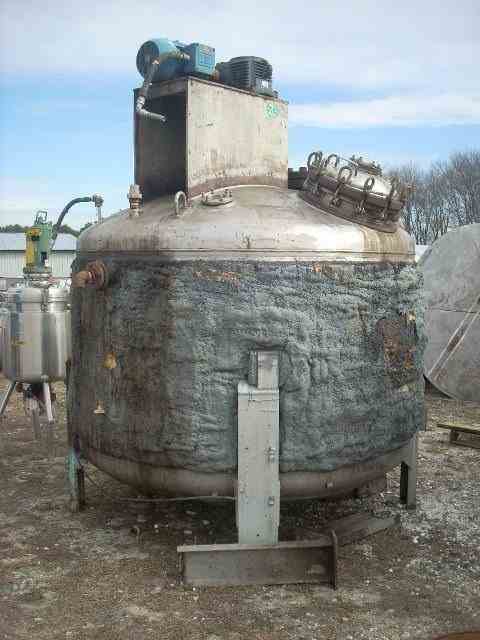

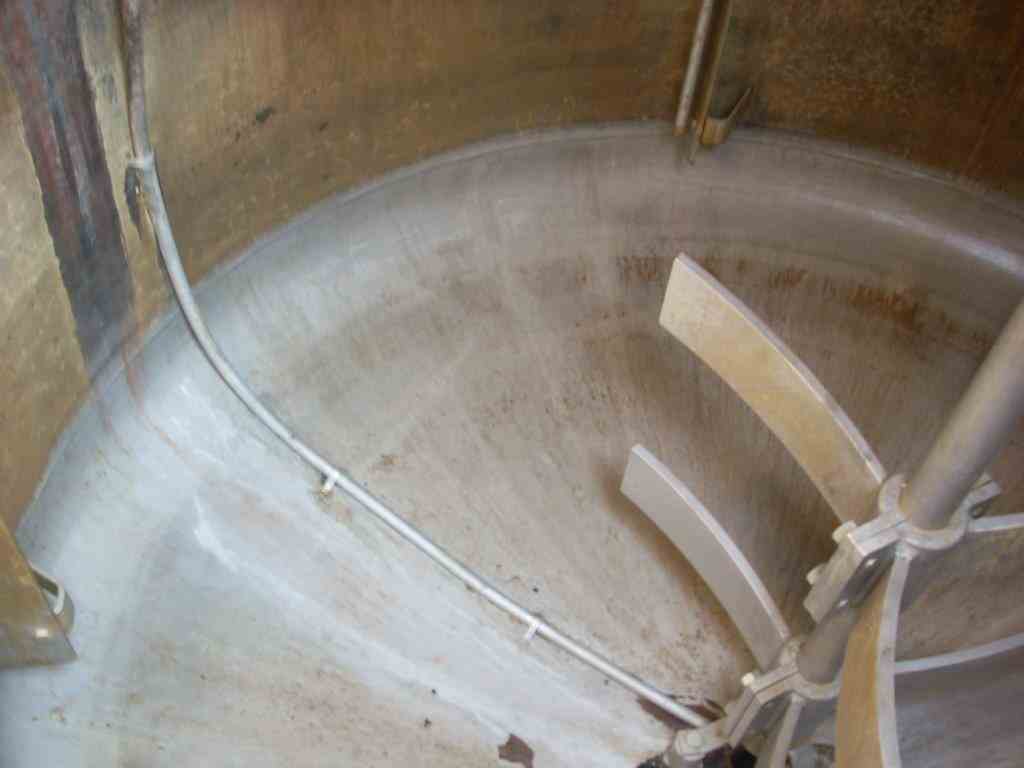

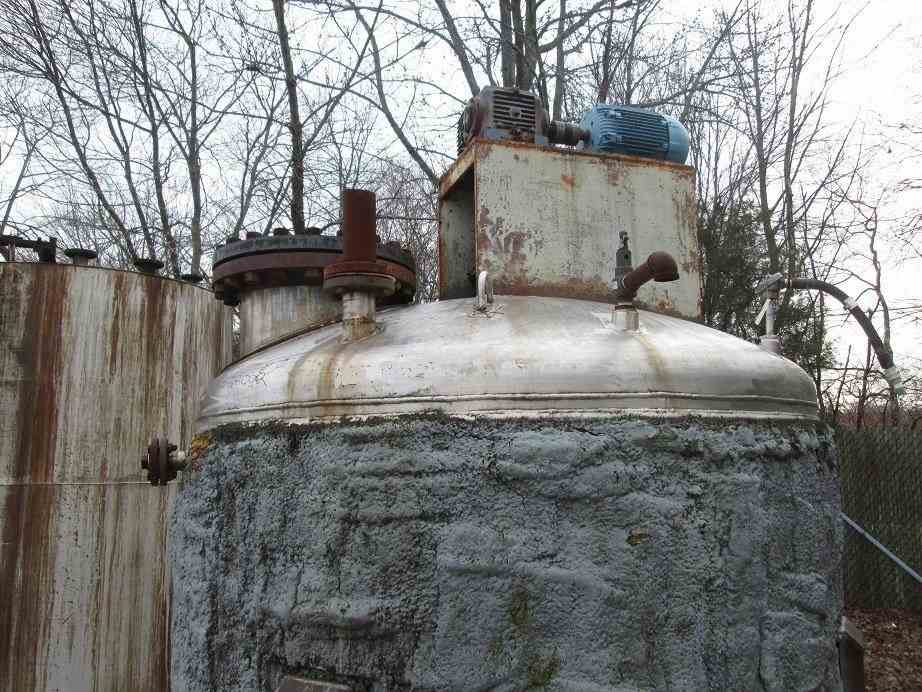

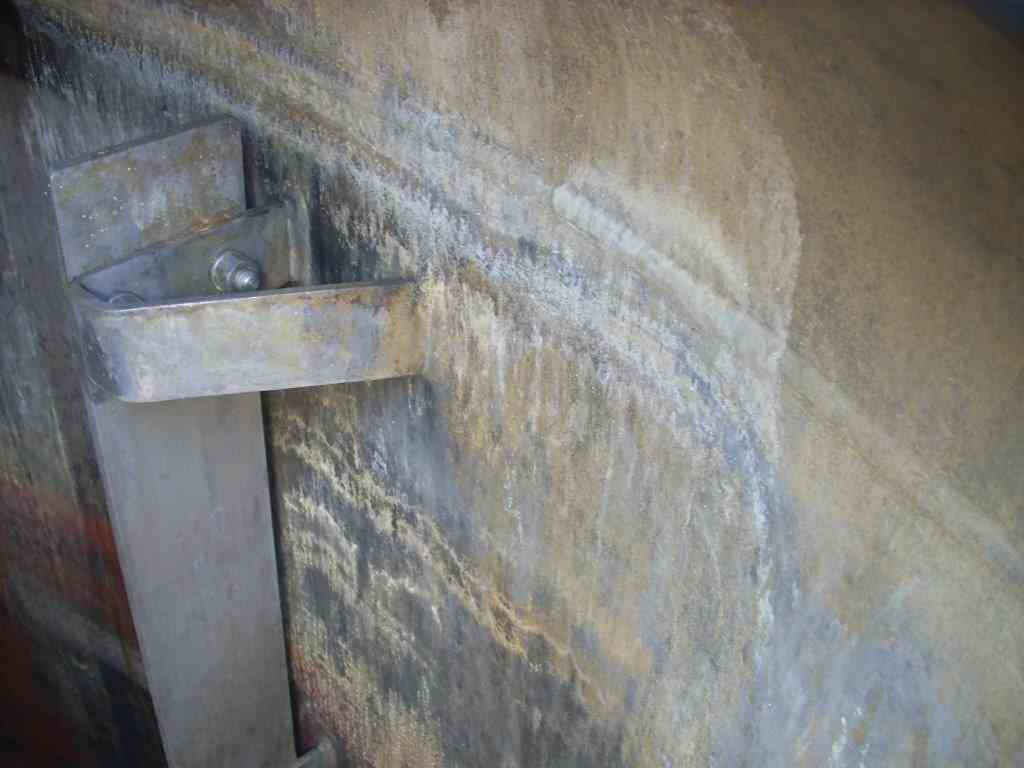

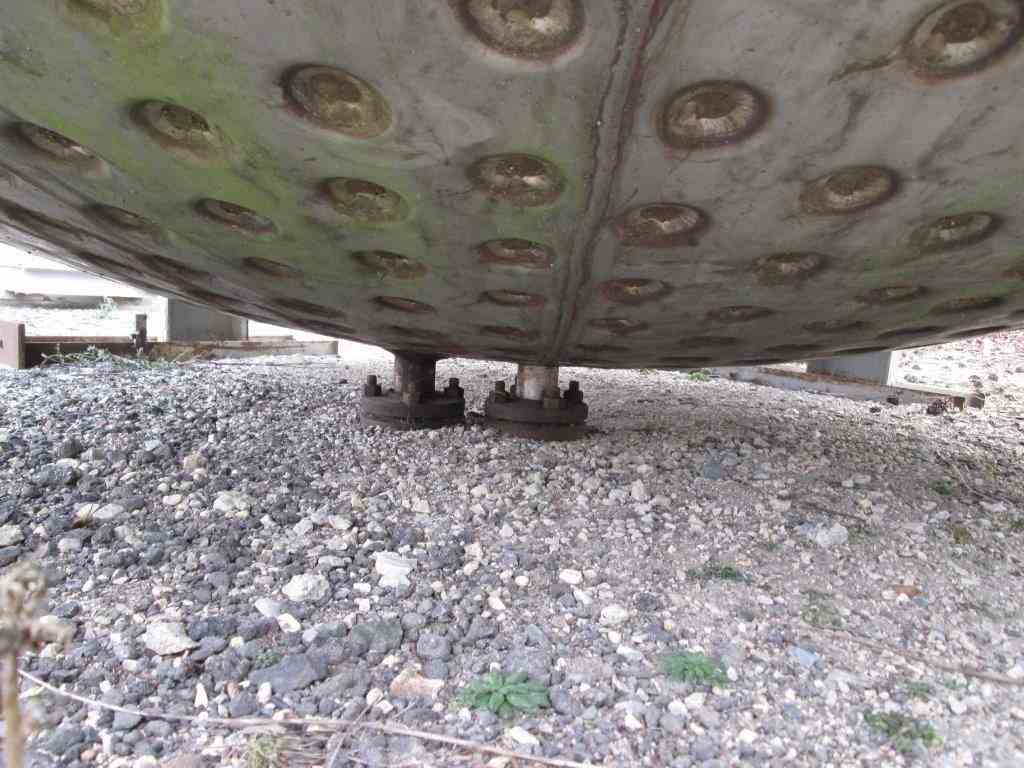

Used approximately 1200 gallon Alloy Fab. T316 stainless steel reactor. 7' diameter X 3'9" straight side. Dished top and bottom heads. Internal rated 50 PSI/FV @ 400 degrees F. Dimple jacket on straight side and bottom head rated 150 PSI @ 400 degrees F. Textron cone drive, 5 HP motor. Two tier, 3 blade turbine agitator and baffles. Nozzles: (1)-3" flg.conn., (1)-2 1/2" cplg, (4)-2" cplgs. and a sight glass on top in addition to the manhole and flange for column/condensor. 2" flange bottom outlet. Built by Alloy Fabrication.
