D-16 Cornell Versator
Other Views - click image for larger view
D-16 Cornell Versator D-16 Cornell Versator D-16 Cornell Versator D-16 Cornell Versator D-16 Cornell Versator

d-16 cornell versator

Stock # 14278
Sold
Capacity 7.5 HP

Overview

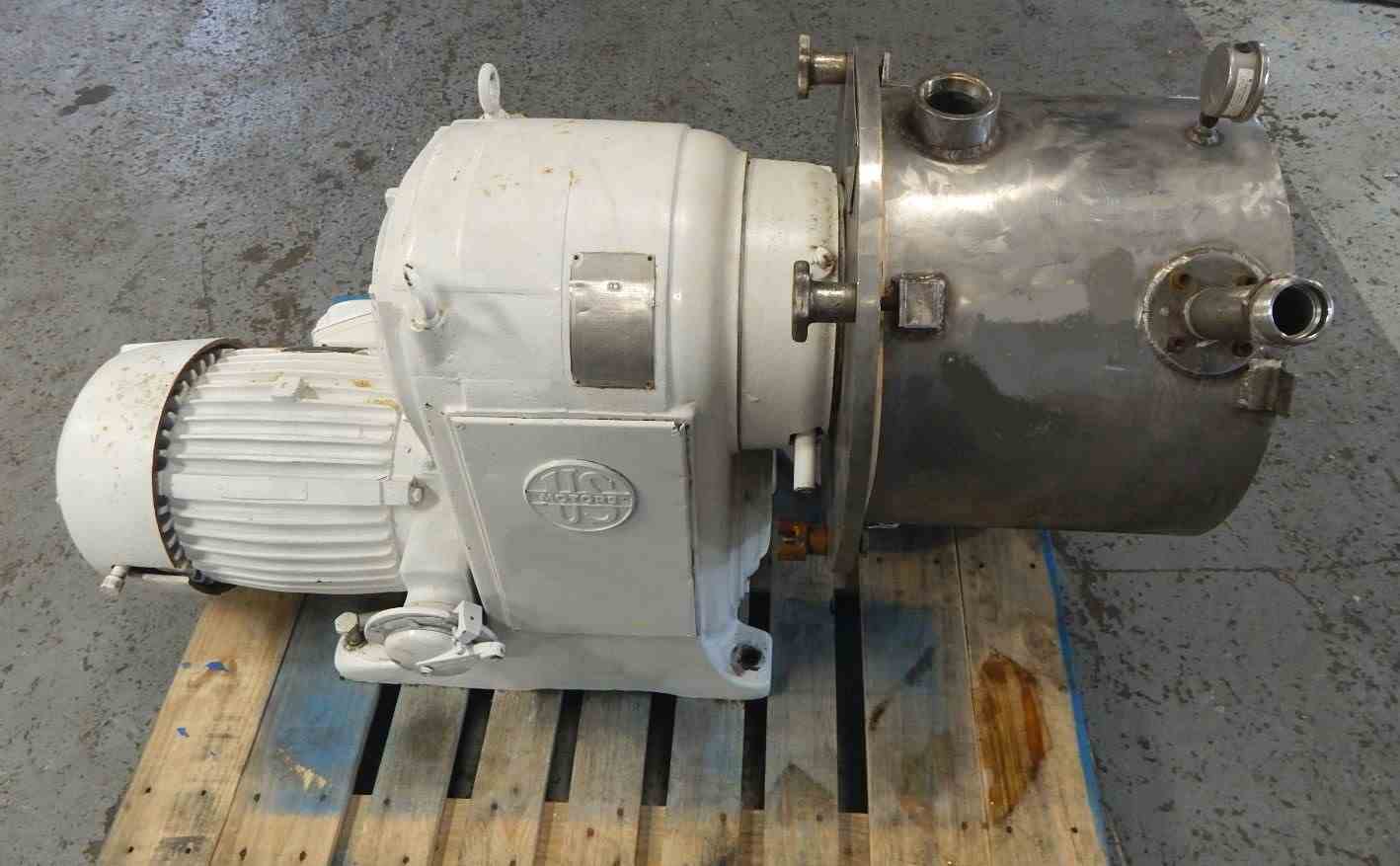

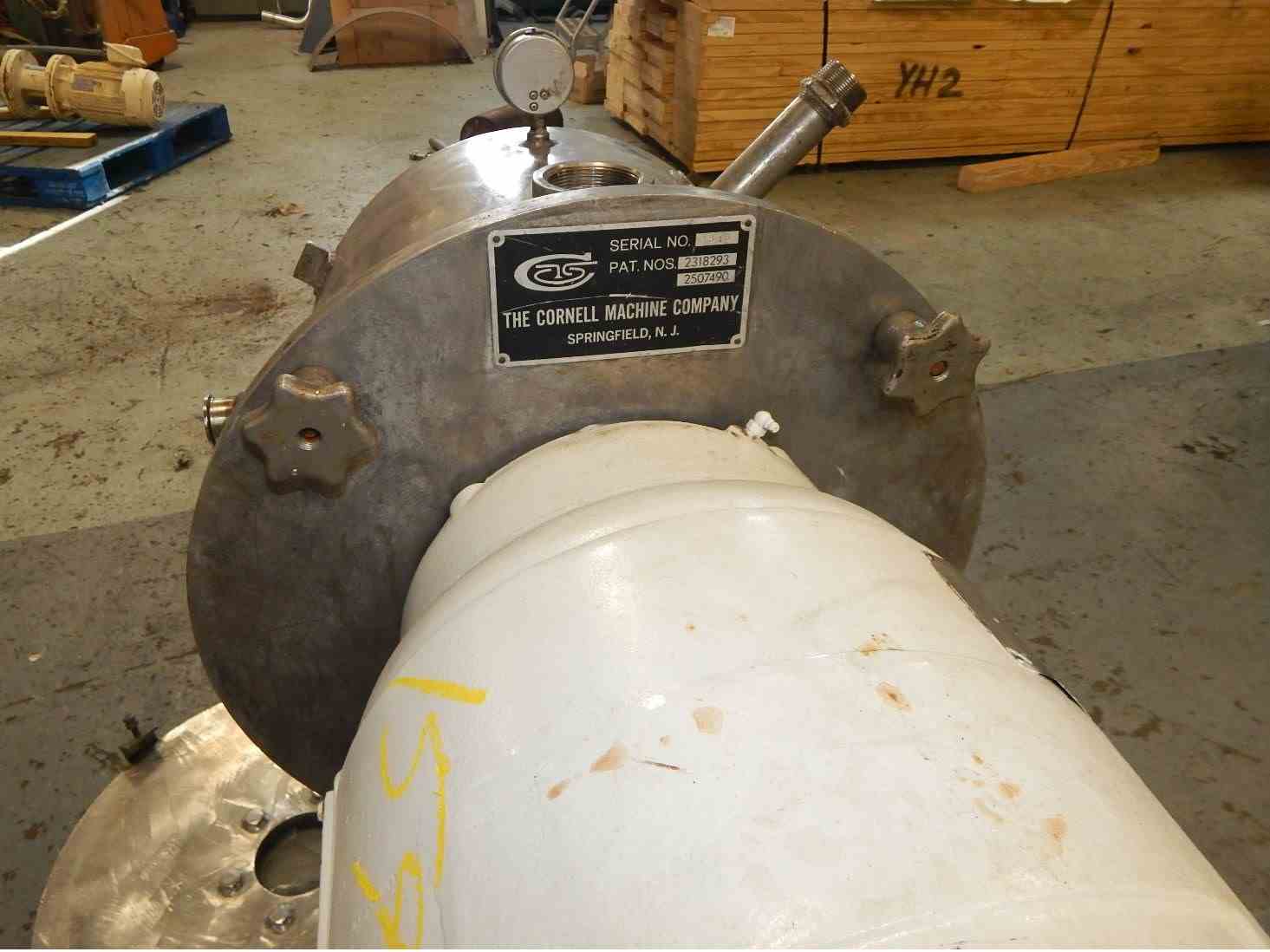

Used Cornell "Versator" by Cornell Machine Company (Springfield, NJ), Model D-16, serial # 6318. Features all stainless steel contacts, designed for dispersion, homogenization, emulsification, deaeration or defoaming under vacuum service, 16" diameter disk, rated by the manufacturer 1 to 20 gpm continuous production, deaeration disk is directly coupled to 7.5 horsepower US Motors vari drive, 220 volt/3 phase, 1900 to 3900 rpm, 2" vacuum inlet with npt connection, 1" product inlet with tri clamp connection, 1. 5" bottom chamber drain with tri clamp connection, front cover has central 4" sight glass. Formerly used in cosmetic manufacturing.

Share
SPECIFICATIONS TERMS & CONDITIONS RESOURCES
Manufacturer
Cornell Versator
Model
D-16
Material
Unknown
Capacity
7.5 HP
Category
