3000 Gal OHI Co. SS Pressure Vessel
Other Views - click image for larger view
3000 Gal OHI Co. SS Pressure Vessel 3000 Gal OHI Co. SS Pressure Vessel 3000 Gal OHI Co. SS Pressure Vessel 3000 Gal OHI Co. SS Pressure Vessel 3000 Gal OHI Co. SS Pressure Vessel 3000 Gal OHI Co. SS Pressure Vessel

3000 gal ohi co. ss pressure vessel

Stock # 13859
Sold
Capacity 3000 Gal

Overview

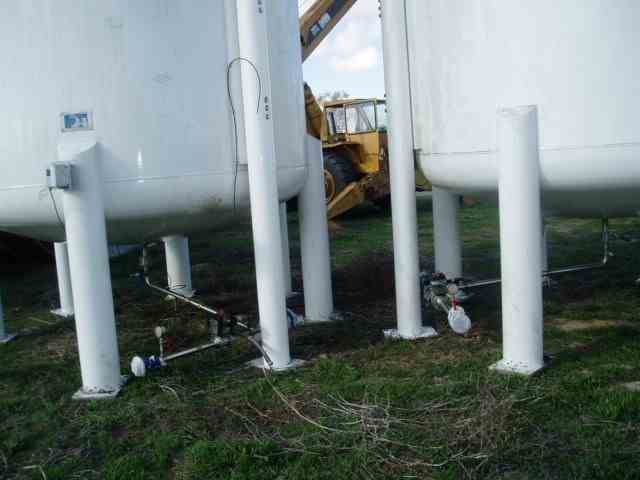

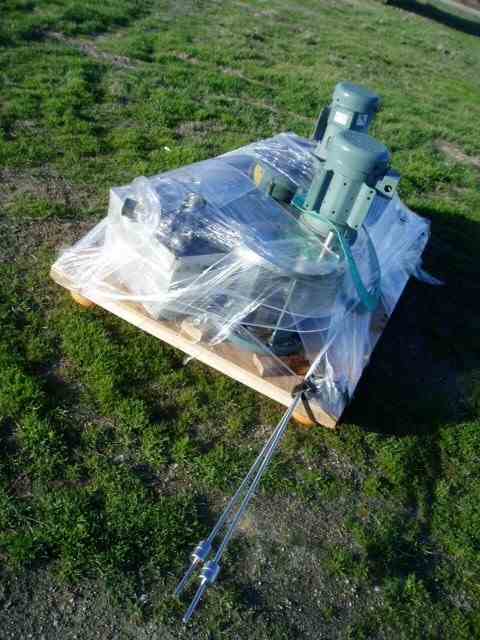

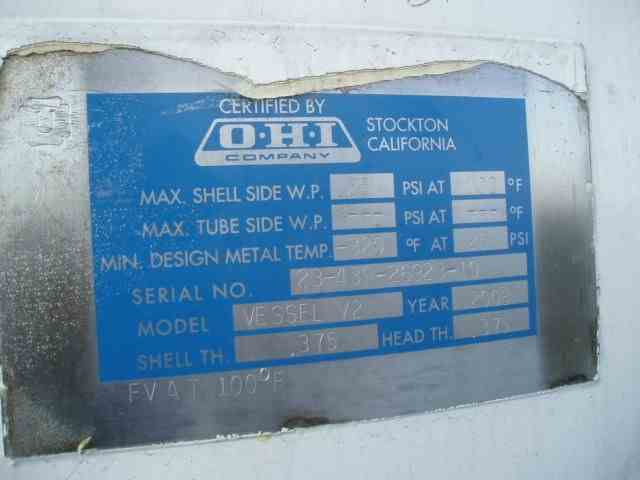

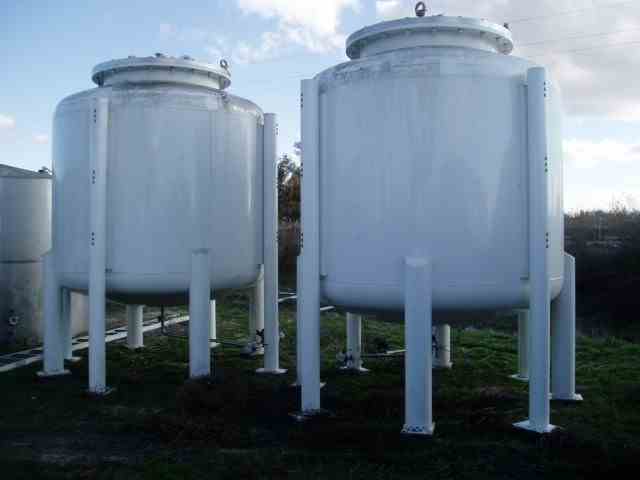

Used 3000 Gal Tank, 304L stainless steel construction, measures approx. 8' diameter x 6' straight side, dished top & bottom. Rated for 25 PSI/FV @ 100 deg. F./-320 deg. F. Includes top mounted Philadelphia, type 4040, agitator, driven by 5 HP, 208-230/460V, 1750 RPM, 3/60Hz motor thru 17:1 ratio gearbox, resulting in 100 output RPM, stainless steel shaft and blades. Bottom head includes 1-1/2" diameter center bottom outlet. Manufactured by OHI Company (Stockton, CA), Model number vessel V1, serial# 23-440-26923-10. Shell & head thickness -. 375" thick. New in 2008 and in very good condition.

Share
SPECIFICATIONS TERMS & CONDITIONS RESOURCES
Manufacturer
OHI Co.
Model
V1
Material
SS
Capacity
3000 Gal
Subcategory
