5 HP Sine Positive Displacement Pump
Other Views - click image for larger view
5 HP Sine Positive Displacement Pump 5 HP Sine Positive Displacement Pump 5 HP Sine Positive Displacement Pump 5 HP Sine Positive Displacement Pump

5 hp sine positive displacement pump

Stock # 13190
Sold
Capacity 5 HP

Overview

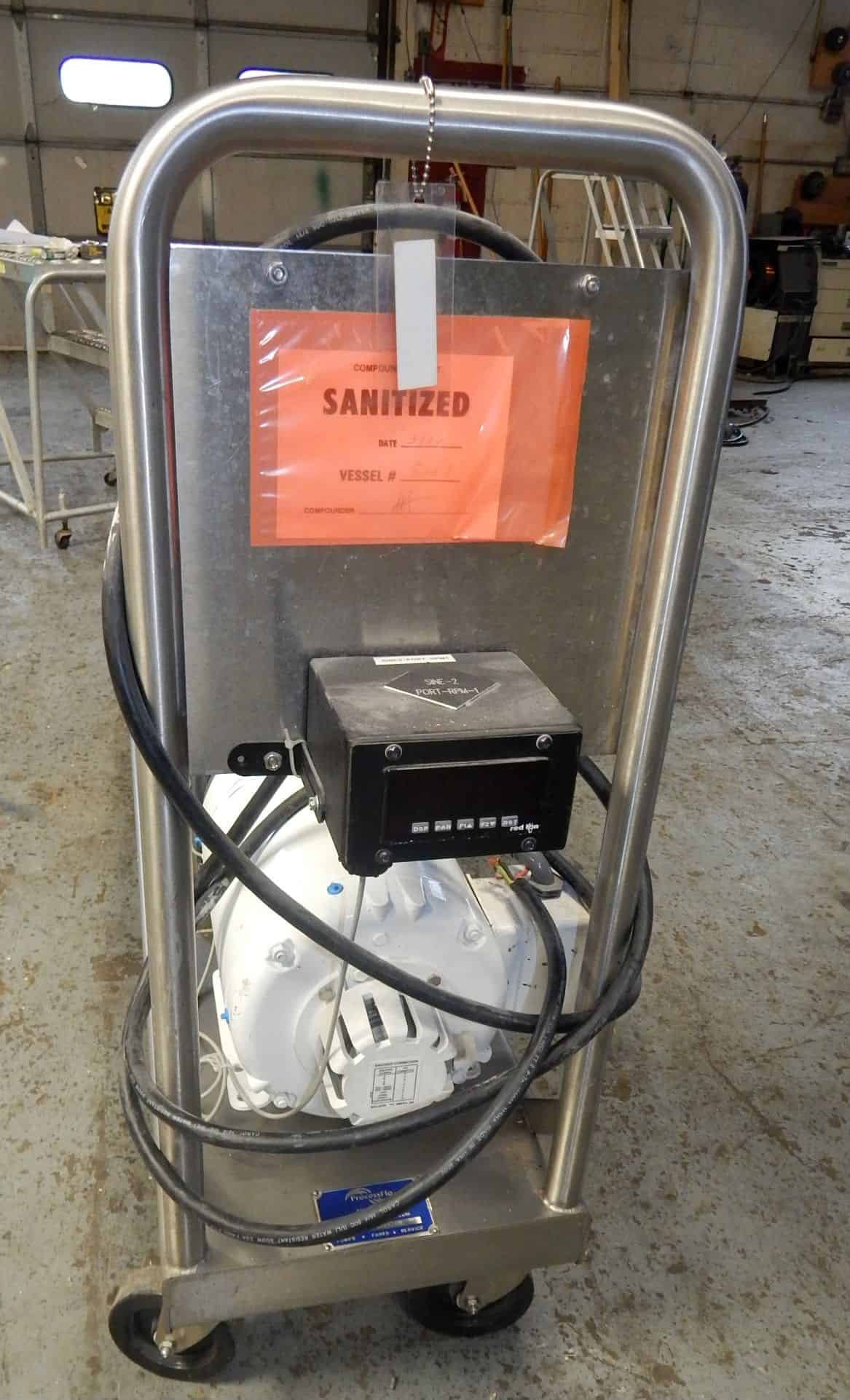

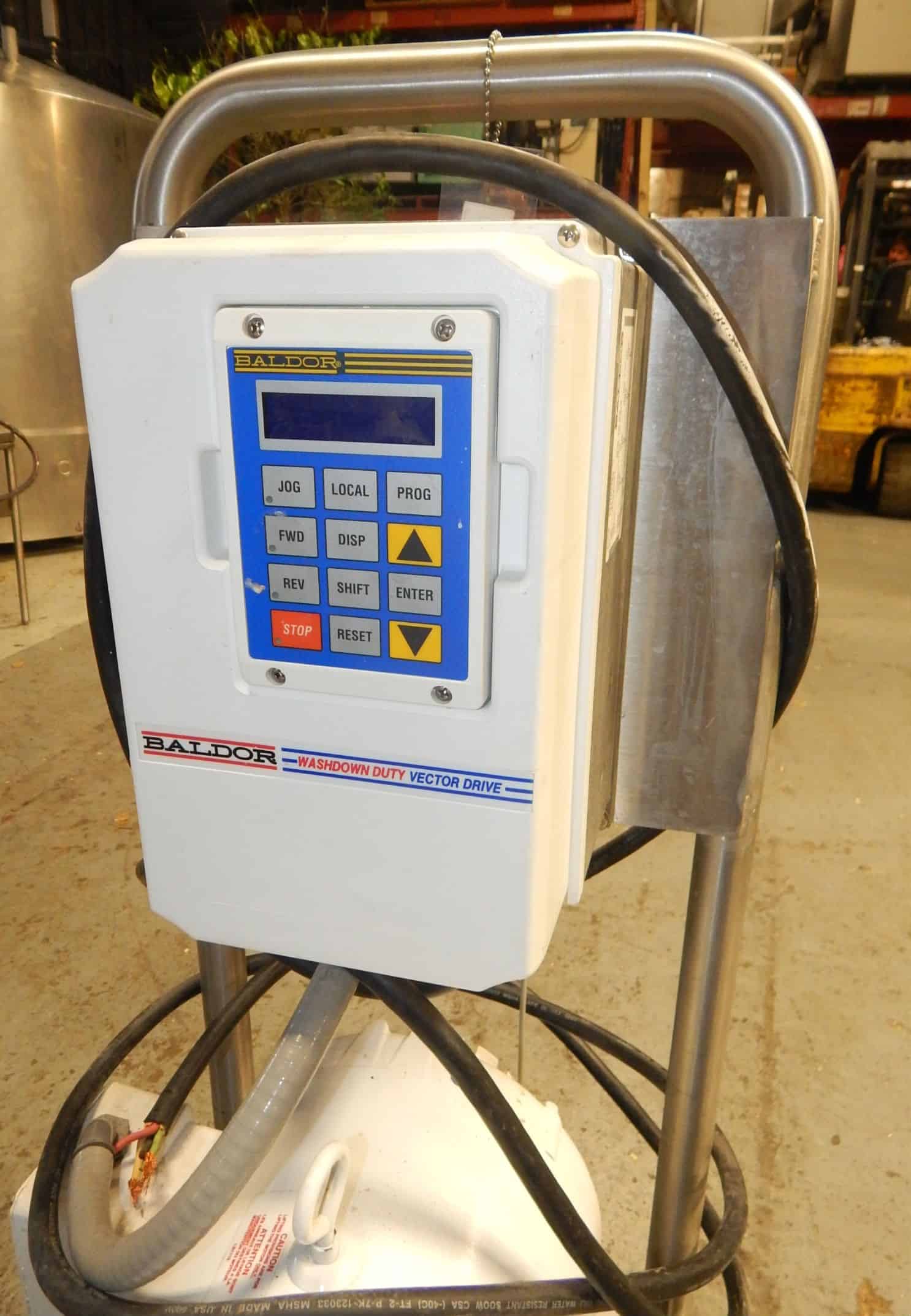

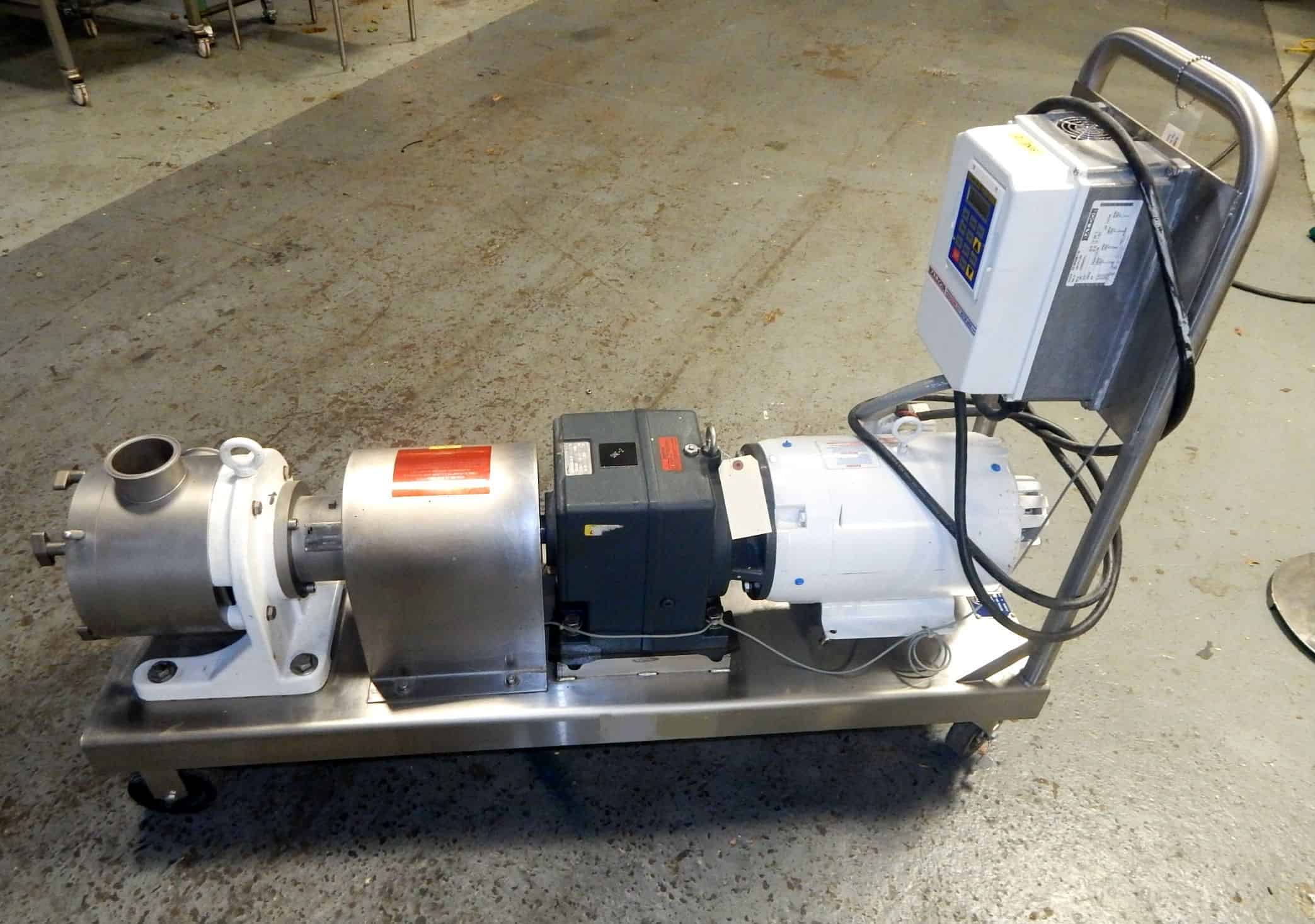

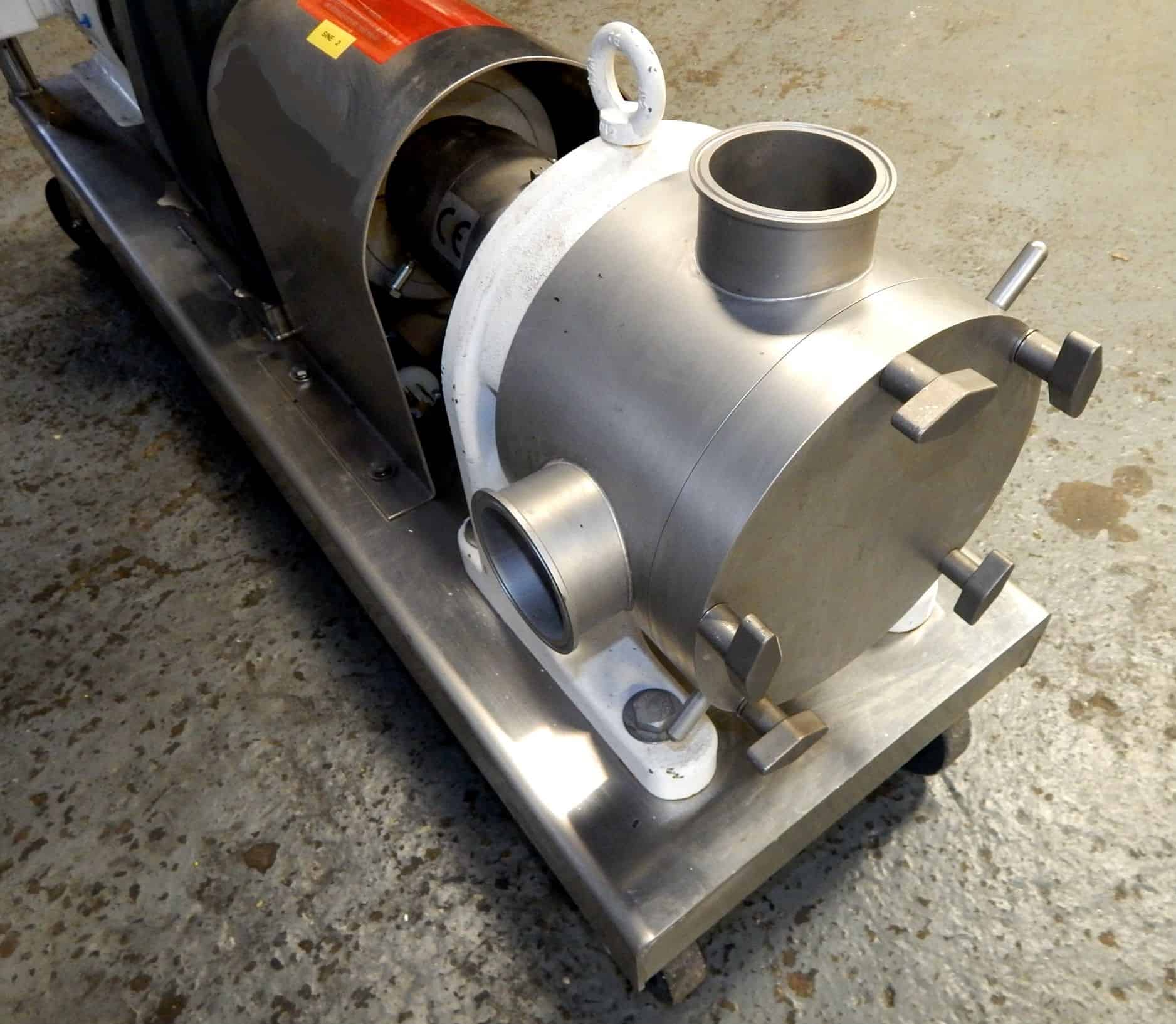

Used Sine positive displacement sanitary pump, Model MR-130, serial # 110500105. Features 3" inlet and outlet with tri clamp connections, manufacturer rates for . 124 gallons per revolution (26 gpm as configured), maximum gpm is 99 @ 800 rpm, maximum particle size is . 750" (19 mm), pump is directly coupled to Baldor 5 HP inverter duty rated motor @ 1730 rpm, 230/460/3 phase voltage (wired for 230 service) with Falk in line 8. 2 to one gear reducer for final maximum co shaft rpm of 210, Baldor washdown duty "vector drive" ac frequency inverter with touch sensitive panel and digital readout, pump shaft speed sensor with red lion digital speed indicator and interface to VFD, motor has shaft encoder (not in use). Formerly used in branded cosmetic service.

Share
SPECIFICATIONS TERMS & CONDITIONS RESOURCES
Manufacturer
Sine
Model
MR-130
Material
Unknown
Capacity
5 HP
Category
