Positve Displacement Pumps

Unused 100gpm Horizontal DAF Float Transfer Rotary Lobe Pump. Mfg Vogelsang. Model IQ112-114. 100 gpm @ 88' head. Casing: 316LSS. Impeller: 316LSS. 7.5 HP motor.

Used 30 HP Stainless Steel Positive Displacement/Rotary Lobe Pump. Manufactured by Waukesha Cherry Burrell. Model 220U2. 1755 rpm. Mounted in Stainless Steel frame, Stainless Gear case. 4". 230/460 volt motor into gear reducer. Previously used Sanitary Food Plant. Serial #369823-04

Unused 25HP positive displacement pump. Manufactured by Gardner Denver. Model GAFMCRD. Sutorbilt Legend series. Inlet/outlet 4". Capacity 292 CFM @11PSIG. Sound Attenduating enclosure. 45" x 45" x 48" tall. Serial #S37810. Built 2011.

WCB 15 hp Positive Displacement Pump, M/N 130, S/N 276659, with Reliance 1755 RPM Motor, 230/460 Volts, 3 Phase, Mounted on S/S Frame

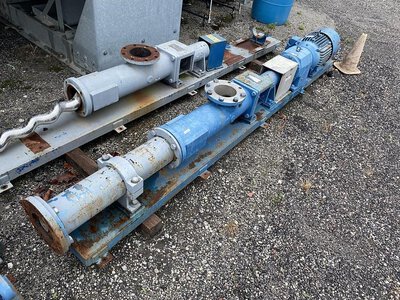

Used 15 HP Moyno Series 1000 Progressive Cavity Pump. Model A2H SSV3 SPA. 2 stage. Designed with 316 stainless steel product contact parts - last section of the discharge tube has been replaced with a carbon steel. 6" intake and discharge flanges. Rated for 36.0 gal/100 revs. Serial #AS7421501-1 EA. Equipped with David Brown Radicon geardrive with 4.5 ratio. 15HP 3/60/230-460 volt motor. Mounted on carbon steel base. Overall length 135".

2015 SPX 15 hp Positive Displacement Pump, M/N 220 U1, S/N 3034802 R2-9, with Aprox. 4" Thread Type Inlet/Outlet, with Baldor 1765 RPM Motor

2015 SPX 10 hp Positive Displacement Pump, M/N 130U1, S/N 3028336 R2-3, with Reliance 1755 RPM Motor, 208-230/460 Volts, 3 Phase (NOTE: Missing Pump Head & Impellers)

WCB 10 hp Positive Displacement Pump, M/N 130, S/N 356315 04, with Baldor 1770 RPM Motor, 208-230/460 Volts, 3 Phase

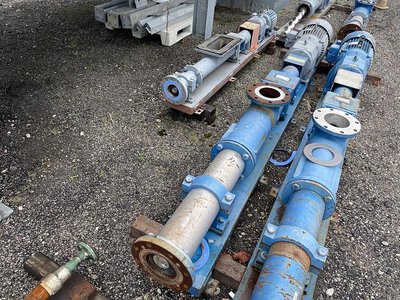

Used 15hp Moyno Series 1000 Progressive Cavity Pump. Model A2H CSQ3 SPA. 2 stage. Carbon steel tube, 316SS drive shaft, connecting rod and rotor, Nitrile stator. 6" intake and discharge flanges. Rated 36.0 gal/100 revs. Serial #AS8693599-1 CA. David Brown Radicon geardrive with 4.5 ratio. 15HP 3/60/230-460 volt motor. Mounted on carbon steel base. Overall length 135".

UNUSED POSITIVE DISPLACEMENT SINE (SINUSOIDIAL) CURVE PUMP BY MASO PROCESS PUMPS (GERMANY) TYPE (MODEL) SPS-6, SERIAL # 99711748. FEATURES 316 STAINLESS STEEL AND POLYMER CONSTRUCTION MEETING 3A SANITARY STANDARDS, 6" INLET x 4" OUTLET WITH 11" EIGHT BOLT FLANGED CONNECTION @ INLET AND 9" EIGHT BOLT FLANGED CONNECTION @ OUTLET, MOUNTED ON STATIONARY PAINTED BASE WITH 10 HORSEPOWER IN LINE GEAR DRIVE BY SEW EURODRIVE INC. USA, 22.37 TO 1 IN LINE GEAR REDUCER DIRECTLY COUPLED TO PUMP PRODUCES PUMP SPEED OF 78 RPM YIELDING 51.5 GPM (MAX GPM 396 @ 600 RPM), 230/460/ 3 PHASE VOLTAGE, 25/12.5 AMPS, 24" WIDE x 66" BASE STATIONARY FLOOR MOUNT BASE. FROM PHARMACEUTICAL FACILITY.

SPX 1.5 hp Positive Displacement Pump, M/N 030 U1, S/N 1000003000409, with Baldor 1755 RPM Motor, 208-230/460 Volts, 3 Phase, Mounted on S/S Frame

Used 2.5" hose pump/7.5 horsepower by Motorvario Motor (Italy) directly coupled to pump with Motorvario 33. 72 to 1 gear reducer for final pump rotor speed of 51. 9 rpm, estimated gpm @ . 76 per revolution is 38, voltage 208-230/460/3 phase, 60 hz, amps 22. 5/21. 5/12. 4, 1740/1750/1760 rpm, four bolt 7" diameter companion flanges at inlet and outlet reduced to 2. 5" and 2" tri clamp connections, pump housing can mount in any of four positions to accommodate application, painted steel construction with vibration dampening floor feet, pump rotor contained in lubricant filled housing with view window and fluid sight glass.

Waukesha Cherry-Burrell 7.5 hp Positive Displacement Pump, M/N 060, S/N 253845, with Baldor 1760 RPM Motor, with Aprox. 3" Clamp Type Inlet/Outlet, 230/460 Volts, 3 Phase (LOCATED IN CHAMPAIGN, IL)

Waukesha 7.5 hp Positive Displacement Pump, M/N 130, S/N 145 321 P1-0, with Baldor 1770 RPM Motor, 208-230/460 Volts, 3 Phase, with Aprox. 3" Clamp Type Inlet/Outlet, Mounted on S/S Frame

2012 Waukesha Cherry-Burrell 7.5 hp Positive Displacement Pump, M/N 130 U1, S/N 2739115R2, with Reliance 1765 RPM Motor, 208-230/460 Volts, 3 Phase (LOCATED IN CHAMPAIGN, IL)

Unused 7.5HP Horizontal DAF Float Transfer Rotary Lobe Pump. Mfg Vogelsang. Model IQ112-114. 100 gpm @ 88' head. Casing: 316LSS. Impeller: 316LSS. 7.5 HP motor.

2019 SPX 5 hp Positive Displacement Pump, M/N 130 U1 R2, S/N 1000003762586, with Reliance 1750 RPM, 208-230/460 Volts, 3 Phase, Mounted on S/S Frame (LOCATED IN CHAMPAIGN, IL)

Used Watson Marlow Model 620N Peristaltic Pump with STA-PURE tubing, Same side inlet outlet. NEMA 4X IP66.

WCB Positive Displacement Pump Head, M/N 060, S/N 043168 06 (NOTE: Missing Head, Rotors, & Motor)(LOCATED IN CHAMPAIGN, IL)

Used Portable Rotary Lobe Pump. Manufacuted by ProcessFlo. Serial #1004274

Used Dual-station pump system featuring two SPX/Waukesha 030 U2 positive displacement pumps. Top feed and bottom discharge with 1.5” tri-clamp connections. Mounted on a stainless steel cart. Driven by 1 HP Baldor washdown motors (208-230/460V, 1760 RPM, 3-phase). Includes Allen-Bradley touchscreen control and Mettler Toledo Thornton 770 digital controller. Last used in pharmaceutical operations.

Waukesha Positive Displacement Pump, M/N 130, S/N 276659 00, with S/S Head, with Reliance 3510 RPM Motor, 208-230/460 Volts, 3 Phase (LOCATED IN CHAMPAIGN, IL)

Used Progressive cavity pump, manufactured by Lenze, type 11.740.04.00, stainless steel contacts, 1-1/2" inlet/outlet, driven by 0.55kw (3/4 HP) motor. Serial number 6/7006/1014. Good condition.
