50 Sq Ft Sparkler 33-D-9 Pressure Leaf Filter
Other Views - click image for larger view
50 Sq Ft Sparkler 33-D-9 Pressure Leaf Filter 50 Sq Ft Sparkler 33-D-9 Pressure Leaf Filter 50 Sq Ft Sparkler 33-D-9 Pressure Leaf Filter

50 sq ft sparkler 33-d-9 pressure leaf filter

Stock # 12371
Sold
Capacity 50 Sq Ft

Overview

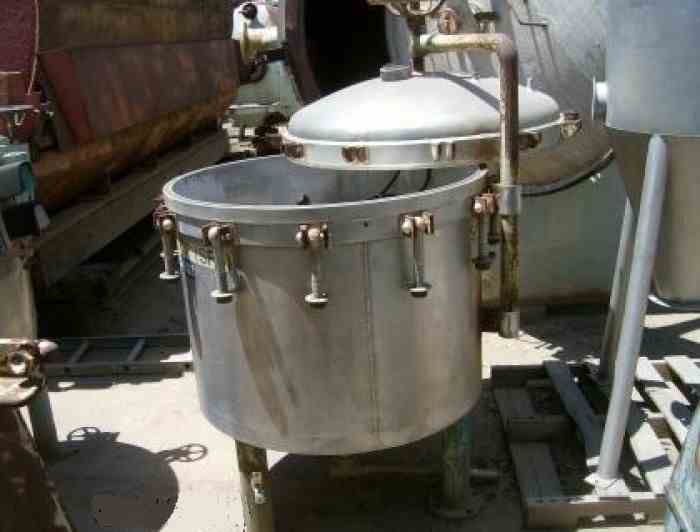

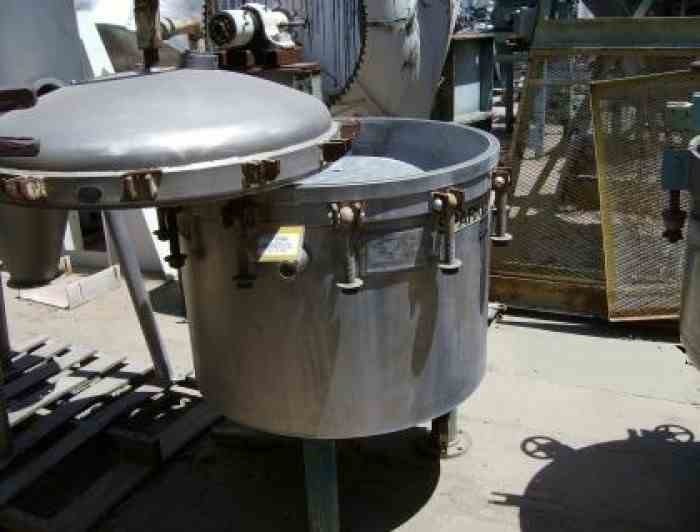

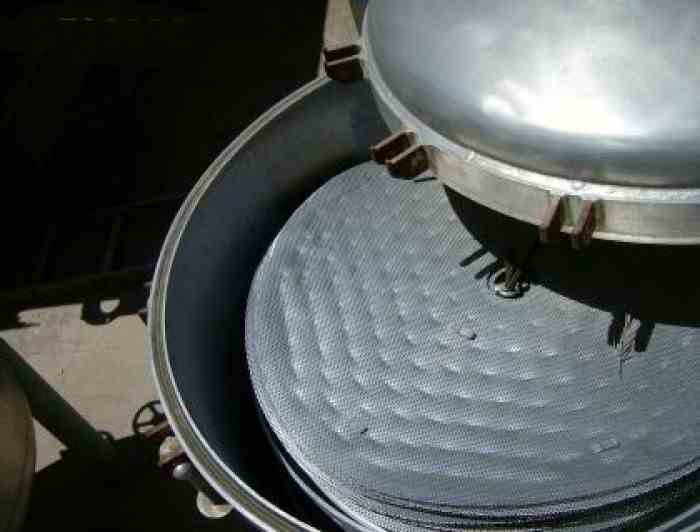

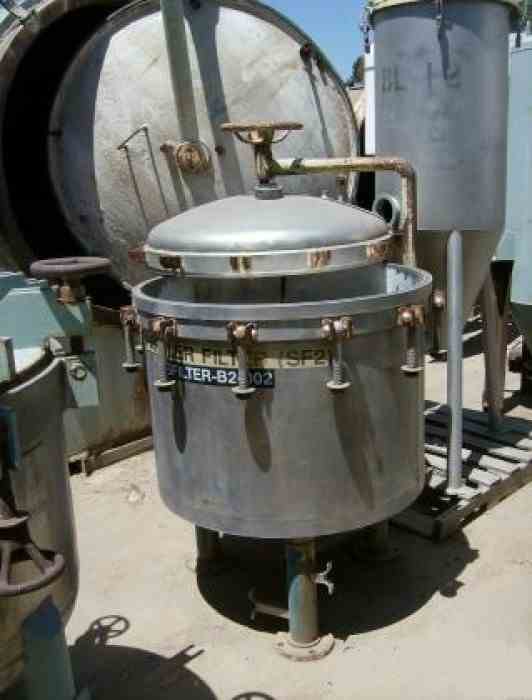

Used Sparkler pressure leaf filter, 50 square feet surface area. Unit is model 33-D-9, complete with scavenger plate but missing the 9 horizontal deep plates, 33" diameter filter chamber is 304 stainless contact parts, vertical tank designed for horizontal leaf/plate bundle, complete with clamp-on swing away top lid. Filter is rated at 60 PSI @ 350 deg. F., Serial number 20892, manufactured new 1977, Nationa Board number 1511. Unit could be used as vertical retort or autoclave with direct steam inlet.

Share
SPECIFICATIONS TERMS & CONDITIONS RESOURCES
Manufacturer
Sparkler
Model
33-D-9
Material
Unknown
Capacity
50 Sq Ft
