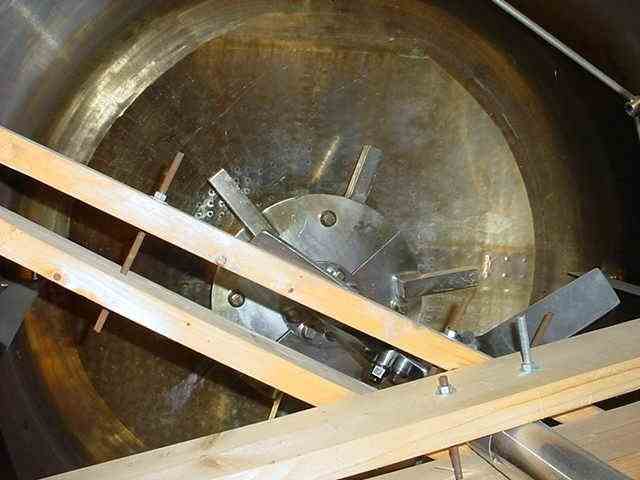

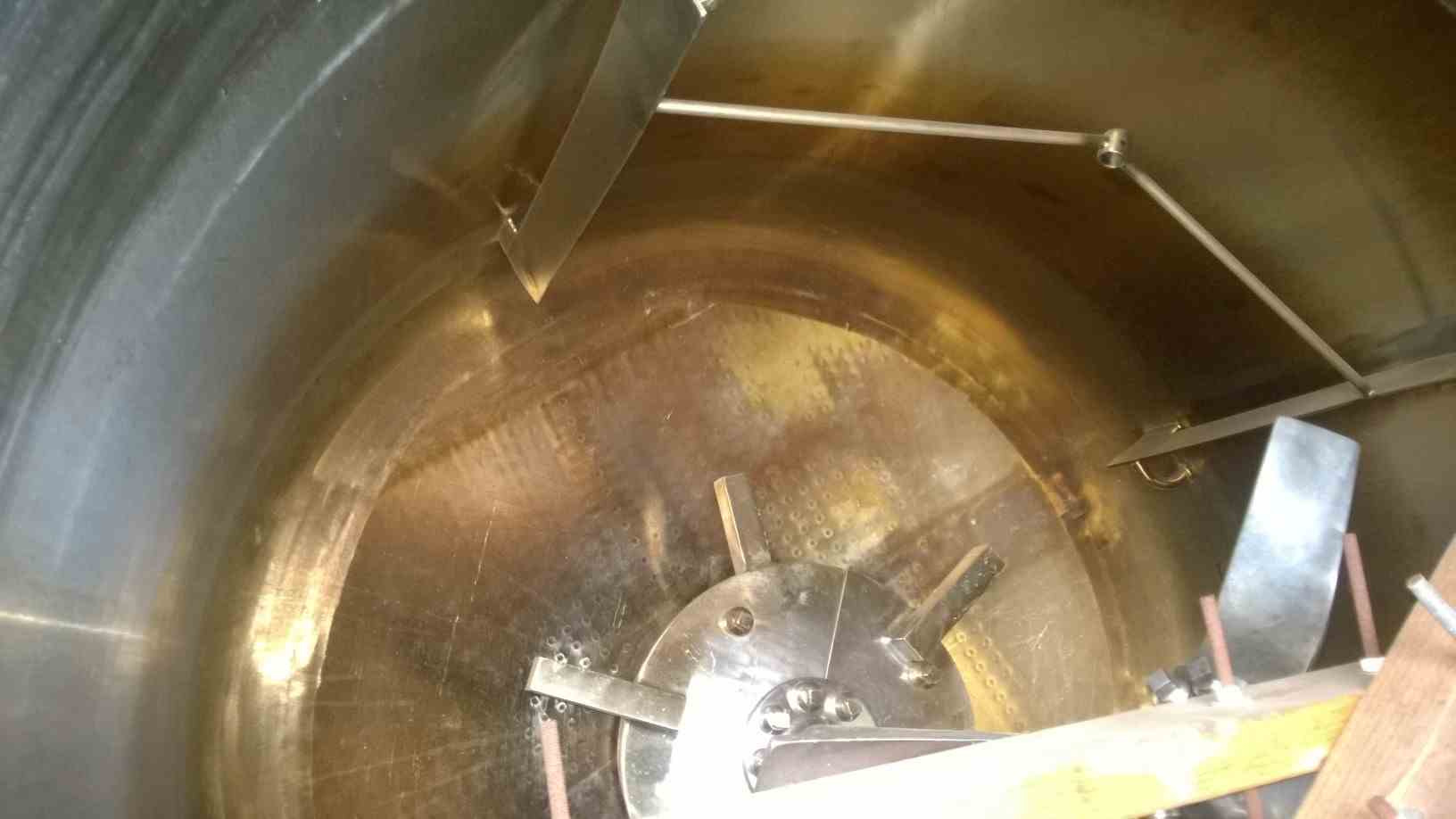

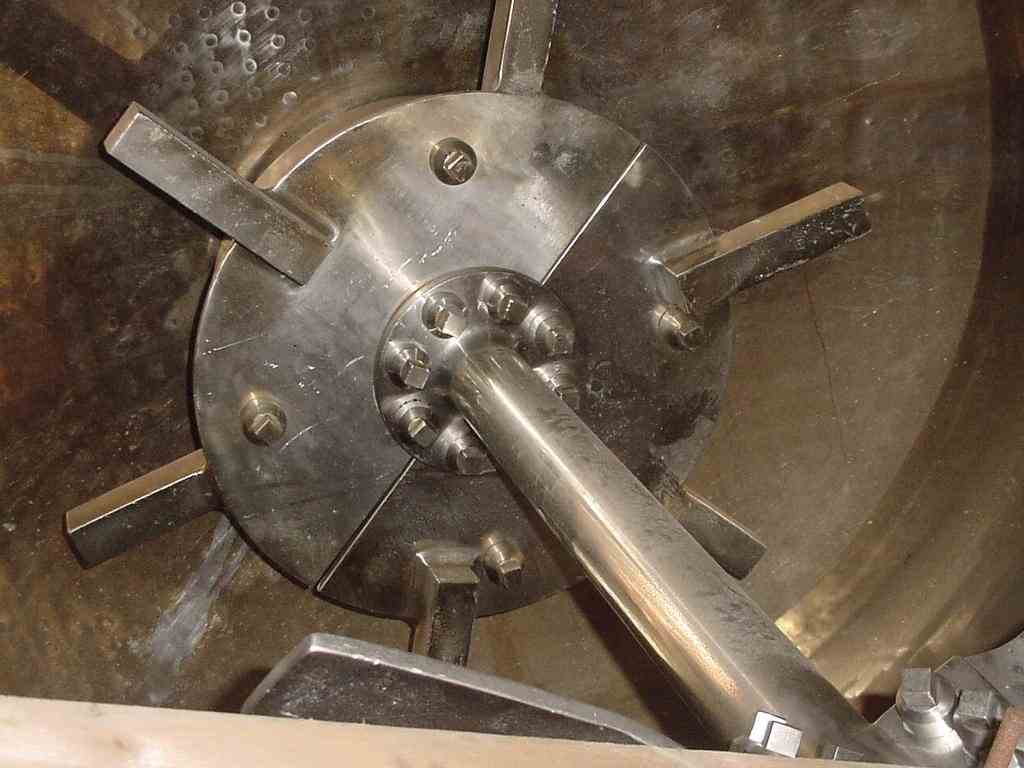

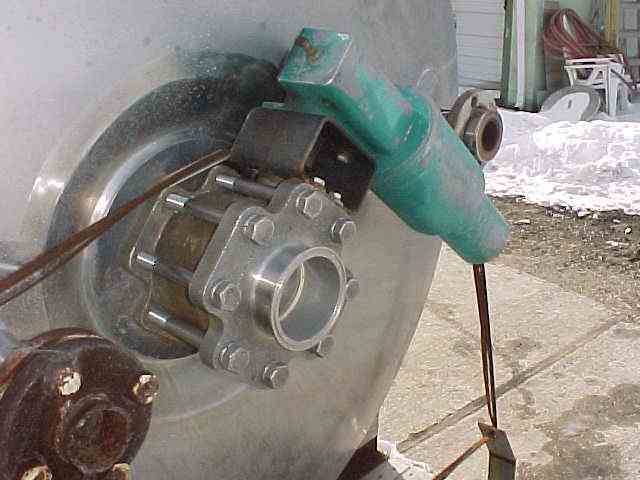

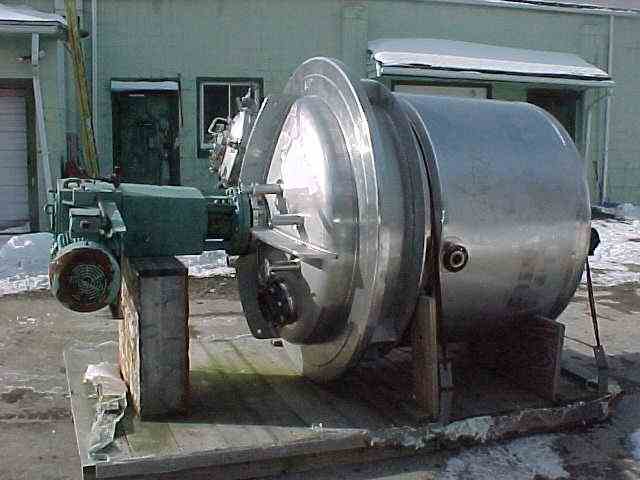

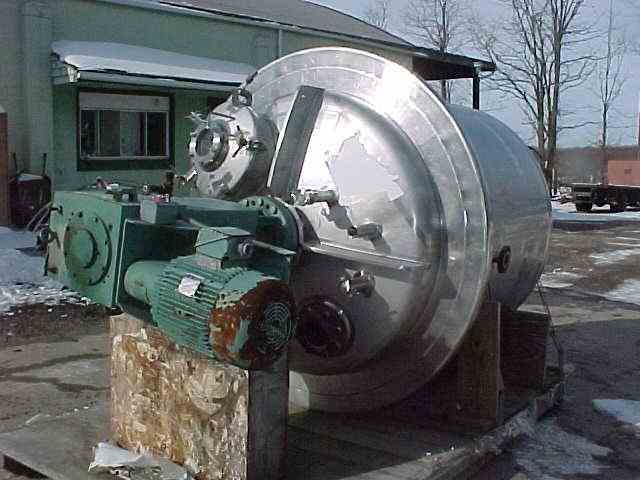

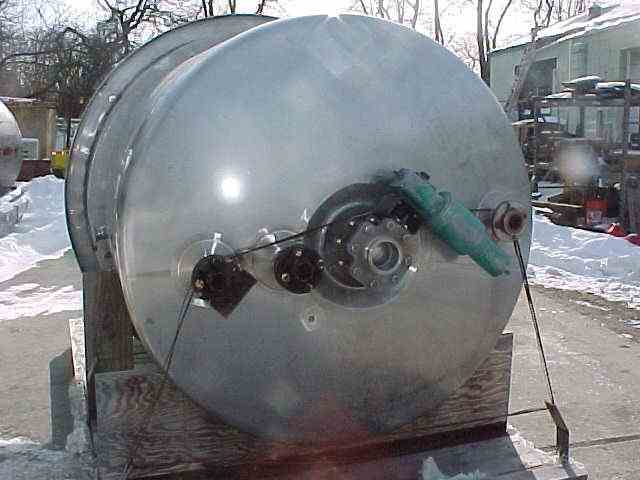

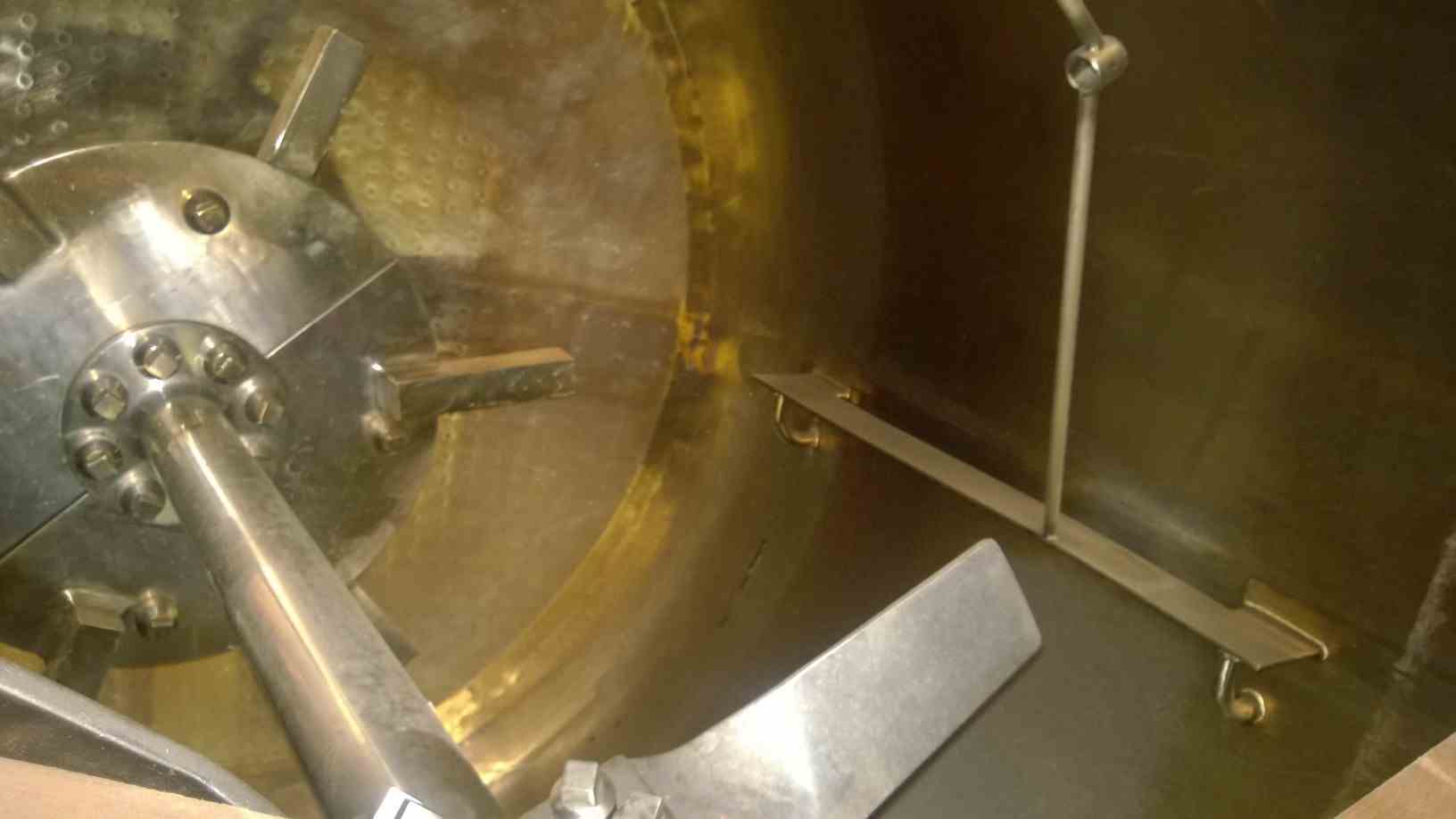

Used 600 gallon reactor Paul Mueller 304 stainless steel sanitary jacketed reactor. Model F, serial # P8084-2, NB# 7519. Jacket rated 75 PSI @ 300 degrees F; Shell rated 14.9 PSI (rating appears on drawing only); 60" diameter x 54" straight side with dished heads and 11 15/16" deep bottom dish, 4" center bottom discharge with Pittsburgh air actuated flush seating ball valve, insulated and shrouded tank body with 2B external finish, 150 grit internal polish, four 3" x 28" long internal baffles, top dish head features 18" manway with hinged dome cover with central sight glass and clamp down closures, four top inlets with tri clamp connections (3-2", 1-3"), unit is designed to mount through deck on load cells or requires legs from existing body flange, top center mounted 15 HP agitator by Lightnin mixer, Model# 73-S-15, Serial # 09225001, right angle design, 460 volt, 3 phase, 190/80 final rpm, agitator features six blade 28" diameter lower turbine, three blade 20" dia upper turbine, top 6" sight glass with mounting for Krauss Hinds inspection light. Former application pharmaceutical, certified drawing on file.
