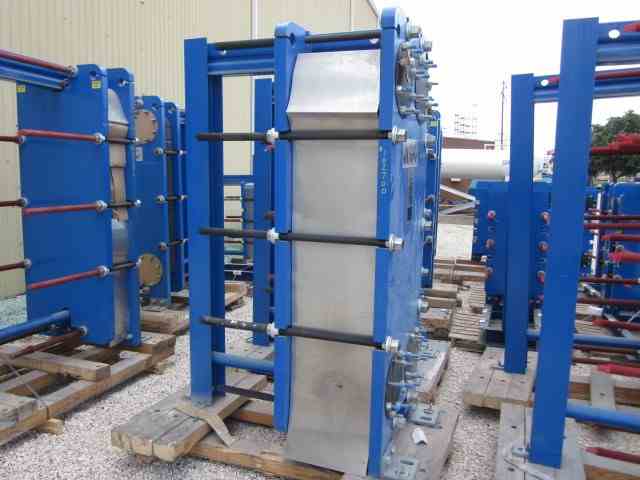

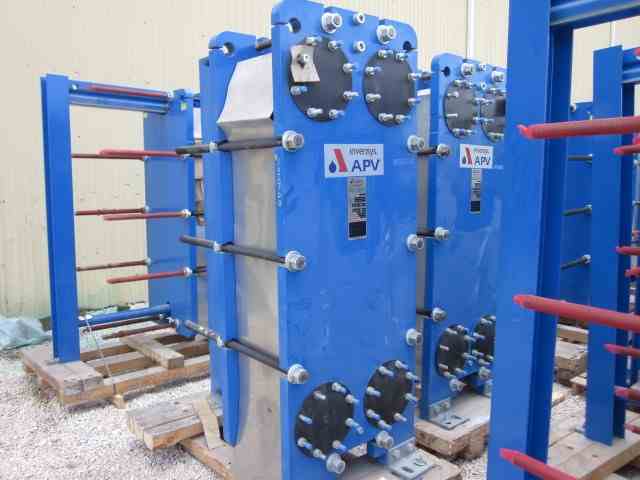

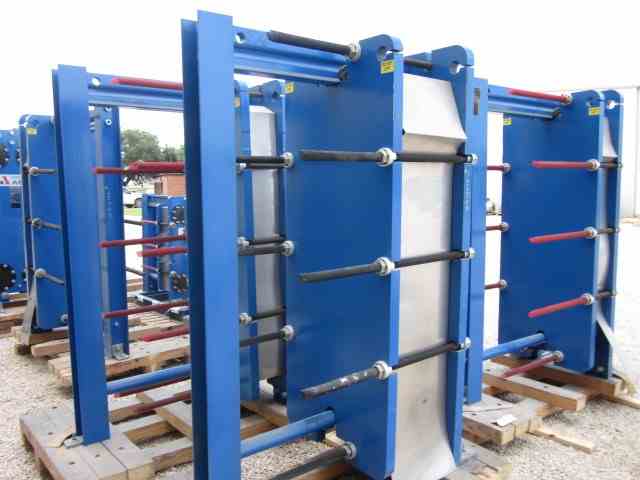

1119 Sq Ft APV Plate & Frame Heat Exchanger

1119 Sq Ft APV Plate & Frame Heat Exchanger
Other Views - click image for larger view
1119 Sq Ft APV Plate & Frame Heat Exchanger 1119 Sq Ft APV Plate & Frame Heat Exchanger 1119 Sq Ft APV Plate & Frame Heat Exchanger
STOCK# 15625
Capacity 1119 Sq Ft
Description

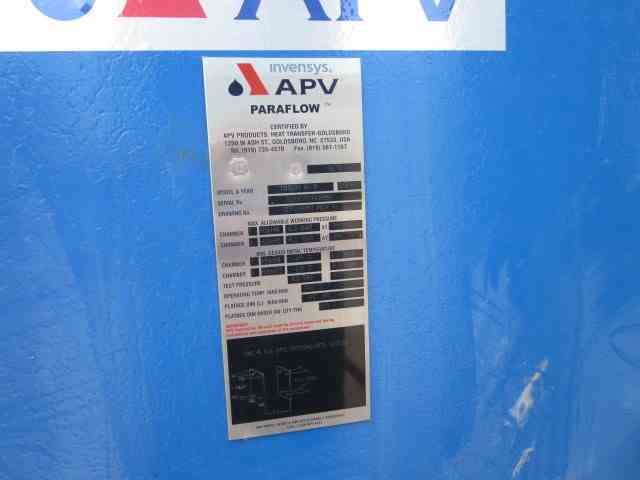

UNUSED 1119 SQ. FT. PLATE HEAT EXCHANGER. MODEL #TR9GN-M11. CARBON STEEL FRAME, TITANIUM GR.1 PLATES. PARAFLOW TYPE. FRAME RATED AT 96 PSI AT 320 F, PLATES RATED AT 96 PSIG AT 320 F. TUBE HOLES : 125 PLATES. PLATES 0.6MM THICK. SHELL NOZZLES : (2)8". TUBE NOZZLES : (2)8". MFG. BY APV IN 2008.

Specifications
Manufacturer APV
Model# TR9GN-M11
Material Unknown
Capacity 1119 Sq Ft
SubCategory Plate - High Alloy
