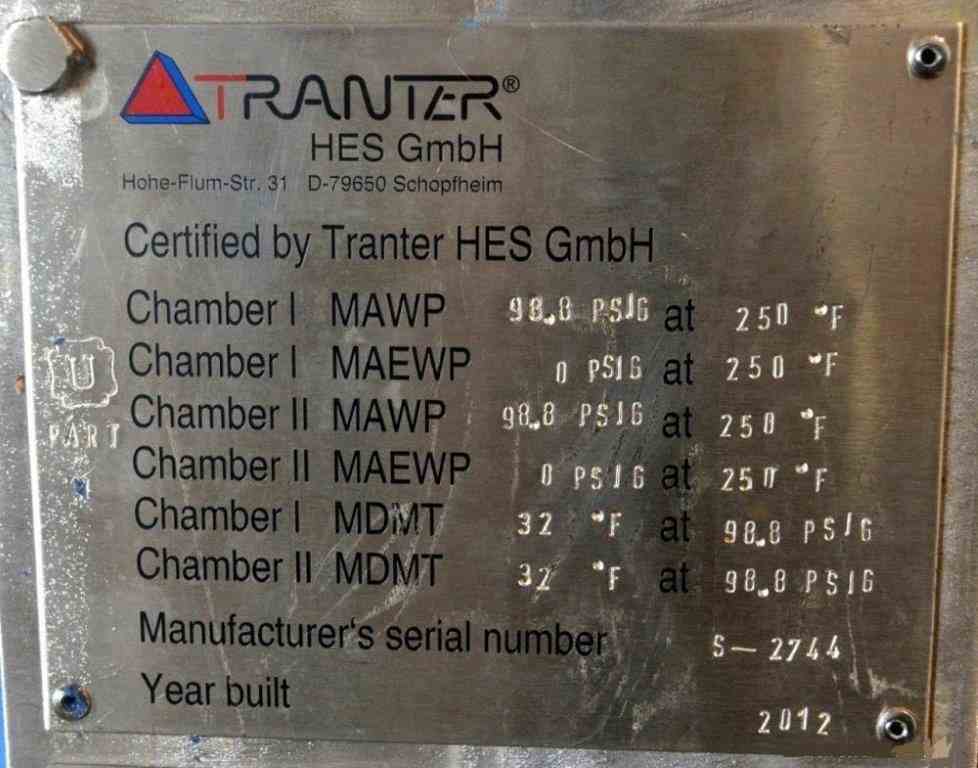

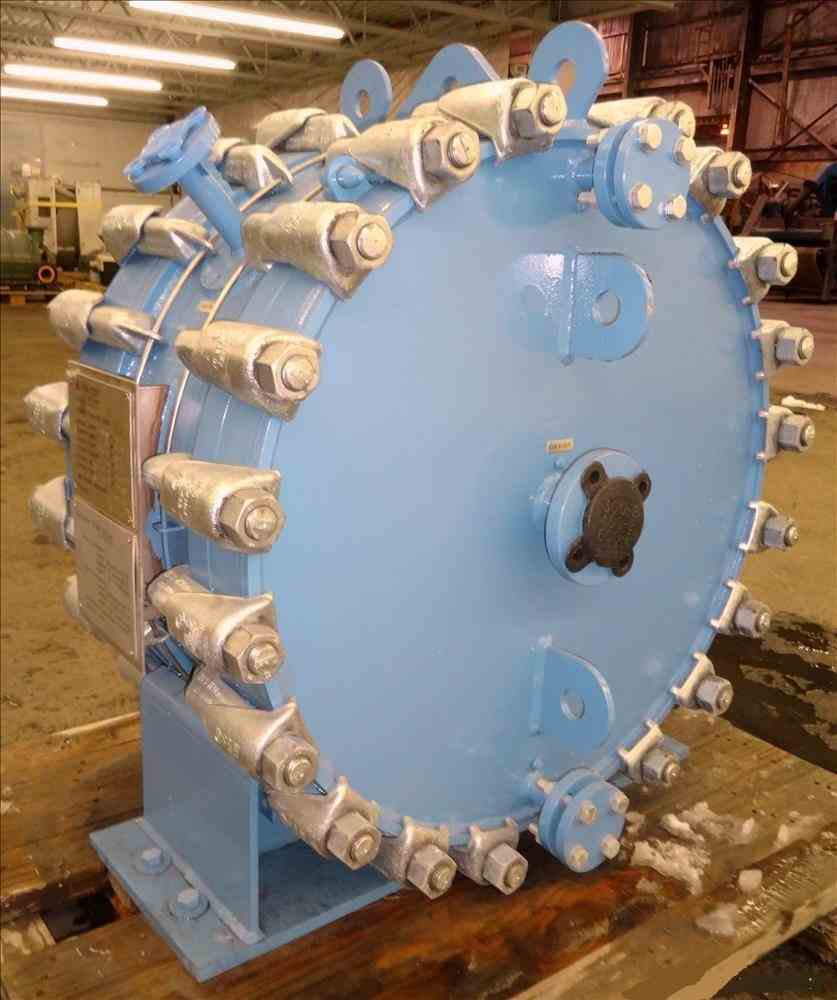

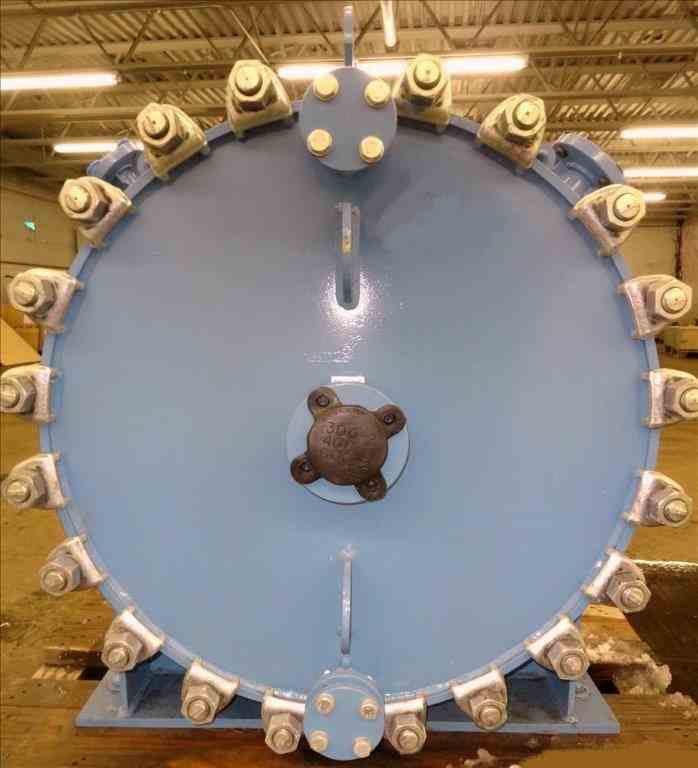

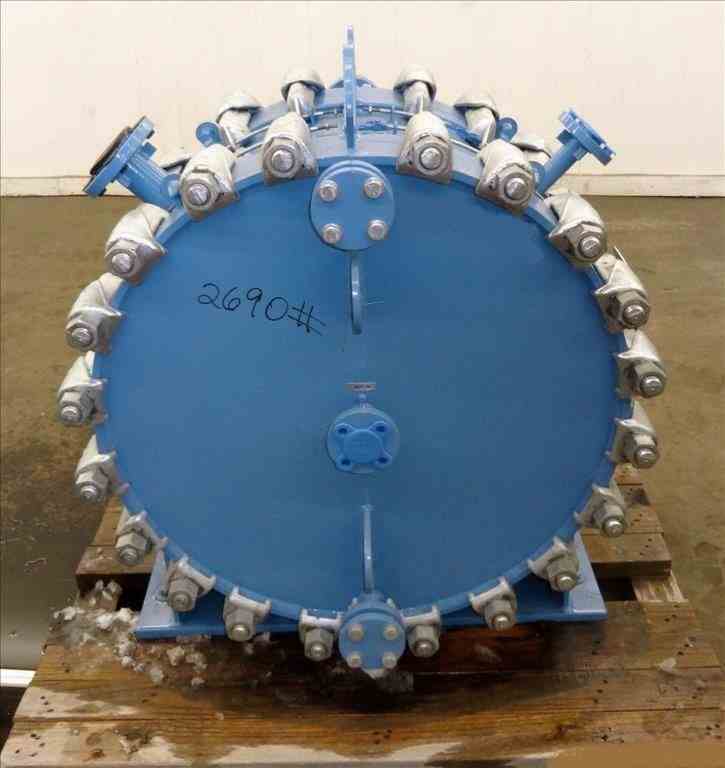

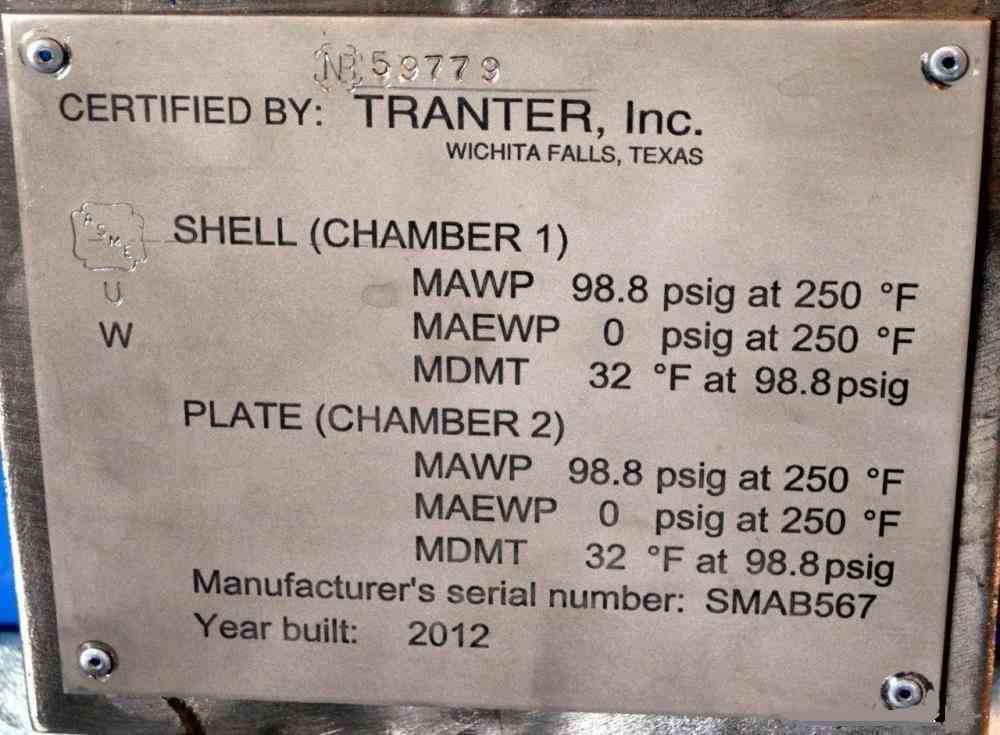

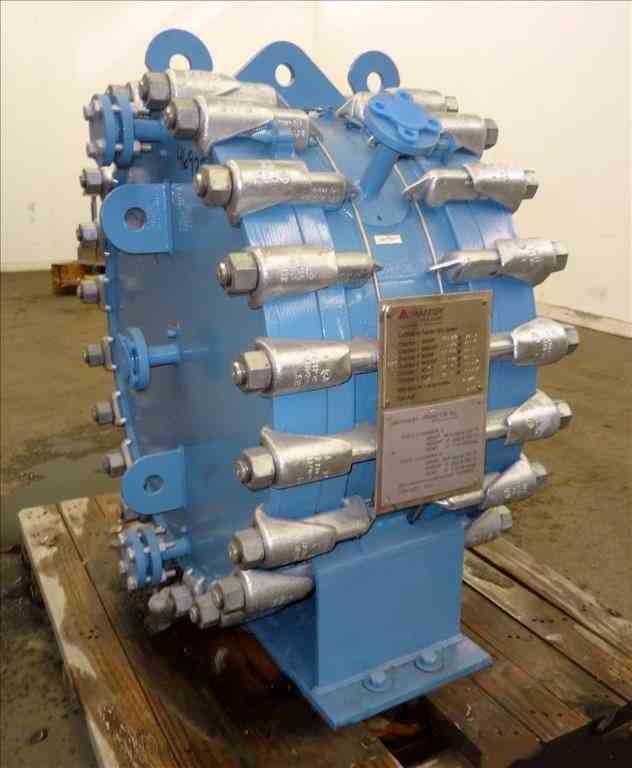

115 Sq Ft Tranter Spiral Heat Exchanger

Now available for immediate purchase: Used Crown Iron Works, Model 48, Milling Flash Drying System (Plant #548) . It was designed and used for food-grade orange pulp with 17,000 Lbs/Hr capacity but the plant can be used for a wide range of applications in various industries including: Drying food products such as grains, cereals, fruits, vegetables, herbs, and spices. Pharmaceutical ingredients, intermediates, and final products Drying various chemicals, including powders, granules, and crystalline materials Drying minerals and mining products such as ores, concentrates, and mineral powders Animal Feed Drying and processing environmental materials, such as sludges, biomass, and waste products Process Summary The Milling Flash Dryer is basically a low energy jet mill, that uses jets of low-pressure air to encourage inter particle collisions between pieces of feed material. These inter particle collisions break up the feed material in the dryer with no

Now available for immediate purchase: 81 MW General Electric 7EA gas turbine generator set ( Stock #19866 ). This General Electric unit was built in 1997 and has been used but well maintained. It has 61344 hours of operation with 5590 total starts. It is shut down in 2022. Original design data and documentation is available. The gas turbine generator set is immediately available for relocation. Below are specifications of the unit: One (1) General Electric Frame 7EA gas turbine generator set consist of following. GE model 7A1PEA38-1 gas turbine, Duel fuel, base rated 81,730 KW, Peak rated 89,490 KW, water injected combustion with inlet air cooled, heat rate at Iso 10,480 btu/kwh, serial #295600, 3600 rpm, CCW rotation. GE 800 HP motor starter, model 8213825402, 3570 rpm, frame 8211Z, 2300/4000Vv, built 1997. Philadelphia Accessory gear box with atomizing air compressor Side exhaust to HRSG. Steam injected for Nox control. Worthington Natural gas compr

Available for immediate purchase, the Glycerin To Epichlorohydrin (GTE), designed DBO (Desmet Ballestra Oleo and commissioned in 2012 and shut down in 2013. Total capacity is 12000 TPY and the plant consist of 2 production trains: 1 - Glycerin purification unit, the technology and designer are DBO (Desmet Ballestra Oleo). 99.5% final product (Technical Glycerin) is obtained after 80%-85% crude glycerol goes through multi-stage distillation and rectification. 2- Production of dichloropropanols (DCP). Technical glycerin is subjected to multistage hydrochlorination by wet and dry method to obtain the final product (DCP) during the process. Original design data and documentation is available. Process Summary The GTE (Glycerin to Epichlorohydrin) process has three major steps: 1- Glycerin Purification 80% - 85% crude glycerol goes through multi-stage distillation/rectification. By the end of this process; 99.5% Technical glycerin can is obtained. 2- DCP Production Tec
