Centrifugal Blowers

UNUSED SURPLUS DRESSER/ROOTS, MODEL/SIZE 01B-75 CENTRIFUGAL BLOWER, TAG READS, RATED FLOW 42,670 ACFM, MAX WORKING PSI 17.9 PSIG, CASE DESIGN PSI 25 PSIG, RATED DISCHARGE PSI 28.5 PSIA, MAX WORKING TEMP 255 DEG F, CASE DESIGN TEMP 400 DEG F, RATED DISCHARGE TEMP 244 DEG F, MAX CONTINUOUS SPEED 7651 RPM, CRITICAL SPEED 3000 RPM, RATED SPEED 7651 RPM, MIN CONTINUOUS SPEED 7651 RPM, HYDRO TEST 26.8 PSIG, RATED POWER 2617 BHP. ON SKID WITH POWER OIL LUBE SYSTEM FOR ALL COMPONENTS WITH TWO 7.5HP MOTORS AND LUFKIN N1802C SPEED INCREASER. WITH SIEMENS 3000HP ELECTRIC MOTOR. THE DIMENSIONS ARE 35' LONG X 11'1" WIDE X 8'6" TALL AND THE WEIGHT IS 58,000 LBS DRY.

Unused 2,624 ACFM horizontal multistage centrifugal blower manufactured by Continental Industrie, Model #151A.02. Coated cast iron body with coated aluminum impellers. Driven by 30 HP electric motor. Design suction pressure of -0.86 and discharge pressure of 0.74, inlet temperature of 122°F, and gas molecular weight of 28.06. Estimated weight of 2,930 lbs. Tag #19-F-754A. Previously designated as Vent Gas Blower.

Unused 2,624 ACFM horizontal multistage centrifugal blower manufactured by Continental Industrie, Model #151A.02. Coated cast iron body with coated aluminum impellers. Driven by 30 HP electric motor. Design suction pressure of -0.86 and discharge pressure of 0.74, inlet temperature of 122°F, and gas molecular weight of 28.06. Estimated weight of 2,930 lbs. Tag #19-F-754B. Previously designated as Vent Gas Blower.

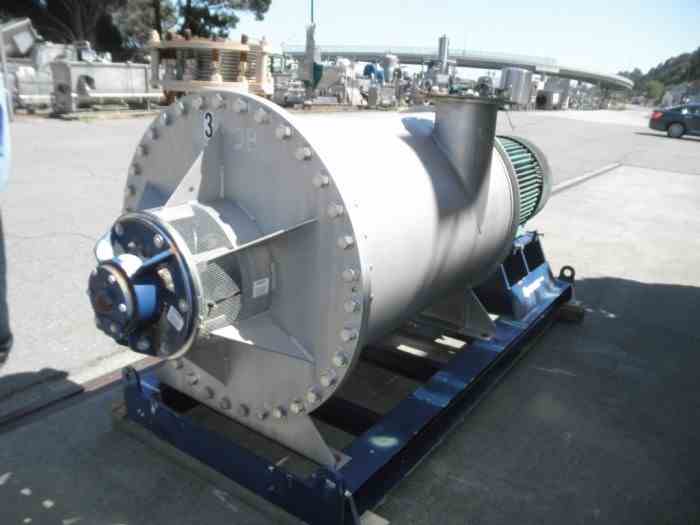

Used Spencer high-performance centrifugal blower/gas booster, model number GS 36305D, 316 Stainless Steel construction. Rated 2539 CFM @ 5 PSIG. Unit complete with explosion proof, 150 HP, 460 V, 3565 RPM, 3/60 Hz motor, 10" inlet and outlet. Previously used in hydrocarbon vapor service. Unitized on common mild steel frame. Includes flexible flanged connections. Complete with six (6) bottom drains with manual valves. New in 2005. Very good condition. (Qty- 2 available: Serial numbers 808077 and 808076)

Unused 1,285 SCFM positive displacement blower manufactured by Aerzen, Model #EM-60S. Driven by 125 HP electric motor. Design suction pressure of 14.6 PSIA and specified discharge pressure of 12.5 PSIA. Estimated weight of 5,000 lbs. Tag #19-C-051A. Part of Package #19-PK-051. Previously designated as Aerobic Reactor Blower.

Unused 1,285 SCFM positive displacement blower manufactured by Aerzen, Model #EM-60S. Driven by 125 HP electric motor. Design suction pressure of 14.6 PSIA and specified discharge pressure of 12.5 PSIA. Estimated weight of 5,000 lbs. Tag #19-C-051B. Part of Package #19-PK-051. Previously designated as Aerobic Reactor Blower.

Unused 1,285 SCFM positive displacement blower manufactured by Aerzen, Model #EM-60S. Driven by 125 HP electric motor. Design suction pressure of 14.6 PSIA and specified discharge pressure of 12.5 PSIA. Estimated weight of 5,000 lbs. Tag #19-C-051C. Part of Package #19-PK-051. Previously designated as Aerobic Reactor Blower.

Unused 1,000 ACFM rotary lobe blower driven by 30 HP electric motor. Includes enclosure housing. Estimated weight of 5,000 lbs. Tag #19-F-755A. Previously designated as Bleaching Earth Bin Exhaust Blower.

Unused 1,000 ACFM rotary lobe blower driven by 30 HP electric motor. Includes enclosure housing. Estimated weight of 5,000 lbs. Tag #19-F-755B. Previously designated as Bleaching Earth Bin Exhaust Blower.

Unused 960 CFM aluminum centrifugal blower manufactured by Illinois Blower, Model #451HPRB. Counterclockwise (CCW) rotation, driven by 30 HP electric motor. Aluminum construction. Estimated weight of 4,005 lbs. Tag #19-F-751A. Previously designated as Hot Well Fan.

Unused 960 CFM aluminum centrifugal blower manufactured by Illinois Blower, Model #451HPRB. Counterclockwise (CCW) rotation, driven by 30 HP electric motor. Aluminum construction. Estimated weight of 4,005 lbs. Tag #19-F-751B. Previously designated as Hot Well Fan.

Unused 960 CFM aluminum centrifugal blower manufactured by Illinois Blower, Model #451HPRB. Counterclockwise (CCW) rotation, driven by 30 HP electric motor. Aluminum construction. Estimated weight of 4,005 lbs. Tag #19-F-751C.

Unused 960 CFM aluminum centrifugal blower manufactured by Illinois Blower, Model #451HPRB. Counterclockwise (CCW) rotation, driven by 30 HP electric motor. Aluminum construction. Estimated weight of 4,005 lbs. Tag #19-F-751D.

Used 100HP Cyclo blower package with Desiccant Dryer. Assembled by Pinnacle Industries. 100HP WEG TEFC motor with Gardner Denver rotary lobe, axial flow blower. Model #7CDL17R. Inlet temp 100F@667 scfm. Enclosure and Controls. Munters Desiccant Dehumidifier. Model HCD-1125-EA-SFCPS. Discharge 667 SCFM Process Outlet. Built 2016. Package weight 7,154 lbs.

Unused 500 SCFM rotary lobe blower driven by electric motor. Includes enclosure housing. Estimated weight of 5,000 lbs. Tag #19-F-752. Previously designated as Filter Aid Bin Exhaust Blower.

Used 160 CFM Rotary Lobe Blower. Manufactured by Roots. Model 45URA1. 10HP motor w belt drive. 230/460.

Unused rotary lobe blower driven by 20 HP electric motor. Includes enclosure housing. Estimated weight of 5,000 lbs. Tag #19-F-756. Previously designated as Silica Bin Exhaust Blower.
