Steel Centrifugal Pumps

Used 3000 GPM Centrifugal pump. Manufactured by Goulds. Model 3410. Size 12x10x14. 180 ft/head. 200HP motor. 447T Frame. TE Enclosure.

Unused 2,749 GPM horizontal centrifugal pump. Carbon steel casing (S-6) with 12% chromium impeller (S-6). Rated 518 PSIG @ 750°F. Driven by 450 HP electric motor. Tag #18-P-353A. Previously designated as Stripper Reboiler Circulation Pump.

Unused 2,749 GPM horizontal centrifugal pump. Carbon steel casing (S-6) with 12% chromium impeller (S-6). Rated 518 PSIG @ 750°F. Driven by 450 HP electric motor. Tag #18-P-353B. Previously designated as Stripper Reboiler Circulation Pump.

Unused 2,461 GPM horizontal centrifugal pump. Post-weld heat-treated carbon steel casing (S-6) with 12% chromium impeller (S-6). Rated 1,920 PSIG @ 600°F. Driven by 1,250 HP electric motor. Tag #18-P-359A. Previously designated as Recycle Oil Pump.

Unused 2,461 GPM horizontal centrifugal pump. Post-weld heat-treated carbon steel casing (S-6) with 12% chromium impeller (S-6). Rated 1,920 PSIG @ 600°F. Driven by 1,250 HP electric motor. Tag #18-P-359B. Previously designated as Recycle Oil Pump.

Unused 2,203 GPM horizontal centrifugal pump. Carbon steel casing (S-6) with 12% chromium impeller (S-6). Rated 530 PSIG @ 700°F. Driven by 500 HP electric motor. Tag #18-P-356A. Previously designated as Product Fractionator Reboiler Circulation Pump.

Unused 2,203 GPM horizontal centrifugal pump. Carbon steel casing (S-6) with 12% chromium impeller (S-6). Rated 530 PSIG @ 700°F. Driven by 500 HP electric motor. Tag #18-P-356B. Previously designated as Product Fractionator Reboiler Circulation Pump.

Unused 1,198 GPM horizontal centrifugal pump. Post-weld heat-treated carbon steel casing (S-8), 316L stainless steel impeller (S-8), and PTFE diaphragm as listed. Rated 549 PSIG @ 650°F. Driven by 300 HP electric motor. Tag #18-P-352A. Previously designated as Preflash Pump.

Unused 1,198 GPM horizontal centrifugal pump. Post-weld heat-treated carbon steel casing (S-8), 316L stainless steel impeller (S-8), and PTFE diaphragm as listed. Rated 549 PSIG @ 650°F. Driven by 300 HP electric motor. Tag #18-P-352B. Previously designated as Preflash Pump.

Unused Horizontal Centrifugal Pump. Mfg. by Durco (Flowserve). 449 gpm @ 90' head. Size 2K4x3-10HRV-10.00. Type MK3 STD. MDP 275 psi @ 100 deg. F. 306 deg. F. Casing: 316SS. Impeller: CD4M. 20 HP motor. Designed as Oil/Earth Reactor Discharge Pump.

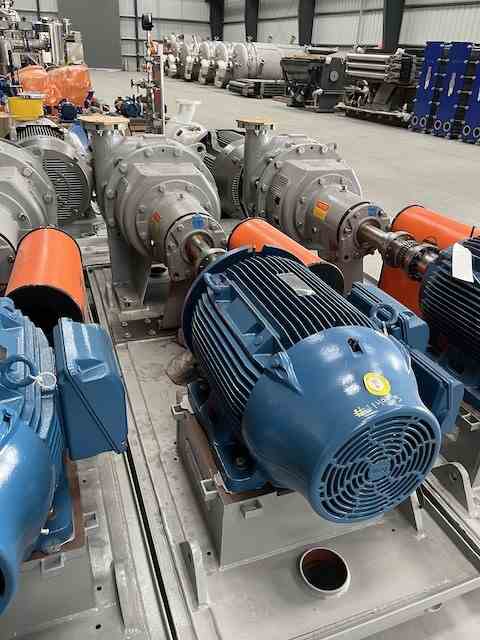

Unused 100HP Horizontal Centrifugal Pump. Mfg. by Durco (Flowserve). MODEL #4M223. 597 gpm @ 236' head. 306 deg. F. Casing: HC600. Impeller: HC600. 100 HP motor. Designed for Bleaching Filter Feed Pump.

Used 75HP Goulds centrifugal pump. With John Crane mechanical seal.

Used 75HP Goulds centrifugal pump. With John Crane mechanical seal.

Unused 30HP Centrifugal pump with Westinghouse Motor.
