Nylon (PA6/PA66) Compounding & Processing Plant - 11,400 TPY
Other Views - click image for larger view
Nylon (PA6/PA66) Compounding & Processing Plant - 11,400 TPY Nylon (PA6/PA66) Compounding & Processing Plant - 11,400 TPY Nylon (PA6/PA66) Compounding & Processing Plant - 11,400 TPY Nylon (PA6/PA66) Compounding & Processing Plant - 11,400 TPY Nylon (PA6/PA66) Compounding & Processing Plant - 11,400 TPY Nylon (PA6/PA66) Compounding & Processing Plant - 11,400 TPY

Nylon (PA6/PA66) Compounding & Processing Plant - 11,400 TPY

Stock # 626
Capacity 11,400 TPY
Products Engineering Plastic Compounds

Overview

Complete, integrated engineering plastics compounding plant designed to produce high-performance Nylon (PA6/PA66) compounds. Total Compounding Capacity: approximately 11,000 – 12,000 metric tons per year. The facility includes twin-screw extrusion, single-screw extrusion for densification, drying and finishing systems, material handling, in-house laboratory testing, and automated packaging — enabling full-scale production from raw polymer to finished product. Proven in the manufacture of OEM-grade materials, the plant offers immediate capability for both high-volume and specialty compound production. The plant produced several grades of nylon products: Unreinforced PA6/PA66, ZYtel® 70G/73G/74G/80G Resins, Glass Reinforced PA6/PA66, Zytel® ST Resins, Super Tough Grade PA6/PA66, Minlon® Resins, Mineral Filled, FR Grades. The plant can also process other base polymers such as polypropylene and polyethylene.

Major Equipment

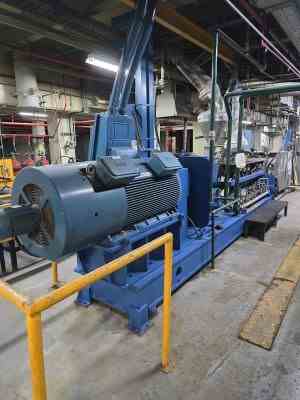

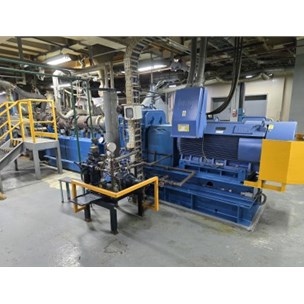

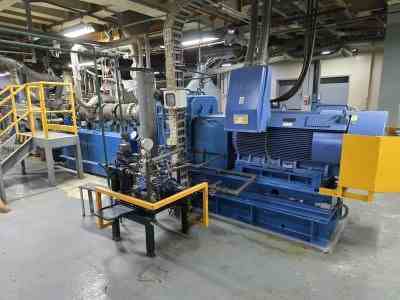

- Werner & Pfleiderer ZSK 58 mm Twin-Screw Extruder (capacity 1200 kg/hr)
- Berstorff 90 mm Twin-Screw Extruder (capacity 1000 kg/hr)
- 5” Single-Screw Extruder for Densifi¬cation (capacity 270 kg/hr)
- Extraction Tanks
- Vacuum Dryers
- Conair Dryer
- Polymer Storage Silos (approx. 50-ton capacity)
- Pneumatic Conveying Systems
- Glass Fiber Handling Systems

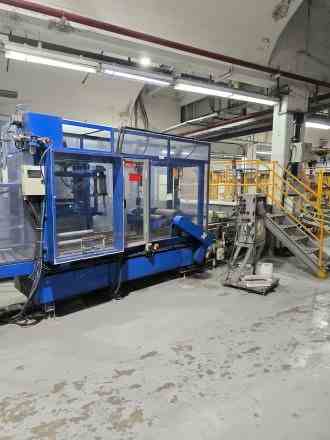

- Automated Bagging Lines (25 kg bags)
- Bulk Packaging Machine
- Robotic Pelletizing System (KUKA)
- Injection Molding Machine
- Laboratory Equipment
Share
SPECIFICATIONS RESOURCES
Year Built 1999
Year Shut 2023
Capacity 11,400 TPY
Plant Design/Technology Werner & Pfleiderer, Berstorff
Raw Material Nylon (PA6/PA66), PE, PP
Products Engineering Plastic Compounds
Subcategory Nylon 6 & Nylon 6,6 Plants

For additional information, visit the Resource Center
