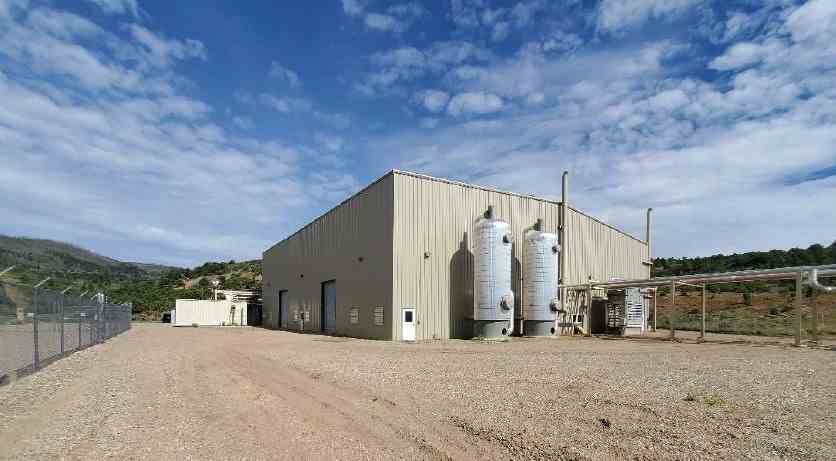

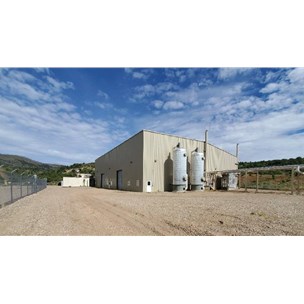

CO2 Removal & NGL Plant - 30 MMSCFD

Stock # 496
Capacity 30 MMSCFD
Products NGL (natural gasoline, propane, butane, isobutane)

Overview

The plant has two functions: (1) remove CO2 from inlet natural gas; (2) produce hydrocarbon liquids (NGL) from the treated natural gas. The CO2 removal section includes 4-stage membrane separation process to reduce CO2 content from 74% to 3%. The NGL section produces natural gasoline (737 BPD), propane (147 BPD), butane (100 BPD), isobutane (52 BPD).

Major Equipment

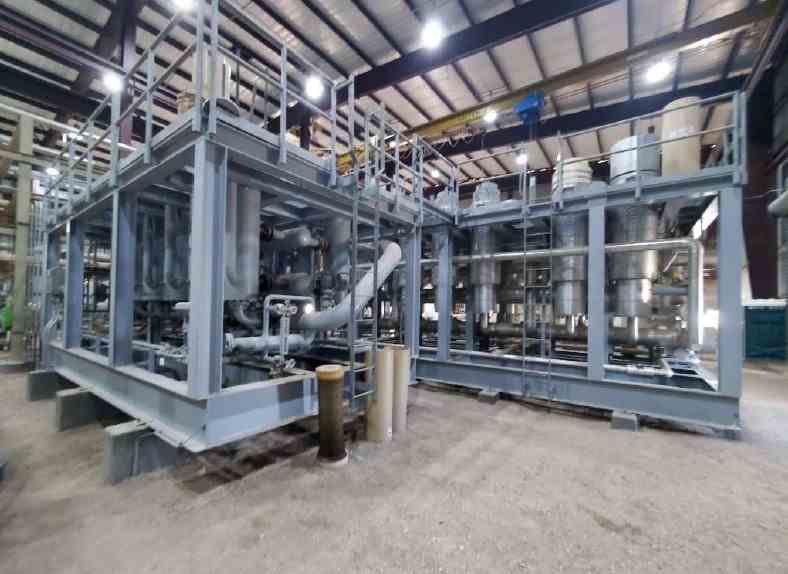

- CO2 Extraction Membrane System (Natco (Schlumberger) CYNARA 4-stage)

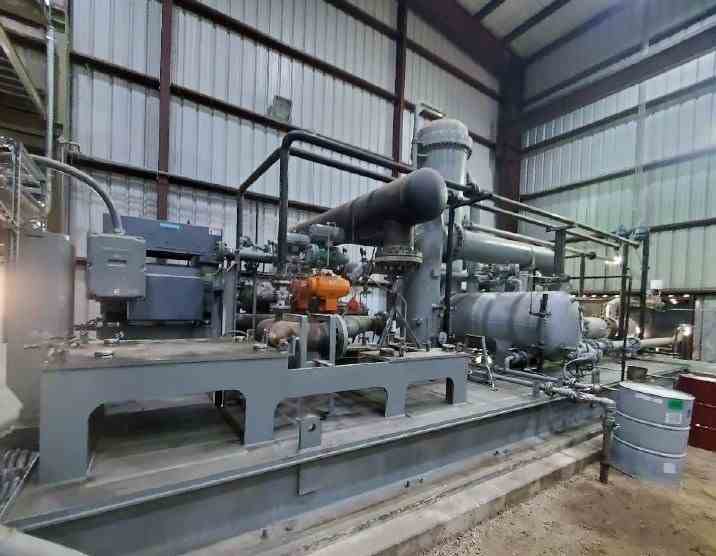

- Membrane Booster Compressor (Kobleco KS32LNB Rotary Screw Compressor with Siemens 1800 HP Model CGH Motor)

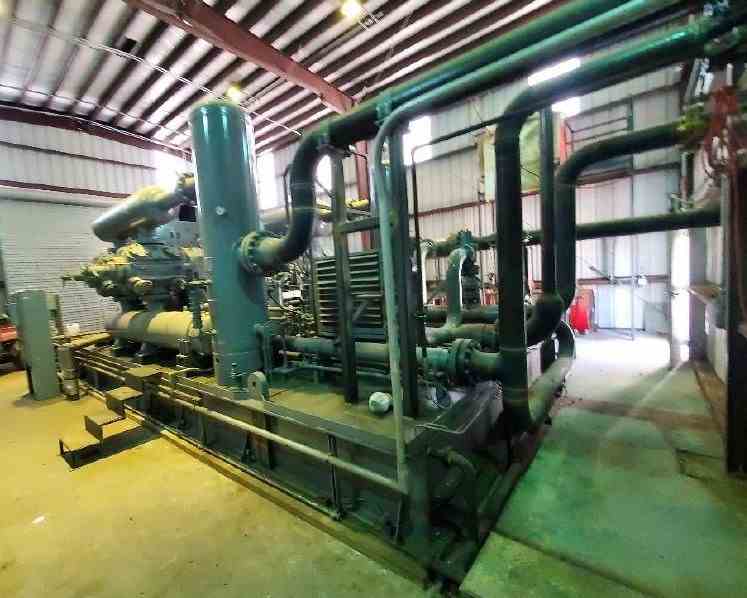

- Recycle Throws 1, 3, 4 / Sales Throw 2 Compressor with Siemens 2000 HP, Model CGH
Motor
- CO2 Sales Compressors (4 stage)
- NGL Stabilizer
- Propane Refrigeration System
- Inlet Gas Compressor
- Molecular Sieve Dehydration System
- TEG Dehydration System
- Heater
- Flare System
- Amine Column
- Power Substation
- NGL Storage Vessels (2 X 55,000 Gallons)
Share
Download Plant Brochure |
SPECIFICATIONS RESOURCES
Year Built 2006
Year Shut 2019
Capacity 30 MMSCFD
Plant Design/Technology BCCK Engineering
Raw Material Natural Gas
Products NGL (natural gasoline, propane, butane, isobutane)
Subcategory Acid Gas Removal Plants (AGR Units)
