Used 6 square feet Sulzer Chemtech Fluid Bed Dryer, Type FTF 60/500, material of construction 316L Stainless Steel. Design pressure of 0.7 psi @ 600 Deg. F. This unit is part of a complete drying system that includes a 2 stage wet scruber, main heat source: electric and steam, 3 zone screw conveyor, feeder , cyclone, blowers. Previous Use: Sodium Chlorate. Year Built 1994, Serial #035-1810-4813. Est. weight- 1,600 lbs.

Used 100 Square Feet Perrin Polypropylene Plates, Plate & Frame Filter Press. 17 plates, 24" (630 MM), polypropylene CGR (2). Cake thickness- 11/4", 5 cubic feet cake capacity. Model #100-24. With manual hydraulic closure. Unit can accomodate 20 Chamber or approx 127 Sq. Ft and 6 cu. ft. cake capacity. Year Built 1988. Serial #15565. Estimated weight- 3,200 #. Previous Use: Sulfate Filter. NOTE: Frame in rough condition.

Used 150 Square Feet US Filter Brine Filter. Model # 44VJ-36-150F DCD, Type Verti-Jet with swing bolt door design, 44" diameter tank carbon steel lined with rubber (3/16" thick Butyl Rubber). There are 10 titanium leaves with 4" spacing, unit is rated for 75 psi @ 180F, complete with sluicing device. Serial # 7296. NB # 1884. Year Built 1988. Estimated weight- 1900 lbs.

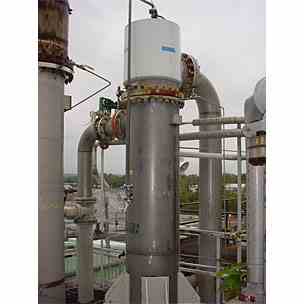

1320 square foot vertical Wyatt Industries 304SS (Shell)/Titanium-TI GR. 2 (Tube) 1-pass shell and tube heat exchanger. Heads are 316L. National Board rated. Operating pressure on shell side 150 psi @ 170 F; Operating pressure on tube side 75/FV @ 275 F. 1" tube diameter, 2'2" shell diameter. 16' tube length, OAL 21'9". 316 tube holes. Tube wall is 0.049" thick. (2) 10" shell nozzles; (1) 3", (1) 4", (1) 18" tube nozzles. Tema Type: BEM. Built 1974. (Drawing & U-1 on file).

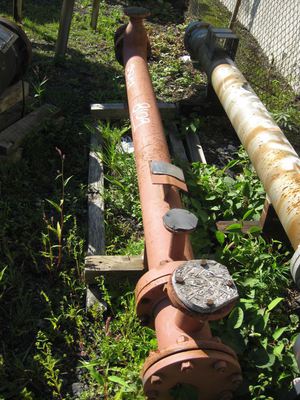

Used Approx. 31 Square Feet Astro Metallurigcal, Inc. Horizontal Titanium (Grade 2) Shell & Tube Heat Exchanger. Carbon steel shell rated 75 PSI/FV @ 400 deg F; Tube side: 150 PSI/FV @ 400 deg F. (20) Tubes, .75" OD. Shell: 6.625" diameter, 120" OAL. Serial # 54936, National Board #1624. Year Built 1994. Nozzles: Shell side: (2) 1", (1) 3"; Tube Side (2) 3". U-1 & Drawing on file.

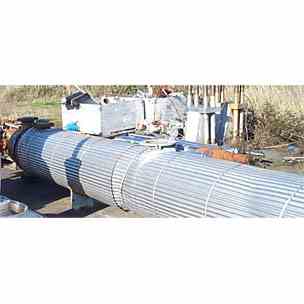

1,110 Sq. Ft. Alaskan Copper Works titanium shell & tube heat exchanger. 3/4" od Titanium tubes and stainless steel shell with insulating jacket. 6" dia. inlet and outlet to tubes and 6" dia. inlet and outlet to shell. Measures 26" wide by 24'8" long Rated on Shell & Tube side- 150 psi @ 225 deg. F. -20 deg. F min. des. metal temp. @ 150 psi. NB # 1769, Serial #1919. Built in 1991.

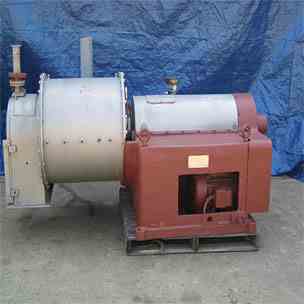

Used 11" Diameter Baker Perkins S-11, 316 SS (wetted parts) S-11 Pusher Type Centrifuge. Operating at 1051 RPM, Max RPM 2000. Unit is driven by a hydraulic drive with 45 HP motor. Serial #58731. Year Built 1978.

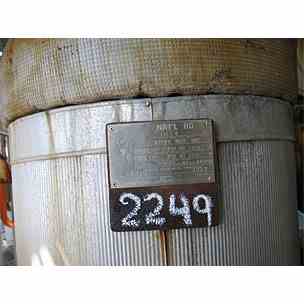

Used 462 Sq. Ft. Astro Metallurgical, Inc. vertical type BEM Titanium shell and tube heat exchanger. Size 19-87. CS Shell side: 100 PSI/FV @ 350°F; Tube side: 100 PSI/FV @ 350°F. There are 324 tubes 3/4" O.D. x 0.035" thick x 87" long, made of Titanium-Grade 2 material. 1 pass on shell and tubes. 20" Dia x 100" OAL. Shell nozzles: (1) 10", (1) 8"; Tube Nozzles: (1) 6", (1) 2". Serial # 55216, National Board #1634. Year Built 1994. O.A.D. approx. 32" x 100". Estimated weight 1705 lbs. (Drawing and U-2 and spec on file).

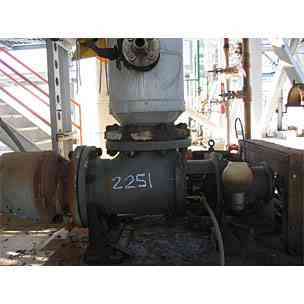

Used 1541 GPM @ 10TDH Goulds Titanium Circulating Axial Flow Pump. Model # AF/MPAF. Size 8 x 8-8, imp. diameter 7.952. 10 HP Motor, 1800 RPM, Frame L2125T, TEFC-XEX. Drive-single speed v-belt. Serial # 418A623. Year Built 1994. (Pump only - no motor)

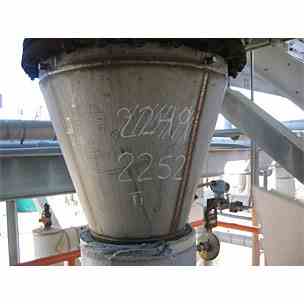

Used 449 Sq. Ft. Monticello Tank, Inc Vertical Type BEM Titanium (SB-338-2, Gr. 2) shell and tube heat exchanger. Size 27-60. There are 355 tubes 1" O.D. x 0.049" thick x 60" long made of titanium. Shell 27 1/4" O.D. x 60" long made of carbon steel. Shell side: 160 PSI/-15 @ 500 deg F/-20 deg F; Tube side: 25 PSI @ 200 deg F. 1 pass shell and tube. Nozzles: (2) 6", (4) .75". O.A.D. approx. 40" x 8' long. Serial #T102825, National Board # 5332. Year Built 1993. Estimated Weight-2082 lbs. Previous Use: Crystallizer heater. (Note: Missing nameplate, but drawing, U-2 and spec on file)

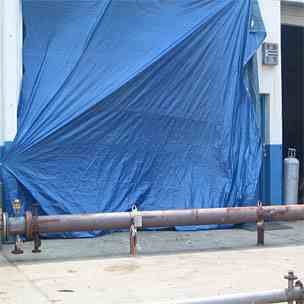

Used 216 Sq. Ft. Monticello Tank, Inc. horizontal titanium (SB 338, Grade 12-wetted parts) shell and tube heat exchanger. Size 7-240. TEMA Type AEL. There are 55 tubes at 3/4" O.D. x 0.049" Thick x 20' long. Shell carbon steel, 9" O.D. x 271". Shell rated 170/-15 psi @ 500 deg F (1 pass). Tubes rated 116/-15 psi @ 500 deg F (1 pass). Serial # T102794. National Board # 5328. Year Built 1993. Nozzles: Shell side: (1) 4", (1) 2", (2) 1"; Tube side: (2) 3", (2) 1". Tema Type: AEL. Estimated Weight- 1237 lbs.

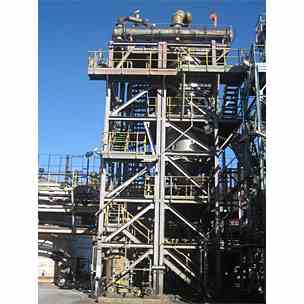

Used titanium evaporation / crystallization System, max flow rate 100 gallons per minute. Mfg. by Swenson / Astro Mettalurgical, single effect draft tube baffle type. Approx. 8' x 20 straight side with 4' cone top and 6' cone bottom. Rated FV @ 100 C. Unit has bottom drive with 15 HP Lightnin mixer with titanium grade 2 shaft and impeller. System includes: Titanium Plate Exchanger (Plant #30E-1 Crystallizer Heat Exchanger); Horizontal shell and tube Graham condensor, shell rated 20PSI/FV @ 250 C, tubes rated 75 PSI @ 250 C, Serial# 66714-1, NB # 1569, Built 1988. Nash Vacuum Pump System; Other Pumps- (3OP27 A/B, 3OP26A/B, 3OP15)

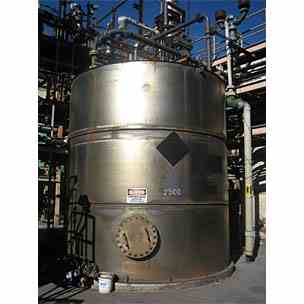

Used 10,350 Gallon Vertical Titanium (Grade 2 B265) storage Tank. Flat top and bottom. Approx. 12' diameter x 13' high. Year Built 1988. Previous Use: Sodium Chlorate.

Used 13.5" Diameter Baker Perkins Single Stage Pusher Centrifuge, type Ter Meer. Max operating speed 1500 RPM, complete with hydraulic drive system. Machine # 50718, Order # M-81624. Rebuilt 1992 (by Baker Perkins).

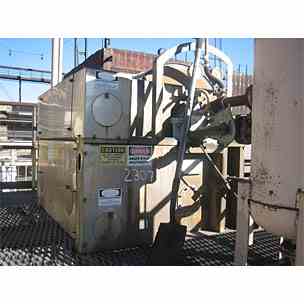

Used 28.2 Sq. Ft. Komline Sanderson 316 Stainless Steel (Contact Parts) Rotary Vacuum Filter. Left hand design and scraper discharge. Unit is 3' diameter x 3' face, max submergence 37.5%. Complete with Reeves variable speed Gear drive. 1/2 HP, speed 65 to 6.56 RPM. Serial # KDF-1494. Job # 1-1978. Built 1995. Previous Use: Mud Filter. (Unit requires Vacuum Pump)

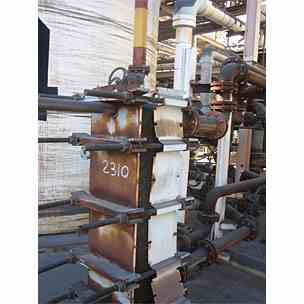

Used 294.7 Sq. Ft Tranter Inc (Texas Division) Titanium Plate Heat Exchanger. Rated 100 PSI @ 200 F. Model # UX-296-HP-75, Serial # SC 3106. Built 1989. 75 titanium plates; EPDM Gaskets. Estimated weight- 1513 lbs.

Used Titanium Basket Filter, rated 150PSI/FV @ 250 deg F. 25" OD x 50" Straight side, dished bottom. OAL: 7' 4". Mfg by Monticello Tank Inc, 1994, S/N: T103270, NB #5590. Nozzles (150# ANSI Flange) : 3" Side inlet, 3" CBO, 1" Top vent.

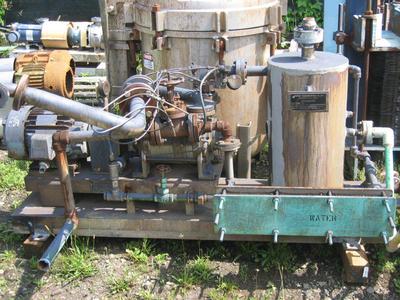

Used 7.5 HP Liquid Ring Vacuum Pump System, manufactured by Graham Manufacturing, 1987. 316-SS wetted parts. Pump Rated 75 PSI @ 150 deg F. Knock out pot. Skid dims: 5'10"L x 2'8"W x 3'H, 1300 lbs. Drawing on file.

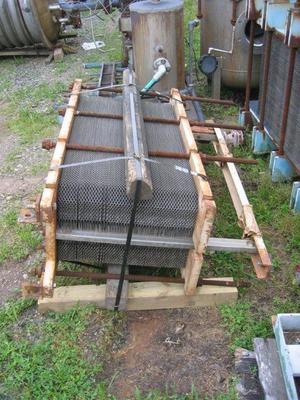

Used 96 Sq Ft Stainless Steel Plate Heat Exchanger rated 100 PSI @ 200 deg F. 1 Pass. Built by Graham Mfg Co, 1987, Model UF-26M. (4) 4" nozzles. 3' 3" L x 18" W x 3' 11" H, Approx 975 lbs. Drawing on file.
