Used 12,000 TPY AKD Wax Plant. Fatty Acid Chloride, Triethylamine and Toluene are subject to a batch reaction in a glass lined vessel at 65°C. The corresponding ketene and then the diketene (AKD wax) are formed. The reaction mass is decanted and then extracted. The extract is then steam vacuum distilled. This is a fine tuned totally recovering process. Toluene as well as unreacted triethylamine are recovered in the work up and reintroduced in the next batch. The process is automated (ABB).

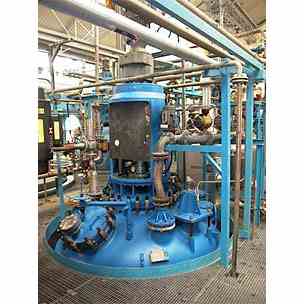

12,500 Litre Dedietrich Model Ce12500 Vertical Blue Glass Lined Reactor Vessel. Working Capacity And 14,335 Litre Total Capacity. Unit Has Welded Dished Top And Bottom Heads. Internal Rated 6 Bar/Full Vacuum Design Pressure At -25 To 200 Deg.C. Mild Steel External Jacket Rated 6 Bar/Full Vacuum Design Pressure At -25 To 200 Deg.C. Unit Has 2-Tier, 3-Blade Cryolok Blue Glass Lined Agitator With Top Mounted Electric Motor, Dedietrich Model 125-140 Gearbox And Mechanical Seal. Unit Is Mounted On 4 Legs. Includes Bottom Outlet Valve. Built 1990.

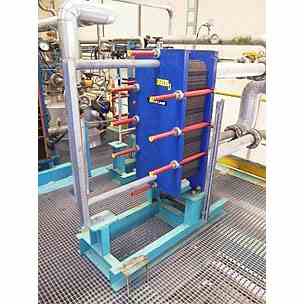

Used Alfa Laval Type TS6-Mfg Stainless Steel Plate Heat Exchanger. Has (15) 500mm X 350mm Plates Giving Approximately 2.25 SqM Heat Transfer Area. Unit Rated 6.9 Litre Volume Capacity. Rated 10 Bar Design Pressure At 150 Deg.C. Mounted In A Mild Steel Frame.

20 Sq Mt Horizontal Stainless Steel Shell And Tube Heat Exchanger. Shell Rated 3 Bar Design Pressure, Tubes Rated 6 Bar Design Pressure. Has Stainless Steel Heads. Unit Is Mounted On (2) Stainless Steel Supports.

50.6 Sqmt 316 Stainless Steel Horizontal Shell And Tube Heat Exchanger. Unit Has (216) 316 Stainless Steel Tubes Which Measure 25mm Diameter X 2972mm Long, Rated 0.300mpa Design Pressure At 180 Deg.C. 316 Stainless Steel Shell Rated 0.300mpa / -0.100mpa Design Pressure At 180 Deg.C. Unit Has Stainless Steel Heads. Mounted On (2) Stainless Steel Supports.

Used 57 Sq mt 316 Stainless Steel Horizontal Shell And Tube Heat Exchanger. Unit Has (216) 316 Stainless Steel Tubes Which Measure 25mm Diameter X 2982mm Long, Rated 3 Bar/Full Vacuum Design Pressure At 150 Deg.C. 316 Stainless Steel Shell Rated 3 Bar/Full Vacuum Design Pressure At 150 Deg.C. Unit Has Stainless Steel Heads. Mounted On (2) Mild Steel Supports.

Used 47" X 73' 7" SS Belt Sandvik Pastillator, approximately 1200mm Wide X 22,500mm Long Stainless Steel Belt Flaker With Sandvik Rotor Dropformer. Unit Has Knife Discharge. Unit Is Mounted On Mild Steel Frame With Stainless Steel Drip Trays And Plastic Water Pipes.

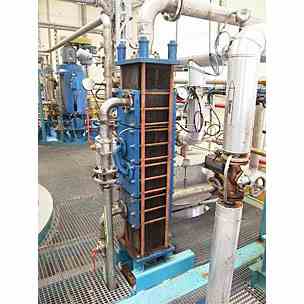

Used 3.29 Sq Mtr VicarbGraphite Heat Exchanger. Process Side Rated 3 Bar/Full Vacuum Design Pressure At 150 Deg.C. Service Side Rated 3 Bar Design Pressure At 150 Deg.C.

6.9 Sq/Mtr Horizontal Stainless Steel Shell And Tube Heat Exchangers. Has (60) 25mm Diameter X 1468mm Long Stainless Steel Tubes Rated 0.300mpa Design Pressure At 150 Deg.C. Stainless Steel Shell Rated 0.300mpa/-01mpa Design Pressure At 150 Deg.C. Unit Is Mounted On Saddles.

Caterpillar 2000kgs diesel powered forklift truck.
