Used 561 Sq. Ft. Southern Heat Exchanger Corp. 304L Stainless Steel Horizontal Shell & Tube Heat Exchanger. Shell rated 100 PSI @ 200 deg F; Tube side rated 85 PSI @ 150 deg F. (143) .75" dia straight 304 L SS Tubes with 20' length; 14' x 22' 5.75", 3/16" shell. Serial # 78-117; National Board # 2721; Built 1978. Nozzles: Shell side: (2) - 3" Tube side: (2) - 3". Estimated Weight: 3,400 lbs. Note: Failed Hydro Test - needs repair.

Used 3,010 Sq. Ft. Titanium Limited (Canada) Titanium (SB-265) Horizontal One-Pass Shell & Tube Heat Exchanger. Shell rated 50psi @ 250F; Tube side rated 75psi @ 250F. (728)- 1"OD Tubes Shell: 41.375" (1050 mm) dia. x 15' 10" (4826 mm) length. 304L-SS Heads (Approx 20' AOL). Serial # 50098; National Board # 102; Built 1992. Estimated Weight: 9,700 lbs

Used 12" x 30" Stainless Steel Bird Solid Bowl Centrifuge, Model # ZLB1-907-00550. Built 1984. Louis Allis Motor: 25 HP; 3600 RPM; 3 Phase; 60 Cycle; 460 Volts; TEFC Type; 266 T Frame Serial # LB3514. Has a spare base and bottom housing, bearings, pulley, etc in warehouse.

Used 1,431 Sq. Ft. (133 square meters) Titanium Limited (Canada) Titanium (SB-265) Vertical One-Pass Shell & Tube Heat Exchanger. Shell rated 60psi @ 400 deg F; Tube side rated FV @ 350 deg F. (306)-1.5" OD Tubes 11' 10" Long. Serial # 50084; Shell dimensions: 36.75" dia. (933 mm) x 11' 10" OAL (3606 mm). National Board # 94; Built 1991. Estimated Weight: 4,750 lbs.

Used 186 Sq. Ft. RAS Process Equipment 304L Stainless Steel vertictal Shell & Tube Heat Exchanger. Shell rated 75psi @ 350 deg F; Tube side rated 75psi @ 250 deg F. (110) 1" straight 304 SS Tubes 77.875" long. Shell: 16" dia. x 6' 6" OAL. Serial # 032137-02; National Board # 1420; Built 2003. Estimated Weight: 1,100 lbs

USED DOYLE & ROTH 187 SQUARE FOOT VERTICAL SHELL AND TUBE HEAT EXCHANGER. 16" DIAMETER X 6'6" 304L STAINLESS STEEL SHELL RATED 185 PSI @ 400°F. (110) 1" 304L STAINLESS STEEL TUBES.

Used 880 CFM Nash-Kinema 304-SS liquid ring Compressor/Vacuum Pump, Model CL-2001. 200 HP motor, 1200 RPM, 449T frame, belt driven (590 RPM output)15PSI @ 205 deg F. Skid mounted system. S/N: 9405329. Built 1994. Note: In warehouse, (2) boxes of spares pump and rotor for Nash Vac. Pump

Used ??? CFM Nash L-7 Compressor, Vacuum Pump, 304 Stainless Steel, V-Belt Driven. Westinghouse motor- 125 RPM, 444T Frame, 150 amps. Built 1977. Other nameplate information

100 Sq. Ft. Horizontal 304L Stainless Steel Shell & Tube Heat Exchanger, Mfg. by Reco S.C. Inc. 304L-SS shell rated 60PSI/FV @ 330�F, Tube side rated 50PSI @ 330�F, (32) - 1" tubes. Shell: 14" dia. x approx 13' 6" OAL. NB # 12101. Built 1987.

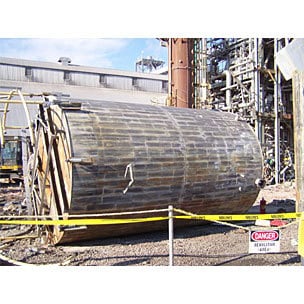

Used 9400 Gallon 304L Stainless Steel Storage Tank. 10' x 16', 3/16" shell. Previous Use: Adipic Acid Storage.

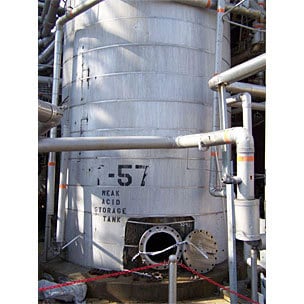

Used 9400 Gallon vertical 304 Stainless Steel Storage Tank. 10' x 16', 3/16" shell. Previous Use: Nitric Acid Storage.

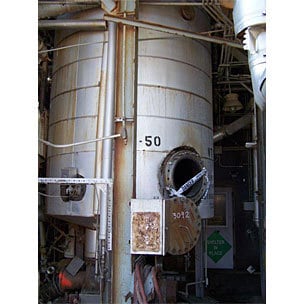

Used 3800 Gallon 304 Stainless Steel Storage Tank, 8' dia x 10' straight side. Flat top & Bottom.

Used Approx. 4,000 Gallon Stainless Steel Tank. 7' Dia x 14' Straight side. Flat Top & Bottom. Top openings: 18" manway with 4", (2) 4", (1) 1". (2) 2" side and (1) 4" side bottom opening.

Used Approx. 4,000 Gallon Stainless Steel Tank. 7' Dia x 14' Straight side. Flat Top & Bottom. Top openings: 18" manway with 4", (2) 4", (1) 1". (2) 2" side and (1) 4" side bottom opening.
