Ethylene Oxide Plant Liquidation

Phoenix Equipment is liquidating an Ethylene Oxide (EO) Plant. The equipment available for sale includes: (15) Shell & Tube Heat Exchangers, (3) Plate Heat Exchangers, (1) Stainless Steel Vertical Tank, (2) Carbon Steel Tanks, (1) Steam Turbine Driven Compressor Train, (1) Stainless Steel Vertical Column, (1) Carbon Steel Vertical Column & Much More!

Location: Kentucky, USA
|
Ethylene Oxide Plant Liquidation Featured Item(s):
24 Results
Show:
Sort:
View:
Test Grid View
2068 Sq Ft Roarke Enterprises Inc. Stainless Steel Shell & Tube Heat Exchanger
2068 Sq Ft Roarke Enterprises Inc. Stainless Steel Shell & ..
Stock # 7710
Capacity 2068

Used 2068 Sq Ft Roark Enterprises Inc. Horizontal Stainless Steel Shell & Tube Heat Exchanger. CS Shell rated 250 psig @ 300 F, -20 F @ 250 psig, 316L SS Tubes rated 150 psig @ 300 F, -20 F @ 150 psig; 796 Tubes x 3/4" x 16ga x 16' L. Serial #95-740, National Board #465, Built 1995. Approx. Weight - 15,000 lbs. Previous Use: Ethylene Oxide.

View details
2852 Sq Ft Advanced Process Systems Inc. Stainless Steel Shell & Tube Heat Exchanger
2852 Sq Ft Advanced Process Systems Inc. Stainless Steel She..
Stock # 7711
Capacity 2852

Used 2852 Sq Ft Advanced Process Systems Inc. Horizontal Stainless Steel Shell & Tube Heat Exchanger. CS Shell rated 75 psi @ 175 F; 38" Diameter. Tubes 316L SS rated 225 psi @ 175 F; (908) Tubes x 3/4" Diameter 16' ga x 15/16" pitch x 16' L. Mounted on two saddles, Serial #83007, National Board #4, Built 1983. Approx. Weight - 17,500 lbs. Previous Use: Ethylene Oxide.

View details
1779 Sq Ft Roarke Enterprises Inc. Stainless Steel Shell & Tube Heat Exchanger
1779 Sq Ft Roarke Enterprises Inc. Stainless Steel Shell & ..
Stock # 7712
Capacity 1779

Used 1779 Sq Ft Roark Enterprises Horizontal Stainless Steel Shell & Tube Heat Exchanger. CS Shell rated 75 psig @ 135 F and -25 F @ 75 psig; 32 1/8" ID x 15' 7 5/8". 304-SS Tubes rated 225 psig @ 245 F. (580) tubes x 0.750" x 16 ga x 15' 7 5/8" L. Serial #00-1431, National Board #778, Built 2000. Estimated Weight--12,650#. Previous Use: Ethylene Oxide.

View details
5645 Sq Ft Fabricated Products Co. Stainless Steel Shell & Tube Heat Exchanger
5645 Sq Ft Fabricated Products Co. Stainless Steel Shell & ..
Stock # 7713
Capacity 5645

Used 5645 Sq Ft Fabricated Products Horizontal 304L Stainless Steel Shell & Tube Heat Exchanger. Shell rated 75 psig @ 240 F, 4' ID x 16' L. Tubes rated 240 psig @ 350 F, 2174 tubes x 3/4" ID x 16 ga x 16' L. Serial #81-328, National Board #540, Built 1982. Approx weight - 22,500 lbs. Previous Use: Ethylene Oxide.

View details
16980 CFM DeLaval Compressor Train
16980 CFM DeLaval Compressor Train
Stock # 7719
Capacity 16980

Used 16,980 CFM Transamerica DeLaval Compressor Train, Steam Turbine Driven. Serial #60552, Size/type 2CD37. Suction/Discharge 300 psig. Transamerica DeLaval Steam Turbine, serial 708188, size HJT and rated 5080 K (6809 HP) @ 8700 RPM. Inlet Steam 600 psig and exhaust pressure 70 psig. Built in 1982. Previous Use: Ethylene Oxide Recycle Compressor.

View details
3579 Sq Ft Energy Exchanger Stainless Steel Shell & Tube Heat Exchanger
3579 Sq Ft Energy Exchanger Stainless Steel Shell & Tube Hea..
Stock # 7721
Capacity 3579

Used 3579 Sq Ft Energy Exchanger Co. Vertical Stainless Steel Shell & Tube Heat Exchanger. 304L (Prtial) Shell rated 240 psig @ 530 F, 304 L Tubes rated 240 psig @ 350 F. (1586) 304L Tubes x 3/4" OD x 14 ga x 11' 6" Lg. Size 43 x 144 Type AEL. Lug Mounted. Serial #X-1167-A, National Board #296, Built 1980. Previous Use: Ethylene Oxide.

View details
14 " Dia Roarke Enterprises Inc. Carbon Steel Packed Columns
14 " Dia Roarke Enterprises Inc. Carbon Steel Packed Column..
Stock # 7722
Capacity 14

Used 14" Dia x 16' 8 3/4" L Roark Enterprises Inc. Vertical Column. Material of Construction: CS type SA-106B. Des Press: 175 psig @ 300 F, -20 F @ 175 psig. Packing 10' of 1" SS Pall rings. Lug Mounted. Serial #95723, National Board #449, Built 1995. Estimated Weight -- 1,835#. Previous Use: Ethylene Oxide.

View details
2329 Sq Ft Rubicon Ind. Stainless Steel Shell & Tube Heat Exchanger
2329 Sq Ft Rubicon Ind. Stainless Steel Shell & Tube Heat Ex..
Stock # 7725
Capacity 2329

Used 2329 Sq Ft Rubicon Industries (304) Stainless Steel Horizontal Shell & Tube Heat Exchanger. Shell rated 75 psig @ 150 F, Tubes rated 75 psig @ 130 F, (778) x 3/4" ID x 18 ga x 16' Lg. Model #VS 32B8-192H, Serial #2147, National Board #1567, Built 1994. All parts 304 SS, mounted on 2 saddles. Estimated Weight -- 10,000#. Previous Use: Ethylene Oxide.

View details
2530 Sq Ft Roarke Enterprises Inc. Carbon Steel Shell & Tube Heat Exchanger
2530 Sq Ft Roarke Enterprises Inc. Carbon Steel Shell & Tub..
Stock # 7726
Capacity 2530

Used 2530 Sq Ft Roark Enterprises Carbon Steel Horizontal Shell & Tube Heat Exchanger. Shell rated 75 psig @ 150 F, Tubes rated 75 psig @ 150 F, mounted on 2 saddles. (806) Tubes x 3/4" OD x 16' L x 0.085" ga. Serial #93440, National Board #334, Built 1993. Previous Use: Ethylene Oxide.

View details
1692 Gal Roarke Enterprises Inc. Horizontal Carbon Steel Pressure Vessel
1692 Gal Roarke Enterprises Inc. Horizontal Carbon Steel Pr..
Stock # 7727
Capacity 1692

Used 1728 Sq Ft Roark Enterprises Carbon Steel Horizontal Tank. Dimensions: 4' ID x 18' St. Side w/ Dished Heads and mounted on 2 saddles. Tank rated 165 psi @ 260 F, Shell Material SA-516-70, 0.375" thick. Serial #84072, National Board #3, Built 1984. Estimated Weight -- 5400#. Previous Use: Ethylene Oxide.

View details
2467 Sq Ft Merrick Mechanical Inc. Carbon Steel Shell & Tube Heat Exchanger
2467 Sq Ft Merrick Mechanical Inc. Carbon Steel Shell & Tube..
Stock # 7728
Capacity 2467

Used 2467 Sq Ft Merrick Mechanical Carbon Steel Horizontal Shell & Tube Heat Exchanger. SA-516-70 Shell rated 75 psi @ 150 F, -20 F @ 75 psi. Tubes rated 75 psi @ 150 F, -20 F @ 75 psi. (806) SA-214 Tubes x 3/4" OD x 14 ga x 15' 6" Lg. Mounted on 2 saddles, Serial #184, National Board #94, Built 1992. Previous Use: Ethylene Oxide.

View details
18 " Dia Roarke Enterprises Inc. Stainless Steel Packed Columns
18 " Dia Roarke Enterprises Inc. Stainless Steel Packed Col..
Stock # 7729
Capacity 18

Used 18" Diameter Roark Enterprises Vertical 304 Stainless Steel Column. Dimensions: 18" ID x 20' 6" High with 1" Stainless Steel Pall Rings, Lug Mounted. Shell rated 75 psig @ 175 F. Serial #93-439, National Board #333, Built 1993. Previous Use: Ethylene Oxide.

View details
3654.5 Sq Ft Energy Exchanger Carbon Steel Shell & Tube Heat Exchanger
3654.5 Sq Ft Energy Exchanger Carbon Steel Shell & Tube Heat..
Stock # 7730
Capacity 3654.5

Used 3654.5 Sq Ft Energy Exchanger Company Carbon Steel Vertical Shell & Tube Heat Exchanger. Shell rated 240 psig @ 550 F, Tubes rated 240 psig @ 420 F, Type AEL, Size 49 x 144. (1551) Tubes x 3/4" ID x 14 ga x 12' Lg. Shell Dimension: 4' 2 1/2" ID x 12' Lg. Lug Mounted, Serial #X-1168B, National Board #291, Built 1980. Previous Use: Ethylene Oxide.

View details
3654.5 Sq Ft Energy Exchanger Carbon Steel Shell & Tube Heat Exchanger
3654.5 Sq Ft Energy Exchanger Carbon Steel Shell & Tube Heat..
Stock # 7731
Capacity 3654.5

Used 3654.5 Sq Ft Energy Exchanger Company Carbon Steel Vertical Shell & Tube Heat Exchanger. Shell rated 240 psig @ 550 F, Tubes rated 240 psig @ 420 F, Type AEL, Size 49 x 144. (1551) Tubes x 3/4" ID x 14 ga x 12' Lg. Shell Dimension: 4' 2 1/2" ID x 12' Lg. Lug Mounted, Serial #X-1168A, National Board #287, Built 1980. Previous Use: Ethylene Oxide.

View details
3317 Sq Ft Slagle Manufacturing Carbon Steel Shell & Tube Heat Exchanger
3317 Sq Ft Slagle Manufacturing Carbon Steel Shell & Tube He..
Stock # 7732
Capacity 3317

Used 3317 Sq Ft Slagle Manufacturing Carbon Steel Vertical Shell & Tube Heat Exchanger. Shell rated 240 psig @ 350 F, Tubes rated 240 psig @ 530 F, Size 40-168, Type BEM-EJ. Tubes (1253) x 3/4" ID x 14 ga x 14' Lg. Shell 41" ID x 14' Lg. Slagle Serial #34983-1, Built 1983. Certified by Roark Enterprises in 1989, Serial #89-545-2, National Board #701. Estimated Weight -- 24,600#. Previous Use: Ethylene Oxide.

View details
3317 Slagle Manufacturing Stainless Steel Shell & Tube Heat Exchanger
3317 Slagle Manufacturing Stainless Steel Shell & Tube Heat ..
Stock # 7733
Capacity 3317

Used 3317 Sq Ft Slagle Manufacturing Stainless Steel Vertical Shell & Tube Heat Exchanger. CS Shell rated 240 psig @ 350 F, 304 SS Tubes rated 240 psig @ 530 F, Size 40-168, Type BEM-EJ. Tubes (1253) x 3/4" ID x 14 ga x 14' Lg. Shell 41" ID x 14' Lg. Slagle Serial #34883-1, Built 1983. Certified by Roark Enterprises in 1989, New Tubes installed made 304 SS, Serial #89-545-1, (No NB#). Estimated Weight -- 24,600#. Previous Use: Ethylene Oxide.

View details

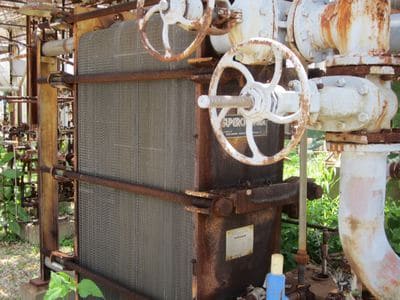

1497 Sq Ft Texas Division - Tranter Inc. Stainless Steel Pla..
Stock # 7714
Capacity 1497

Used 1497 Sq Ft Texas Division - Tranter Inc Plate Heat Exchanger. (219) Plates made of 316 Stainless Steel, Plate Pack DIM: Min 30.37" & Max 33.34". Model #UX-498-UP-185, rated for 125 psi @ 170 F, serial #P-28564-H, National Board #2651, Built 1983. Estimated Weight--6,458#. Previous Use: Ethylene Oxide.

View details

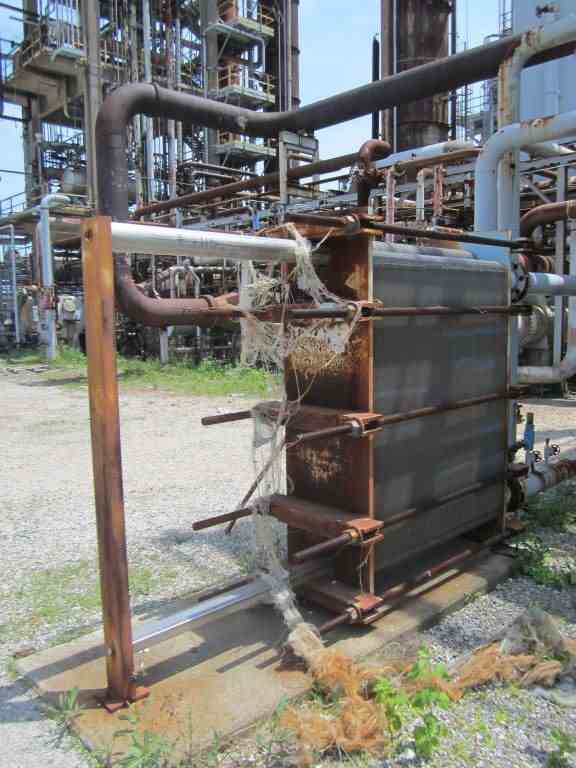

1775 Sq Ft Texas Division - Tranter Inc. Stainless Steel Pla..
Stock # 7715
Capacity 1775

Used 1775 Sq Ft Texas Div-Tranter Inc. Plate Heat Exchanger. (219) Plates made of Stainless Steel, Plate Pack Dim: Min 34.49" & Max 36.32"; Rated 150 psig @ 250 F, -20 F @ 150 psig. Model #UX-496-UP-219, Serial #SC14730, National Board #22919, Built 1995. Estimated Weight -- 6,645#. Previous Use: Ethylene Oxide.

View details
1775 Sq Ft Texas Division - Tranter Inc. Stainless Steel Pla..
Stock # 7716
Capacity 1775

Used 1775 Sq Ft Texas Div-Transfer Inc. Plate Heat Exchanger. (339) Plates made of 304 Stainless Steel, Plate Pack Dim: Min 36.42" & Max 38.60"; Rated 300 psig @ 250 F. Model #UX-498-MP-219, Serial #P-35733-H, National Board #5373, Built 1986. Estimated Weight -- 8,705#. Previous Use: Ethylene Oxide.

View details

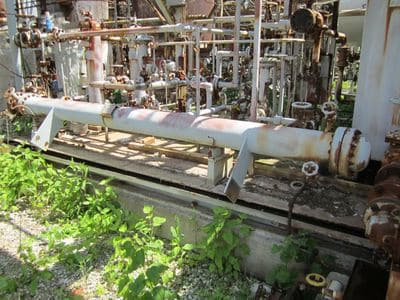

103.75 Sq Ft YULA Admiralty Brass Shell & Tube Heat Exchange..
Stock # 7717
Capacity 103.75

Used 103.75 Sq Ft Yula Corp Horizontal Shell & Tube Heat Exchanger, mounted on 2 saddles. Model #SO120, Shell rated 300 psi @ 250 F, Admiralty Brass Tubes rated 150 psi @ 250 F. (54) Tubes x 5/8" OD x 18 ga x 11' 9" Lg. Serial #10594, National Board #6085, Built 1981. Previous Use: Ethylene Oxide.

View details

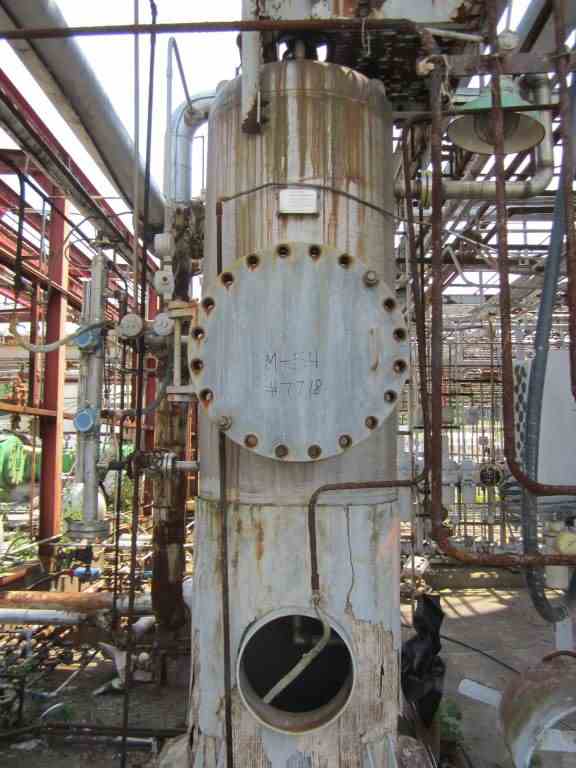

370 Gal Roarke Enterprises Inc. Stainless Steel Pressure Ve..
Stock # 7718
Capacity 370

Used 370 Gal Roark Enterprises Inc. 304 Stainless Steel Vertical Tank, mounted on carbon steel skirt. Rated 150 psi @ 400 F. Shell 3' ID x 5' 8"; 0.328" Thick with Dished Heads - 0.250" Thick. Has CS Skirt, (1) 24" Manway, (2) Feed/Out 3" and Level/Out (4) 1 1/2". Serial # 95-722, National Board #450, Built 1995. Estimated Weight -- 2,870#. Previous Use: Ethylene Oxide.

View details

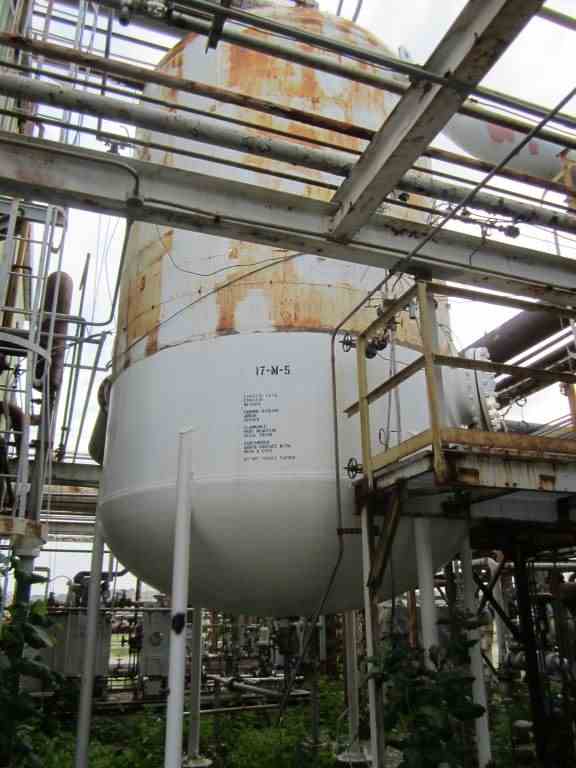

15000 Gal Manton Gaulin Vertical Carbon Steel Pressure Vesse..
Stock # 7720
Capacity 15000

Used 15,000 Gal Lucy Boiler Co. Carbon Steel Vertical Tank w/ legs. Rated 250 psi @ 150 F, -20 F @ 250 psi. Shell: 12' ID x 16' T/T, 1.037" thick SA-516-70 w/ 10% SA240-T410 S.S. Cladding (1.14" Thick Total). Heads: 2:1 ELLIP HD w/ 2" S.F. 1.037" Thick SA-516-70 w/ 10% SA240-T410 S.S. Cladding (1.14" Thick Total). Tank mounted on 6 legs w/ total shipping height of 28' 1". Tank has a 6" Th. Mist Eliminator type 410 SS. Serial #1188, National Board #1230, Built 1982. Approx Weight - 42,400 lbs. Previous Use: Ethylene Oxide.

View details

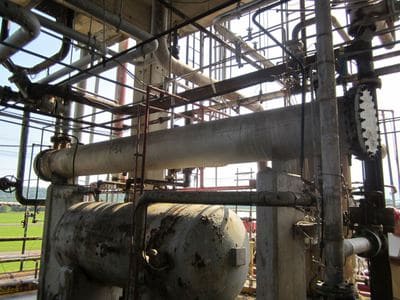

924 Sq Ft Doyle & Roth Stainless Steel Shell & Tube Heat Ex..
Stock # 7723
Capacity 924

Used 924 Sq Ft Doyle & Roth Horizontal Stainless Steel Shell & Tube Heat Exchanger. 304-SS Shell rated 75 psig @ 150 F, 304-SS Tubes rated 75 psig @ 125 F. (304) Tubes x 3/4" x 16 ga x 15'6" Lg. Mounted on 2 saddles. Serial #J2234, National Board #10049, Built 1979. Approx weight - 7,500 lbs. Previous Use: Ethylene Oxide.

View details

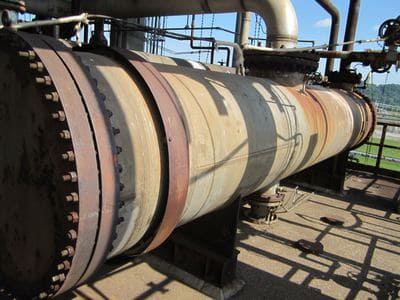

3135 Sq Ft Struthers Wells Stainless Steel Shell & Tube Heat..
Stock # 7724
Capacity 3135

Used 3135 Sq Ft Struthers Wells 316L Stainless Steel Horizontal Shell & Tube Heat Exchanger. Shell rated 75 psig FV @230 F, Tubes rated 75 psig @ 230 F; (1060) x 3/4" ID x 16' Lg x 16 ga, type NGN, fixed tube sheet. Mounted on 2 saddles. Serial 3.80.04.39275, National Board #3274, Built 1980. Approx Weight - 22,500 lbs. Previous Use: Ethylene Oxide.

View details
