40 GPM Positive Displacement Pump
Other Views - click image for larger view
40 GPM Positive Displacement Pump 40 GPM Positive Displacement Pump

40 gpm positive displacement pump

Stock # 8374
Sold
Capacity 40 GPM

Overview

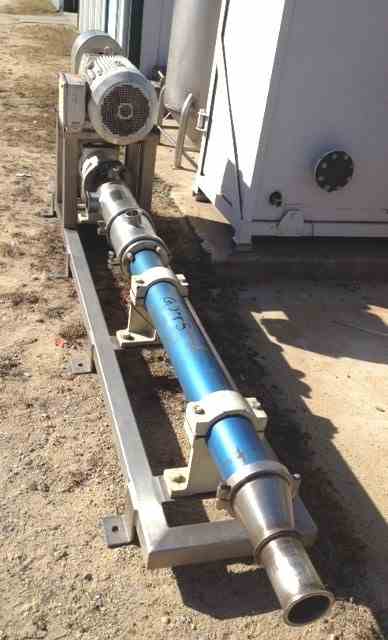

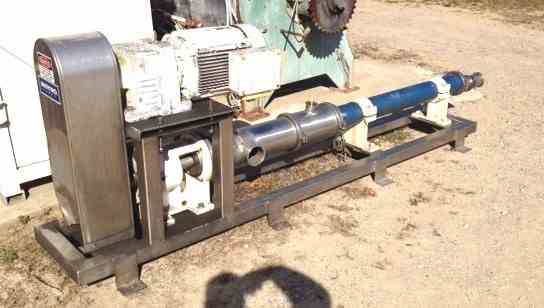

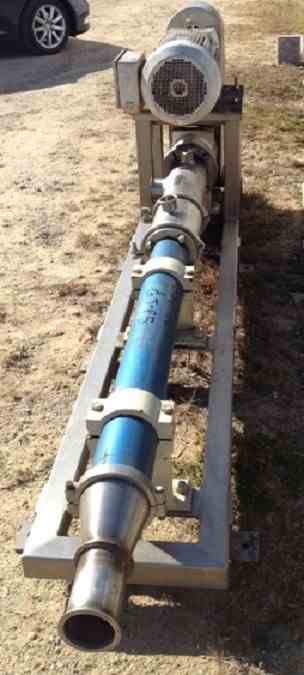

Used SEEPEX used model BTH 130-12, progressive cavity pump. On base with 40 HP, 230/460 volt, 1775 RPM motor into Gear Box with 6.56:1 ratio. Has open Hopper design. Inlet is 14.75" wide x 39.5" lgth. ID and flanged. 8" Outlet. S/N 821079.2. For pumping highly viscous to airtight and shear-sensitive products that tend to form bridges. Separately driven ribbon screw rotating concentrically and on the edges. Moyno type pump.

Share
SPECIFICATIONS TERMS & CONDITIONS RESOURCES
Manufacturer
Unknown
Model
Material
Unknown
Capacity
40 GPM
Category
