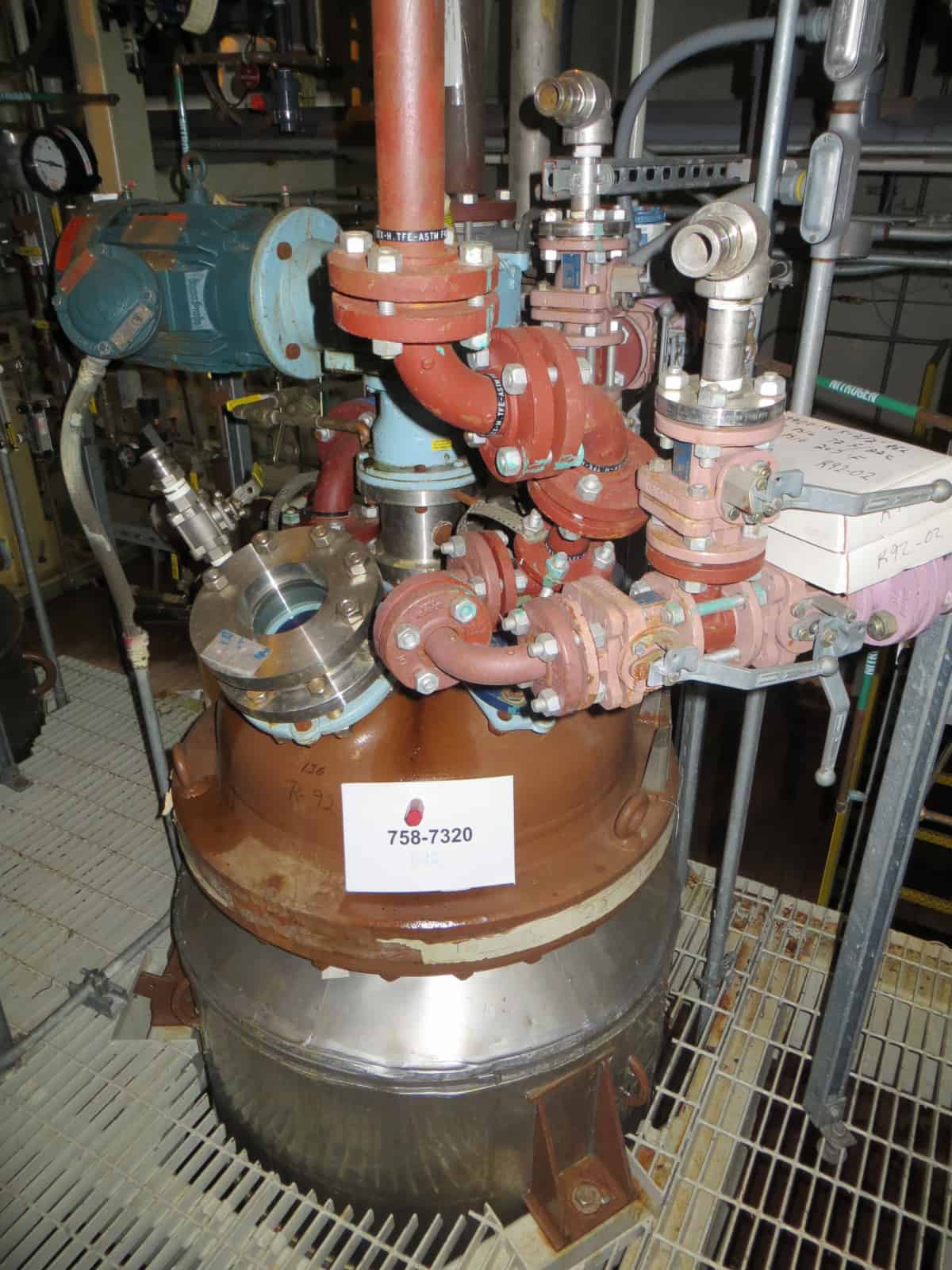

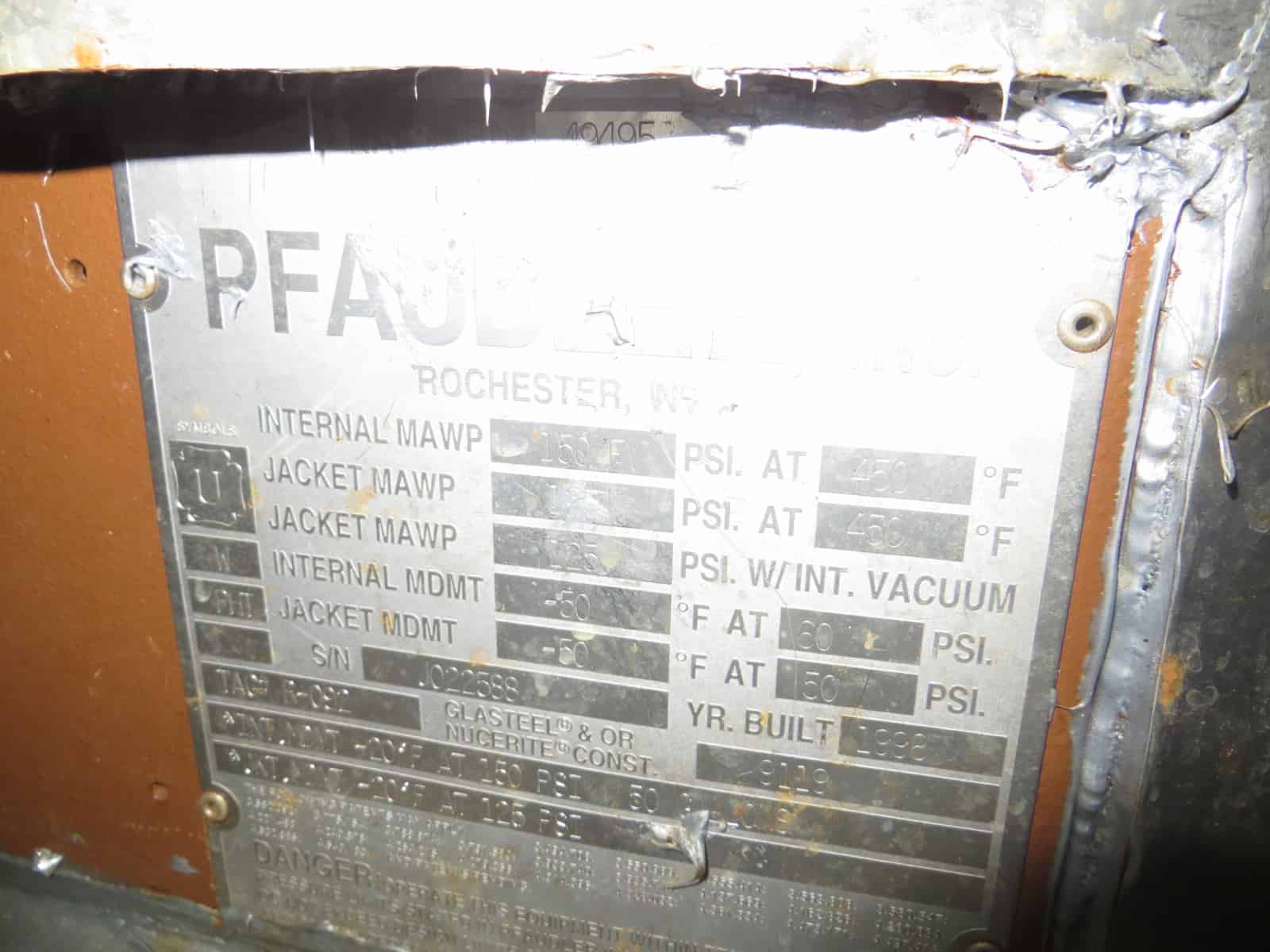

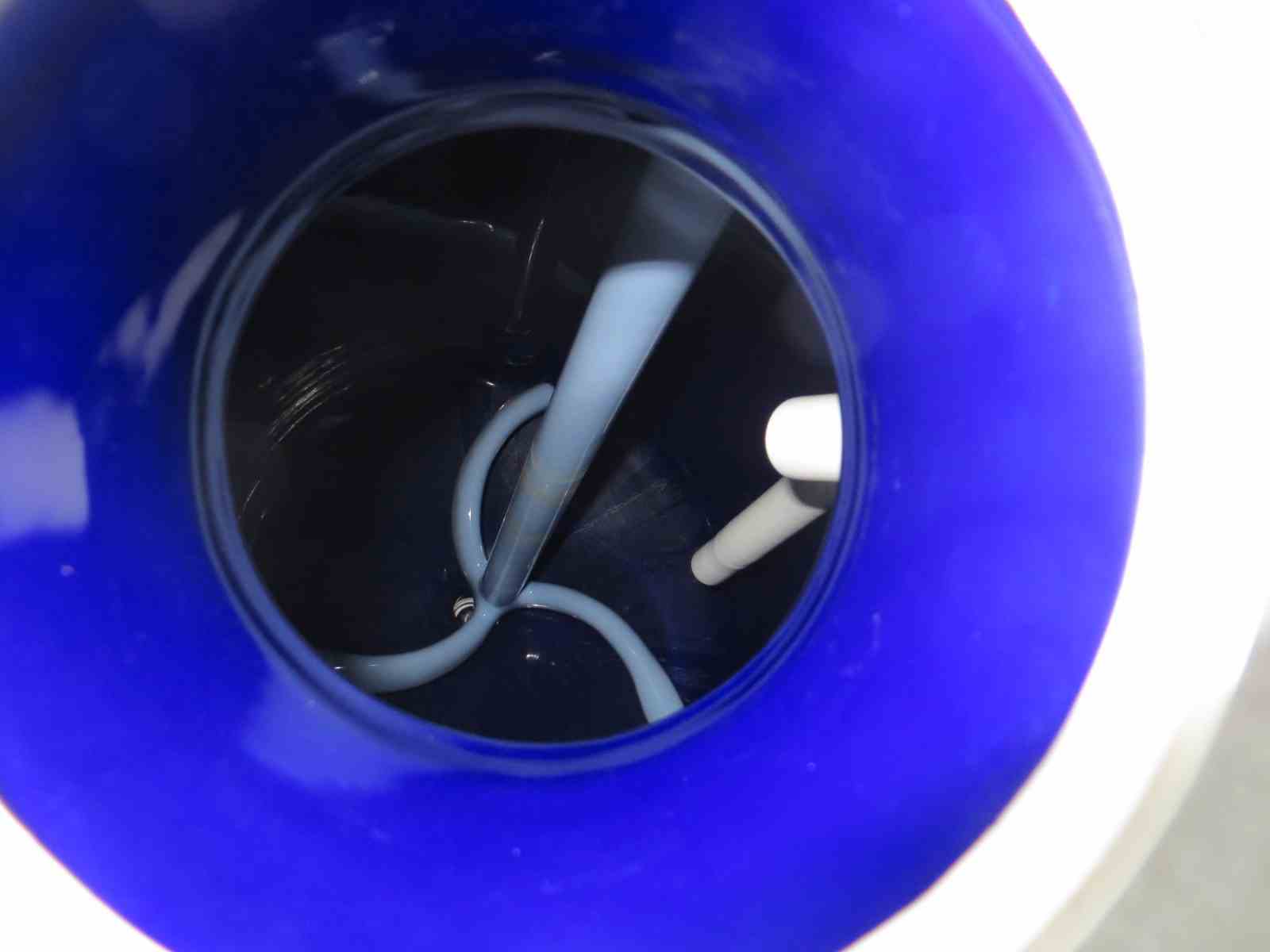

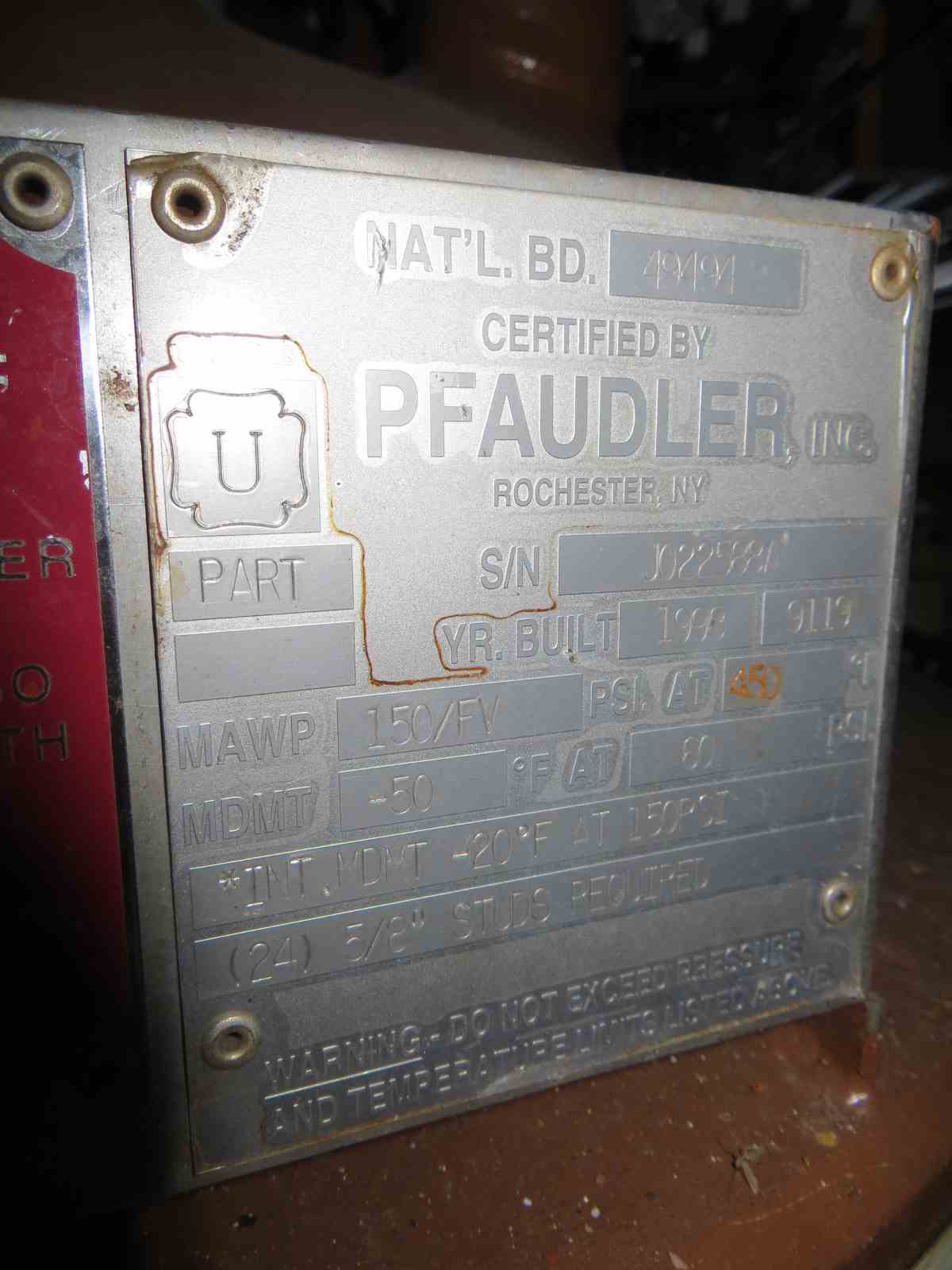

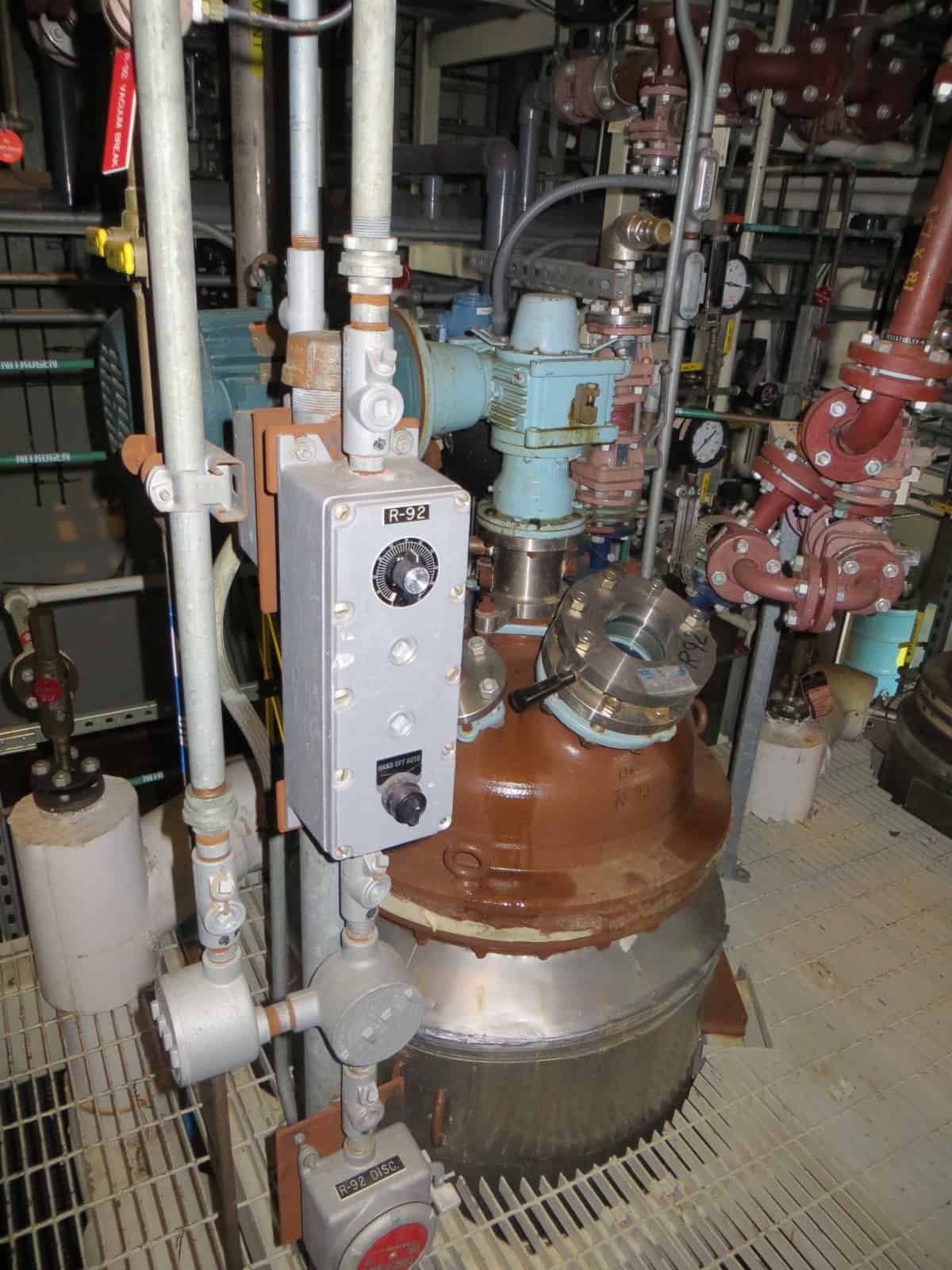

Used 50 gallon Pfaudler glass lined reactor, rated 150 psi / FV@ 450 F internal and 125 psi / FV @ 450 F on the jacket. 9119 Glass. TW drive, 3 blade reverse curve impeller agitator. 24” ID x 28 ¾” Deep. Serial # J022588, National Board #49495, Built 1998.
Available with (additional cost): #7320-1 - Used 30 gpm reactor temperature control module, heating/cooling system. Temperature: norm 450 Deg. F/maximum 0 Deg F. Liquid: Syltherm. Skid mounted complete with 5HP 316 S/S HMD Kontro sealess pump. W/R90 - Year Built: 1998
