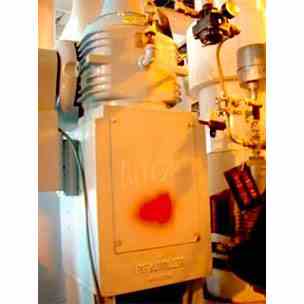

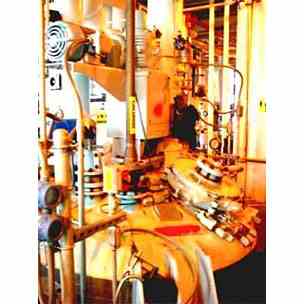

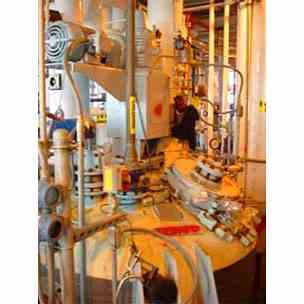

1300 gallon agitated jacketed glass lined reactor. 60" dia. x 96" straight side. Welded dished heads. MFD by Pfaudler type RS60-1300-90, Serial # J020186, built 1998. ASME code stamped 100 psi @ FV @ 450 deg. F. internal, 450 psi @ 484 deg. F on the 1/2 pipe coil jacket. Equipped with 4 blade retreat pitched blade turbine Crylock agitator with double mechanical seal type 8-9 and lubricator. Driven by Pfaudler type FOWV52500-7B agitator drive, 15:1 ration with hp ratings of 20.4, Serial # 98310486-100-1. With 10 hp 3/60/230/460V 1725 rpm TEFC motor. Fin baffle. Openings: Top - 18" manway with nucerite cover, nucerite protection ring with 4" sight glass, spring balance, 5-4", 2-6", 1-8"; 1-3" center bottom outlet. Jacket on straight side 2-3", 2-3" on bottom jacket. Equipped with Krohne Level Radar, temperature probe MFD by Burns. Mounting lugs.
