60 Gal Stainless Steel Reactor
Other Views - click image for larger view
60 Gal Stainless Steel Reactor 60 Gal Stainless Steel Reactor

60 gal stainless steel reactor

Stock # 5344
Sold
Capacity 60 Gal

Overview

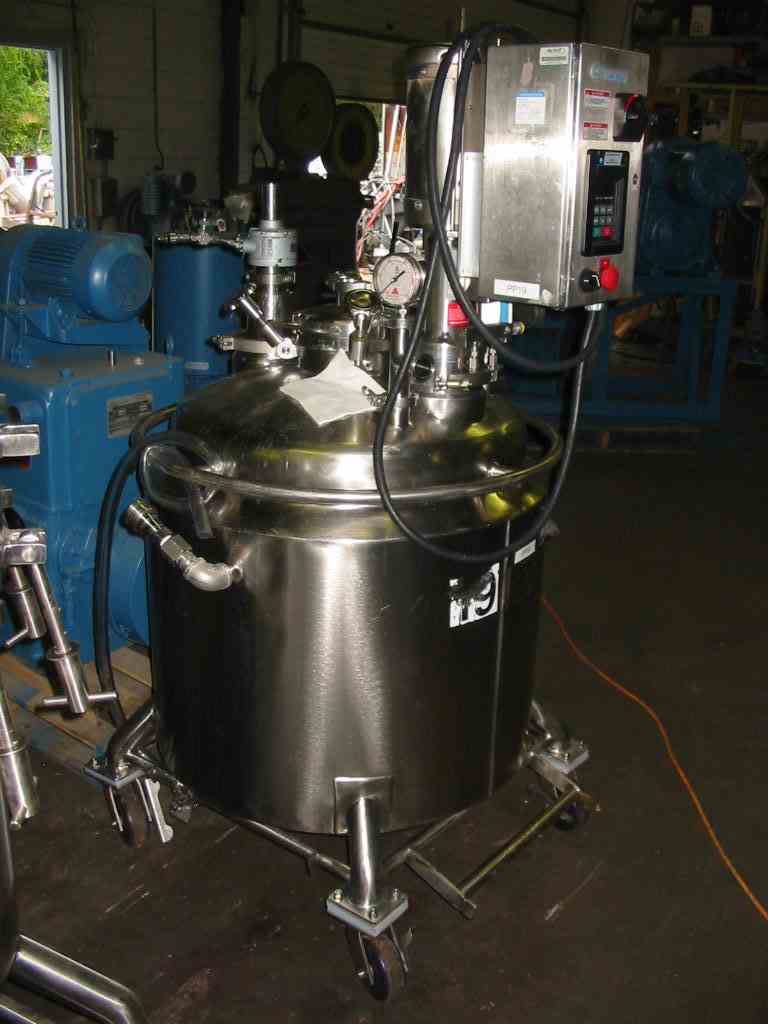

Used 60 gal. Vertical Jacketed Dual Agitated Reactor, Sanitary Stainless Steel 60 gal. Vertical Jacketed Dual Agitated Reactor Sanitary Stainless Steel Construction with internal polished finish, 28" ID x 22" T to T, welded dished heads, rated 90 PSI/ Full Vacuum @ 100 F internal, Stainless Steel Jacket, top openings- (1)- 8" dia.with quick opening cover, (1)-6", (3)- 1- 1/2", center bottom outlet with valve, Top angle mounted Admix Model 85-RS70 Rotosolver disperser driven by 2 HP, 3/60/230- 460 volt 3450 RPM, Baldor stainless steel washdown motor, and Gast air operated agitator with shaft and blades, mounted on stainless steel legs with casters, ASME & NB Code Stamped, Built 2001.

Share
SPECIFICATIONS TERMS & CONDITIONS RESOURCES
Manufacturer
Unknown
Model
NA
Material
Sanitary Stainless Steel
Capacity
60 Gal
Category

For additional information, visit the Resource Center
