1.75 Cu Ft Stainless Steel Ribbon Blender
Other Views - click image for larger view
1.75 Cu Ft Stainless Steel Ribbon Blender 1.75 Cu Ft Stainless Steel Ribbon Blender 1.75 Cu Ft Stainless Steel Ribbon Blender

1.75 cu ft stainless steel ribbon blender

Stock # 23306
Capacity 1.75 Cu Ft

Overview

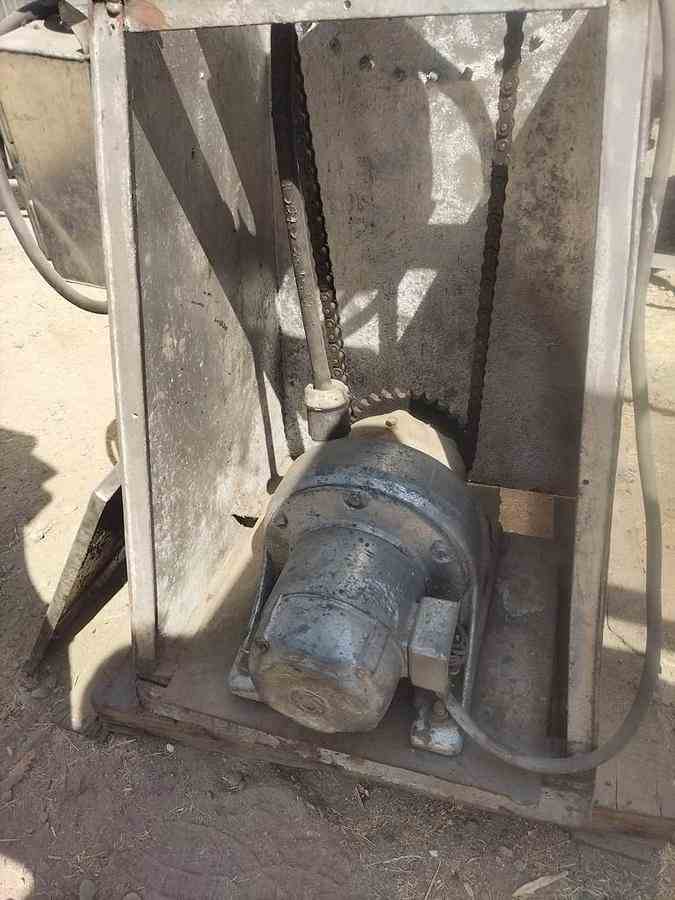

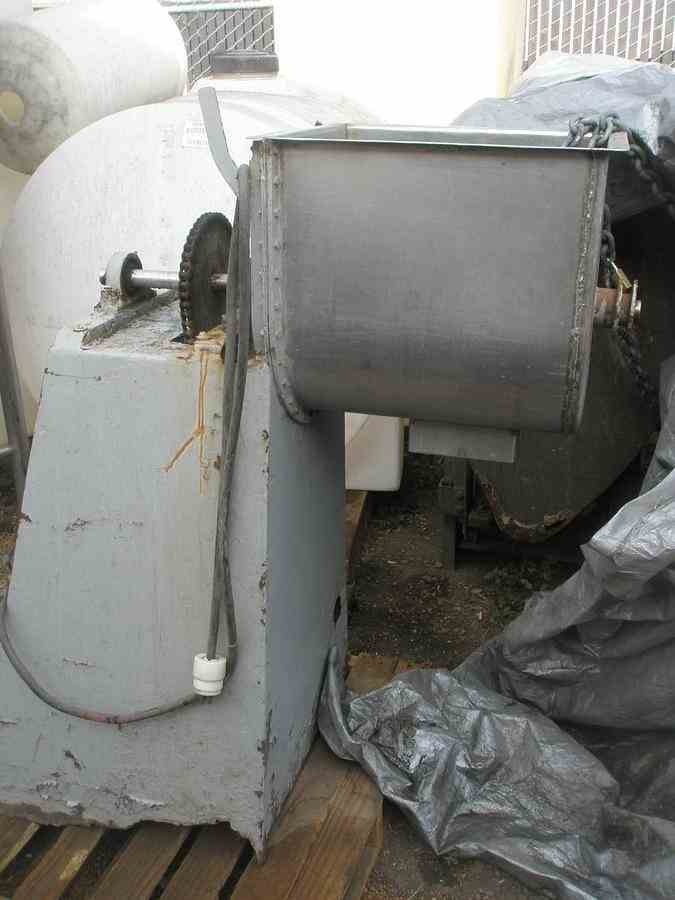

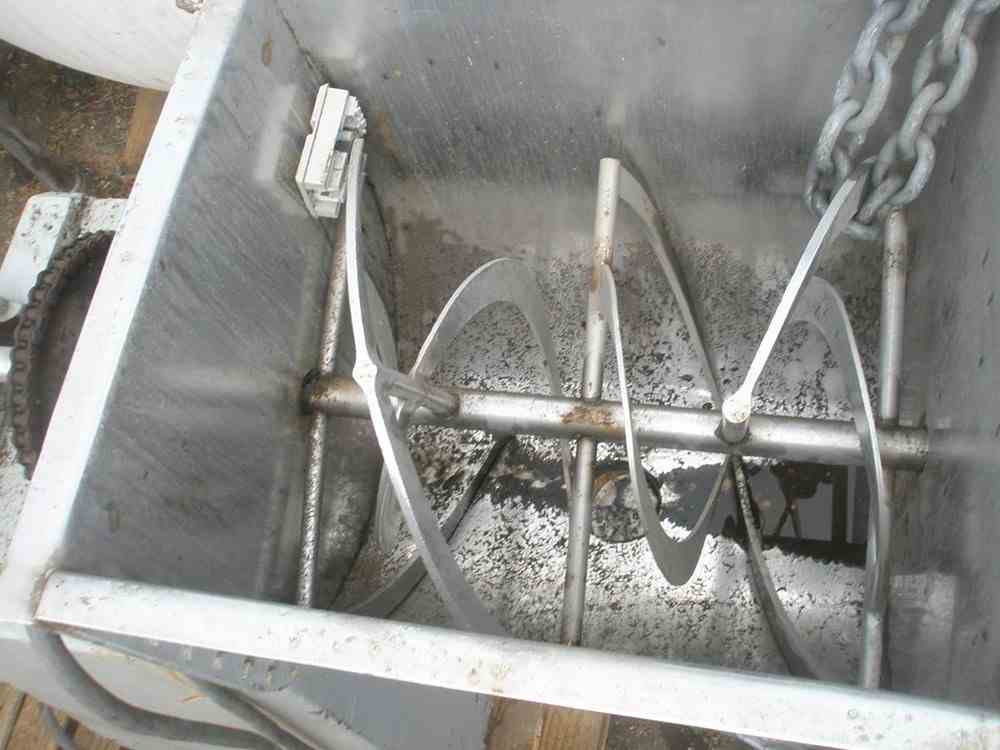

Used 1.75 Cu ft Stainless steel ribbon mixer. Features an 18” long x 16” wide x 18” deep open-top U-shaped stainless steel mixing trough with double ribbon agitator mounted on a common shaft. Ribbons measure approximately 0.25” thick and 1” - 1.25” wide. Equipped with 3” diameter center-bottom discharge. Chain-and-sprocket driven through a gear reducer and base-mounted electric motor, with outboard pillow-block bearing support. Stainless steel product-contact surfaces with drive components enclosed within a mild steel base.

Share
SPECIFICATIONS TERMS & CONDITIONS RESOURCES
Manufacturer
Unknown
Model
NA
Material
Stainless Steel
Capacity
1.75 Cu Ft
