36 cu ft jh day 304 stainless steel ribbon blender

Stock # 23281
Capacity 36 Cu Ft

Overview

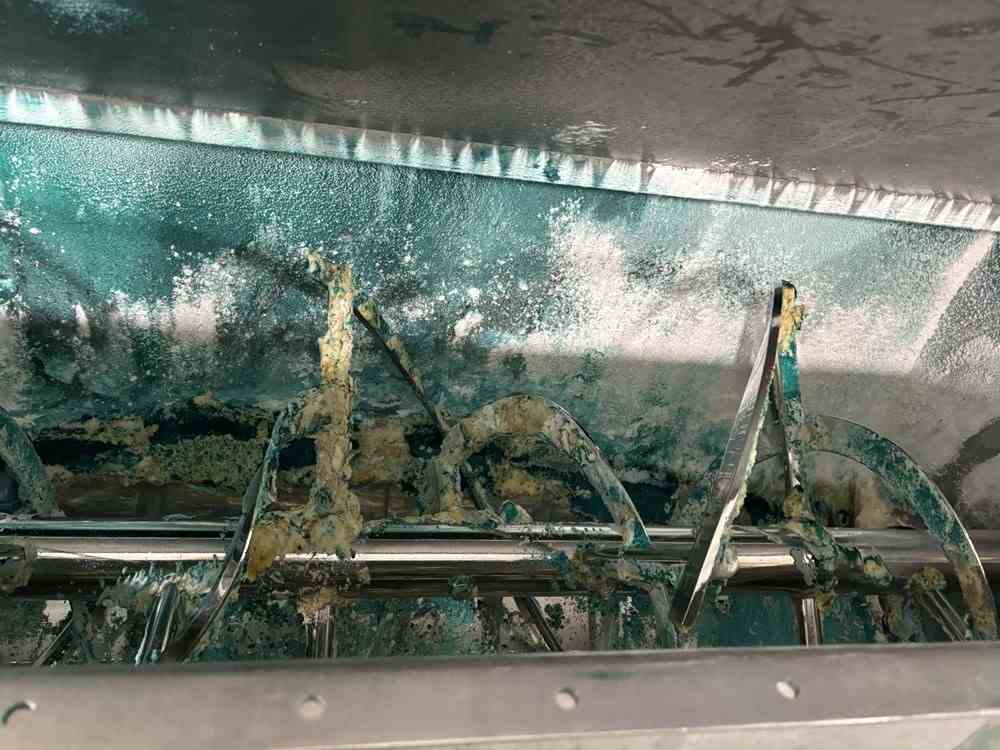

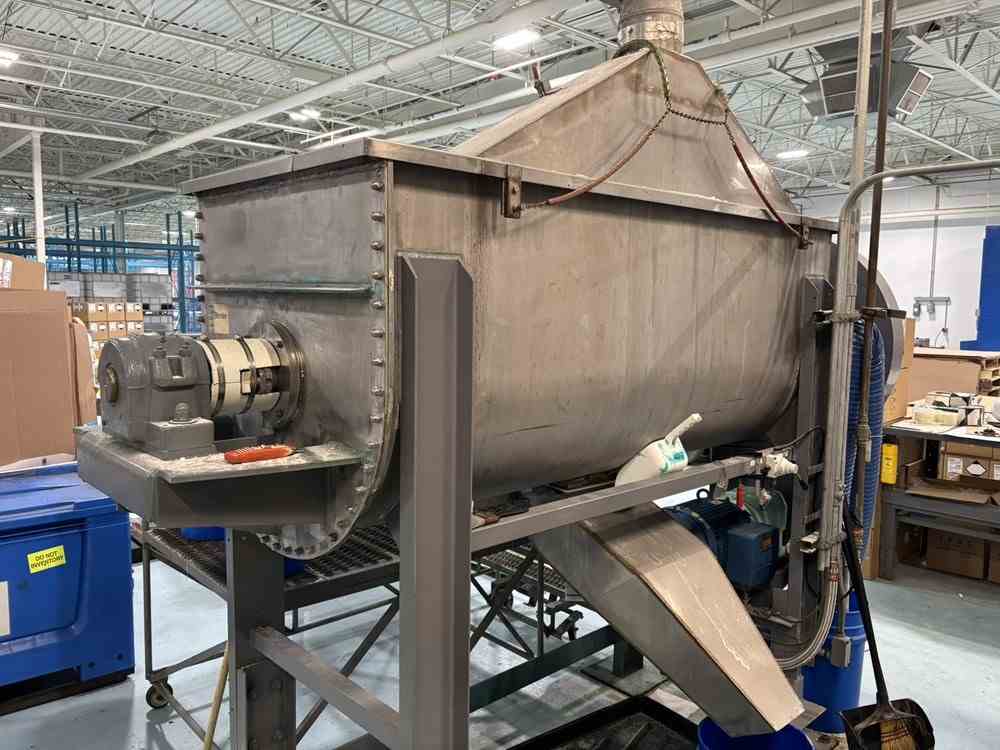

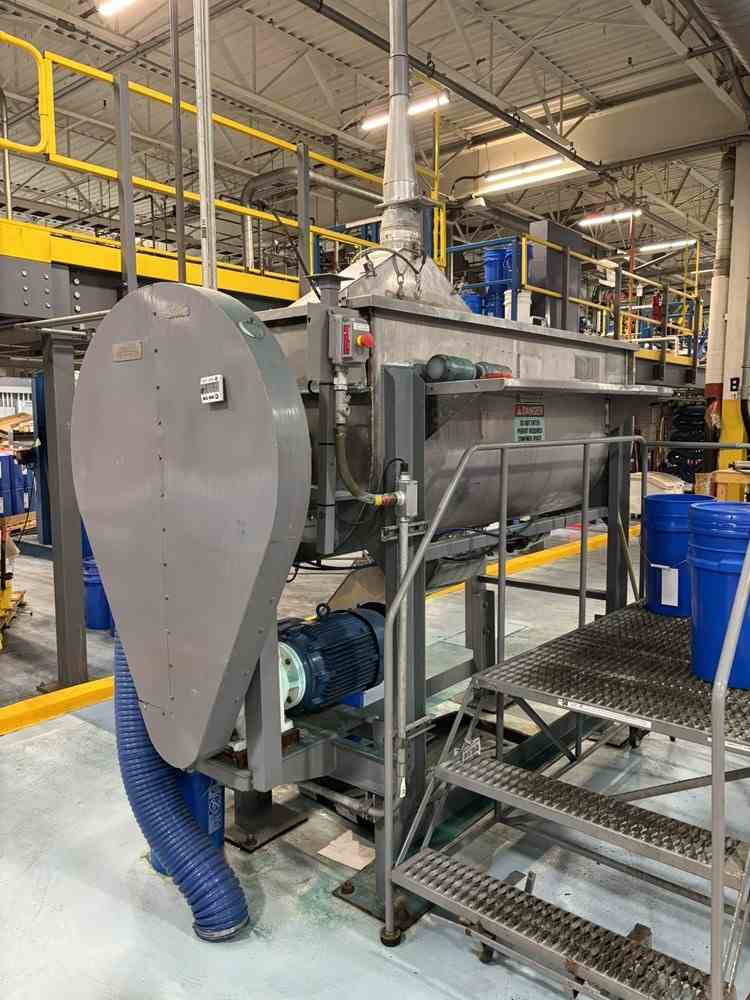

Used 36 CF J.H. Day Double Spiral Ribbon Blender. Model D-10F, 36 Cubic Feet Working Capacity (40 total), 304 Stainless Steel. Non-Jacketed trough 30" wide x 78" long x approximately 32" deep. 3-1/2" Diameter shaft, inner ribbon 2" wide x 1/8" thick, outer ribbon 1-1/2" wide x 3/8" thick welded to 1" diameter posts. Outboard roller bearings, packing glands, top hinged cover. 6" Center bottom outlet. Driven by an approximate 15 hp motor with reducer. Mounted on 4 carbon steel legs.

Share
SPECIFICATIONS TERMS & CONDITIONS RESOURCES
Manufacturer
JH Day
Model
D-10F
Material
304 Stainless Steel
Capacity
36 Cu Ft
Category
Subcategory
