2600 Gal Feldmeier 304 Stainless Steel Processor
Other Views - click image for larger view
2600 Gal Feldmeier 304 Stainless Steel Processor 2600 Gal Feldmeier 304 Stainless Steel Processor 2600 Gal Feldmeier 304 Stainless Steel Processor 2600 Gal Feldmeier 304 Stainless Steel Processor 2600 Gal Feldmeier 304 Stainless Steel Processor 2600 Gal Feldmeier 304 Stainless Steel Processor

2600 gal feldmeier 304 stainless steel processor

Stock # 22886
Capacity 2600 Gal

Overview

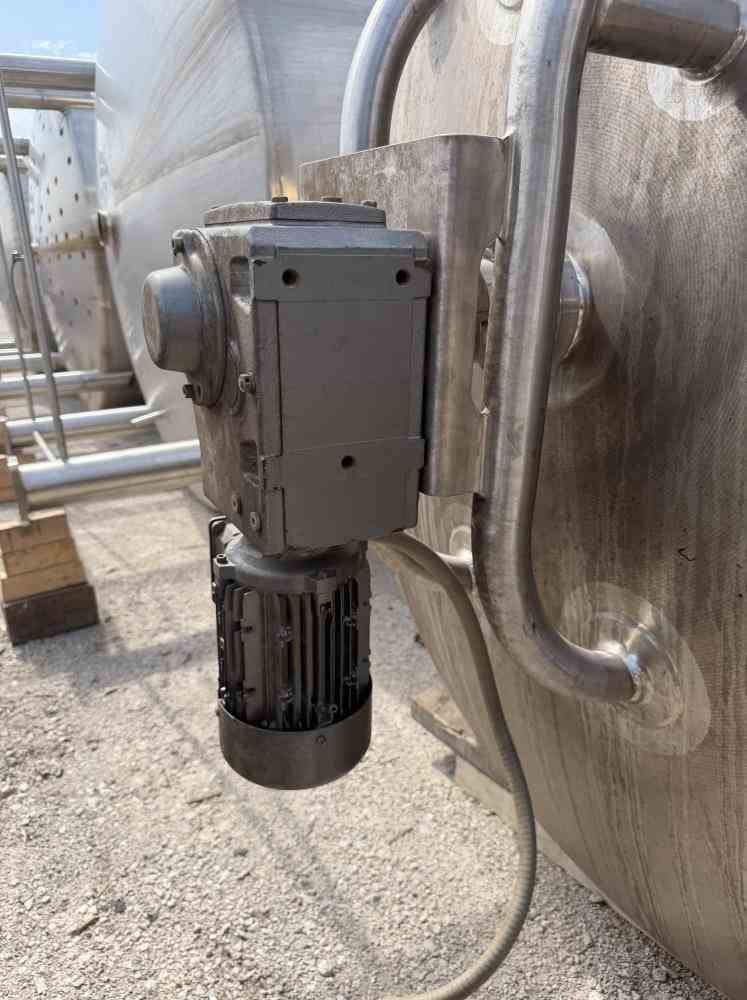

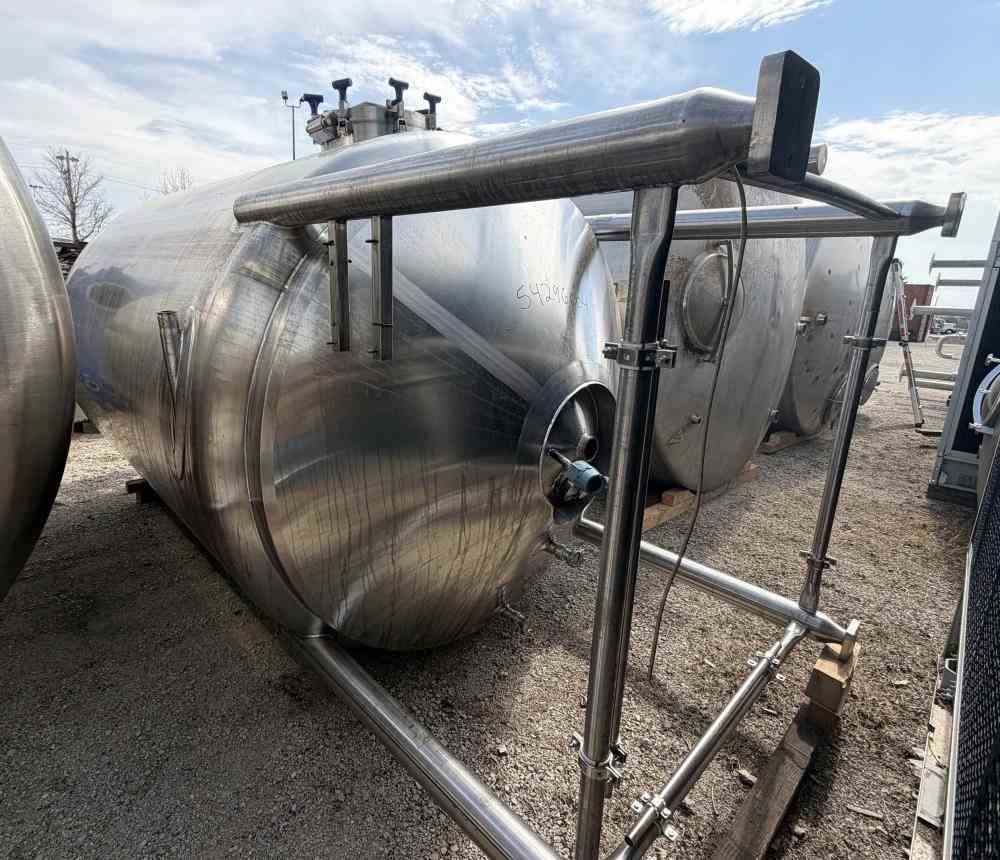

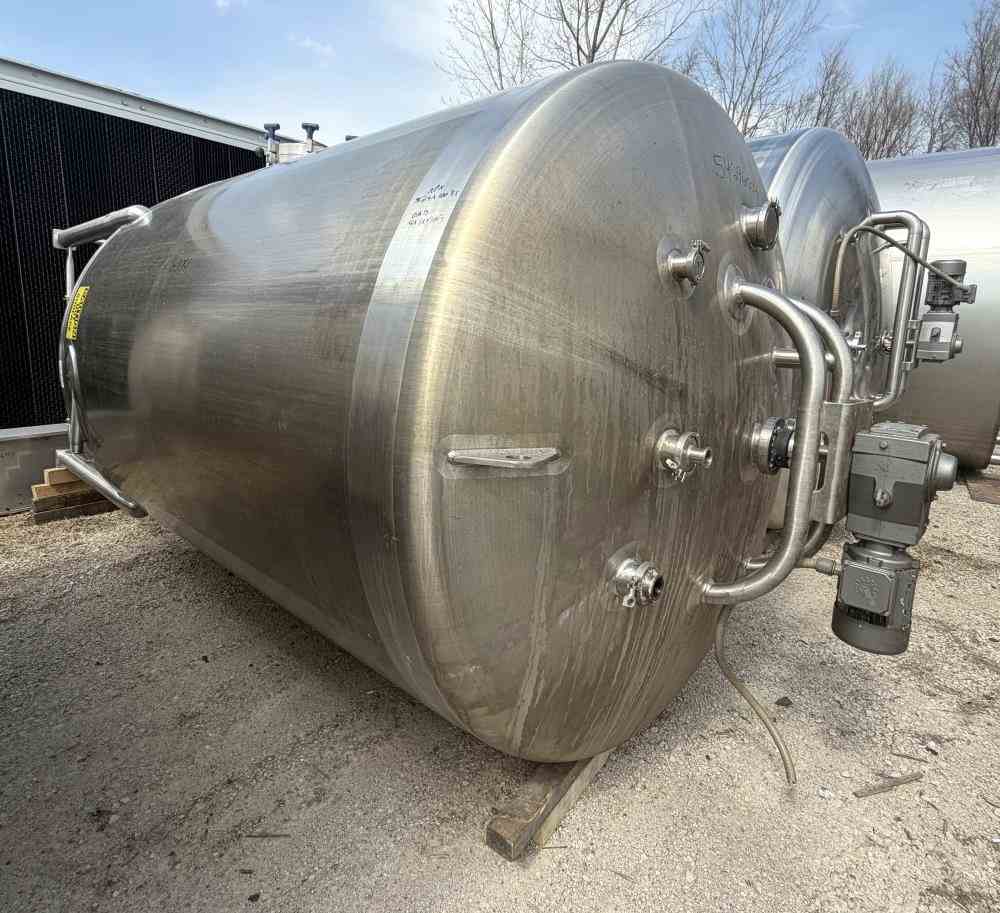

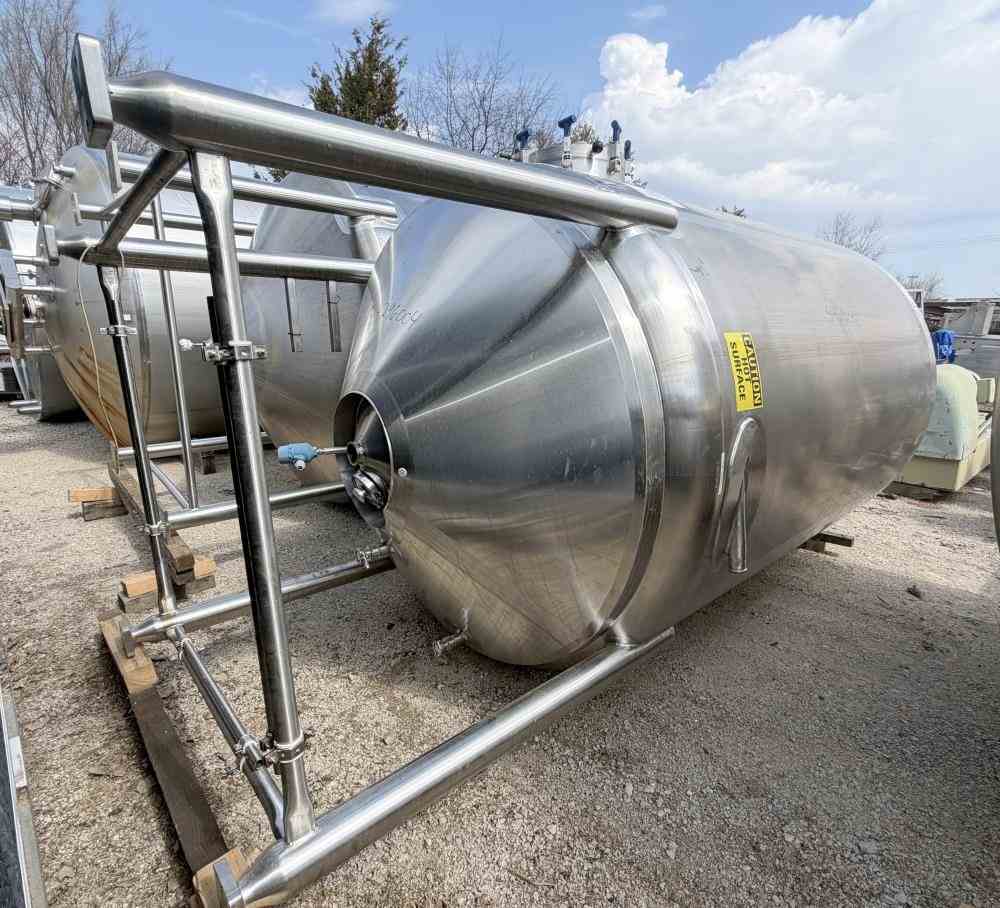

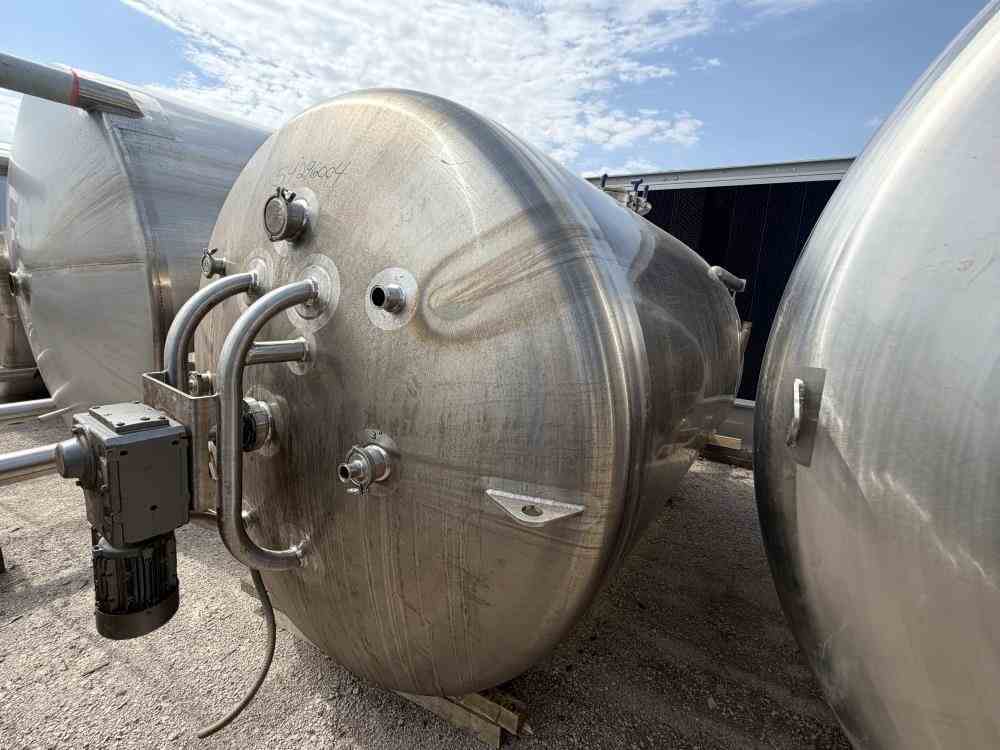

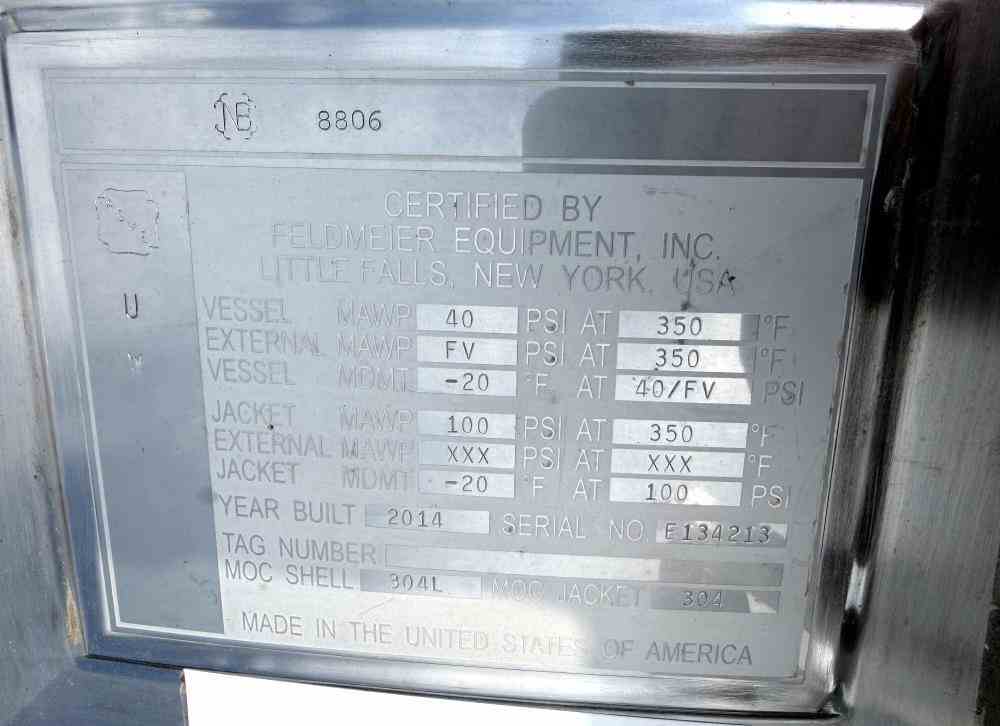

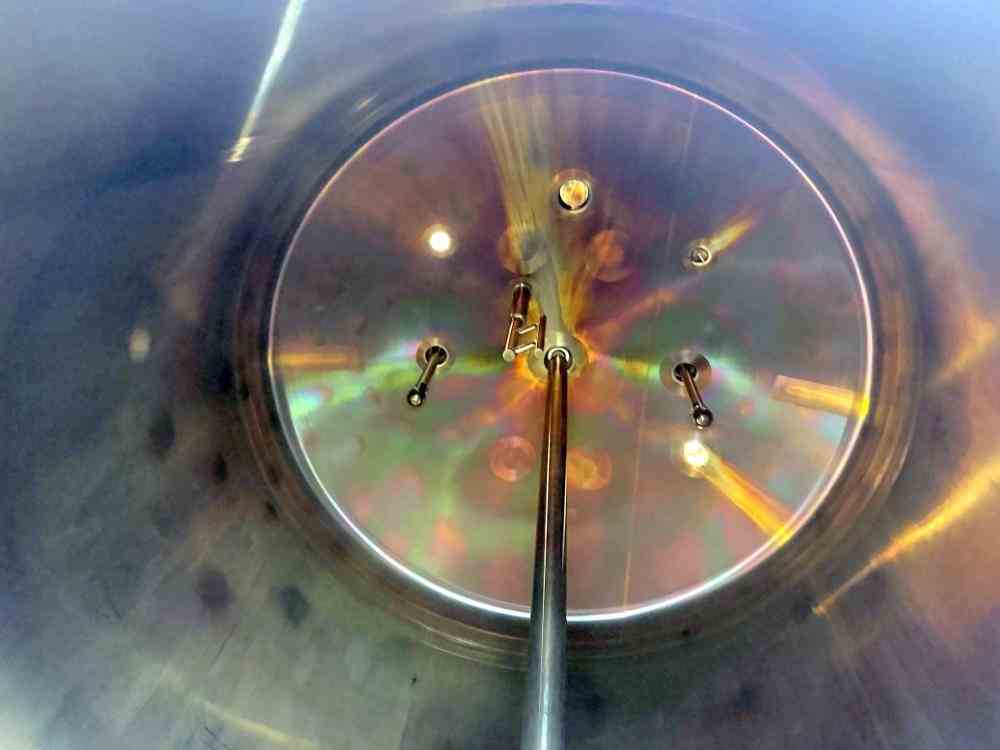

Used 2600 gallon Insulated 304 Stainless Steel Agitated Processor Tank. Manufactured by Feldmeier. 84" diameter x 102" straight side. Dish top and cone bottom. Internal rated 40/FV psi @350F. Bottom Cone only insulated and dimple jacket rated 100 psi @350F. Spray ball, baffle. Top mounted, vertical bottom sweep agitator, driven by a 2hp 3/60/230/460v 1660rpm motor through reducer. Openings Top: (2) 4", (3) 3", (2) 2", Side bottom manway, (2) 2" side openings. 3" Center bottom outlet with 28" discharge height. Mounted on (4) stainless steel legs. Serial # E134213. National Board # 8806. Built 2014.

Share
SPECIFICATIONS TERMS & CONDITIONS RESOURCES
Manufacturer
Feldmeier
Model
NA
Material
304 Stainless Steel
Capacity
2600 Gal

For additional information, visit the Resource Center
