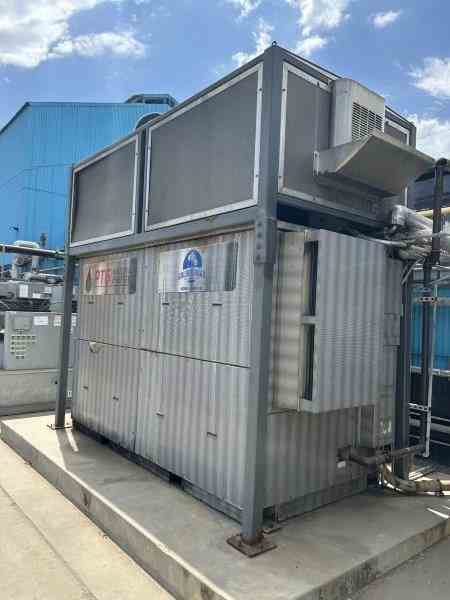

190 KW Capstone 200R-FG4-BE00 Gas Turbine Generator
Other Views - click image for larger view
190 KW Capstone 200R-FG4-BE00 Gas Turbine Generator 190 KW Capstone 200R-FG4-BE00 Gas Turbine Generator 190 KW Capstone 200R-FG4-BE00 Gas Turbine Generator

190 kw capstone 200r-fg4-be00 gas turbine generator

Stock # 22962
Capacity 190 KW

Overview

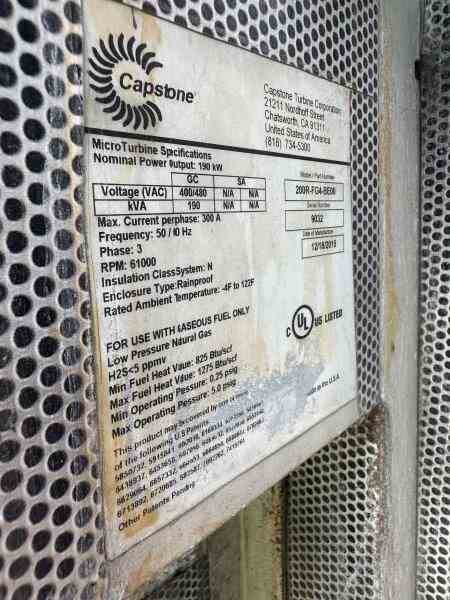

Used 190 kW natural gas microturbine. Manufactured by Capstone. Model #200R-FG4-BE00, Serial #9032. 400/480V, kVA 190, max current per phase 300 A, frequency 50/60 Hz, phase 3, rpm 61000. Rated -4F to 122F. fuel type low pressure natural gas, H2S <5 ppmv, min fuel heat value 825 Btu/scf, max fuel heat value 1275 Btu/scf, min operating pressure 0.25 psig, max operating pressure 5.0 psig. Built 2015.

Share
SPECIFICATIONS TERMS & CONDITIONS RESOURCES
Manufacturer
Capstone
Model
200R-FG4-BE00
Material
Unknown
Capacity
190 KW
