41.5 MW General Electric LM5000 Gas Turbine Generator
Other Views - click image for larger view
41.5 MW General Electric LM5000 Gas Turbine Generator 41.5 MW General Electric LM5000 Gas Turbine Generator 41.5 MW General Electric LM5000 Gas Turbine Generator 41.5 MW General Electric LM5000 Gas Turbine Generator

41.5 mw general electric lm5000 gas turbine generator

Stock # 22850
Capacity 41500 KW

Overview

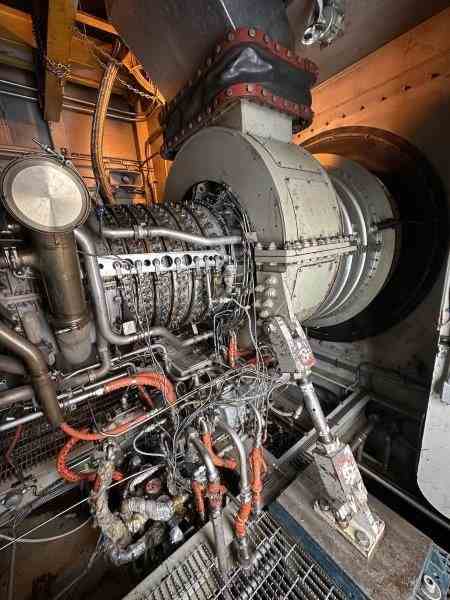

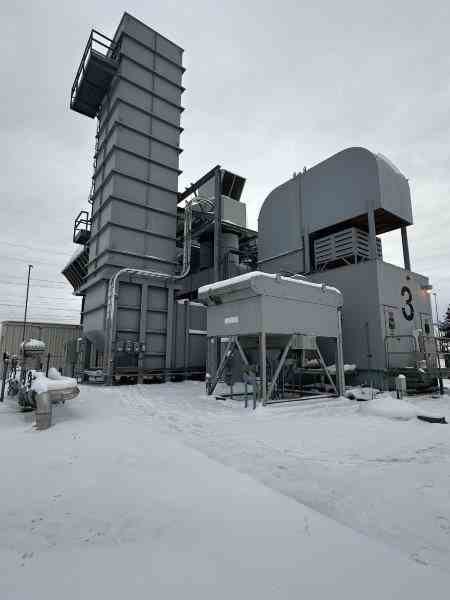

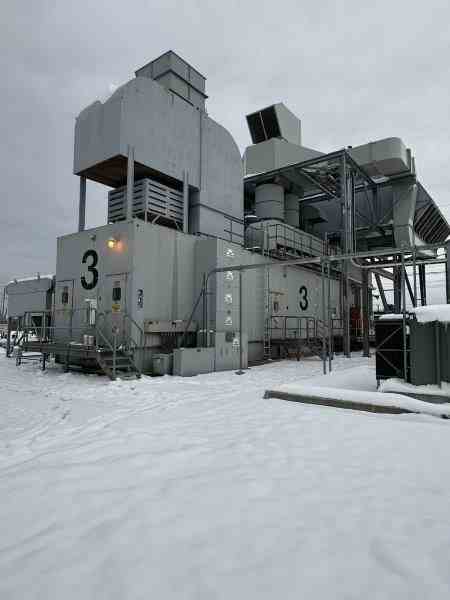

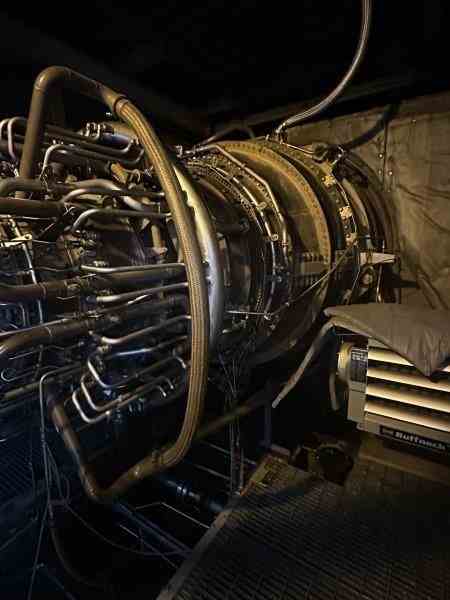

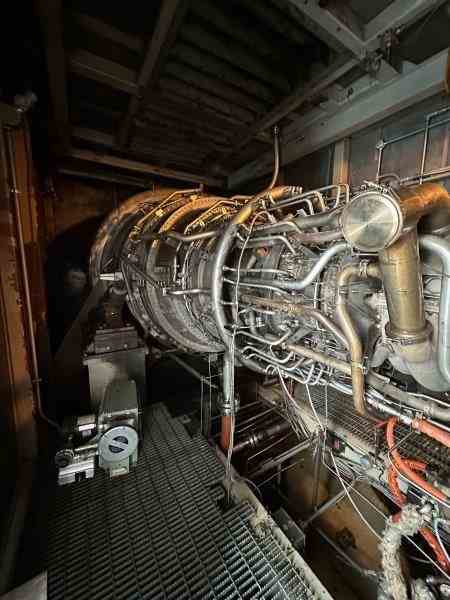

Used 41.5 MW Gas Turbine Generator, manufactured by General Electric. Model LM5000 STIG. Natural gas fueled. Rated Exhaust Gas Power 73000. Inlet Temp 59°F, Altitude 0. Inlet Loss 4.0 in H2O. Brush generator, 46128 kVa. 3600 R/Min, 13800 v/3/60 hz. Frame BDAX-7-290SS, air cooled brushless. The scope includes a gas turbine compartment with a complete lube oil system, air inlet system, enclosure ventilation, and CO2 firefighting skid. Generator with enclosure, motor control center, switchgear, and generator protection, synchronization, and control panels. Built in 1989, 1,197 starts, 38,519 fired hours. Borescope reports available upon request.
