2500 Gal Crown Iron Works 304L Stainless Steel Pressure Vessel
Other Views - click image for larger view
2500 Gal Crown Iron Works 304L Stainless Steel Pressure Vessel 2500 Gal Crown Iron Works 304L Stainless Steel Pressure Vessel 2500 Gal Crown Iron Works 304L Stainless Steel Pressure Vessel 2500 Gal Crown Iron Works 304L Stainless Steel Pressure Vessel

2500 gal crown iron works 304l stainless steel pressure vessel

Stock # 21653
Sold
Capacity 2500 Gal

Overview

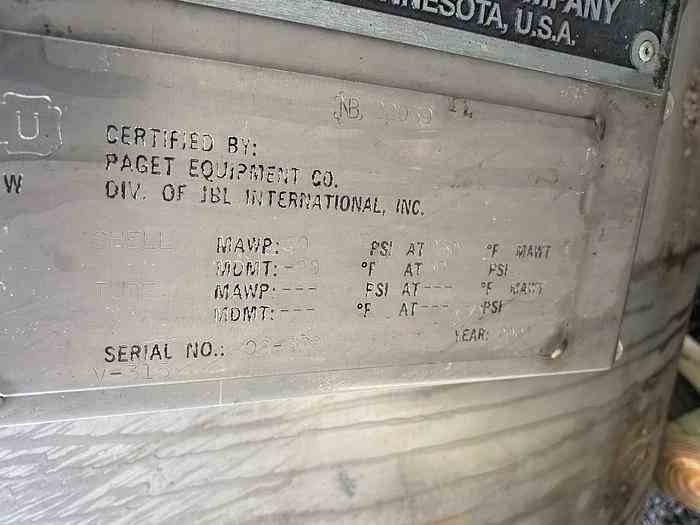

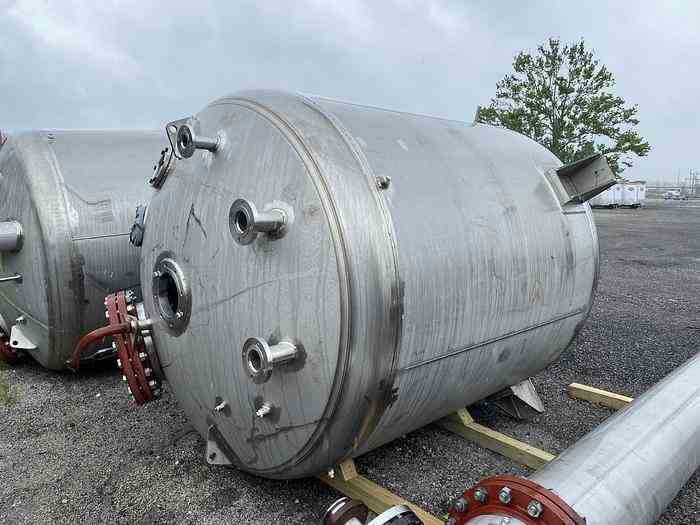

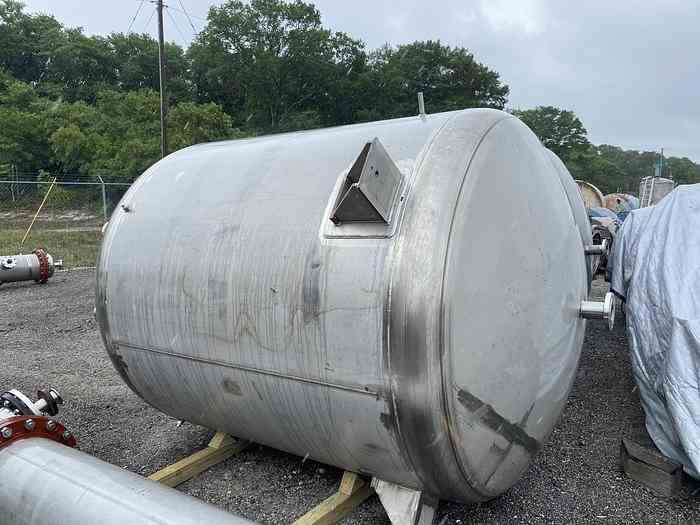

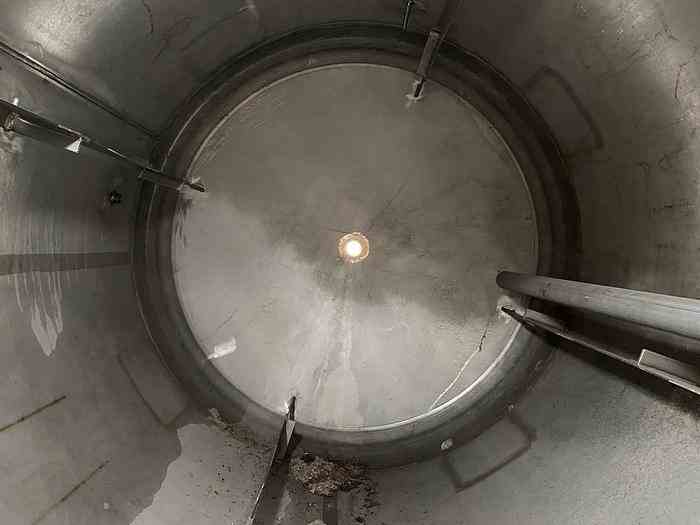

Unused 2500 gallon 304L stainless steel vertical pressure tank. Manufactured by Crown Iron Works Inc. 84" diameter X 8'10" high straight side. Internal rated 50 PSIG @ 250 F. Dished top and bottom. Top fittings: 20" manway, (1) 1/2" coupling, (1) 1" coupling, (1) 2", (2) 3", (2) 6" SG, (1) 8" agitator flange. (2) 1" side top coupling, (1) 6" side top inlet, (1) 1" side bottom coupling. (1) 3/4" thermowell. 3" center bottom drain. (4) internal baffles. Lug mounted. National Board# 22039. Serial # 06-369. Built 2007. Weight 5600#.

Share
SPECIFICATIONS TERMS & CONDITIONS RESOURCES
Manufacturer
Crown Iron Works
Model
na
Material
304L Stainless Steel
Capacity
2500 Gal
Subcategory
