1870 Gal Struthers Wells Horizontal Carbon Steel Pressure Vessel
Other Views - click image for larger view
1870 Gal Struthers Wells Horizontal Carbon Steel Pressure Vessel

1870 gal struthers wells horizontal carbon steel pressure vessel

Stock # 4110
Sold
Capacity 1870 Gal

Overview

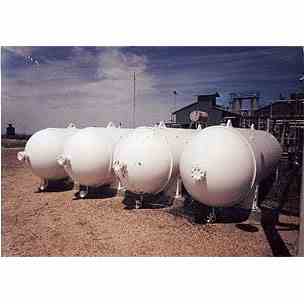

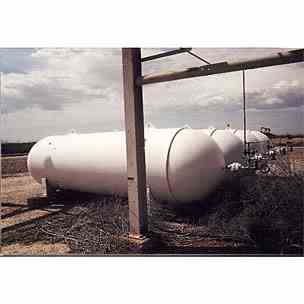

Used 1,870 gallon Horizontal CS High Pressure Tank. Internal rated 4400 PSI @ 150 deg F. 5' Dia x 13' 6" T/T (OAL: 20'). Dished heads. Shell thickness: 3/4". Head thickness: .9/16". Nozzles: 16" Manway, (2) 6", 4", (2) 2", (8) 1-1/2", (2) 3/4", 1/2". Mounted on 2 saddles. Built by Struthers Wells, according to U.S. Gov't Spec, 1960. Good condition. Approx Weight: 57, 500 lbs. (Qty - 4 available)

Share
SPECIFICATIONS TERMS & CONDITIONS RESOURCES
Manufacturer
Struthers Wells
Model
Material
Unknown
Capacity
1870 Gal

For additional information, visit the Resource Center
