68.9 " Dia GMF Gouda Drum Flaker
Other Views - click image for larger view
68.9 " Dia GMF Gouda Drum Flaker 68.9 " Dia GMF Gouda Drum Flaker 68.9 " Dia GMF Gouda Drum Flaker 68.9 " Dia GMF Gouda Drum Flaker 68.9 " Dia GMF Gouda Drum Flaker 68.9 " Dia GMF Gouda Drum Flaker 68.9 " Dia GMF Gouda Drum Flaker 68.9 " Dia GMF Gouda Drum Flaker

68.9 " dia gmf gouda drum flaker

Stock # 19897
Sold
Capacity 68.9 " Dia

Overview

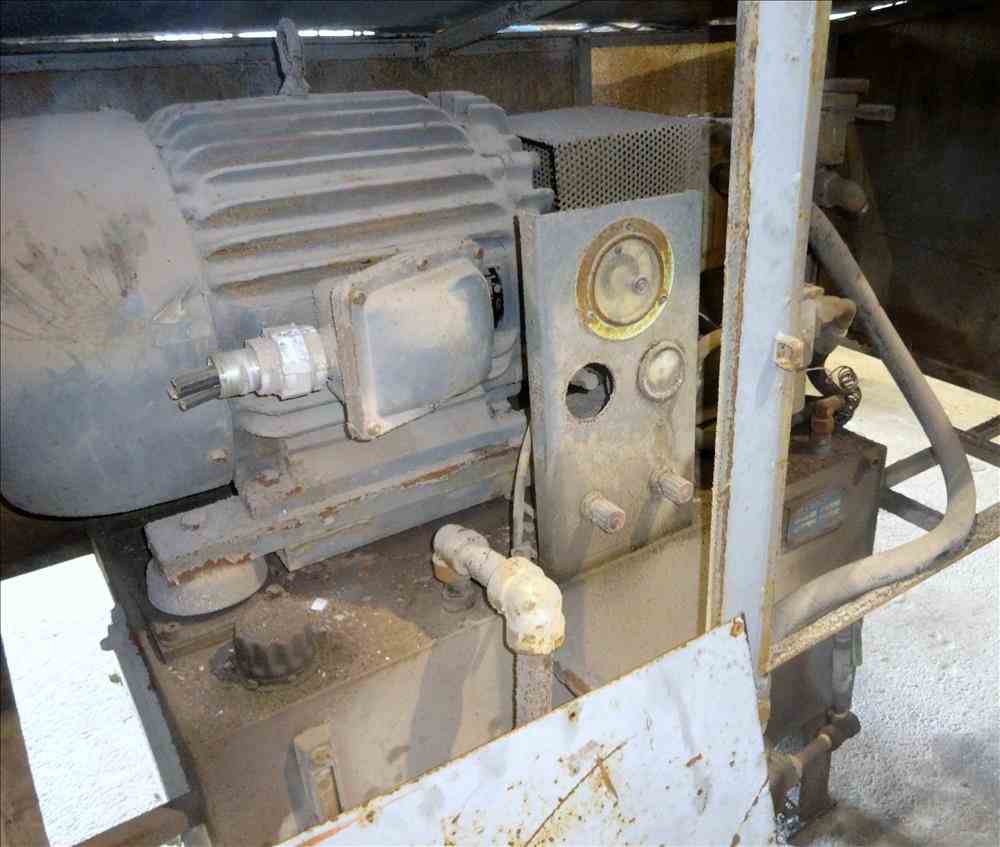

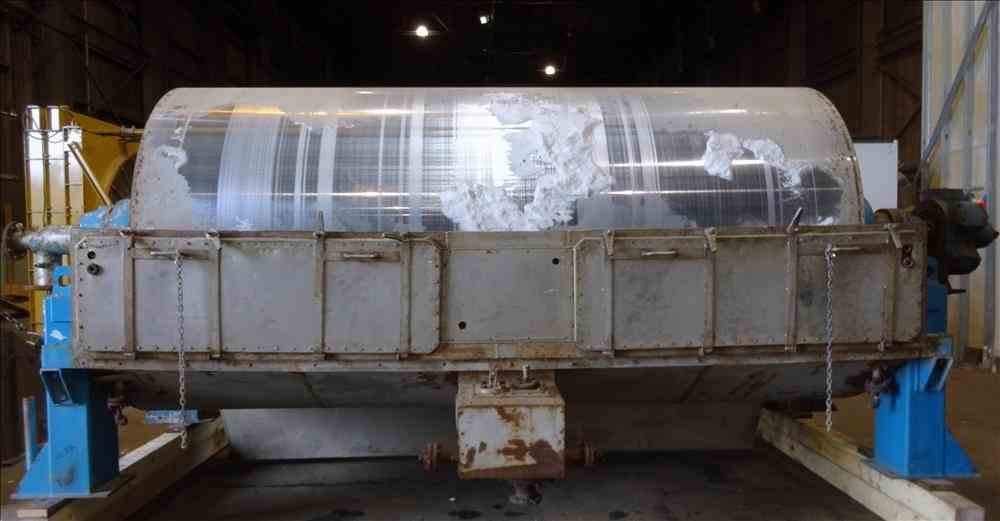

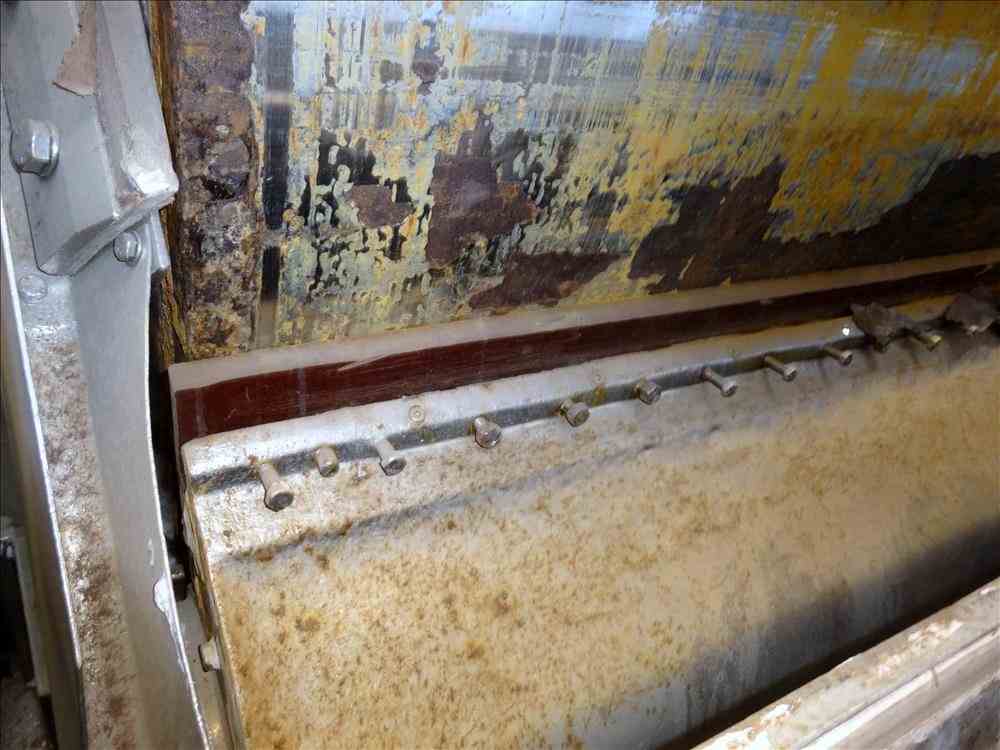

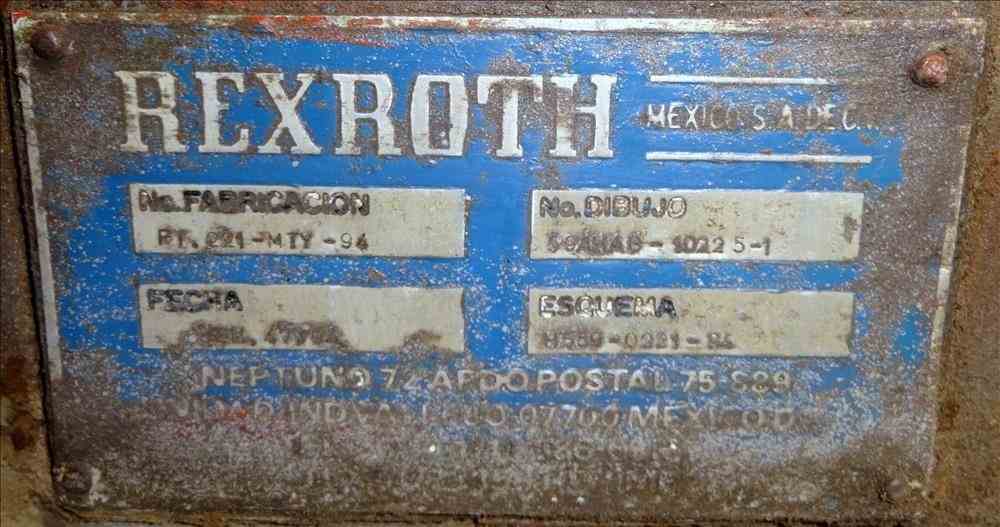

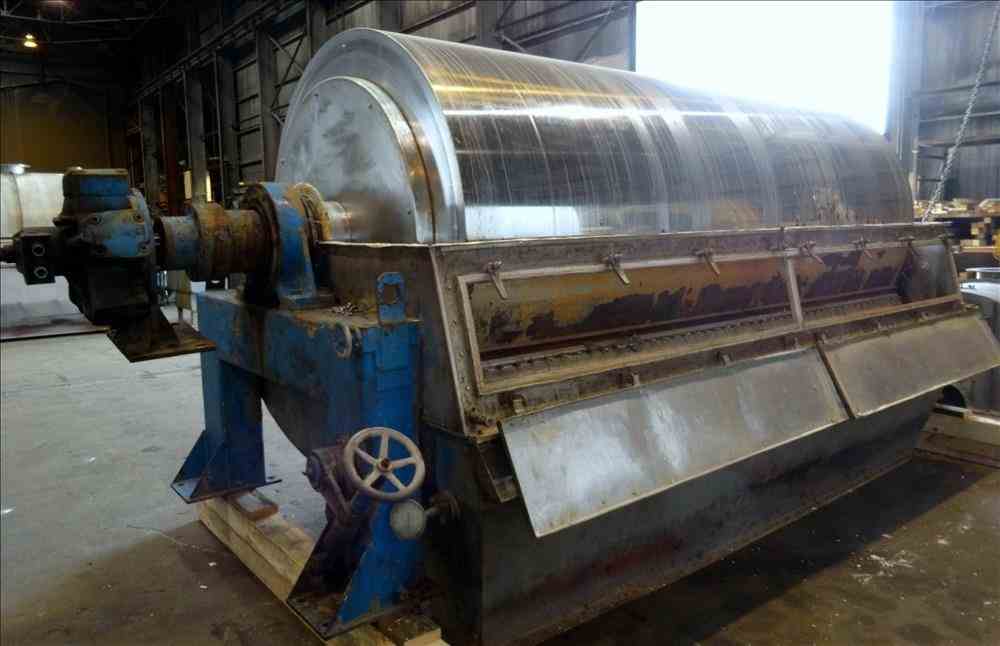

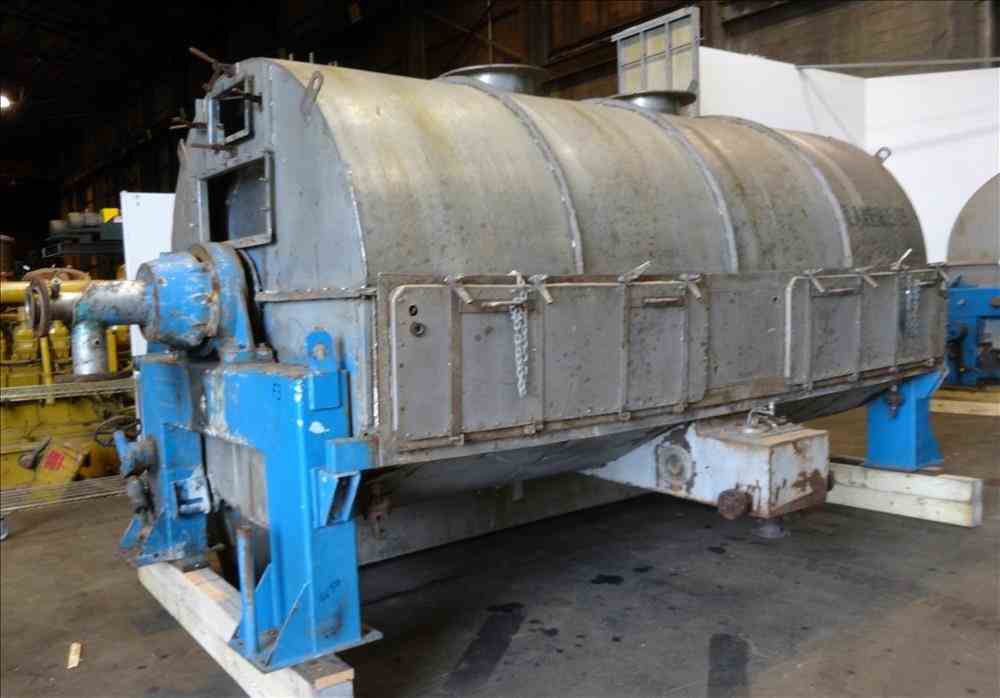

Used 68" Dia Single Drum K Flaker. Manufactured by GMF Gouda. Type K17.5/36. Cooling Surface 215 Square Feet. 68.90" (1750mm) Diameter x 141.7323" (3600mm) face cored chrome plated drum. Drums: stainless steel 1.4301 with a chromium layer. Knifeholder with stainless steel cladding, 1.4306 dippan and 1.4301 encasing. Includes (1) knife scraper with blade, end drum scrapers, manually adjustable. Hydraulically driven by a 30 hp, 3/60/230/460 volt, 1160 rpm motor, Rexroth Hydraulic unit. Top fume hood with (2) 16", (2) 4" openings. Jacketed 304 stainless steel trough with (4) side access doors. Mounted on a carbon steel frame. Includes discharge conveyor, driven by a 3 hp, 1750 rpm gear motor, 25.6 to 1 ratio. Serial #RT.221-MTY-94. Built 1994.

Share
SPECIFICATIONS TERMS & CONDITIONS RESOURCES
Manufacturer
GMF Gouda
Model
K17.5/36
Material
Unknown
Capacity
68.9 " Dia
Category
Subcategory
