0.3 kwa westinghouse transformer

Stock # 18340

Capacity 0.3 KWA

Sold

0.3 kwa westinghouse transformer

Stock # 18340

Capacity 0.3 KWA

View Similar Items Sell Similar Equipment

Overview

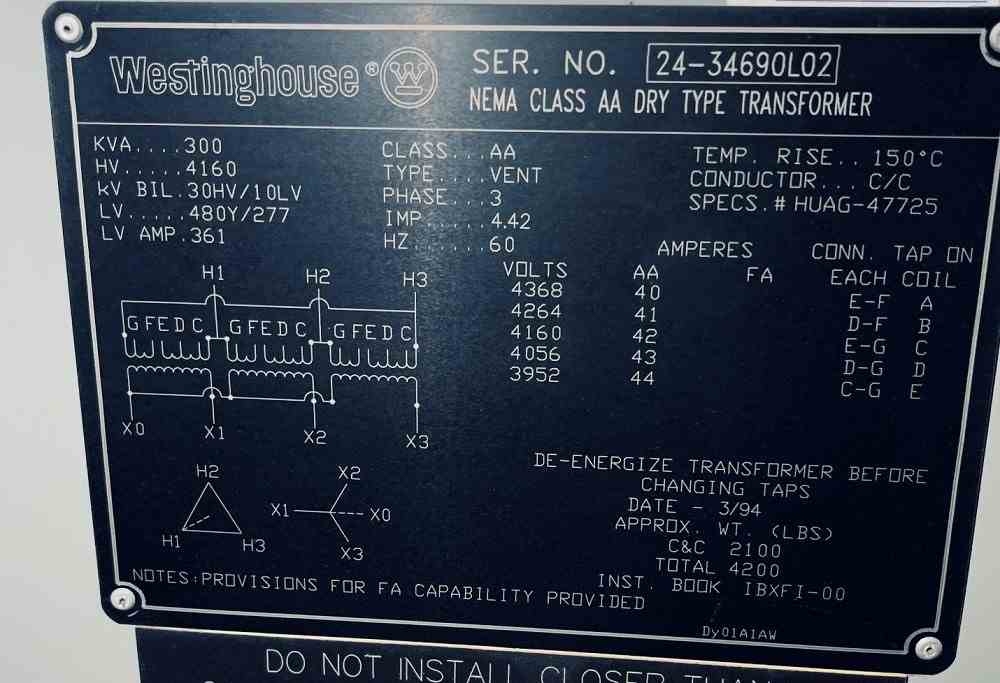

Used 300 kva Dry type Transformer. Manufactured by Westinghouse. 3 phase, 60 hz, 150 deg C rise, 4.42% impedance. Class AA. type VENT. Serial #24-34690L02. Built 1994. Copper conductor. HV: 4160 V delta 30 kv BIL. Taps: 4368-4264-4160-4056-3952. LV: 480 Y/277, 10 kv BIL. Core & coil 2,100 lbs. Total weight 4,200 lbs.

Share

0.3 KWA Westinghouse Transformer

Overview

Used 300 kva Dry type Transformer. Manufactured by Westinghouse. 3 phase, 60 hz, 150 deg C rise, 4.42% impedance. Class AA. type VENT. Serial #24-34690L02. Built 1994. Copper conductor. HV: 4160 V delta 30 kv BIL. Taps: 4368-4264-4160-4056-3952. LV: 480 Y/277, 10 kv BIL. Core & coil 2,100 lbs. Total weight 4,200 lbs.

SPECIFICATIONS TERMS & CONDITIONS RESOURCES

Manufacturer

Westinghouse

Model

Dry Type

Material

Unknown

Capacity

0.3 KWA

Category

Transformers

Subcategory

Transformers
