150 GPM FRC Systems Dissolved Air Flotation System
Other Views - click image for larger view
150 GPM FRC Systems Dissolved Air Flotation System 150 GPM FRC Systems Dissolved Air Flotation System 150 GPM FRC Systems Dissolved Air Flotation System

150 gpm frc systems dissolved air flotation system

Stock # 17692
Sold
Capacity 150 GPM

Overview

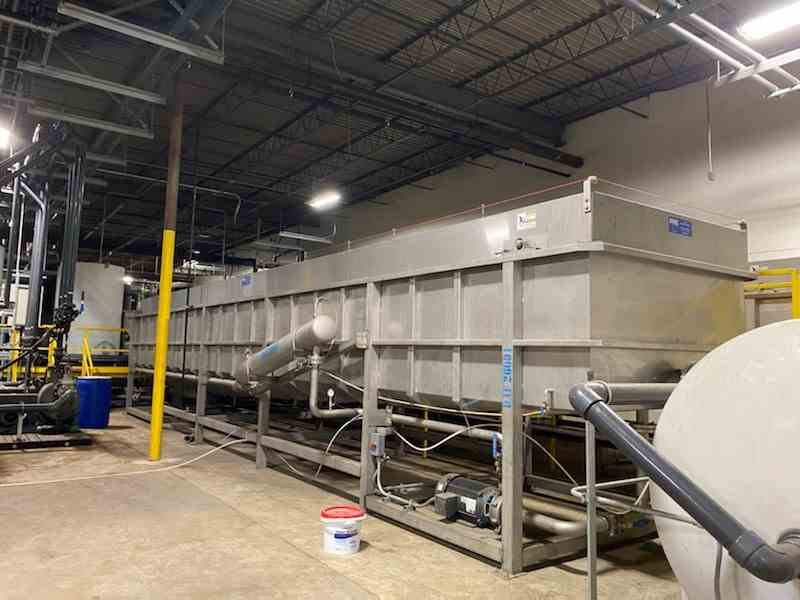

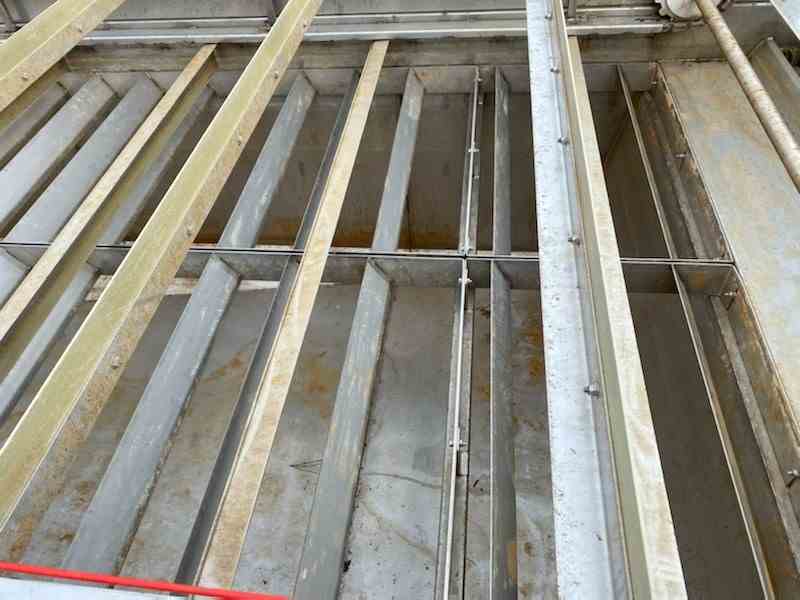

UNUSED FRC Systems PWL-120 Series DAF 304 Stainless Steel Dissolved Air Flotation System with Flocculator. Peak Flow Rate up to 150 GPM. Surface Area 244 sq ft. Includes 304 SS skimmer flights, driven by a 1hp, 3/60/460 volt. Bottom 304 SS Auger drive by a .33 HP motor. Whitewater aeration system with (1) 316 SS 160GPM 20HP Pump. 304 SS air dissolving tube. Includes Touch panel PLC controls, manuals. Dimensions 43'6"L x 9'6"W x 9'6"H. 13760 Lbs Serial #17012559. Built 2018.

Share
SPECIFICATIONS TERMS & CONDITIONS RESOURCES
Manufacturer
FRC Systems
Model
PWL-120
Material
304 Stainless Steel
Capacity
150 GPM
Subcategory

For additional information, visit the Resource Center
