92 Gal DCI 316-SS Stainless Steel Reactor Body
Other Views - click image for larger view
92 Gal DCI 316-SS Stainless Steel Reactor Body 92 Gal DCI 316-SS Stainless Steel Reactor Body 92 Gal DCI 316-SS Stainless Steel Reactor Body 92 Gal DCI 316-SS Stainless Steel Reactor Body 92 Gal DCI 316-SS Stainless Steel Reactor Body 92 Gal DCI 316-SS Stainless Steel Reactor Body

92 gal dci 316-ss stainless steel reactor body

Stock # 16781
Sold
Capacity 92 Gal

Overview

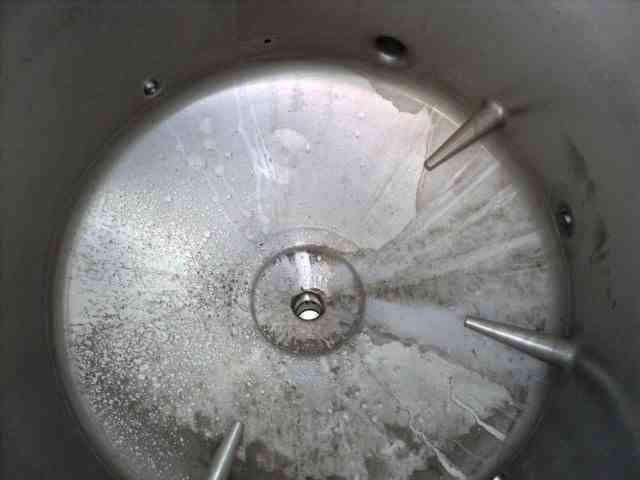

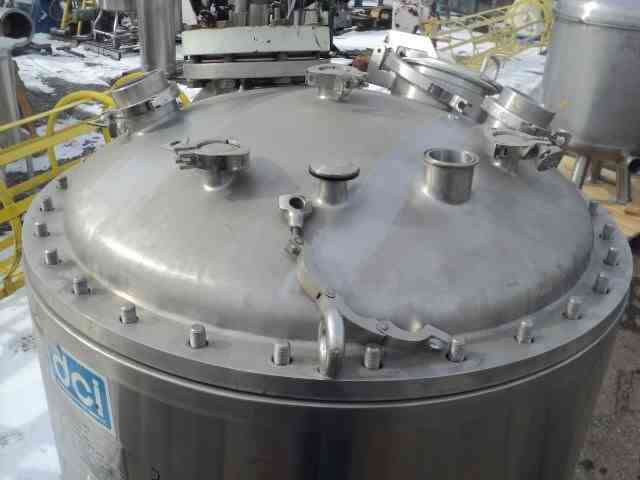

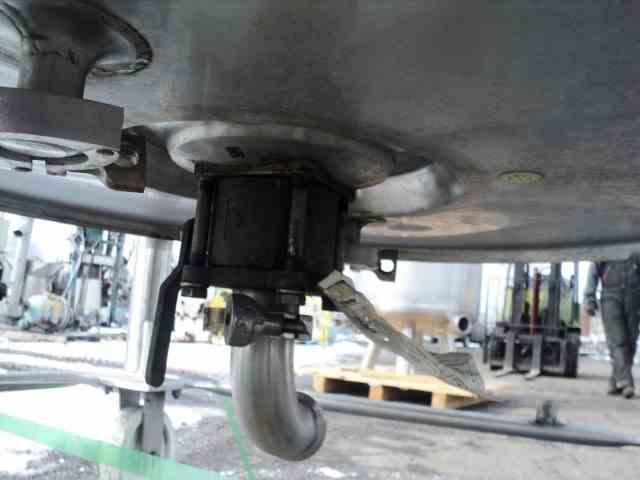

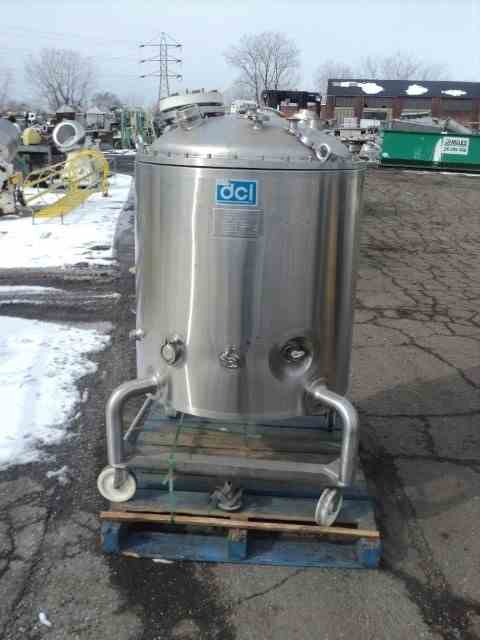

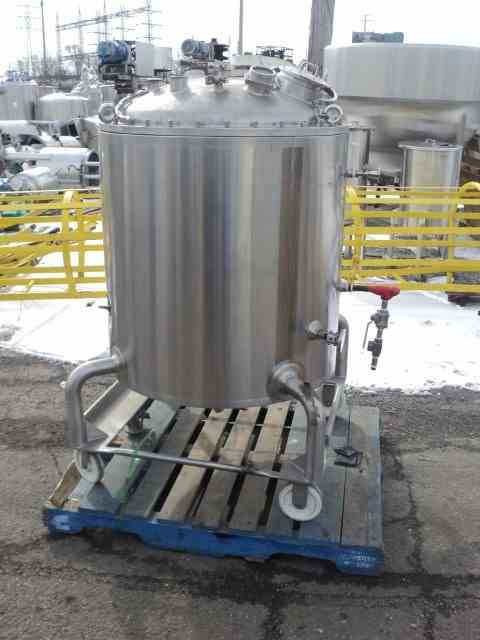

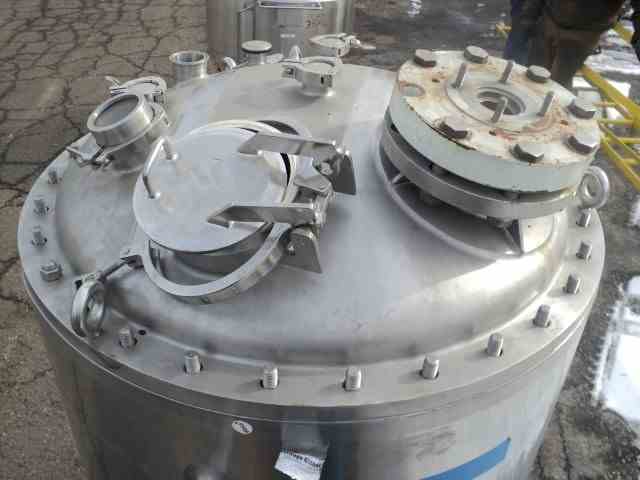

Used 350 liter (92 Gal) DCI Reactor Body, 316 stainless steel construction, 30" diameter x 27" straight side, removable dish top, dish bottom, rated 65 PSI and full vacuum at 430 F internal, 304 stainless steel jacketed for 65 PSI and full vacuum at 430 F, 8" agitator nozzle, 6" hand hole, (2) 2.5" sight glasses, 1.5", (3) 1" top nozzles, 1.5" center bottom outlet, on legs, Serial# 86-PH33967, National Board# 857, built 1986.

Share
SPECIFICATIONS TERMS & CONDITIONS RESOURCES
Manufacturer
DCI
Model
NA
Material
316-SS
Capacity
92 Gal
Category
