600 Cu Ft Steel Tote
Other Views - click image for larger view
600 Cu Ft Steel Tote 600 Cu Ft Steel Tote 600 Cu Ft Steel Tote 600 Cu Ft Steel Tote 600 Cu Ft Steel Tote

600 cu ft steel tote

Stock # 16646
Sold
Capacity 600 Cu Ft

Overview

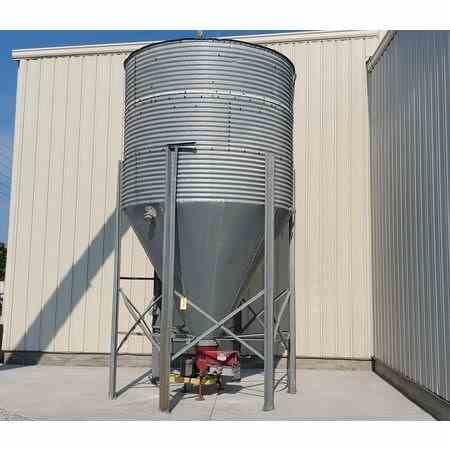

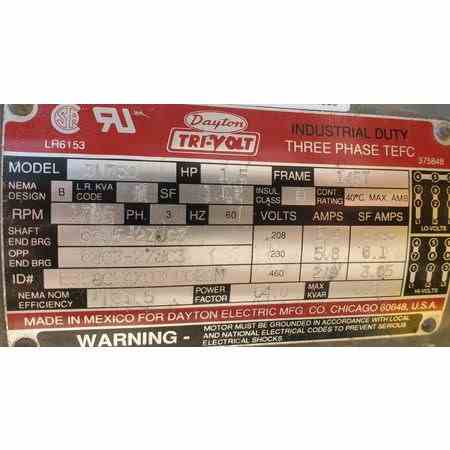

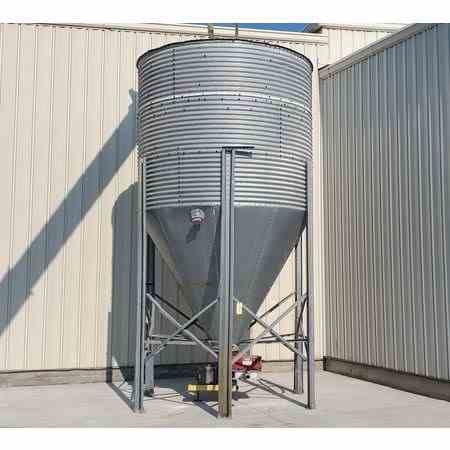

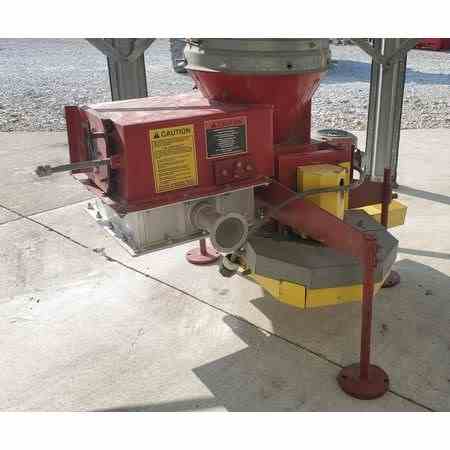

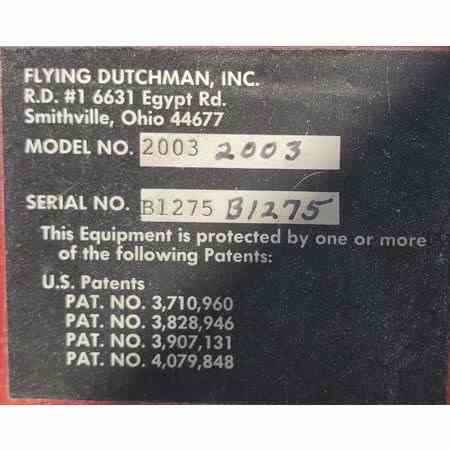

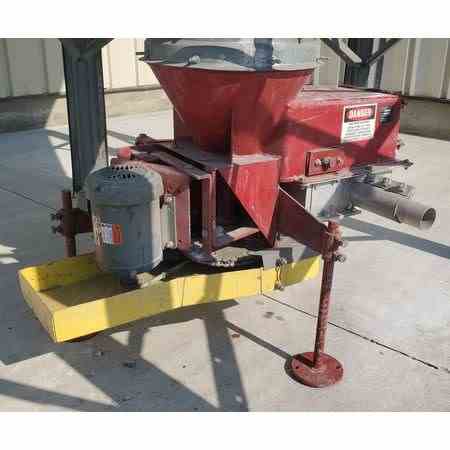

Used Bolted Galvanized Silo 600 cu/ft Dry Storage Hopper Bin w/ Discharger. (Capacity equivalent to 482 bushels). Bin wall is 9' diameter with a 7'-6" straight side wall, fabricated with galvanized & corrugated steel sheet (18GA). All bin panels are of a sealed overlap, bolt-together design. Sloped roof with air vent and centered 20" dia. product inlet sleeve. High and low level rotary paddle level indicators. 60 deg. bottom cone hopper. Supported on six- braced legs with base plates for anchoring. Product discharge is 16"Ø sleeve into a Flying Dutchman bin discharger (requires 230/460 volts, 3 ph. 60Hz). Floor to product inlet is 18'-4".

Share
SPECIFICATIONS TERMS & CONDITIONS RESOURCES
Manufacturer
Unknown
Model
NA
Material
Steel
Capacity
600 Cu Ft
